LF Driver10NDL series
B&C
B&C 10NDL88
B&C 10NDL88 is a 10" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 61Hz, Qts 0.25, Vas 18.4L, Xmax 8.1mm, sensitivity 94.1dB, plus 259cm³ Vd and 235 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £203.38.
Size
10"
Impedance
8Ω
RMS Power
700W
Sensitivity
94.1dB
96.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
235
Vented alignment
Vd
259cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
free-air SPL240 ptsp3medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 b22dd3b040df…Medium confidence4,053 selected pixels of 4,176 - Trace datasheet-response-trace-poc/v2

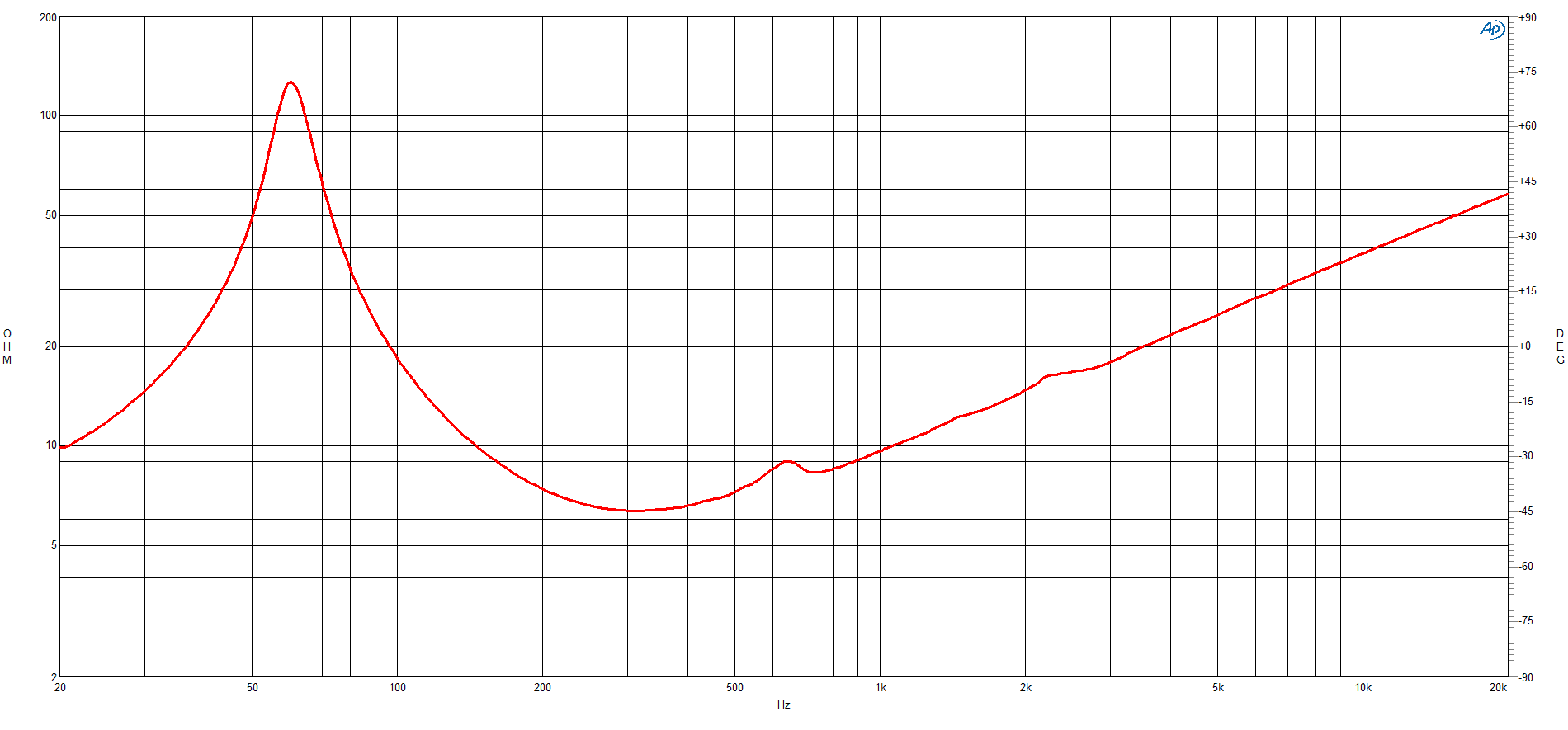

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 b22dd3b040df…Medium confidence2,923 selected pixels of 2,923

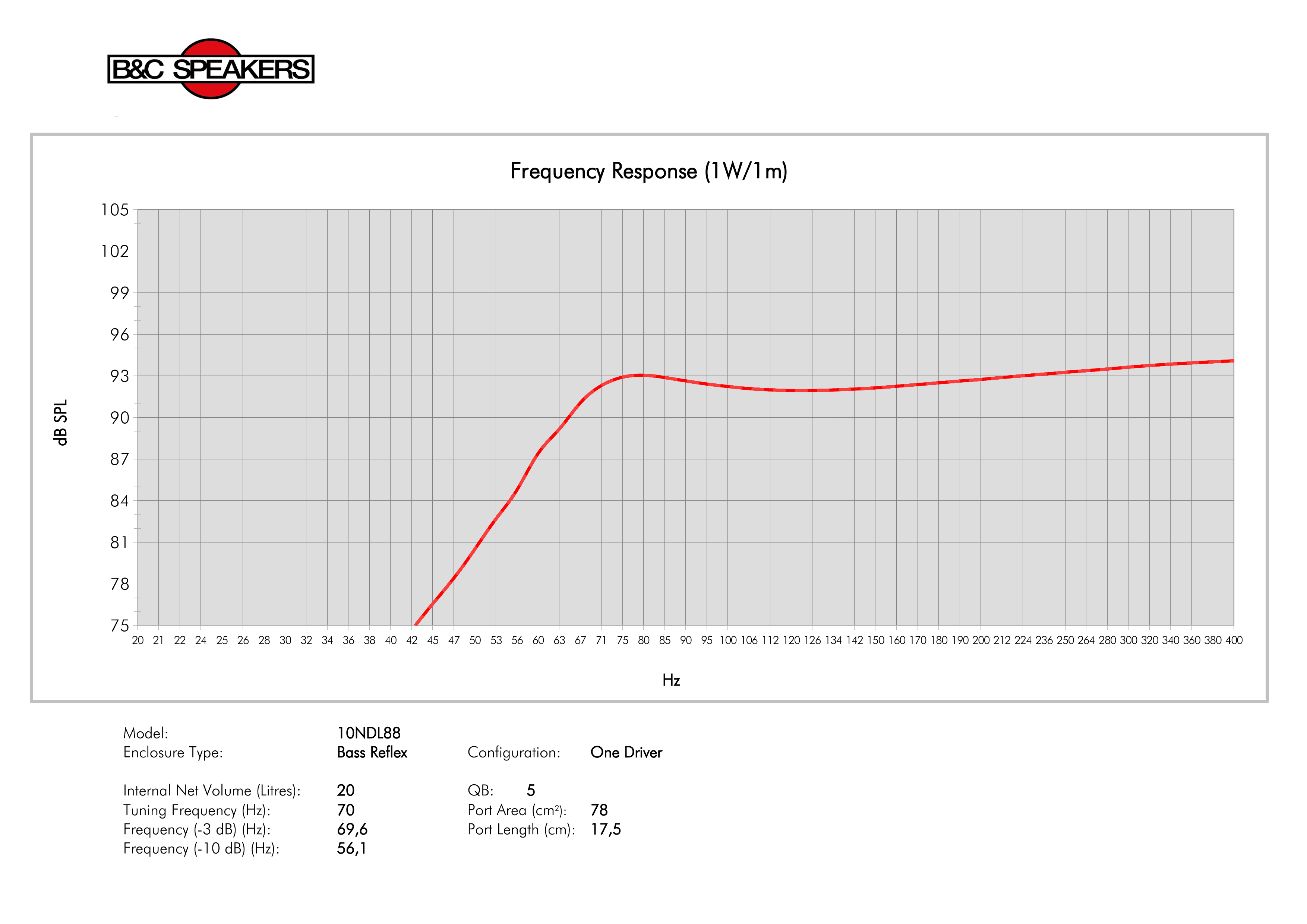

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs61Hz
Qts0.25
Qes0.26
Qms7.3
Vas18.4L
Re5.1Ω
Le1.18mH
BL20.0Tm
Sd320cm²
Mms54g
Xmax8.1mm
SPL94dB
Power700W
Power Nominal700W
Impedance8Ω
Min Impedance6.3Ω
F Low61Hz
F High2500Hz
Voice Coil88mm
Flux Density1.05T
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorsjpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£203.38
inc VAT
In stock
bluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£221.47
inc VAT
Best current price
Updated 7 Aug 2026
jpleisure
£203.38
Avg £209.41£6.03 below avg (-2.9%)
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.6kg
Diameter261.0mm
Overall Depth128.0mm
Cutout Diameter232.0mm
Bolt Circle Diameter246.0mm
Additional Manufacturer Specs
Bl20 Tm
Fs61 Hz
Le1.18 mH
Re5.1 Ω
Sd320 cm² (49.6 in²)
Ebp235 Hz
Mms53.5 g
Qes0.26
Qms7.3
Qts0.25
Vas18.4 dm³ (0.65 ft³)
η01.59 %
ConeRCK10NDL888
Xmax8.1 mm
Xvar7.5 mm
SpiderDouble Silicone
Cone ShapeCurvilinear
Pole DesignT-Pole
Winding Depth21.7 mm (0.85 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter250 mm (10 in)
Winding MaterialAluminium
Magnetic Gap Depth11 mm (0.43 in)
Recommended Tuning70 Hz
Bolt Circle Diameter246 mm (9.69 in)
Recommended Enclosure20 dm³ (0.71 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter232 mm (9.13 in)
Flange And Gasket Thickness14 mm (0.55 in)
Air Volume Occupied By Driver1.5 dm³ (0.05 ft³)
