- Net volume
- 20L
- Tuning
- 70Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.

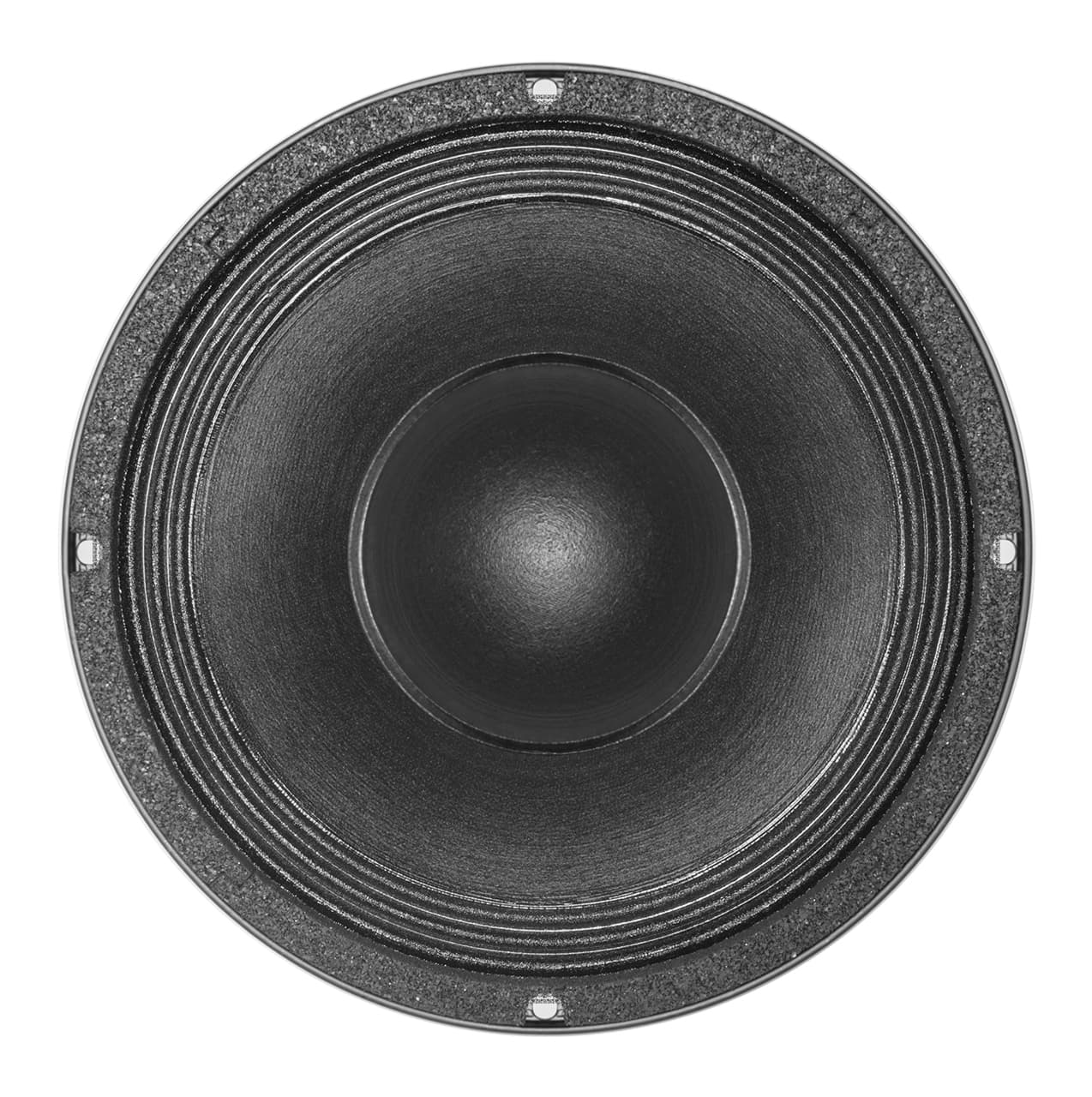

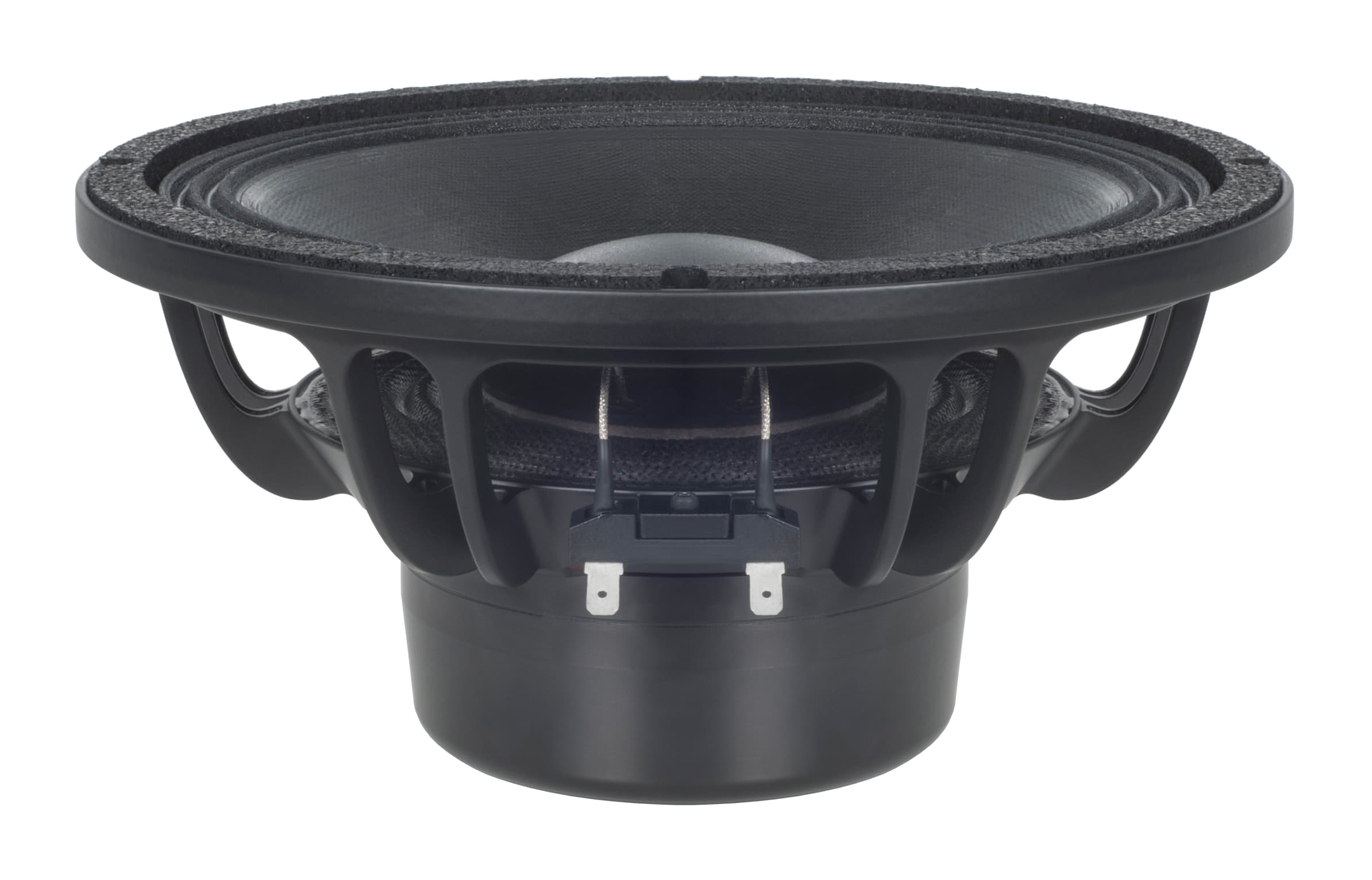

10-inch LF driver · 10NDL series · 88 mm voice coil · 700 W
B&C 10NDL88 16Ω
67–2500 Hz
No current price
- Fs
- 67Hz
- Xmax
- 7.8mm
- SPL
- 94dB
- Pe
- 700W
- BL
- 26.4T·m
- Vd
- 250cm³
- Qts
- 0.32
- Vas
- 16L

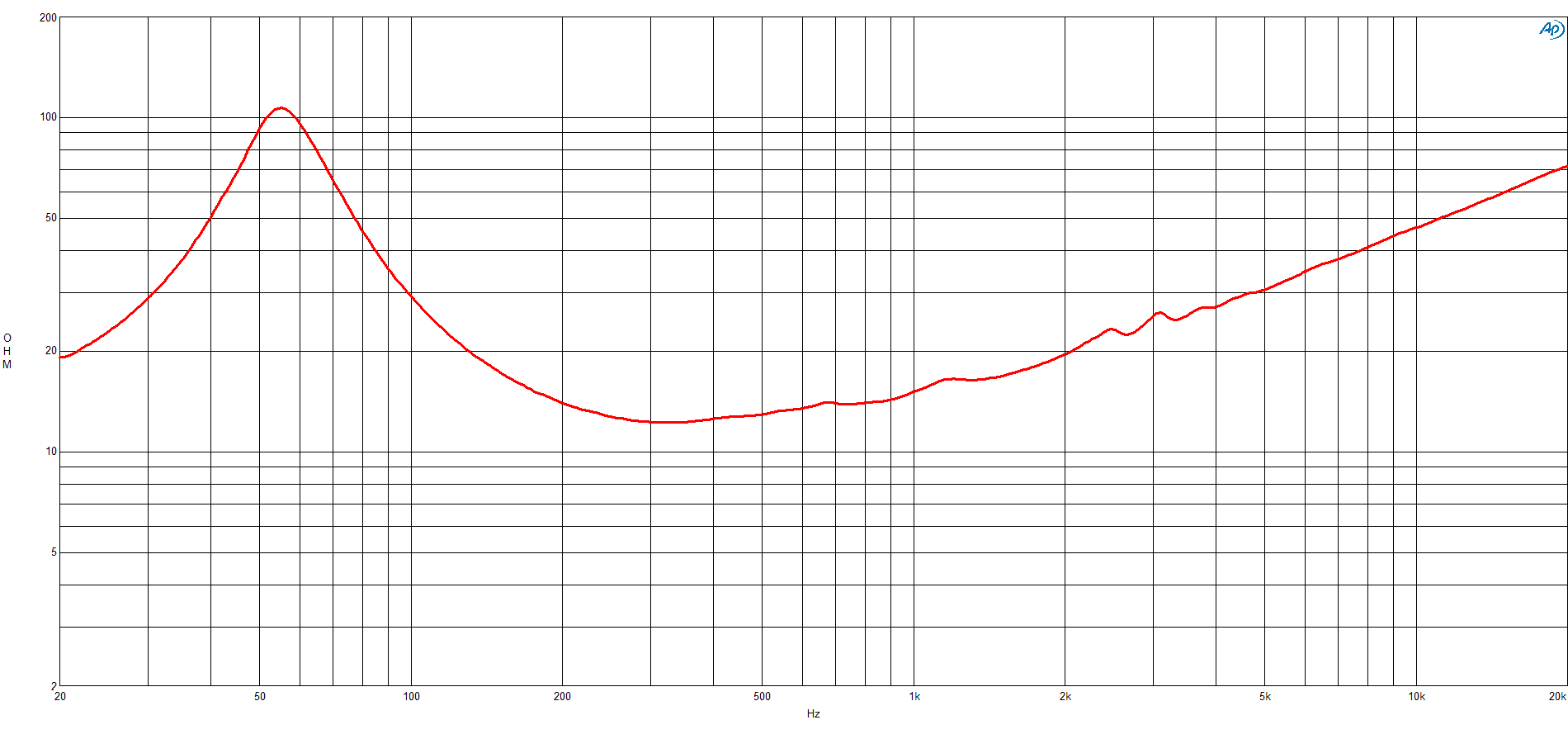

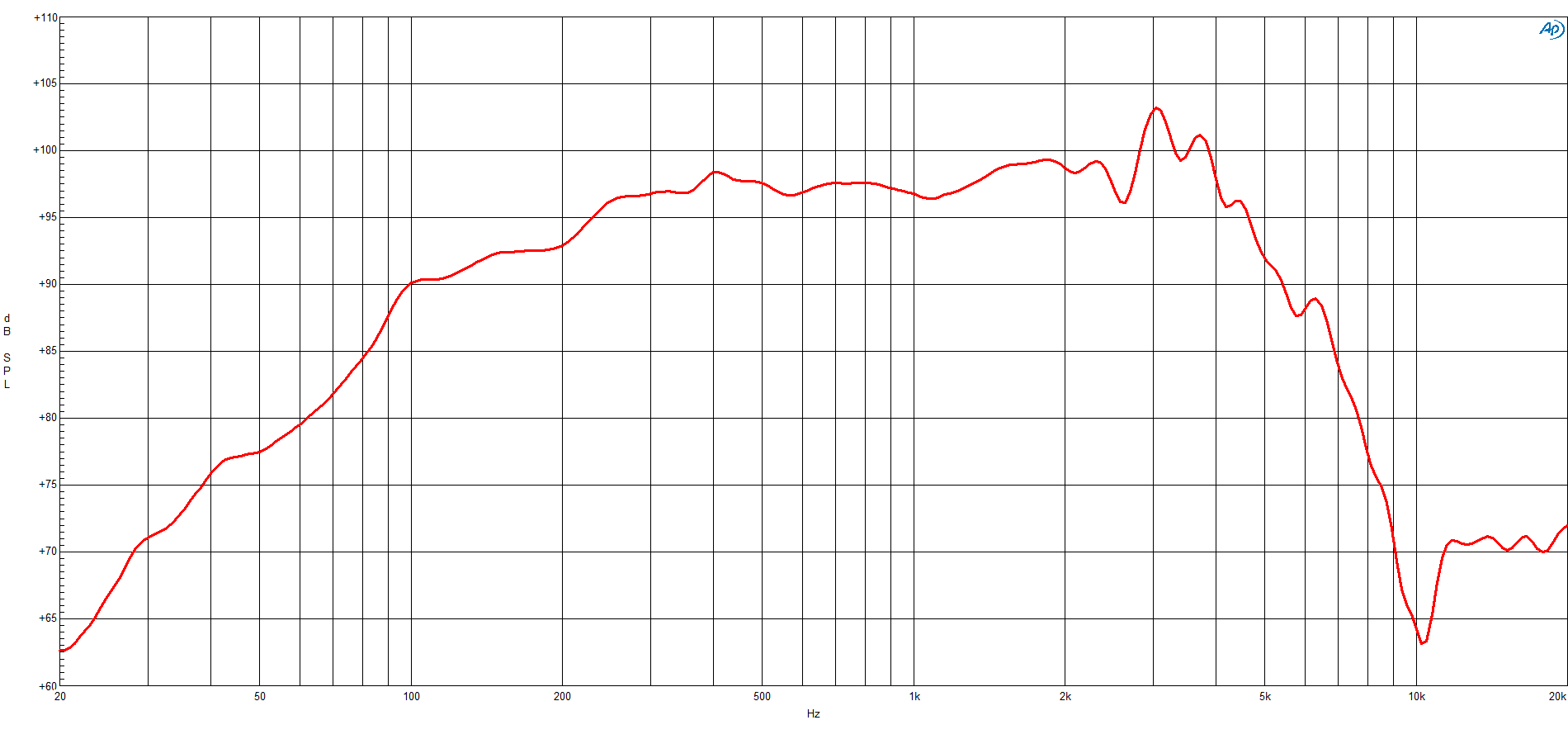

Published graphs
B&C 10NDL88 is a 10-inch 16 ohm LF driver rated at 700 W RMS. The validated T/S data includes Fs 67 Hz, Qts 0.32, Vas 15.6 L, Xmax 7.8 mm, sensitivity 93.6 dB, plus 250 cm³ Vd and 203 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 67Hz
- Qts
- 0.32
- Qes
- 0.33
- Qms
- 6.2
- Vas
- 15.6L
- Re
- 10.7Ω
- Le
- 2mH
Motor and cone
- BL
- 26.4T·m
- Sd
- 320cm²
- Mms
- 52g
- Xmax
- 7.8mm
- Vd †
- 250cm³
- Voice coil
- 88mm
- Flux density
- 1.05T
Power and response
- Sensitivity †
- 93.6dB
- Manufacturer sensitivity
- 95.5dB
- Power
- 700W
- Nominal power
- 700W
- Impedance
- 16Ω
- Min. impedance
- 13.1Ω
- Range
- 67–2500Hz
- EBP †
- 203 · Leans vented
Size and mounting
- Diameter
- 261mm
- Cutout
- 232mm
- Bolt circle
- 246mm
- Depth
- 128mm
- Weight
- 4.6kg
Sensitivity shows 93.6 dB, calculated from the T/S values. B&C publishes 95.5 dB, 1.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 26.4T·m
- Fs
- 67Hz
- Le
- 2mH
- Re
- 10.7Ω
- Sd
- 320cm²
- Mms
- 52g
- Qes
- 0.33
- Qms
- 6.2
- Qts
- 0.32
- SPL
- 93.6dB
- Vas
- 15.6L
- Xmax
- 7.8mm
- Power
- 700W
- Impedance
- 16Ω
- Flux density
- 1.05T
- Sensitivity
- 95.5dB
- Low limit
- 67Hz
- Nominal power
- 700W
- Calculated sensitivity †
- 93.6dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 95.5dB
- Min. impedance
- 13.1Ω
- Voice coil
- 88mm
- Weight
- 4.6kg
- Diameter
- 261mm
- Depth
- 128mm
- Cutout
- 232mm
- Bolt circle
- 246mm
- Bl
- 26.4 Tm
- Fs
- 67 Hz
- Le
- 2 mH
- Re
- 10.7 Ω
- Sd
- 320 cm² (49.6 in²)
- Ebp
- 203 Hz
- Mms
- 52 g
- Qes
- 0.33
- Qms
- 6.2
- Qts
- 0.32
- Vas
- 15.6 dm³ (0.55 ft³)
- Η0
- 1.42 %
- Cone
- RCK10NDL8816
- Xmax
- 7.8 mm
- Xvar
- 8 mm
- Depth
- 128 mm (5.04 in)
- Spider
- Double Silicone
- Cone shape
- Curvilinear
- Net weight
- 4.6 kg (10.14 lb)
- Pole design
- T-Pole
- Sensitivity
- 95.5 dB
- Flux density
- 1.05 T
- Shipping box
- 295x314x175 mm (11.61x12.36x6.89 in)
- Winding depth
- 21 mm (0.83 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 67 Hz - 2500 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 5.2 kg (11.46 lb)
- Nominal diameter
- 250 mm (10 in)
- Overall diameter
- 261 mm (10.28 in)
- Winding material
- Aluminium
- Minimum impedance
- 13.1 Ω
- Nominal impedance
- 16 Ω
- Magnetic gap depth
- 11 mm (0.43 in)
- Recommended tuning
- 70 Hz
- Recommended loading
- Vented Box
- Voice coil diameter
- 88 mm (3.5 in)
- Bolt circle diameter
- 246 mm (9.69 in)
- Recommended enclosure
- 20 dm³ (0.71 ft³)
- Woofer cone treatment
- WP Waterproof Front Side
- Baffle cutout diameter
- 232 mm (9.13 in)
- Nominal power handling
- 700 W
- Continuous power handling
- 1400 W
- Flange and gasket thickness
- 14 mm (0.55 in)
- Air volume occupied by driver
- 1.5 dm³ (0.05 ft³)
