Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF DriverNERO series
SB Audience
SB Audience NERO-10MWN600D
SB Audience NERO-10MWN600D is a 10" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 68Hz, Qts 0.34, Vas 18.8L, Xmax 7.3mm, sensitivity 94.2dB, plus 260cm³ Vd and 189 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £152.56.
Size
10"
Impedance
8Ω
RMS Power
600W
Sensitivity
94.2dB
EBP
189
Vented alignment
Vd
260cm³

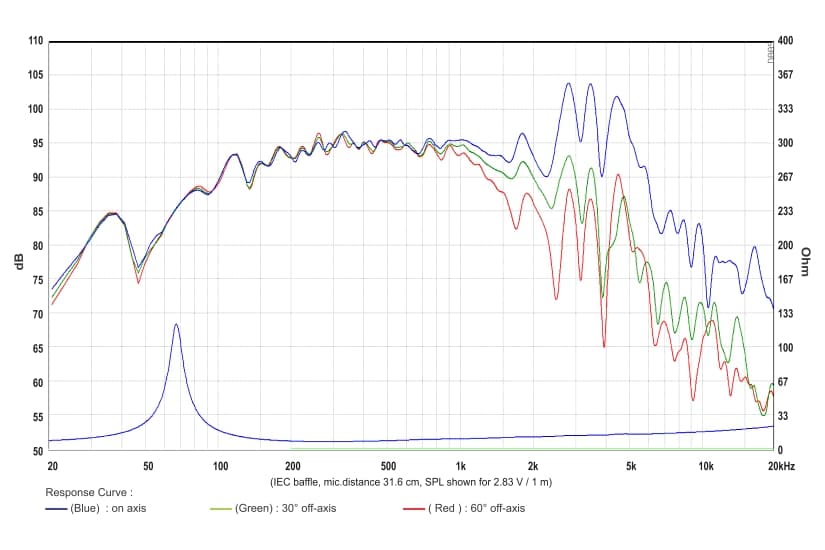

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs68Hz
Qts0.34
Qes0.36
Qms5.9
Vas18.8L
Re5.4Ω
Le0.27mH
BL18.2Tm
Sd356cm²
Mms52g
Xmax7.3mm
SPL94dB
Power600W
Impedance8Ω
Min Impedance5.3Ω
F Low68Hz
F High6200Hz
Voice Coil76mm
Flux Density1.07T
Pricing & availability
Price definitionsPrice movement
Best current price
£152.56
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

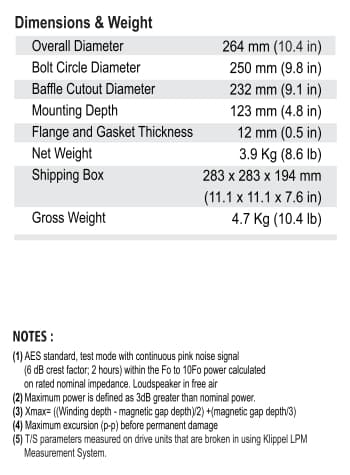

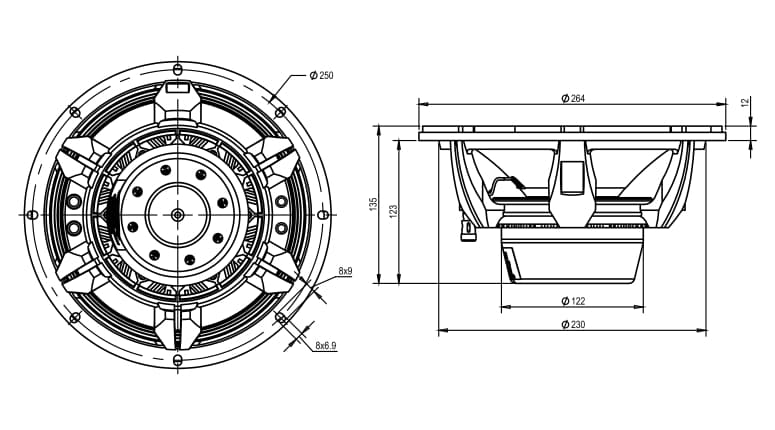

Dimensions & Physical
Weight3.9kg
Diameter264.0mm
Cutout Diameter232.0mm
Bolt Circle Diameter250.0mm
