10-inch LF driver · 10MB series · 77 mm voice coil · 500 W

Oberton 10MB500 8Ω

Name: Oberton 10MB500 8 Ohm
Brand: Oberton
SKU: 10MB500

8 Ω · 65–3000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 66Hz
Xmax: 8.3mm
SPL: 95dB
Pe: 500W
BL: 15.4T·m
Vd: 262cm³
Qts: 0.31
Vas: 22L

See all 28 specs

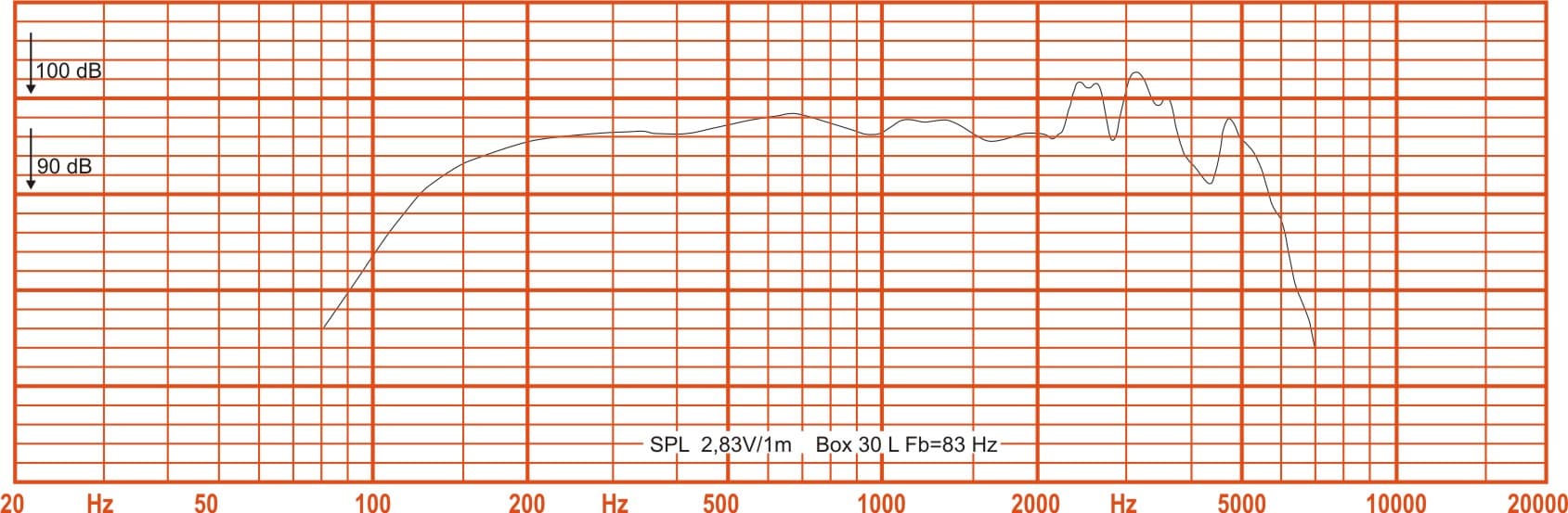

Published graphs

Specifications

Published by Oberton

Manufacturer page

Datasheet PDF

Oberton 10MB500 is a 10-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 66 Hz, Qts 0.31, Vas 22.1 L, Xmax 8.3 mm, sensitivity 95 dB, plus 262 cm³ Vd and 209 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 66Hz
Qts: 0.31
Qes: 0.32
Qms: 9.5
Vas: 22.1L
Re: 4.8Ω
Le: 0.33mH

Motor and cone

BL: 15.4T·m
Sd: 317cm²
Mms: 38g
Xmax: 8.3mm
Vd †: 262cm³
Voice coil: 77mm
Flux density: 1.25T

Power and response

Sensitivity †: 95dB
Manufacturer sensitivity: 200dB
Power: 500W
Impedance: 8Ω
Min. impedance: 6.0Ω
Range: 65–3000Hz
EBP †: 209 · Leans vented

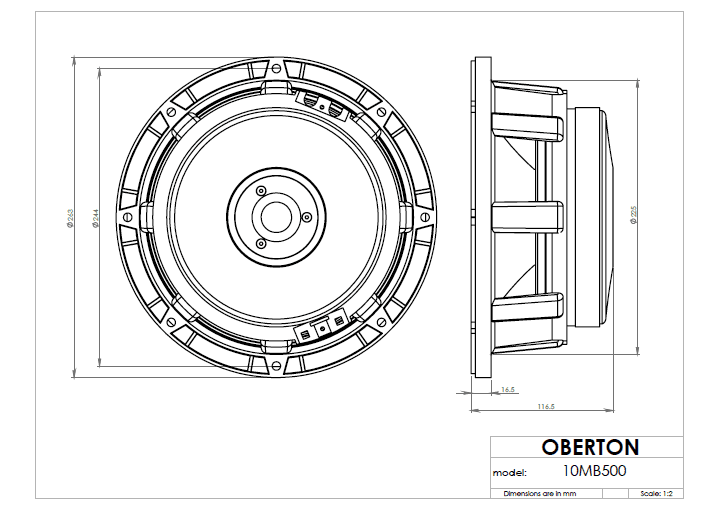

Size and mounting

Diameter: 263mm
Cutout: 225mm
Bolt circle: 244mm
Depth: 116.5mm
Weight: 6.2kg

Other published values

Cms: 0.15mm/N
Power Program: 1000

Sensitivity shows 95.0 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 105.0 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Oberton lists

LF · Primary · 10″

BL: 15.4T·m
Fs: 66Hz
Le: 0.33mH
Re: 4.8Ω
Sd: 317cm²
Cms: 0.15mm/N
Mms: 38g
Qes: 0.32
Qms: 9.5
Qts: 0.31
SPL: 95dB
Vas: 22.1L
Xmax: 8.3mm
Power: 500W
Impedance: 8Ω
Flux density: 1.25T
Sensitivity: 200dB
Low limit: 65Hz
Power Program: 1000
Calculated sensitivity †: 95dB
High limit: 3000Hz
Manufacturer sensitivity: 200dB
Min. impedance: 6.0Ω
Voice coil: 77mm
Weight: 6.2kg
Diameter: 263mm
Depth: 116.5mm
Cutout: 225mm
Bolt circle: 244mm

Compare

Same-size drivers, compared with the 10MB500. Clear differences are green when better and red when worse.

This driver10MB500

Best price

–

66 Hz

Qts

0.31

Vas

22.1 L

15.4 T·m

Xmax

8.3 mm

Sensitivity

95 dB

Power

500 W

RCFMB10G251

£108.44

Fs76 Hz +15%

Qts0.34 +11%

Vas24 L +9%

BL14.9 T·m −4%

Xmax7 mm −15%

Sensitivity96.8 dB +1.8

B&C10HPL64

£115.00

Fs61 Hz −7%

Qts0.31 –

Vas32 L +45%

BL15 T·m –

Xmax4 mm −52%

Sensitivity95.5 dB +0.5

B&C10CL64

£116.06

Fs63 Hz −4%

Qts0.31 –

Vas22.2 L –

BL16.3 T·m +6%

Xmax5.2 mm −37%

Sensitivity94.3 dB −0.7

B&C10FL64

£117.37

Fs63 Hz −4%

Qts0.32 +5%

Vas23 L +4%

BL16 T·m +4%

Xmax5 mm −39%

Sensitivity94.3 dB −0.7

Beyma10MCS500

£128.54

Fs65 Hz –

Qts0.31 –

Vas24 L +9%

BL17.6 T·m +14%

Xmax8 mm −3%

Sensitivity95 dB –

CIAREPW257

£132.30

Fs57 Hz −14%

Qts0.30 –

Vas31 L +40%

BL15.9 T·m –

Xmax5.5 mm −33%

Sensitivity94.4 dB −0.6

FaitalPRO10PR320

£135.67

Fs48 Hz −27%

Qts0.29 −5%

Vas52.7 L +139%

BL13.5 T·m −13%

Xmax7.4 mm −11%

Sensitivity94.8 dB –

Beyma10G40

£137.20

Fs45 Hz −32%

Qts0.30 –

Vas49 L +122%

BL17 T·m +10%

Xmax7 mm −15%

Sensitivity93.5 dB −1.5

Beyma10MC500

£143.18

Fs65 Hz –

Qts0.29 −5%

Vas24 L +9%

BL18.3 T·m +18%

Xmax8 mm −3%

Sensitivity95.4 dB –

PRV Audio10MR1200X

£149.54

Fs87 Hz +32%

Qts0.29 −5%

Vas21.8 L –

BL17.5 T·m +13%

Xmax2.5 mm −70%

Sensitivity98.8 dB +3.8

SB AudienceNERO-10MWN600D

£152.56

Fs68 Hz +3%

Qts0.34 +11%

Vas18.8 L −15%

BL18.2 T·m +18%

Xmax7.3 mm −12%

Sensitivity94.2 dB −0.8

FaitalPRO10FH500

£158.25

Fs60 Hz −9%

Qts0.26 −15%

Vas25.8 L +17%

BL17.9 T·m +16%

Xmax7.5 mm −9%

Sensitivity95 dB –

FaitalPRO10FH520

£165.49

Fs60 Hz −9%

Qts0.29 −5%

Vas23.5 L +6%

BL18 T·m +17%

Xmax7.3 mm −12%

Sensitivity94.3 dB −0.7

Sica10 S 3 CP

£166.62

Fs42 Hz −36%

Qts0.30 –

Vas42.8 L +94%

BL15.6 T·m –

Xmax7 mm −15%

Sensitivity92.1 dB −2.9

Eighteen Sound10NTLW2500

£186.32

Fs65 Hz –

Qts0.33 +8%

Vas21 L −5%

BL17.4 T·m +13%

Xmax7.6 mm −8%

Sensitivity94.3 dB −0.7

Eighteen Sound10NW750

£211.47

Fs53 Hz −20%

Qts0.31 –

Vas34 L +54%

BL16.4 T·m +6%

Xmax7.5 mm −9%

Sensitivity94 dB −1

B&C10CXN64

£274.31

Fs68 Hz +3%

Qts0.31 –

Vas23 L +4%

BL15.8 T·m –

Xmax5 mm −39%

Sensitivity95.4 dB –

FaitalPRO10HX240

£308.97

Fs65 Hz –

Qts0.28 −8%

Vas31.8 L +44%

BL15.5 T·m –

Xmax7.4 mm −11%

Sensitivity96.7 dB +1.7

RCFMB10G253

No current price

Fs76 Hz +15%

Qts0.34 +11%

Vas24 L +9%

BL14.9 T·m −4%

Xmax7 mm −15%

Sensitivity96.8 dB +1.8

Oberton10NDG500

No current price

Fs56 Hz −15%

Qts0.34 +10%

Vas21.5 L –

BL17.4 T·m +13%

Xmax9.5 mm +15%

Sensitivity92.4 dB −2.6

Oberton10NCX

No current price

Fs79 Hz +20%

Qts0.29 −6%

Vas20.6 L −7%

BL16.2 T·m +5%

Xmax5.3 mm −36%

Sensitivity97.4 dB +2.4

RCFMB10G350

No current price

Fs58 Hz −12%

Qts0.31 –

Vas34 L +54%

BL14.7 T·m −5%

Xmax7 mm −15%

Sensitivity95.2 dB –

No photo

PHL Audio3411NDU

No current price

Fs47 Hz −29%

Qts0.29 −5%

Vas33.3 L +51%

BL18.2 T·m +18%

Xmax8 mm −3%

Sensitivity92.5 dB −2.5

EminenceKAPPALITE KL3010LF-8

No current price

Fs45 Hz −32%

Qts0.31 –

Vas47.3 L +114%

BL18.0 T·m +16%

Xmax8.5 mm +3%

Sensitivity93.2 dB −1.8

Oberton10M250

No current price

Fs77 Hz +16%

Qts0.28 −8%

Vas23.1 L +4%

BL16.6 T·m +8%

Xmax2.8 mm −67%

Sensitivity97.6 dB +2.6

B&C10CXN76

No current price

Fs58 Hz −12%

Qts0.30 –

Vas19 L −14%

BL18.9 T·m +22%

Xmax6 mm −27%

Sensitivity92.8 dB −2.2

No photo

PHL Audio3450NDM

No current price

Fs94 Hz +43%

Qts0.29 −5%

Vas18.1 L −18%

BL17 T·m +10%

Xmax2.5 mm −70%

Sensitivity98.6 dB +3.6

No photo

PHL Audio3001NDU

No current price

Fs57 Hz −14%

Qts0.31 –

Vas31.5 L +43%

BL16.1 T·m +4%

Xmax4.5 mm −45%

Sensitivity94.5 dB −0.5

AccutonAS250-8-555

No current price

Fs24 Hz −64%

Qts0.33 +8%

Vas131.2 L +494%

BL15.3 T·m –

Xmax9 mm +9%

Sensitivity88.9 dB −6.1

CelestionNTR10-2520E

No current price

Fs56 Hz −15%

Qts0.31 –

Vas30.1 L +36%

BL15.9 T·m +3%

Xmax5 mm −39%

Sensitivity93.8 dB −1.2

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax

Where to buy

Prices for delivery to the UK, including VAT. How prices work

Watch price

No current price found. Pricing may appear after the next vendor refresh.
