Overview
LF DriverNTR10 series
Celestion

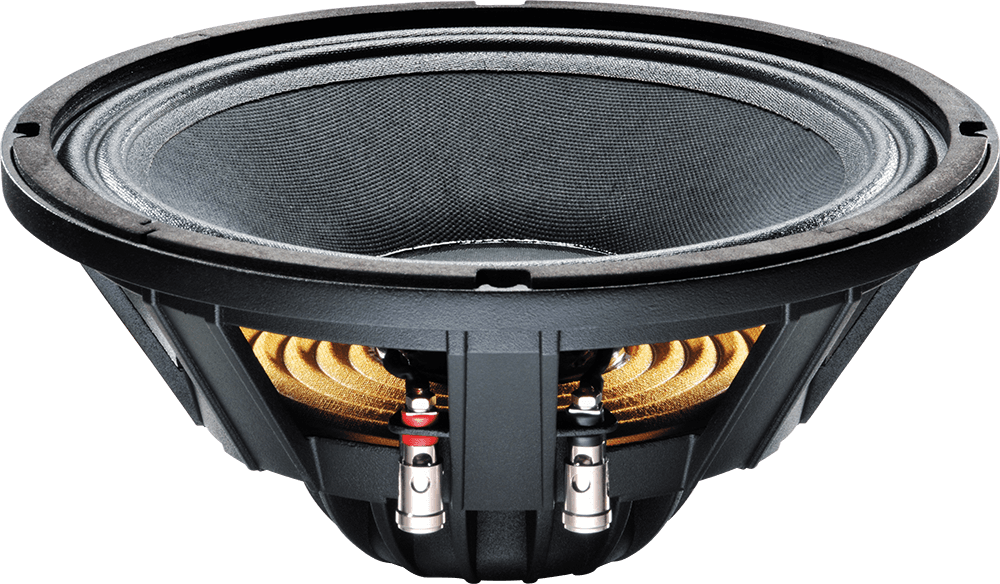

Celestion NTR10-2520E
Celestion NTR10-2520E is a 10" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 56Hz, Qts 0.31, Vas 30.1L, Xmax 5mm, sensitivity 93.8dB, plus 173cm³ Vd and 162 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
250W
Sensitivity
93.8dB
96.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
162
Vented alignment
Vd
173cm³

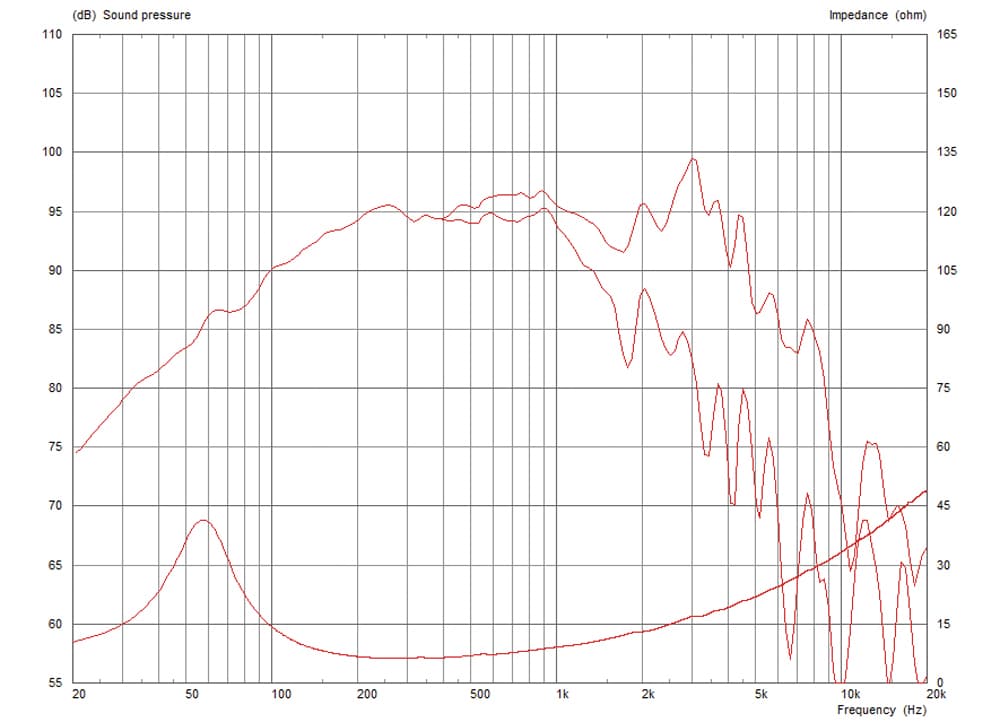

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence214 selected pixels of 377
T/S Parameters
Valid
Fs56Hz
Qts0.31
Qes0.34
Qms3.2
Vas30.1L
Re5.4Ω
Le0.68mH
BL15.9Tm
Sd346cm²
Mms46g
Xmax5.0mm
SPL94dB
Power250W
Impedance8Ω
Voice Coil64mm
Pricing & availability
Price definitionsVendor offers
1 vendorleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£150.00
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.2kg
Diameter260.0mm
Overall Depth113.0mm
Cutout Diameter235.0mm
Bolt Circle Diameter247.0mm
