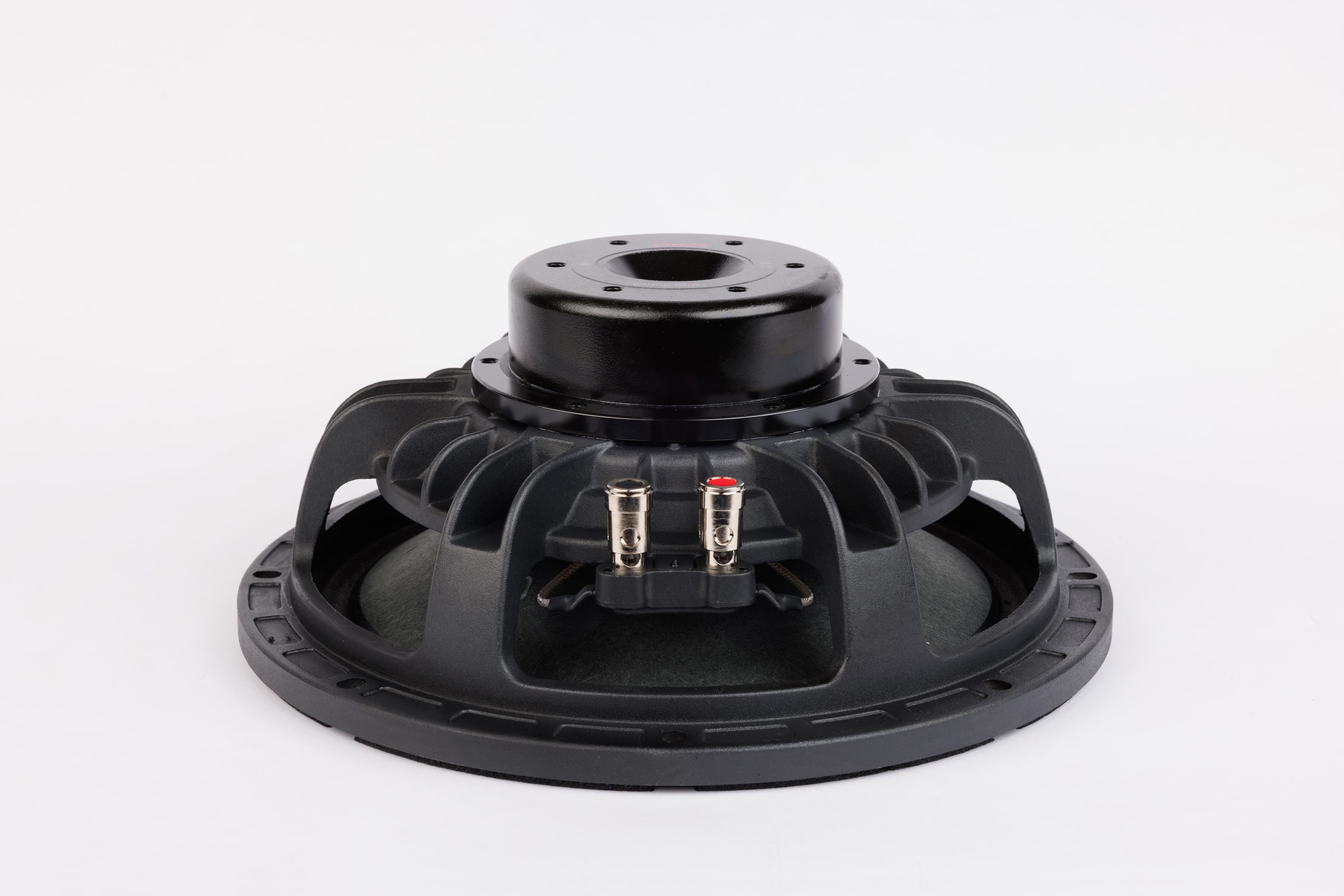

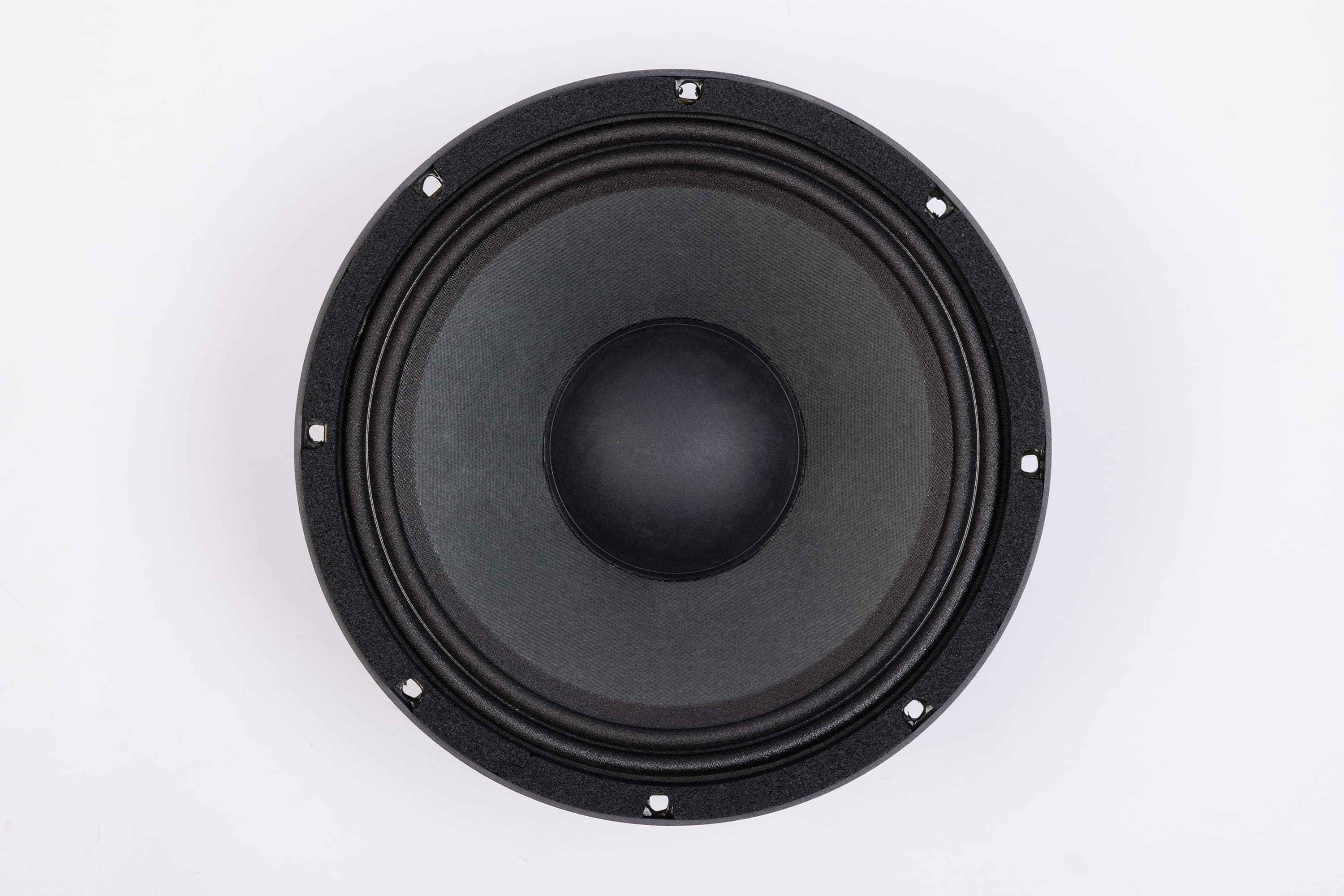

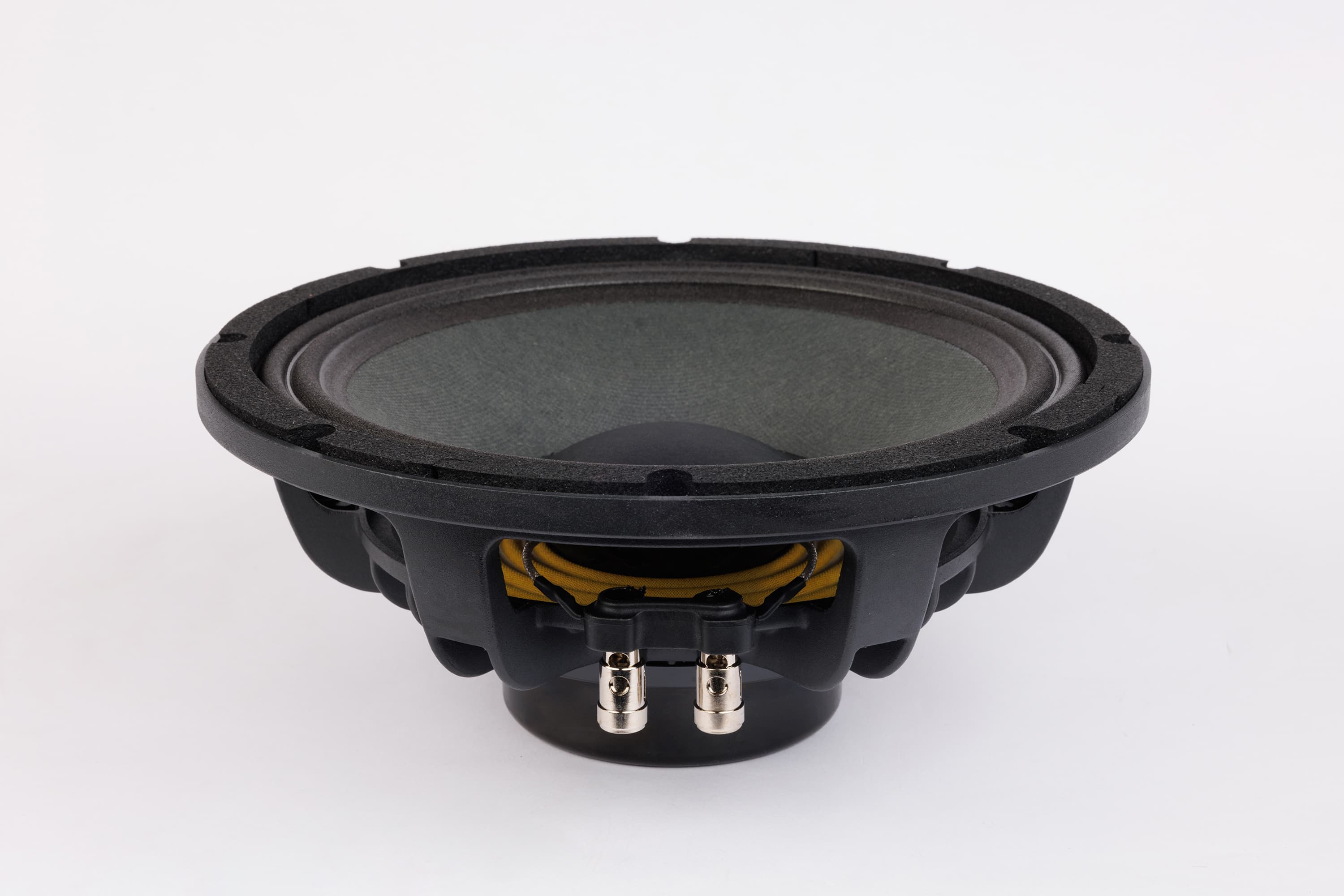

10-inch LF driver · WAN102 series · 65 mm voice coil · 300 W

Lavoce WAN102.50 8Ω

Name: Lavoce WAN102.50 8 Ohm
Brand: Lavoce
SKU: WAN102.50
Availability: InStock

8 Ω · 80–4000 Hz

£82.61

Steady

Blue Aran · 4 in stock · All 3 offers

Open in 00 Simulator

Fs: 78Hz
Xmax: 5.1mm
SPL: 97dB
Pe: 300W
BL: 15.3T·m
Vd: 178cm³
Qts: 0.35
Vas: 22L

See all 24 specs

Specifications

Published by Lavoce

Manufacturer page

Lavoce WAN102.50 is a 10-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 78 Hz, Qts 0.35, Vas 22.4 L, Xmax 5.1 mm, sensitivity 96.5 dB, plus 178 cm³ Vd and 205 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £82.61.

The published T/S values agree with each other

Thiele/Small

Fs: 78Hz
Qts: 0.35
Qes: 0.38
Qms: 4.7
Vas: 22.4L
Re: 5.6Ω
Le: 0.52mH

Motor and cone

BL: 15.3T·m
Sd: 350cm²
Mms: 33g
Xmax: 5.1mm
Vd †: 178cm³
Voice coil: 65mm

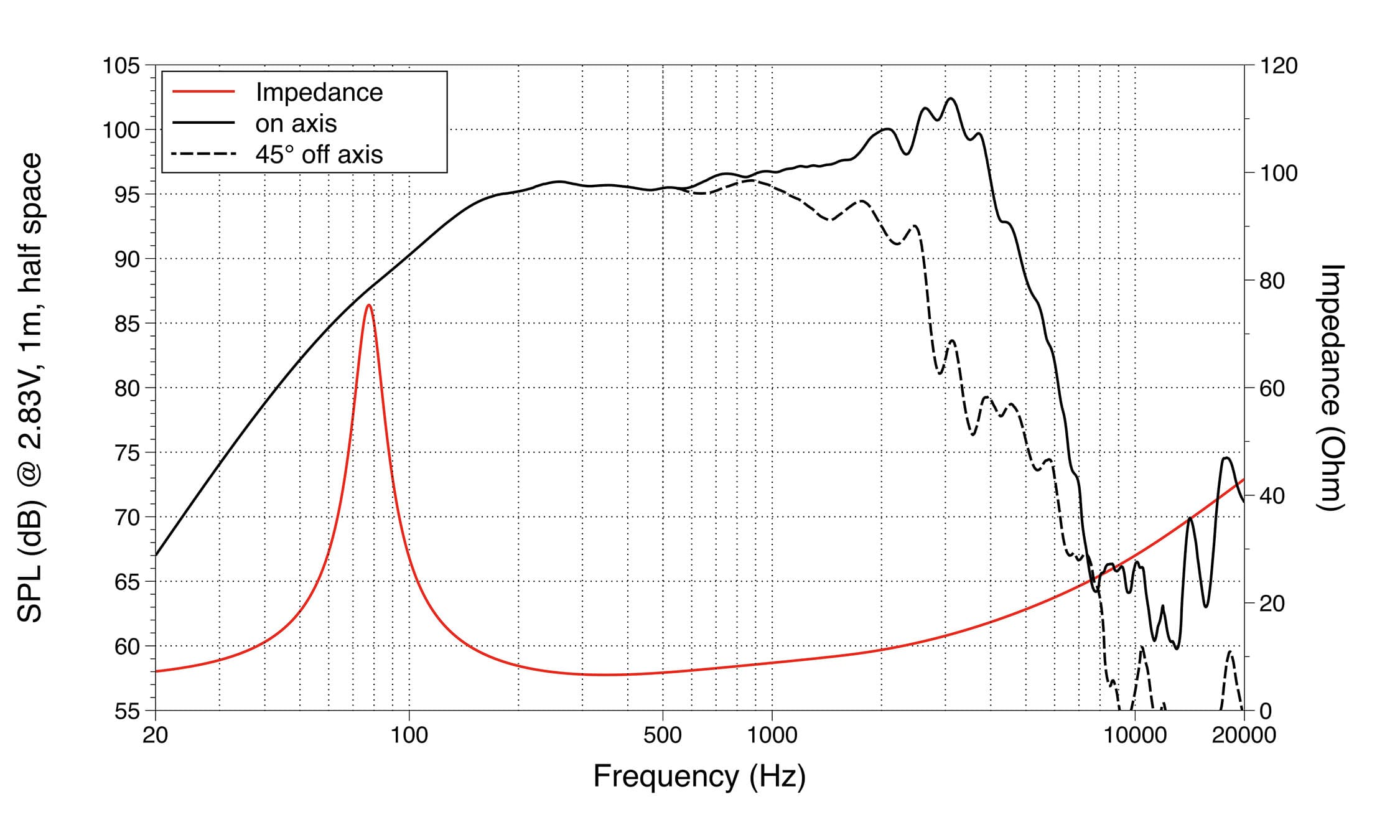

Power and response

Sensitivity †: 96.5dB
Manufacturer sensitivity: 97dB
Power: 300W
Impedance: 8Ω
Min. impedance: 6.7Ω
Range: 80–4000Hz
EBP †: 205 · Leans vented

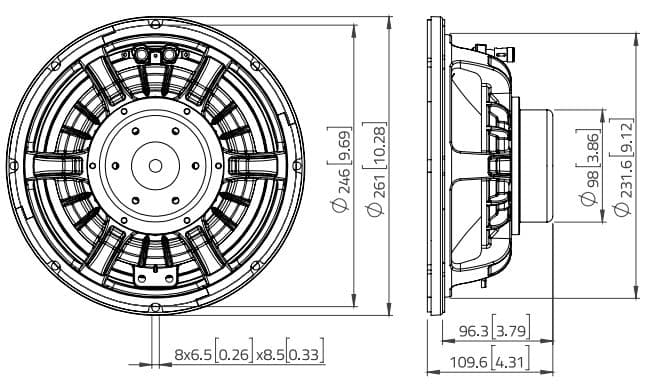

Size and mounting

Weight: 2.8kg

Other published values

Cms: 0.13mm/N
Xmech: 9.1
Power Program: 600

† Calculated by bits from the published values

What this validation status means

Everything else Lavoce lists

LF · Primary · 10″

BL: 15.3T·m
Fs: 78Hz
Le: 0.52mH
Re: 5.6Ω
Sd: 350cm²
Cms: 0.13mm/N
Mms: 33g
Qes: 0.38
Qms: 4.7
Qts: 0.35
SPL: 96.5dB
Vas: 22.4L
Xmax: 5.1mm
Xmech: 9.1
Power: 300W
Impedance: 8Ω
Sensitivity: 97dB
Low limit: 80Hz
Power Program: 600
Calculated sensitivity †: 96.5dB
High limit: 4000Hz
Manufacturer sensitivity: 97dB
Min. impedance: 6.7Ω
Voice coil: 65mm
Weight: 2.8kg

Compare

Same-size drivers, compared with the WAN102.50. Clear differences are green when better and red when worse.

This driverWAN102.50

Best price

£82.61

78 Hz

Qts

0.35

Vas

22.4 L

15.3 T·m

Xmax

5.1 mm

Sensitivity

96.5 dB

Power

300 W

PeerlessFSL-1020R02-08

£49.37 · 40% less

Fs65 Hz −17%

Qts0.36 –

Vas38.5 L +72%

BL13.6 T·m −11%

Xmax5.1 mm –

Sensitivity96.3 dB –

SB AudienceBIANCO-10MW150

£50.73 · 39% less

Fs65 Hz −17%

Qts0.39 +11%

Vas25.8 L +15%

BL15.1 T·m –

Xmax5.6 mm +10%

Sensitivity94.5 dB −2

CelestionTF1020

£72.50 · 12% less

Fs69 Hz −11%

Qts0.32 −8%

Vas28.8 L +28%

BL14.1 T·m −8%

Xmax4 mm −22%

Sensitivity96.2 dB –

Beyma10WR300

£102.61 · 24% more

Fs52 Hz −33%

Qts0.35 –

Vas42 L +88%

BL14.2 T·m −7%

Xmax6 mm +18%

Sensitivity93.8 dB −2.7

CIAREPWA10.64

£105.50 · 28% more

Fs73 Hz −6%

Qts0.38 +9%

Vas23 L –

BL14.4 T·m −6%

Xmax4.5 mm −12%

Sensitivity95.5 dB −1

RCFMB10G251

£108.44 · 31% more

Fs76 Hz –

Qts0.34 –

Vas24 L +7%

BL14.9 T·m –

Xmax7 mm +37%

Sensitivity96.8 dB –

CIAREHW251N

£108.85 · 32% more

Fs30 Hz −62%

Qts0.35 –

Vas88 L +293%

BL13.0 T·m −15%

Xmax5.7 mm +12%

Sensitivity90 dB −6.5

FaitalPRO10PR310

£109.82 · 33% more

Fs60 Hz −23%

Qts0.34 –

Vas32.2 L +44%

BL14.4 T·m −6%

Xmax4.9 mm −4%

Sensitivity94.9 dB −1.6

B&C10CLA64

£115.55 · 40% more

Fs74 Hz −5%

Qts0.42 +20%

Vas18.5 L −17%

BL14.5 T·m −5%

Xmax5 mm –

Sensitivity94.2 dB −2.3

B&C10CL64

£116.06 · 40% more

Fs63 Hz −19%

Qts0.31 −11%

Vas22.2 L –

BL16.3 T·m +7%

Xmax5.2 mm –

Sensitivity94.3 dB −2.2

B&C10FL64

£117.37 · 42% more

Fs63 Hz −19%

Qts0.32 −9%

Vas23 L –

BL16 T·m +5%

Xmax5 mm –

Sensitivity94.3 dB −2.2

CIAREPW257

£132.30 · 60% more

Fs57 Hz −27%

Qts0.30 −14%

Vas31 L +38%

BL15.9 T·m +4%

Xmax5.5 mm +8%

Sensitivity94.4 dB −2.1

Eighteen Sound10CX650

£261.58 · 217% more

Fs54 Hz −31%

Qts0.35 –

Vas36.4 L +63%

BL14 T·m −8%

Xmax6 mm +18%

Sensitivity93.7 dB −2.8

B&C10CXN64

£274.31 · 232% more

Fs68 Hz −13%

Qts0.31 −11%

Vas23 L –

BL15.8 T·m +3%

Xmax5 mm –

Sensitivity95.4 dB −1.1

Oberton10B200

No current price

Fs48 Hz −38%

Qts0.35 –

Vas31.9 L +43%

BL14.7 T·m −4%

Xmax5.8 mm +13%

Sensitivity91.9 dB −4.6

EminenceFS10.25A8

No current price

Fs70 Hz −10%

Qts0.37 +6%

Vas24 L +7%

BL14 T·m −8%

Xmax4 mm −22%

Sensitivity95.3 dB −1.2

CelestionNTR10-2520E

No current price

Fs56 Hz −28%

Qts0.31 −11%

Vas30.1 L +34%

BL15.9 T·m +4%

Xmax5 mm –

Sensitivity93.8 dB −2.7

BMS10S302

No current price

Fs60 Hz −23%

Qts0.33 −6%

Vas30 L +34%

BL16.2 T·m +6%

Xmax5.5 mm +8%

Sensitivity94.7 dB −1.8

RCFMB10G253

No current price

Fs76 Hz –

Qts0.34 –

Vas24 L +7%

BL14.9 T·m –

Xmax7 mm +37%

Sensitivity96.8 dB –

No photo

PHL Audio3450

No current price

Fs94 Hz +21%

Qts0.34 –

Vas18.1 L −19%

BL15.7 T·m –

Xmax2.5 mm −51%

Sensitivity98 dB +1.5

FaneSOVEREIGN 10-300/2

No current price

Fs55 Hz −29%

Qts0.36 –

Vas45.3 L +102%

BL14 T·m −8%

Xmax5.5 mm +8%

Sensitivity95 dB −1.5

Oberton10NCX

No current price

Fs79 Hz –

Qts0.29 −17%

Vas20.6 L −8%

BL16.2 T·m +6%

Xmax5.3 mm –

Sensitivity97.4 dB +0.9

P.Audio10NX-65MB

No current price

Fs70 Hz −10%

Qts0.34 –

Vas21.6 L −4%

BL18.1 T·m +18%

Xmax3.8 mm −26%

Sensitivity95.3 dB −1.2

REDCATT10FIND

No current price

Fs66 Hz −15%

Qts0.39 +11%

Vas23.5 L +5%

BL15.5 T·m –

Xmax2.8 mm −46%

Sensitivity94.2 dB −2.3

No photo

PHL Audio3001

No current price

Fs57 Hz −27%

Qts0.32 −9%

Vas31.5 L +41%

BL15.9 T·m +4%

Xmax4.5 mm −12%

Sensitivity94.4 dB −2.1

FaneSOVEREIGN PRO 10-300SC

No current price

Fs47 Hz −40%

Qts0.33 −6%

Vas45.4 L +103%

BL14.8 T·m −3%

Xmax4.8 mm −7%

Sensitivity93.5 dB −3

No photo

PHL Audio3002

No current price

Fs47 Hz −40%

Qts0.39 +11%

Vas31.5 L +41%

BL15.9 T·m +4%

Xmax4.5 mm −12%

Sensitivity91 dB −5.5

Oberton10NDG500

No current price

Fs56 Hz −28%

Qts0.34 −4%

Vas21.5 L −4%

BL17.4 T·m +14%

Xmax9.5 mm +86%

Sensitivity92.4 dB −4.1

FaneSOVEREIGN PRO 10-300

No current price

Fs58 Hz −26%

Qts0.32 −9%

Vas41 L +83%

BL15.3 T·m –

Xmax5.5 mm +8%

Sensitivity95.7 dB −0.8

Sica10 FE 3 CP

No current price

Fs52 Hz −33%

Qts0.31 −11%

Vas38.6 L +72%

BL15.3 T·m –

Xmax5 mm –

Sensitivity94.3 dB −2.2

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax

Where to buy

Prices for delivery to the UK, including VAT. How prices work

Watch price

Shop	Price	Against the lowest	Stock	Link
Blue Aran Checked 25 Oct 2026 · 8 Ω · Source: inc VAT · 20%	£82.61, the lowest price		4 in stock	Visit shop at Blue Aran
Parts Express Checked 25 Oct 2026 · Ships from United States · 8 Ω · Source: ex VAT Import VAT and duty may apply	£133.90	62% above the lowest price	4 in stock	Visit shop at Parts Express
