Overview
LF Driver
Fane

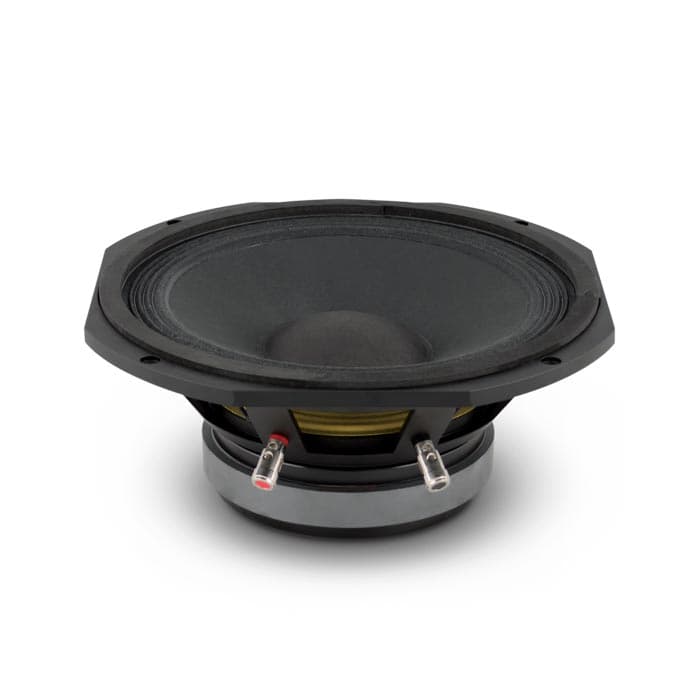

Fane SOVEREIGN PRO 10-300
Fane SOVEREIGN PRO 10-300 is a 10" 4 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 58Hz, Qts 0.32, Vas 41L, Xmax 5.5mm, sensitivity 95.7dB, plus 208cm³ Vd and 171 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
4Ω
RMS Power
300W
Sensitivity
95.7dB
98.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
171
Vented alignment
Vd
208cm³
T/S Parameters
Valid
Fs58Hz
Qts0.32
Qes0.34
Qms6.1
Vas41.0L
Re5.7Ω
Le1.68mH
BL15.3Tm
Sd378cm²
Mms37g
Xmax5.5mm
SPL96dB
Power300W
Impedance4Ω
F Low45Hz
F High4000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.0kg
Diameter283.5mm
Overall Depth111.0mm
