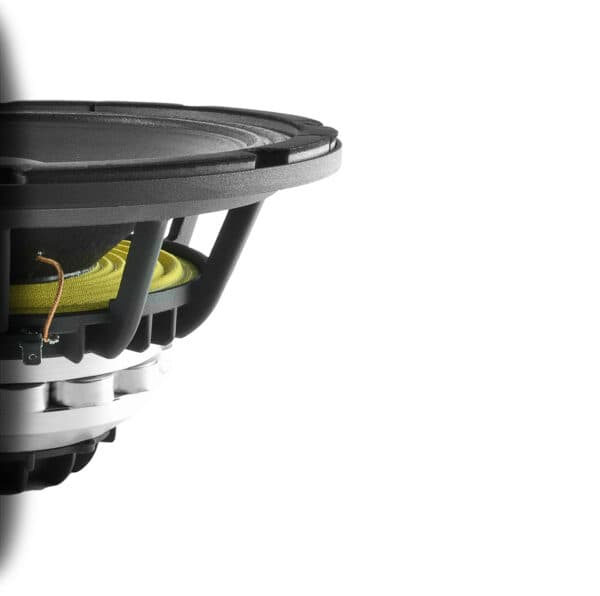

Sica 10 CX 3 PL P 8Ω
8 Ω
No current price
- Fs
- 59Hz
- Xmax
- 6mm
- SPL
- 96dB
- Pe
- 400W
- BL
- 15.3T·m
- Vd
- 208cm³
- Qts
- 0.29
- Vas
- 36L
Sica 10 CX 3 PL P is a 10-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 59 Hz, Qts 0.29, Vas 36.1 L, Xmax 6 mm, sensitivity 95.8 dB, plus 208 cm³ Vd and 190 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 59Hz
- Qts
- 0.29
- Qes
- 0.31
- Qms
- 4.1
- Vas
- 36.1L
- Re
- 5.7Ω
- Le
- 0.84mH
Motor and cone
- BL
- 15.3T·m
- Sd
- 346cm²
- Mms
- 34g
- Xmax
- 6mm
- Vd †
- 208cm³
- Voice coil
- 75mm
Power and response
- Sensitivity †
- 95.8dB
- Manufacturer sensitivity
- 97.2dB
- Power
- 400W
- Impedance
- 8Ω
- EBP †
- 190 · Leans vented
Size and mounting
- Diameter
- 268mm
- Cutout
- 232mm
- Bolt circle
- 247mm
- Depth
- 139.1mm
- Weight
- 4.3kg
Other published values
- Cms
- 0.21mm/N
- Power Program
- 800
Sensitivity shows 95.8 dB, calculated from the T/S values. Sica publishes 97.2 dB, 1.4 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · LF · 10″
- BL
- 15.3T·m
- Fs
- 59Hz
- Le
- 0.84mH
- Re
- 5.7Ω
- Sd
- 346cm²
- Cms
- 0.21mm/N
- Mms
- 34g
- Qes
- 0.31
- Qms
- 4.1
- Qts
- 0.29
- SPL
- 95.8dB
- Vas
- 36.1L
- Xmax
- 6mm
- Power
- 400W
- Impedance
- 8Ω
- Sensitivity
- 97.2dB
- Power Program
- 800
- Calculated sensitivity †
- 95.8dB
- Manufacturer sensitivity
- 97.2dB
- Voice coil
- 75mm
HF · HF
- Fs
- 700Hz
- Re
- 6Ω
- SPL
- 102.1dB
- Power
- 60W
- Impedance
- 8Ω
- Sensitivity
- 102.1dB
- Power Program
- 120
- Manufacturer sensitivity
- 102.1dB
- Voice coil
- 44mm
- Crossover
- 1600Hz
