FaitalPRO 10PR300 8Ω
60–5000 Hz
£134.12
2.9%Lean Business · All 10 offers
- Fs
- 60Hz
- Xmax
- 4.9mm
- SPL
- 97dB
- Pe
- 300W
- BL
- 14.1T·m
- Vd
- 171cm³
- Qts
- 0.28
- Vas
- 42L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
240 plotted pointsMedium confidence924 selected pixels of 1,069 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,317 selected pixels of 1,317 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,355 selected pixels of 1,355

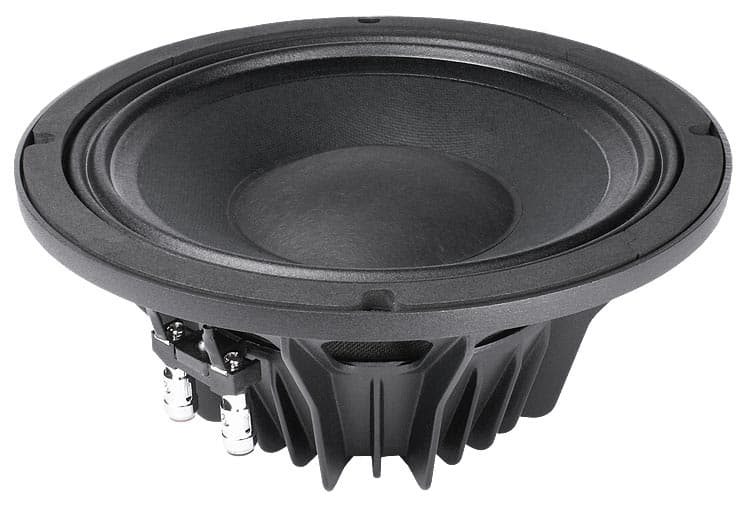

FaitalPRO 10PR300 is a 10-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 60 Hz, Qts 0.28, Vas 42.2 L, Xmax 4.9 mm, sensitivity 97 dB, plus 171 cm³ Vd and 207 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £129.78.
The published T/S values agree with each other
Thiele/Small
- Fs
- 60Hz
- Qts
- 0.28
- Qes
- 0.29
- Qms
- 5.8
- Vas
- 42.2L
- Re
- 5.4Ω
- Le
- 0.60mH
Motor and cone
- BL
- 14.1T·m
- Sd
- 348cm²
- Mms
- 28g
- Xmax
- 4.9mm
- Vd †
- 171cm³
Power and response
- Sensitivity †
- 97dB
- Manufacturer sensitivity
- 98dB
- Power
- 300W
- Impedance
- 8Ω
- Range
- 60–5000Hz
- EBP †
- 207 · Leans vented
Size and mounting
- Diameter
- 261mm
- Cutout
- 232mm
- Bolt circle
- 246mm
- Depth
- 115.3mm
- Weight
- 2.3kg
Other published values
- Cms
- 0.25mm/N
- Rms
- 1.80kg/s
- Power Program
- 600
Sensitivity shows 97.0 dB, calculated from the T/S values. FaitalPRO publishes 98.0 dB, 1.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 10″
- BL
- 14.1T·m
- Fs
- 60Hz
- Le
- 0.60mH
- Re
- 5.4Ω
- Sd
- 348cm²
- Cms
- 0.25mm/N
- Mms
- 28g
- Qes
- 0.29
- Qms
- 5.8
- Qts
- 0.28
- Rms
- 1.80kg/s
- SPL
- 97dB
- Vas
- 42.2L
- Xmax
- 4.9mm
- Power
- 300W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 60Hz
- Power Program
- 600
- Calculated sensitivity †
- 97dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 2.3kg
- Diameter
- 261mm
- Depth
- 115.3mm
- Cutout
- 232mm
- Bolt circle
- 246mm
