Sica

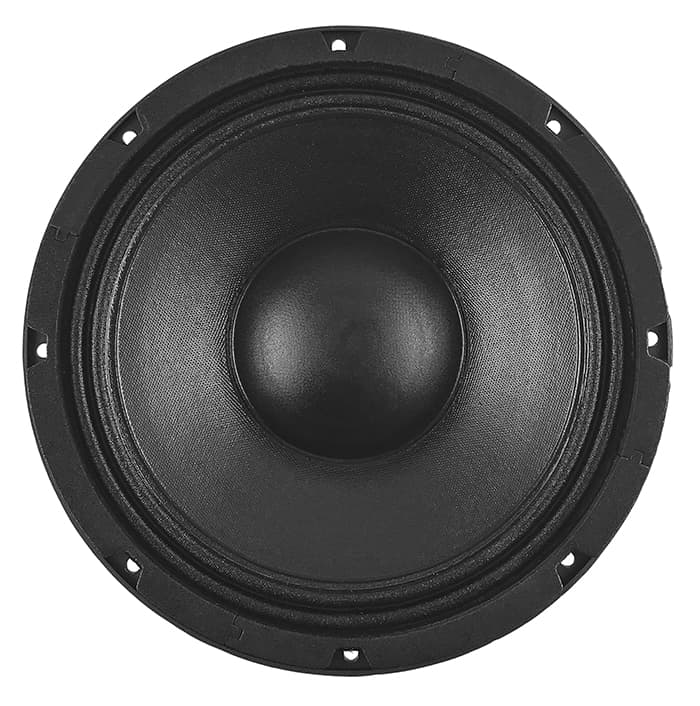

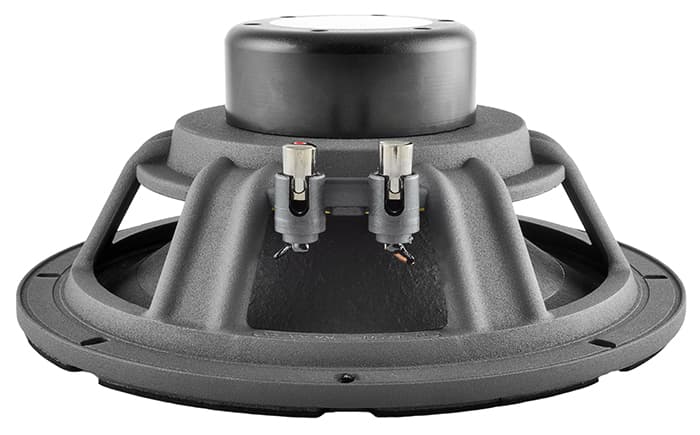

Sica 10 N 3 PL
Sica 10 N 3 PL is a 10" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 51Hz, Qts 0.29, Vas 40.5L, Xmax 5.5mm, sensitivity 94.6dB, plus 191cm³ Vd and 170 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
400W
Sensitivity
94.6dB
96.1dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
170
Vented alignment
Vd
191cm³
T/S Parameters
Valid
Fs51Hz
Qts0.29
Qes0.30
Qms8.1
Vas40.5L
Re5.7Ω
Le0.73mH
BL15.9Tm
Sd346cm²
Mms41g
Xmax5.5mm
SPL95dB
Power400W
Impedance8Ω
Voice Coil75mm
Flux Density1.15T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.8kg
Diameter268.0mm
Overall Depth114.5mm
Cutout Diameter232.0mm
Bolt Circle Diameter247.0mm
