LF Driver10CL series
B&C

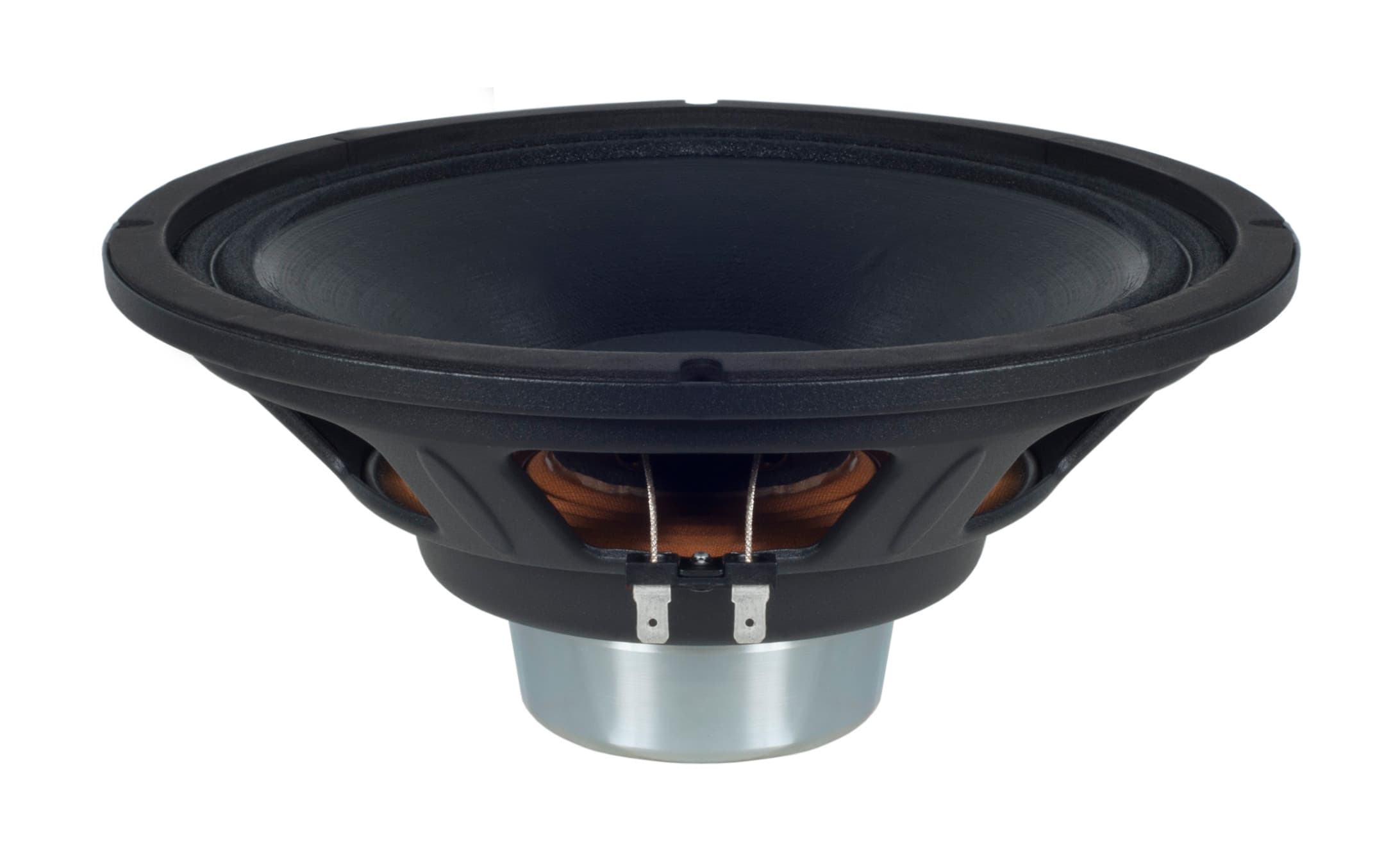

B&C 10CL64
B&C 10CL64 is a 10" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 63Hz, Qts 0.31, Vas 22.2L, Xmax 5.2mm, sensitivity 94.3dB, plus 166cm³ Vd and 191 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £116.06.
Size
10"
Impedance
8Ω
RMS Power
250W
Sensitivity
94.3dB
96.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
191
Vented alignment
Vd
166cm³

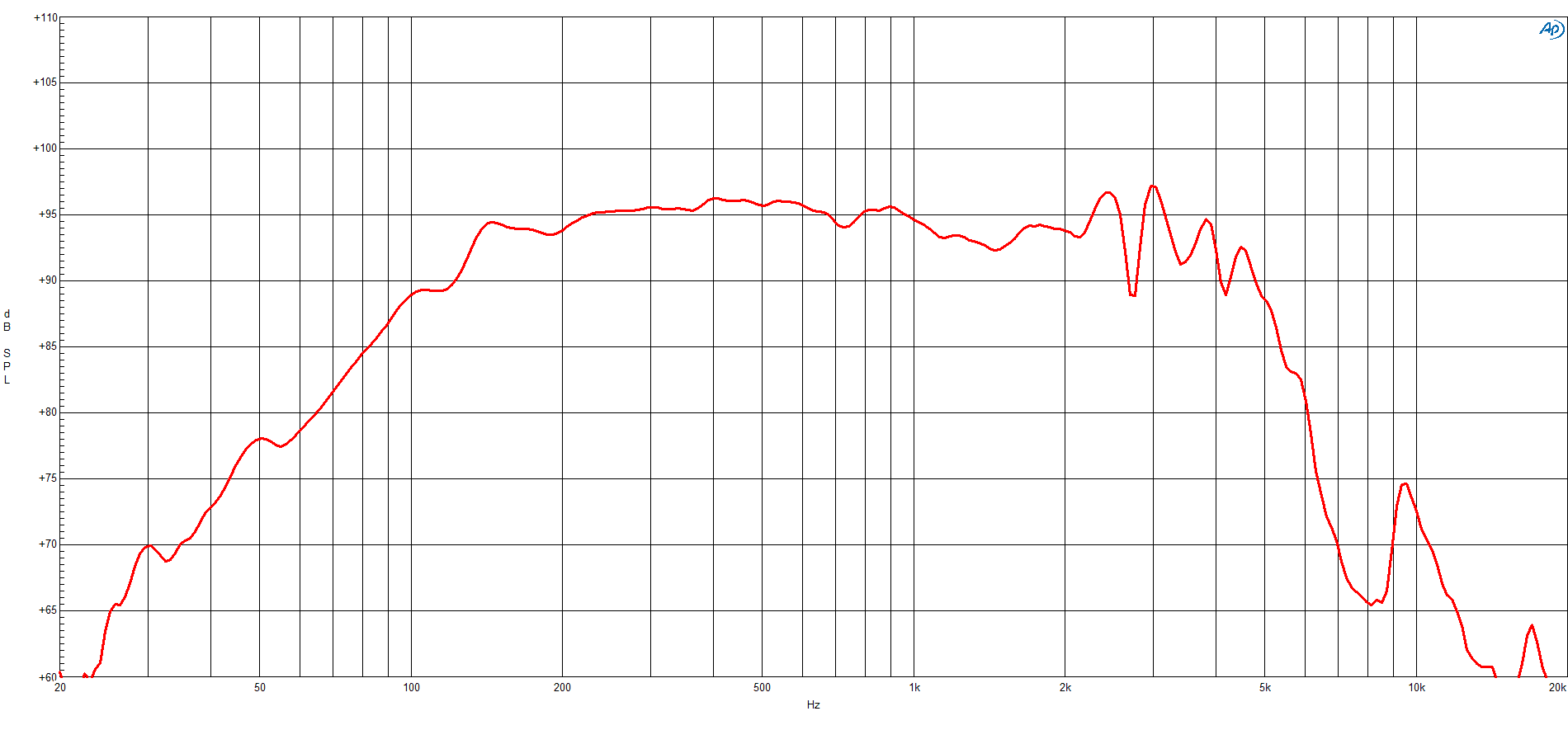

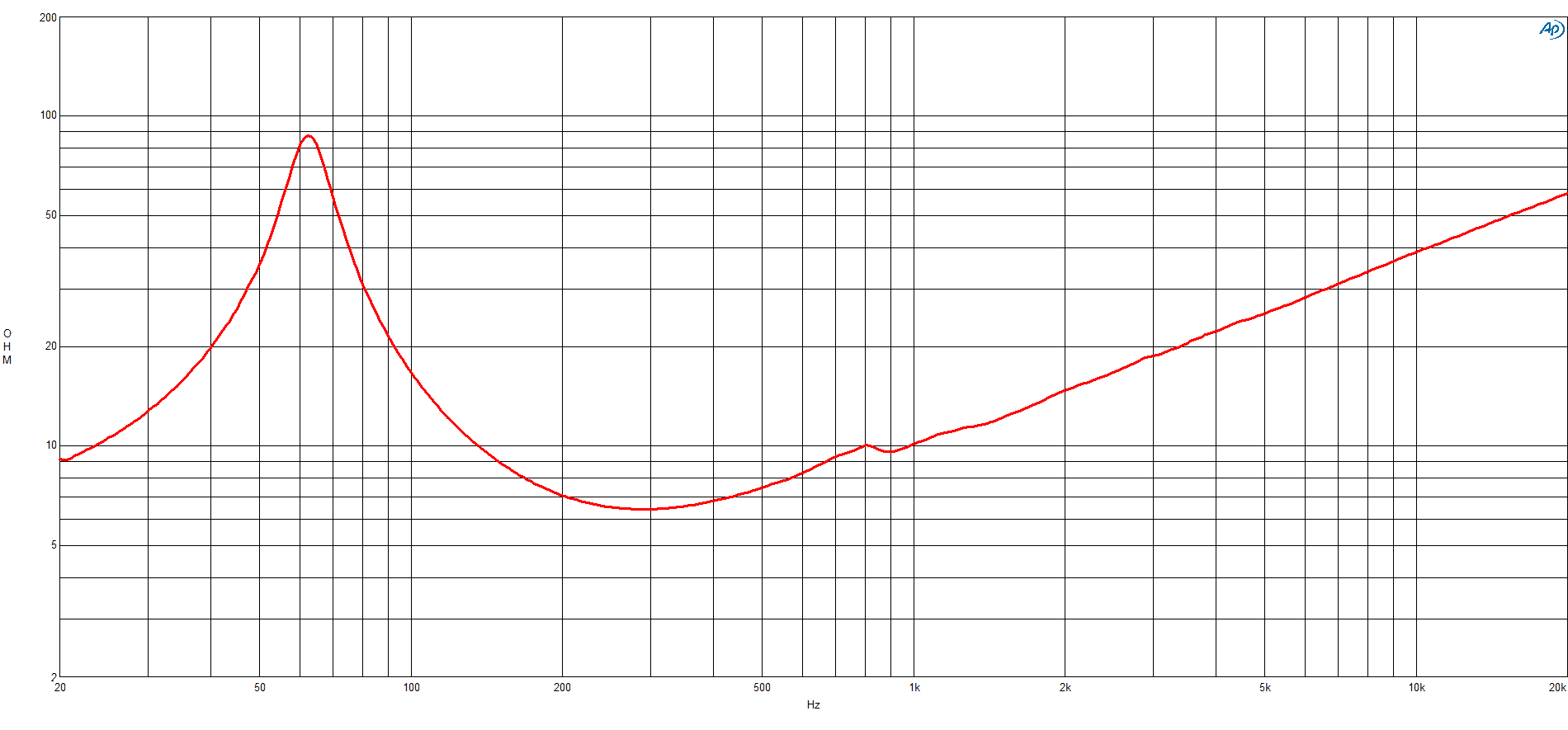

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs63Hz
Qts0.31
Qes0.33
Qms5.1
Vas22.2L
Re5.3Ω
Le1.17mH
BL16.3Tm
Sd320cm²
Mms42g
Xmax5.2mm
SPL94dB
Power250W
Power Nominal250W
Impedance8Ω
Min Impedance6.3Ω
F Low65Hz
F High4000Hz
Voice Coil64mm
Flux Density1.16T
Pricing & availability
Price definitionsPrice movement
Best current price
£116.06
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.0kg
Diameter258.0mm
Overall Depth112.0mm
Cutout Diameter232.0mm
Bolt Circle Diameter245.0mm
Additional Manufacturer Specs
Bl16.3 Tm
Fs63 Hz
Le1.17 mH
Re5.3 Ω
Sd320 cm² (49.6 in²)
Ebp191 Hz
Mms41.6 g
Qes0.33
Qms5.1
Qts0.31
Vas22.2 dm³ (0.78 ft³)
η01.69 %
ConeRCK10CL648
Xmax5.2 mm
Xvar6 mm
SpiderSingle
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth14.3 mm (0.56 in)
Surround ShapeDouble Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter250 mm (10 in)
Winding MaterialCopper
Magnetic Gap Depth8 mm (0.31 in)
Recommended Tuning65 Hz
Bolt Circle Diameter245 mm (9.65 in)
Recommended Enclosure29 dm³ (1.02 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter232 mm (9.13 in)
Flange And Gasket Thickness10 mm (0.39 in)
Air Volume Occupied By Driver1 dm³ (0.04 ft³)
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
B&C
10CL64
10"
Best current price
£116.06
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
65%
Similarity
46% cheaper£63.00
Celestion
TF1020
10"
Lower price
Xmax4mm-23%
Qts0.32+4%
BL14.1Tm-13%
Vas28.8L+30%
Qes0.37+13%
66%
Similarity
44% cheaper£65.00
Lavoce
WAF102.50
10"
Lower price
Xmax5.1mm-2%
Qts0.38+23%
BL14.6Tm-10%
Vas23.7L+7%
Qes0.42+27%
81%
Similarity
29% cheaper£82.61
Lavoce
WAN102.50
10"
Lower price
Xmax5.1mm-2%
Qts0.35+13%
BL15.3Tm-6%
Vas22.4L+1%
Qes0.38+15%
69%
Similarity
5% cheaper£109.82
FaitalPRO
10PR310
10"
Lower price
Xmax4.9mm-5%
Qts0.34+10%
BL14.4Tm-12%
Vas32.2L+45%
Qes0.36+9%
67%
Similarity
19% more£138.00
B&C
10NW64
10"
Higher price
Xmax6mm+15%
Qts0.26-16%
BL18.3Tm+12%
Vas22L-1%
Qes0.27-18%
67%
Similarity
25% more£144.97
B&C
10NDL64
10"
Higher price
Xmax4.5mm-13%
Qts0.3-3%
BL19.1Tm+17%
Vas34.5L+55%
Qes0.330%
65%
Similarity
25% more£144.97
B&C
10NDL64
10"
Higher price
Xmax6mm+15%
Qts0.26-16%
BL16.2Tm-1%
Vas31L+40%
Qes0.29-12%
65%
Similarity
30% more£151.02
B&C
10CLA76
10"
Higher price
Xmax6.5mm+25%
Qts0.29-6%
BL18.6Tm+14%
Vas16.4L-26%
Qes0.3-9%
62%
Similarity
36% more£157.30

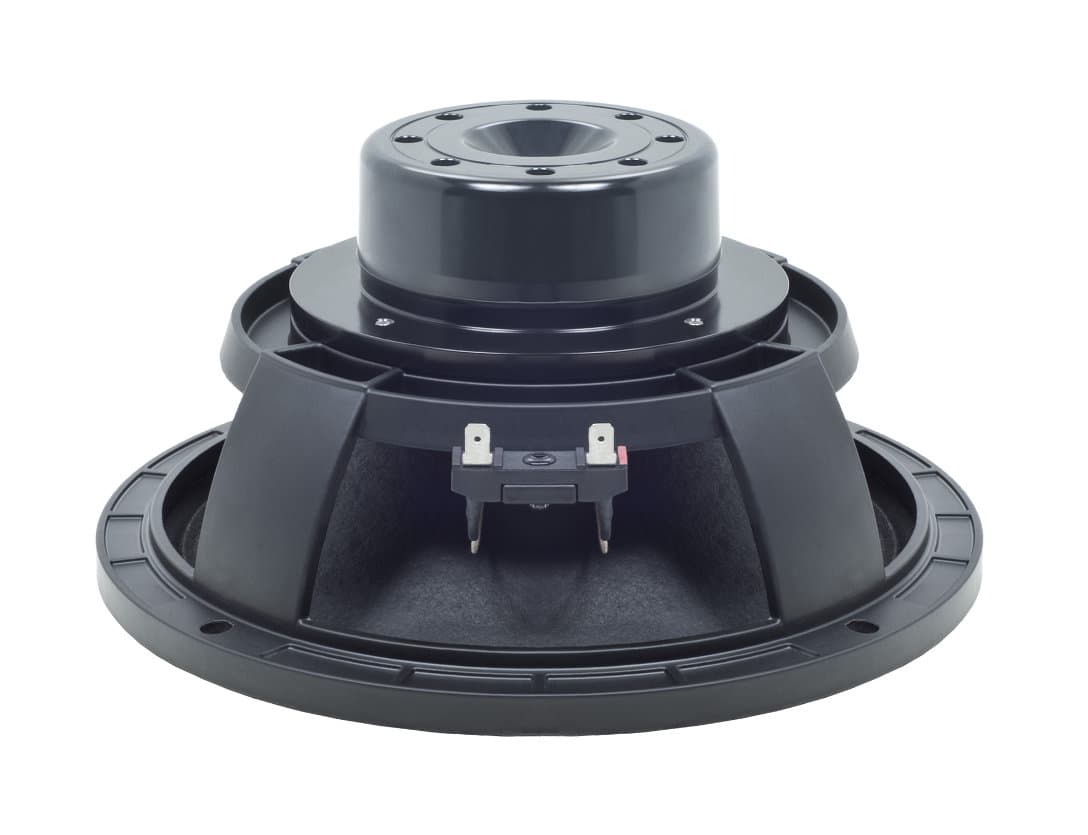

B&C
10MBX64
10"
Higher price
Xmax4mm-23%
Qts0.3-3%
BL20.5Tm+26%
Vas30L+35%
Qes0.32-3%
60%
Similarity
36% more£157.30
B&C
10MBX64
10"
Higher price
Xmax4mm-23%
Qts0.26-16%
BL16.9Tm+4%
Vas28L+26%
Qes0.27-18%
95%
Similarity
136% more£274.31
B&C
10CXN64
10"
Higher price
Xmax5mm-4%
Qts0.310%
BL15.8Tm-3%
Vas23L+4%
Qes0.330%
89%
Similarity

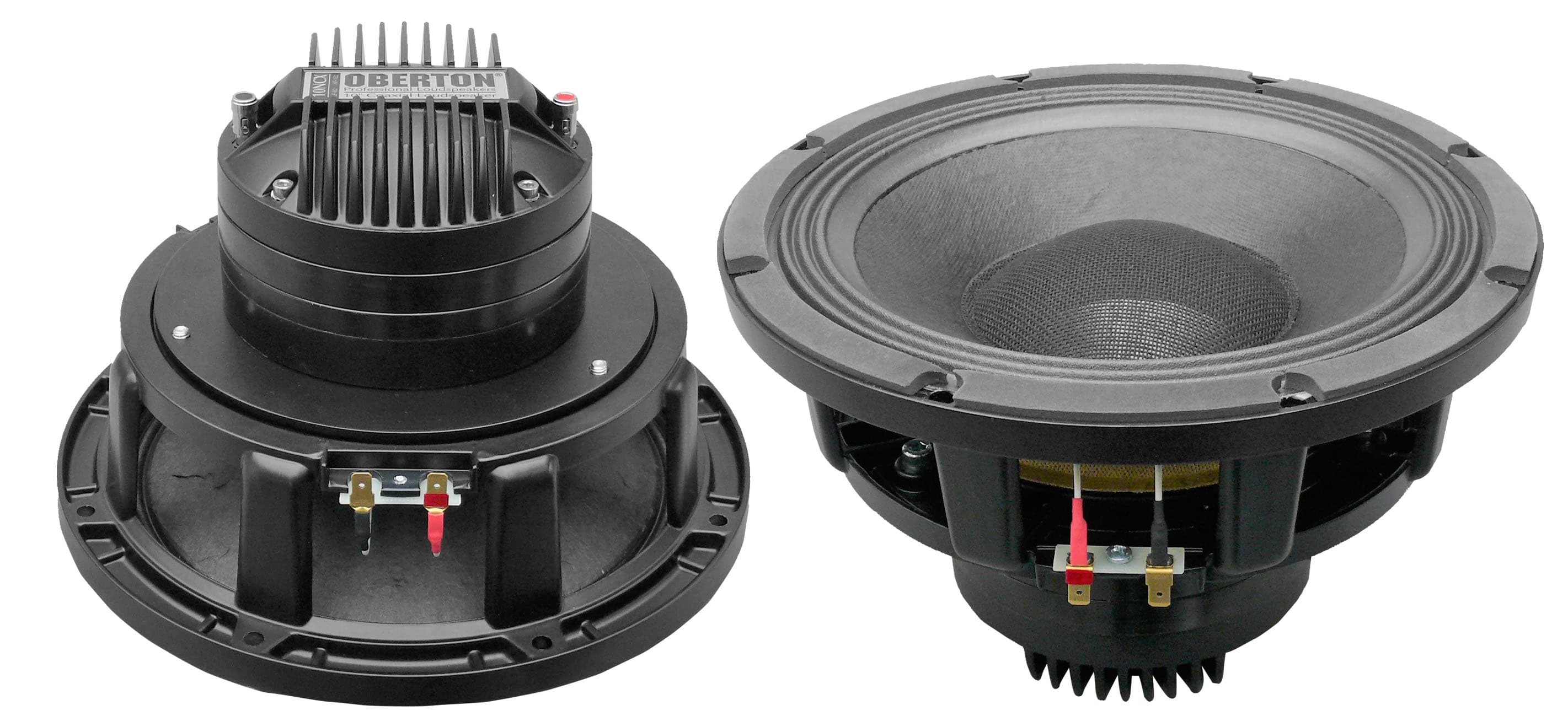

Oberton
