Overview
LF Driver
Sica

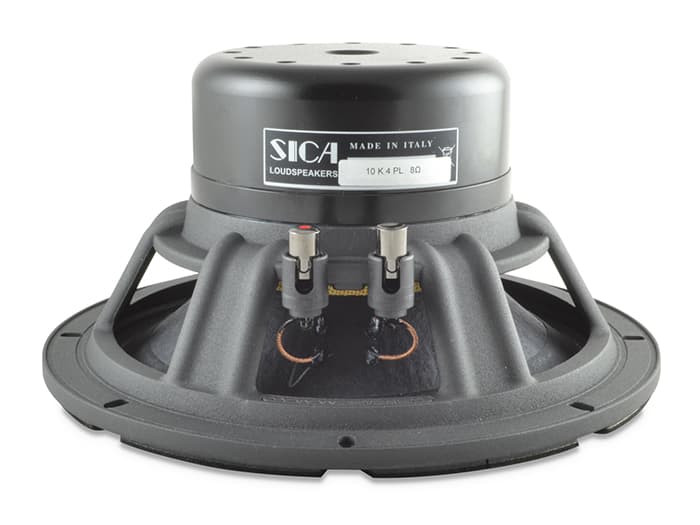

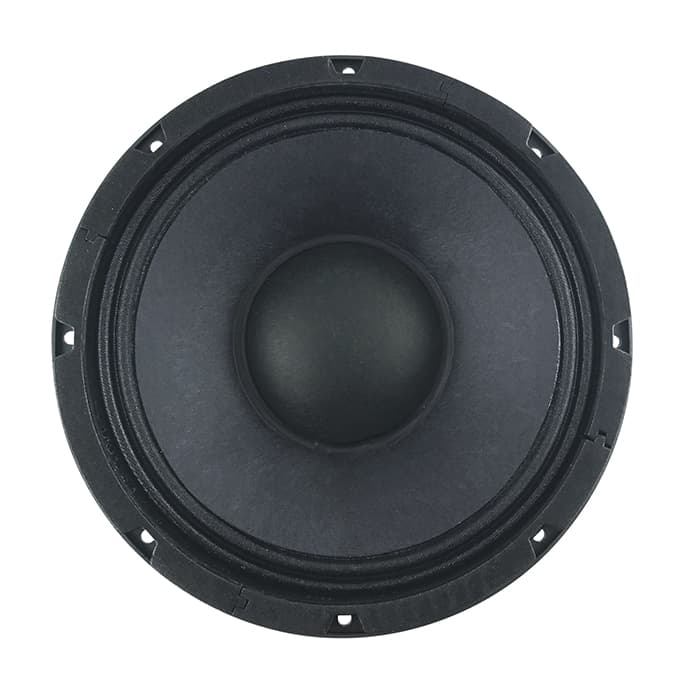

Sica 10 K 4 PL
Sica 10 K 4 PL is a 10" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 63Hz, Qts 0.31, Vas 19.5L, Xmax 5mm, sensitivity 93.8dB, plus 173cm³ Vd and 195 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
800W
Sensitivity
93.8dB
94.9dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
195
Vented alignment
Vd
173cm³
T/S Parameters
Valid
Fs63Hz
Qts0.31
Qes0.32
Qms5.3
Vas19.5L
Re6.1Ω
Le0.40mH
BL20.4Tm
Sd346cm²
Mms57g
Xmax5.0mm
SPL94dB
Power800W
Impedance8Ω
Voice Coil100mm
Flux Density1.10T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.3kg
Diameter268.0mm
Overall Depth136.0mm
Cutout Diameter232.0mm
Bolt Circle Diameter247.0mm
