Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespOberton 10M300 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver10M series
Oberton
Oberton 10M300
Oberton 10M300 is a 10" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 60Hz, Qts 0.25, Vas 19.4L, Xmax 5.3mm, sensitivity 94.1dB, plus 167cm³ Vd and 234 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
400W
Sensitivity
94.1dB
200.0dBmanufacturer; using T/S-derived value (105.9dB delta).
EBP
234
Vented alignment
Vd
167cm³
T/S Parameters
Valid
Fs60Hz
Qts0.25
Qes0.26
Qms8.5
Vas19.4L
Re5.5Ω
Le0.60mH
BL18.2Tm
Sd317cm²
Mms32g
Xmax5.3mm
SPL94dB
Power400W
Impedance8Ω
Min Impedance6.7Ω
F Low75Hz
F High3500Hz
Voice Coil77mm
Flux Density1.33T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

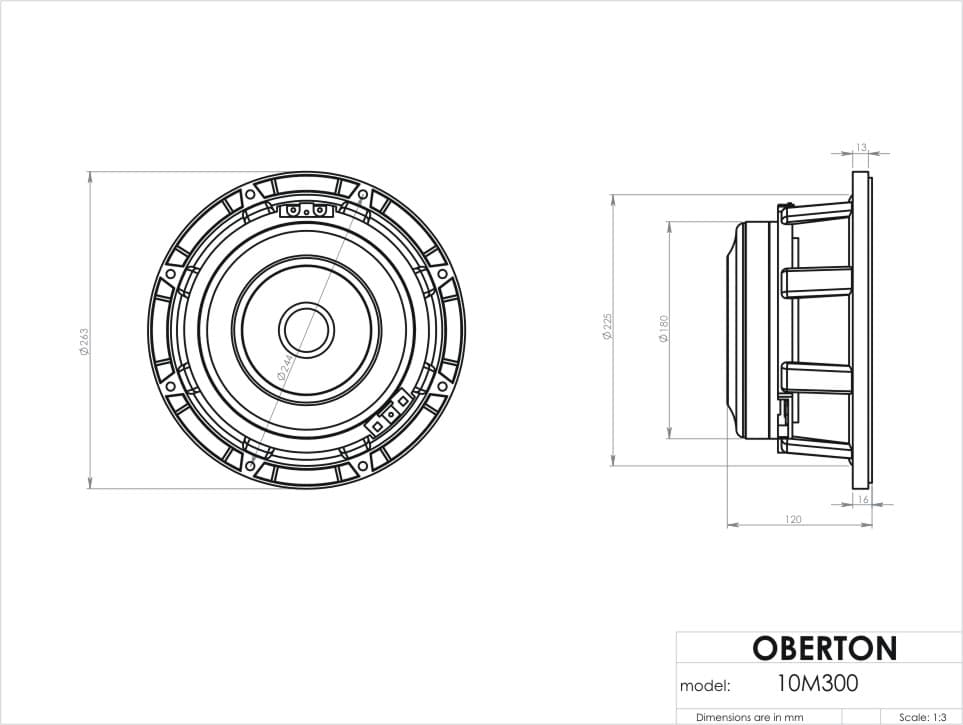

Dimensions & Physical
Weight6.8kg
Diameter263.0mm
Overall Depth120.0mm
Cutout Diameter225.0mm
Bolt Circle Diameter244.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Oberton
10M300
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
93%
Similarity
Oberton
10MB300
10"
Xmax5.3mm0%
Qts0.24-2%
BL18.3Tm+1%
Vas22.8L+17%
Qes0.25-2%
89%
Similarity
Eighteen Sound
10NCX750H
10"
Xmax5.5mm+5%
Qts0.25+1%
BL19.8Tm+9%
Vas21.7L+12%
Qes0.26+2%
86%
Similarity
Eighteen Sound
10NCX750
10"
Xmax5.5mm+5%
Qts0.25+1%
BL20Tm+10%
Vas23L+18%
Qes0.26+2%
82%
Similarity
£138.00
B&C
10NW64
10"
Xmax6mm+14%
Qts0.26+5%
BL18.3Tm0%
Vas22L+13%
Qes0.27+6%
76%
Similarity
£130.64
B&C
10FW64
10"
Xmax5mm-5%
Qts0.23-7%
BL16.4Tm-10%
Vas27L+39%
Qes0.25-2%
76%
Similarity
Oberton
10NM300
10"
Xmax5.3mm0%
Qts0.21-16%
BL20.1Tm+10%
Vas20.6L+6%
Qes0.21-16%
75%
Similarity
Oberton
10NCX
10"
Xmax5.3mm0%
Qts0.29+17%
BL16.2Tm-11%
Vas20.6L+6%
Qes0.3+17%
75%
Similarity
Oberton
10NHCX
10"
Xmax4.3mm-19%
Qts0.24-4%
BL17.4Tm-4%
Vas24.5L+26%
Qes0.24-5%
75%
Similarity
£186.65
Lavoce
WAN103.01
10"
Xmax5mm-5%
Qts0.22-11%
BL20.6Tm+13%
Vas22.3L+15%
Qes0.23-10%
73%
Similarity
£186.20
RCF
MB10N305
10"
Xmax5mm-5%
Qts0.23-7%
BL18.5Tm+2%
Vas31L+60%
Qes0.24-6%
70%
Similarity
£198.52
B&C
10NW76
10"
Xmax6.8mm+30%
Qts0.26+5%
BL20Tm+10%
Vas17.6L-9%
Qes0.27+6%
70%
Similarity
£175.83
Eighteen Sound
10M600
10"
Xmax4mm-24%
Qts0.23-7%
BL17.6Tm-3%
Vas25.6L+32%
Qes0.25-2%
