PRV Audio 10MR1000 8Ω
8 Ω · 75–6000 Hz
No current price
- Fs
- 73Hz
- Xmax
- 2.6mm
- SPL
- 98dB
- Pe
- –
- BL
- 17.9T·m
- Vd
- 102cm³
- Qts
- 0.27
- Vas
- 26L
PRV Audio 10MR1000 is a 10-inch 8 ohm LF driver. The validated T/S data includes Fs 73 Hz, Qts 0.27, Vas 26.1 L, Xmax 2.6 mm, sensitivity 97.7 dB, plus 102 cm³ Vd and 261 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 73Hz
- Qts
- 0.27
- Qes
- 0.28
- Qms
- 7.9
- Vas
- 26.1L
- Re
- 5Ω
- Le
- 0.48mH
Motor and cone
- BL
- 17.9T·m
- Sd
- 391cm²
- Mms
- 33g
- Xmax
- 2.6mm
- Vd †
- 102cm³
- Voice coil
- 75mm
Power and response
- Sensitivity †
- 97.7dB
- Manufacturer sensitivity
- 100dB
- Impedance
- 8Ω
- Range
- 75–6000Hz
- Crossover
- 150Hz
- EBP †
- 261 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 232mm
- Depth
- 123.5mm
- Weight
- 7.1kg
Other published values
- Cms
- 0.12mm/N
Other dimensions
- Mounting Depth
- 109.5
Sensitivity shows 97.7 dB, calculated from the T/S values. PRV Audio publishes 100.0 dB, 2.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else PRV Audio lists
LF · Primary · 10″
- BL
- 17.9T·m
- Fs
- 73Hz
- Le
- 0.48mH
- Re
- 5Ω
- Sd
- 391cm²
- Cms
- 0.12mm/N
- Mms
- 33g
- Qes
- 0.28
- Qms
- 7.9
- Qts
- 0.27
- SPL
- 97.7dB
- Vas
- 26.1L
- Xmax
- 2.6mm
- Impedance
- 8Ω
- Sensitivity
- 100dB
- Low limit
- 75Hz
- Calculated sensitivity †
- 97.7dB
- High limit
- 6000Hz
- Manufacturer sensitivity
- 100dB
- Voice coil
- 75mm
- Crossover
- 150Hz
- Weight
- 7.1kg
- Diameter
- 260mm
- Depth
- 123.5mm
- Mounting Depth
- 109.5
- Cutout
- 232mm
02
Compare
Same-size drivers, compared with the 10MR1000. Clear differences are green when better and red when worse.
This driver10MR1000
Best price
–
Fs
73 Hz
Qts
0.27
Vas
26.1 L
BL
17.9 T·m
Xmax
2.6 mm
Sensitivity
97.7 dB
Power
–
FaitalPRO10FH530
£130.00Fs60 Hz −18%, better
Qts0.25 −7%
Vas23.5 L −10%
BL19.5 T·m +9%
Xmax7.5 mm +188%, better
Sensitivity95.1 dB −2.6, worse
B&C10NDL64
£140.67Fs56 Hz −23%, better
Qts0.26 −4%
Vas31 L +19%, worse
BL16.2 T·m −9%
Xmax6 mm +131%, better
Sensitivity94.8 dB −2.9, worse
Beyma10MC500
£143.18Fs65 Hz −11%, better
Qts0.29 +7%
Vas24 L −8%
BL18.3 T·m –
Xmax8 mm +208%, better
Sensitivity95.4 dB −2.3, worse
PRV Audio10MR1200X
£149.54Fs87 Hz +19%, worse
Qts0.29 +7%
Vas21.8 L −16%, better
BL17.5 T·m –
Xmax2.5 mm −4%
Sensitivity98.8 dB +1.1
B&C10MBX64
£154.07Fs65 Hz −11%, better
Qts0.26 −4%
Vas28 L +7%
BL16.9 T·m −6%
Xmax4 mm +54%, better
Sensitivity96.6 dB −1.1
FaitalPRO10FH500
£158.25Fs60 Hz −18%, better
Qts0.26 −4%
Vas25.8 L –
BL17.9 T·m –
Xmax7.5 mm +188%, better
Sensitivity95 dB −2.7, worse
FaitalPRO10FH520
£165.49Fs60 Hz −18%, better
Qts0.29 +7%
Vas23.5 L −10%
BL18 T·m –
Xmax7.3 mm +179%, better
Sensitivity94.3 dB −3.4, worse
RCFL10-750YK
£166.00Fs68 Hz −7%
Qts0.24 −11%, better
Vas26 L –
BL17.5 T·m –
Xmax3 mm +15%, better
Sensitivity97.2 dB −0.5
Eighteen Sound10M600
£175.83Fs70 Hz −4%
Qts0.23 −15%, better
Vas25.6 L –
BL17.6 T·m –
Xmax4 mm +54%, better
Sensitivity97.5 dB –
B&C10NW76
£198.52Fs67 Hz −8%
Qts0.26 −4%
Vas17.6 L −33%, better
BL20 T·m +12%, better
Xmax6.8 mm +162%, better
Sensitivity95 dB −2.7, worse
Beyma10MC500ND
£209.84Fs58 Hz −21%, better
Qts0.24 −11%, better
Vas29 L +11%, worse
BL18.7 T·m +4%
Xmax8 mm +208%, better
Sensitivity95.4 dB −2.3, worse
Eighteen Sound10NDA610
£278.92Fs89 Hz +22%, worse
Qts0.23 −15%, better
Vas18 L −31%, better
BL20.3 T·m +13%, better
Xmax2.5 mm −4%
Sensitivity99.3 dB +1.6
FaitalPRO10HX240
£308.97Fs65 Hz −11%, better
Qts0.28 +4%
Vas31.8 L +22%, worse
BL15.5 T·m −13%, worse
Xmax7.4 mm +183%, better
Sensitivity96.7 dB −1

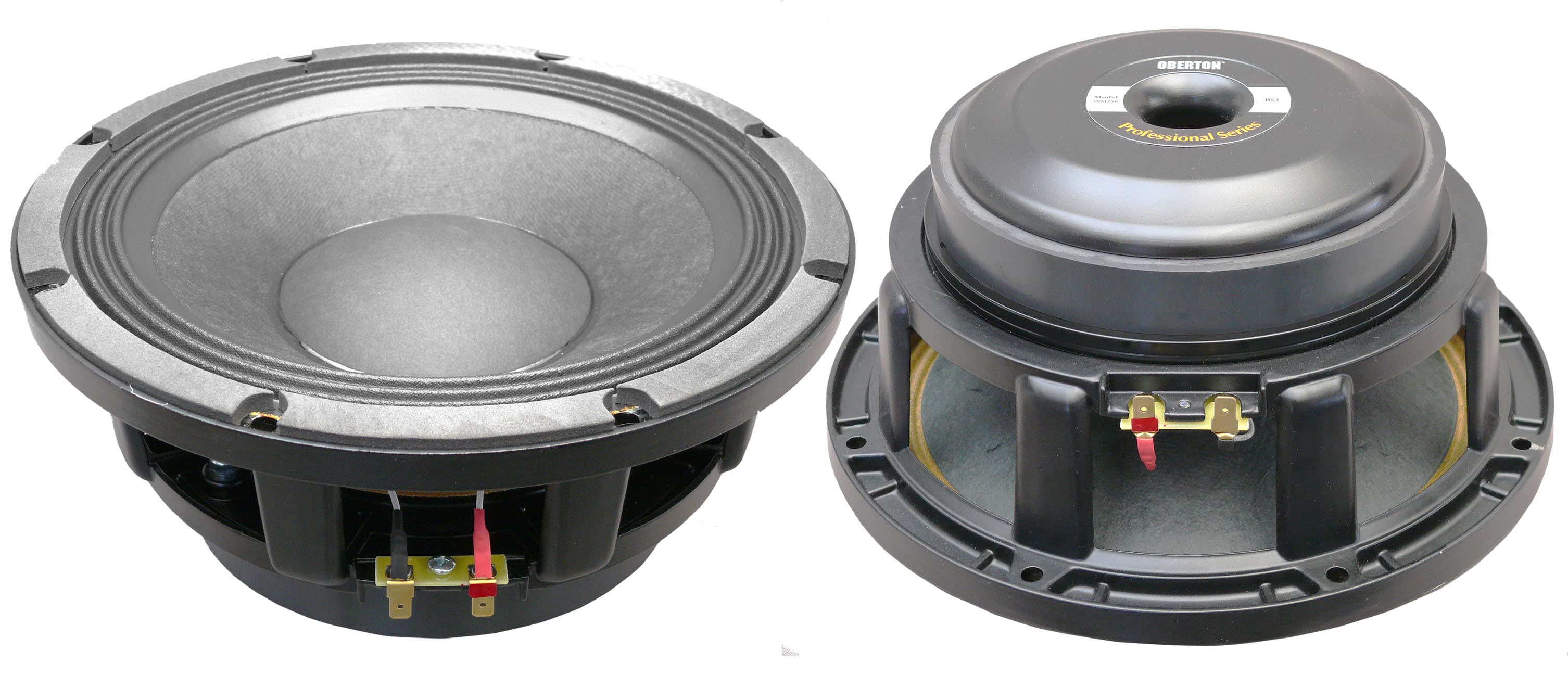

Oberton10M250
