B&C design
DCX-LA210
Three-way - Long throw, compact Line Array element
- Drivers
- 2 × 10NW76, 8 Ωor 2 × 10CLA76, 8 Ω
10-inch LF driver · 10NW series · 76 mm voice coil · 400 W
B&C 10NW76 8Ω
65–3500 Hz
£198.52
SteadyJP Leisure · In stock · All 7 offers
- Fs
- 67Hz
- Xmax
- 6.8mm
- SPL
- 95dB
- Pe
- 400W
- BL
- 20T·m
- Vd
- 218cm³
- Qts
- 0.26
- Vas
- 18L

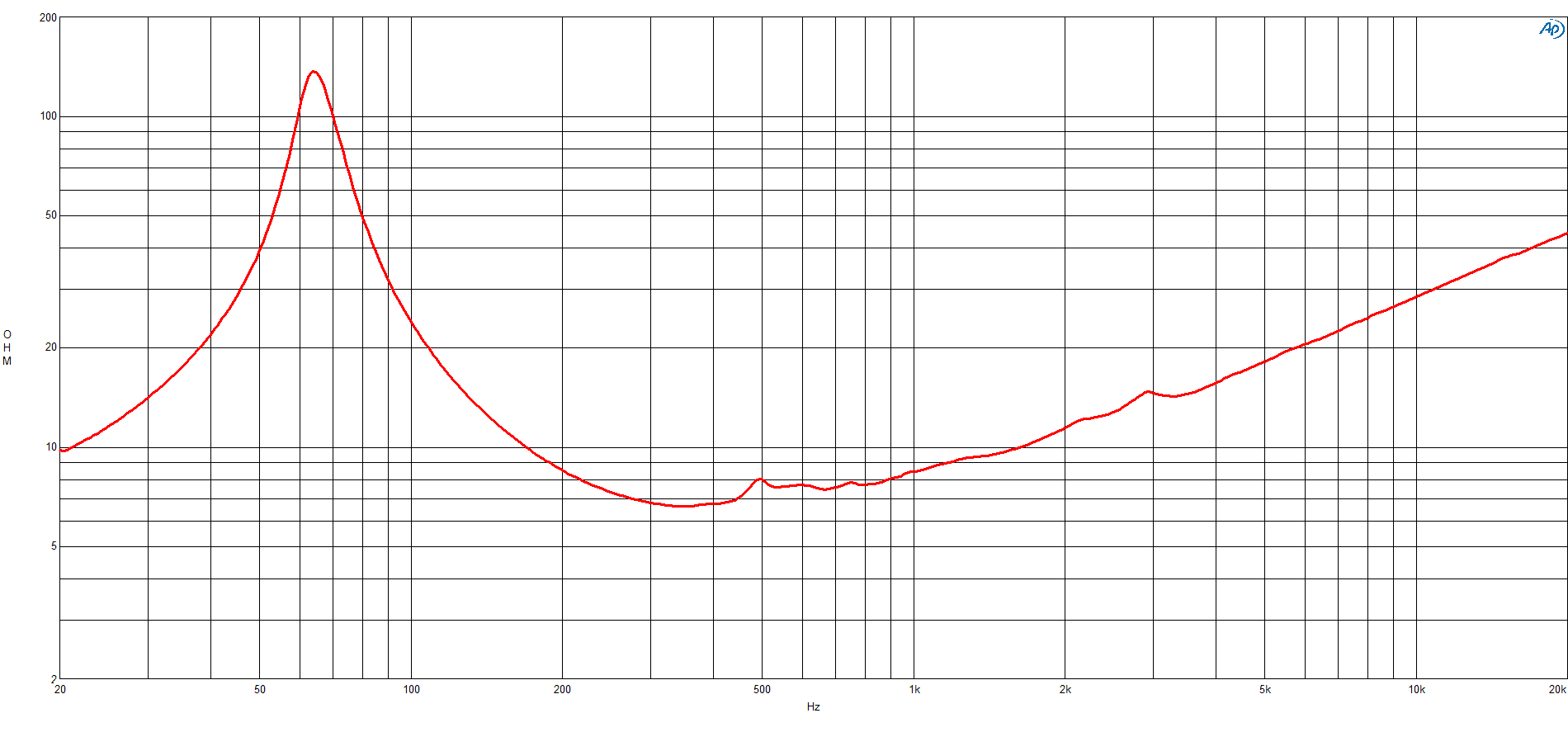

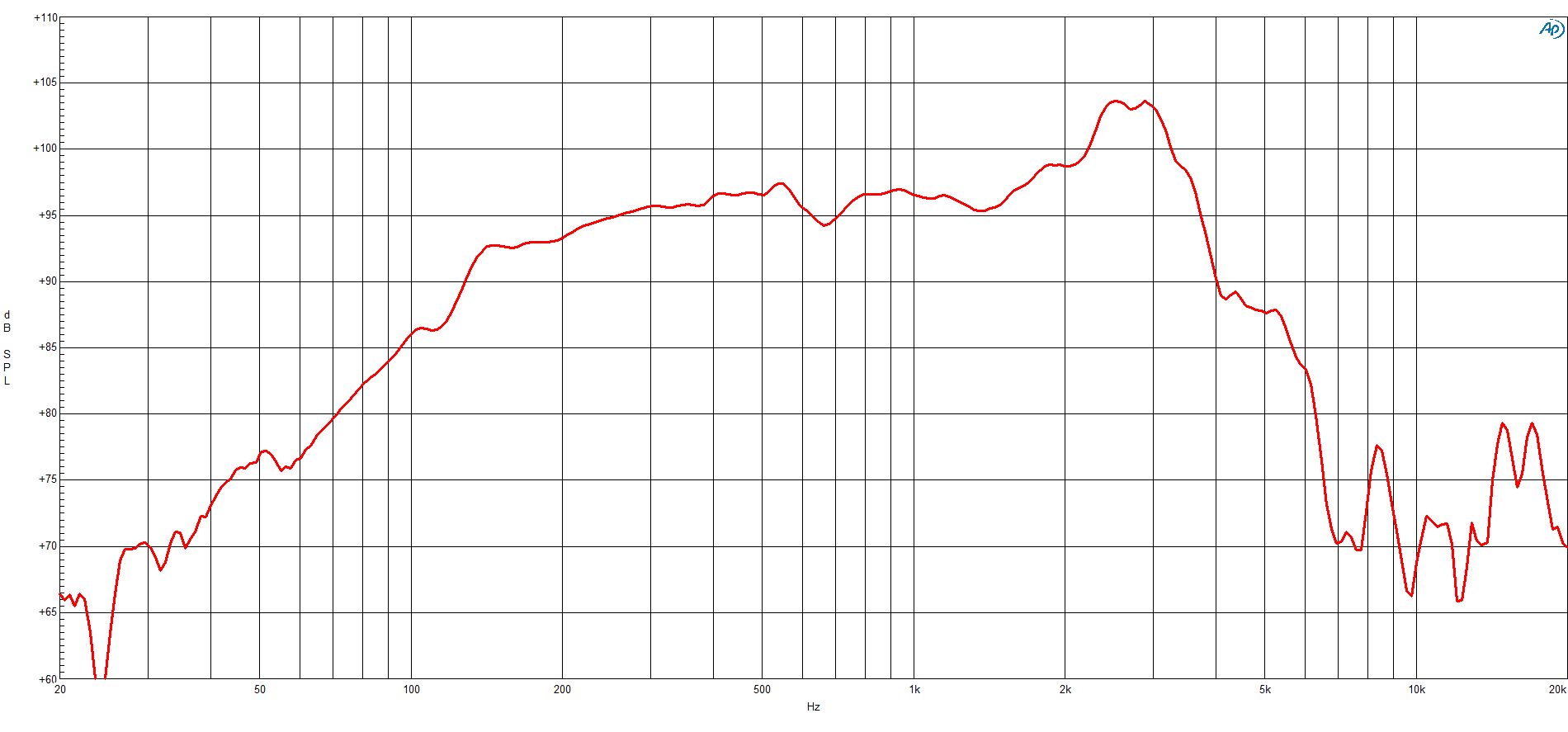

Published graphs
B&C 10NW76 is a 10-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 67 Hz, Qts 0.26, Vas 17.6 L, Xmax 6.8 mm, sensitivity 95 dB, plus 218 cm³ Vd and 248 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £198.52.
The published T/S values agree with each other
Thiele/Small
- Fs
- 67Hz
- Qts
- 0.26
- Qes
- 0.27
- Qms
- 7.8
- Vas
- 17.6L
- Re
- 5.5Ω
- Le
- 0.38mH
Motor and cone
- BL
- 20T·m
- Sd
- 320cm²
- Mms
- 47g
- Xmax
- 6.8mm
- Vd †
- 218cm³
- Voice coil
- 76mm
- Flux density
- 1.35T
Power and response
- Sensitivity †
- 95dB
- Manufacturer sensitivity
- 96.5dB
- Power
- 400W
- Nominal power
- 400W
- Impedance
- 8Ω
- Min. impedance
- 6.6Ω
- Range
- 65–3500Hz
- EBP †
- 248 · Leans vented
Size and mounting
- Diameter
- 261mm
- Cutout
- 233mm
- Bolt circle
- 246mm
- Depth
- 119mm
- Weight
- 3.8kg
Sensitivity shows 95.0 dB, calculated from the T/S values. B&C publishes 96.5 dB, 1.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 20T·m
- Fs
- 67Hz
- Le
- 0.38mH
- Re
- 5.5Ω
- Sd
- 320cm²
- Mms
- 47g
- Qes
- 0.27
- Qms
- 7.8
- Qts
- 0.26
- SPL
- 95dB
- Vas
- 17.6L
- Xmax
- 6.8mm
- Power
- 400W
- Impedance
- 8Ω
- Flux density
- 1.35T
- Sensitivity
- 96.5dB
- Low limit
- 65Hz
- Nominal power
- 400W
- Calculated sensitivity †
- 95dB
- High limit
- 3500Hz
- Manufacturer sensitivity
- 96.5dB
- Min. impedance
- 6.6Ω
- Voice coil
- 76mm
- Weight
- 3.8kg
- Diameter
- 261mm
- Depth
- 119mm
- Cutout
- 233mm
- Bolt circle
- 246mm
- Bl
- 20 Tm
- Fs
- 67 Hz
- Le
- 0.38 mH
- Re
- 5.5 Ω
- Sd
- 320 cm² (49.6 in²)
- Ebp
- 248 Hz
- Mms
- 47 g
- Qes
- 0.27
- Qms
- 7.8
- Qts
- 0.26
- Vas
- 17.6 dm³ (0.62 ft³)
- Η0
- 1.85 %
- Cone
- RCK10NW768
- Xmax
- 6.8 mm
- Xvar
- 7 mm
- Depth
- 119 mm (4.69 in)
- Spider
- Single
- Cone shape
- Curvilinear
- Net weight
- 3.8 kg (8.38 lb)
- Pole design
- T-Pole
- Sensitivity
- 96.5 dB
- Flux density
- 1.35 T
- Shipping box
- 295x314x175 mm (11.61x12.36x6.89 in)
- Winding depth
- 18.5 mm (0.73 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 65 Hz - 3500 Hz
- Magnet material
- Neodymium Ring
- Shipping weight
- 4.4 kg (9.7 lb)
- Nominal diameter
- 250 mm (10 in)
- Overall diameter
- 261 mm (10.28 in)
- Winding material
- CCAW
- Minimum impedance
- 6.6 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 10 mm (0.39 in)
- Recommended tuning
- 65 Hz
- Voice coil diameter
- 76 mm (3 in)
- Bolt circle diameter
- 246 mm (9.69 in)
- Recommended enclosure
- 26 dm³ (0.92 ft³)
- Woofer cone treatment
- WP Waterproof Front Side
- Baffle cutout diameter
- 233 mm (9.17 in)
- Nominal power handling
- 400 W
- Continuous power handling
- 800 W
- Flange and gasket thickness
- 13 mm (0.51 in)
- Air volume occupied by driver
- 1.5 dm³ (0.05 ft³)
02
Designs
Cabinets for the 10NW76: a design and a suggested box from B&C.
All 10NW76 designsHow we find designsB&C’s design
From the maker, with plans to download

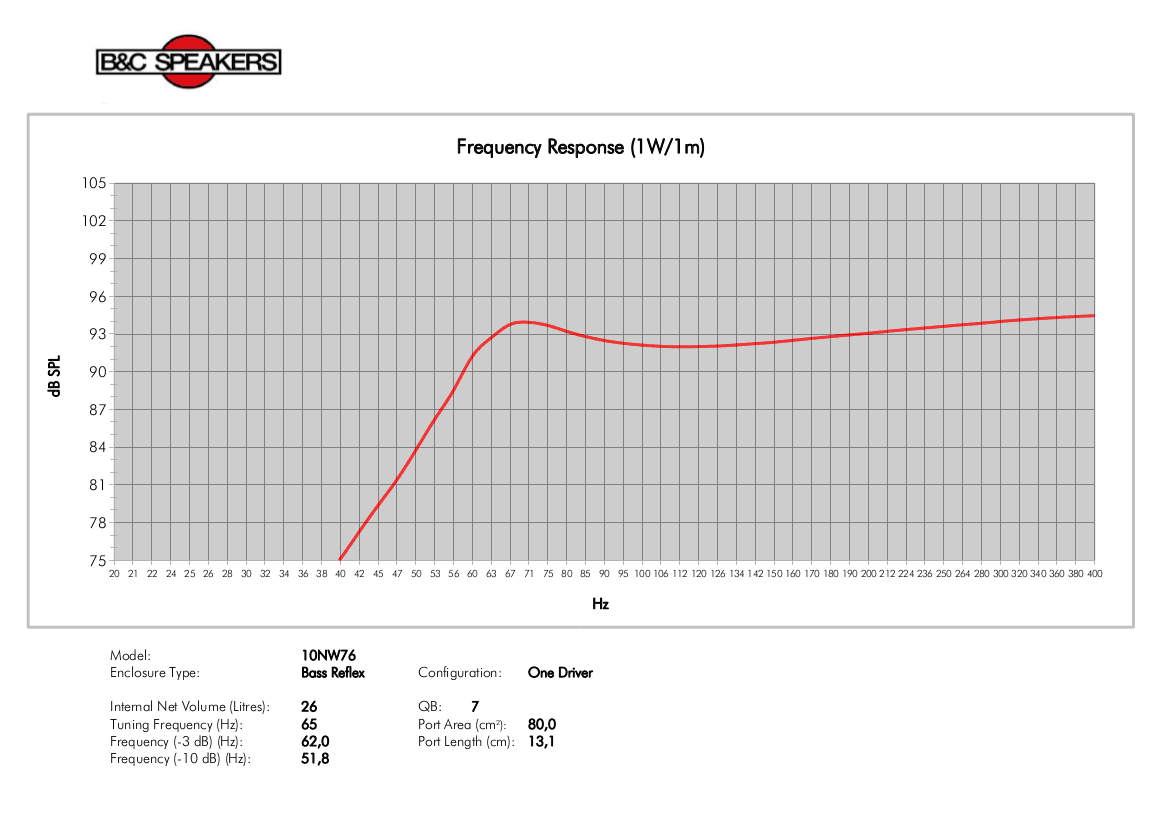

B&C’s suggested box
From B&C’s 10NW76 page
- Net volume
- 26L
- Tuning
- 65Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 10NW76. Clear differences are green when better and red when worse.
This driver10NW76
Best price
£198.52
Fs
67 Hz
Qts
0.26
Vas
17.6 L
BL
20 T·m
Xmax
6.8 mm
Sensitivity
95 dB
Power
400 W
LavoceMAF103.00
£74.99 · 62% less, betterFs85 Hz +27%, worse
Qts0.25 −4%
Vas14.9 L −15%, better
BL20.6 T·m +3%
Xmax2.2 mm −68%, worse
Sensitivity97.3 dB +2.3, better
CIAREPW252
£97.61 · 51% less, betterFs55 Hz −18%, better
Qts0.26 –
Vas43.4 L +147%, worse
BL15.2 T·m −24%, worse
Xmax7 mm –
Sensitivity95.8 dB +0.8
B&C10NW64
£114.57 · 42% less, betterFs59 Hz −12%, better
Qts0.26 –
Vas22 L +25%, worse
BL18.3 T·m −8%
Xmax6 mm −12%, worse
Sensitivity94.3 dB −0.7
FaitalPRO10FH530
£130.00 · 35% less, betterFs60 Hz −10%, better
Qts0.25 −4%
Vas23.5 L +34%, worse
BL19.5 T·m –
Xmax7.5 mm +10%, better
Sensitivity95.1 dB –
B&C10CLA76
£142.60 · 28% less, betterFs71 Hz +6%
Qts0.29 +12%, worse
Vas16.4 L −7%
BL18.6 T·m −7%
Xmax6.5 mm −4%
Sensitivity94.9 dB –
B&C10NDL64
£142.60 · 28% less, betterFs56 Hz −16%, better
Qts0.26 –
Vas31 L +76%, worse
BL16.2 T·m −19%, worse
Xmax6 mm −12%, worse
Sensitivity94.8 dB –
Beyma10MC500
£143.96 · 27% less, betterFs65 Hz –
Qts0.29 +12%, worse
Vas24 L +36%, worse
BL18.3 T·m −8%
Xmax8 mm +18%, better
Sensitivity95.4 dB –
Eighteen Sound10NTLS2000
£157.64 · 21% less, betterFs50 Hz −25%, better
Qts0.26 –
Vas38 L +116%, worse
BL16.7 T·m −17%, worse
Xmax7.4 mm +9%
Sensitivity94.5 dB −0.5
FaitalPRO10FH500
£164.62 · 17% less, betterFs60 Hz −10%, better
Qts0.26 –
Vas25.8 L +47%, worse
BL17.9 T·m −11%, worse
Xmax7.5 mm +10%, better
Sensitivity95 dB –
FaitalPRO10FH520
£165.49 · 17% less, betterFs60 Hz −10%, better
Qts0.29 +12%, worse
Vas23.5 L +34%, worse
BL18 T·m −10%, worse
Xmax7.3 mm +7%
Sensitivity94.3 dB −0.7
Beyma10MCB700
£171.06 · 14% less, betterFs75 Hz +12%, worse
Qts0.33 +27%, worse
Vas13.2 L −25%, better
BL20.1 T·m –
Xmax7 mm –
Sensitivity94 dB −1
B&C10NDL88
£182.43 · 8% less, betterFs61 Hz −9%
Qts0.25 −4%
Vas18.4 L +5%
BL20 T·m –
Xmax8.1 mm +19%, better
Sensitivity94.1 dB −0.9
FaitalPRO10HP1020
£210.36 · 6% more, worseFs60 Hz −10%, better
Qts0.24 −8%
Vas16.1 L −9%
BL24.5 T·m +23%, better
Xmax9 mm +32%, better
Sensitivity93.5 dB −1.5
Beyma10MC700ND
£212.39 · 7% more, worseFs63 Hz −6%
Qts0.22 −15%, better
Vas20 L +14%, worse
BL21.8 T·m +9%
Xmax7 mm –
Sensitivity95.2 dB –
Beyma10MC500ND
£212.72 · 7% more, worseFs58 Hz −13%, better
Qts0.24 −8%
Vas29 L +65%, worse
BL18.7 T·m −7%
Xmax8 mm +18%, better
Sensitivity95.4 dB –
B&C10BG76
£218.90 · 10% more, worseFs48 Hz −28%, better
Qts0.28 +8%
Vas17.8 L –
BL22 T·m +10%, better
Xmax9.6 mm +41%, better
Sensitivity90.3 dB −4.7, worse
Eighteen Sound10NDA610
£278.92 · 41% more, worseFs89 Hz +33%, worse
Qts0.23 −12%, better
Vas18 L –
BL20.3 T·m –
Xmax2.5 mm −63%, worse
Sensitivity99.3 dB +4.3, better
Eighteen Sound10NCX750H
No current priceFs65 Hz –
Qts0.25 −4%
Vas21.7 L +23%, worse
BL19.8 T·m –
Xmax5.5 mm −19%, worse
Sensitivity95.6 dB +0.6
No photo
PHL Audio3481-14
No current priceFs55 Hz −18%, better
Qts0.26 –
Vas25.2 L +43%, worse
BL18.1 T·m −9%
Xmax6 mm −12%, worse
Sensitivity93.9 dB −1.1
Eighteen Sound10NCX750
No current priceFs64 Hz −4%
Qts0.25 −4%
Vas23 L +31%, worse
BL20 T·m –
Xmax5.5 mm −19%, worse
Sensitivity95.7 dB +0.7
Oberton10M300
No current priceFs60 Hz −11%, better
Qts0.25 −5%
Vas19.4 L +10%, worse
BL18.2 T·m −9%
Xmax5.3 mm −23%, worse
Sensitivity94.1 dB −0.9
B&C10CXN76
No current priceFs58 Hz −13%, better
Qts0.30 +15%, worse
Vas19 L +8%
BL18.9 T·m −6%
Xmax6 mm −12%, worse
Sensitivity92.8 dB −2.2, worse
Sica10 K 3 PL
No current priceFs51 Hz −24%, better
Qts0.26 –
Vas40 L +127%, worse
BL16.1 T·m −20%, worse
Xmax6.5 mm −4%
Sensitivity94.9 dB –
Sica10 PN 3
No current priceFs48 Hz −28%, better
Qts0.26 –
Vas40.1 L +128%, worse
BL16.1 T·m −20%, worse
Xmax7 mm –
Sensitivity94.1 dB −0.9
Sica10 S 3 PL
No current priceFs43 Hz −36%, better
Qts0.27 +4%
Vas39.9 L +127%, worse
BL16.9 T·m −16%, worse
Xmax7 mm –
Sensitivity92.6 dB −2.4, worse
EminenceCANNABASS CB3010N-8
No current priceFs42 Hz −38%, better
Qts0.25 −4%
Vas55.2 L +214%, worse
BL17.2 T·m −14%, worse
Xmax6.5 mm −5%
Sensitivity94 dB −1
Oberton10MB300
No current priceFs65 Hz −3%
Qts0.24 −6%
Vas22.8 L +29%, worse
BL18.3 T·m −8%
Xmax5.3 mm −23%, worse
Sensitivity95.9 dB +0.9
No photo
PHL Audio3400
No current priceFs53 Hz −21%, better
Qts0.28 +8%
Vas30.6 L +74%, worse
BL18.1 T·m −9%
Xmax6.5 mm −4%
Sensitivity94 dB −1
Acoustic EleganceTD10M-8
No current priceFs40 Hz −40%, better
Qts0.24 −8%
Vas59.2 L +236%, worse
BL17 T·m −15%, worse
Xmax6 mm −12%, worse
Sensitivity93.7 dB −1.3
No photo
REDCATT10NPM-1
No current priceFs64 Hz −4%
Qts0.28 +8%
Vas23 L +31%, worse
BL18.3 T·m −8%
Xmax4.0 mm −40%, worse
Sensitivity95.2 dB –
