10-inch LF driver · FH series · 500 W

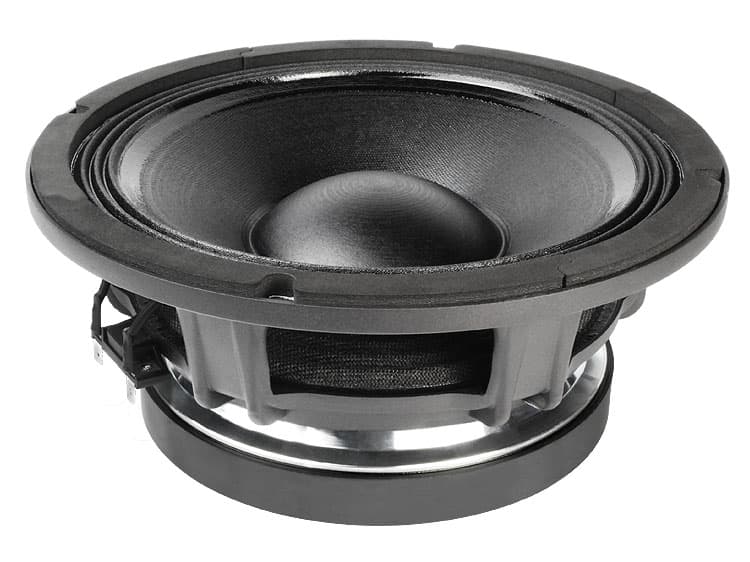

FaitalPRO 10FH530 8Ω
60–4000 Hz
£130.00
SteadyBlue Aran · 6 in stock · All 7 offers
- Fs
- 60Hz
- Xmax
- 7.5mm
- SPL
- 95dB
- Pe
- 500W
- BL
- 19.5T·m
- Vd
- 260cm³
- Qts
- 0.25
- Vas
- 24L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,320 selected pixels of 1,320 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,438 selected pixels of 1,438
FaitalPRO 10FH530 is a 10-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 60 Hz, Qts 0.25, Vas 23.5 L, Xmax 7.5 mm, sensitivity 95.1 dB, plus 260 cm³ Vd and 240 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £130.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 60Hz
- Qts
- 0.25
- Qes
- 0.25
- Qms
- 12.4
- Vas
- 23.5L
- Re
- 5.1Ω
- Le
- 0.80mH
Motor and cone
- BL
- 19.5T·m
- Sd
- 347cm²
- Mms
- 50g
- Xmax
- 7.5mm
- Vd †
- 260cm³
Power and response
- Sensitivity †
- 95.1dB
- Manufacturer sensitivity
- 97dB
- Power
- 500W
- Impedance
- 8Ω
- Range
- 60–4000Hz
- EBP †
- 240 · Leans vented
Size and mounting
- Diameter
- 261mm
- Cutout
- 230mm
- Bolt circle
- 246mm
- Depth
- 130mm
- Weight
- 7.5kg
Other published values
- Cms
- 0.14mm/N
- Rms
- 1.50kg/s
- Power Program
- 1000
Sensitivity shows 95.1 dB, calculated from the T/S values. FaitalPRO publishes 97.0 dB, 1.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 10″
- BL
- 19.5T·m
- Fs
- 60Hz
- Le
- 0.80mH
- Re
- 5.1Ω
- Sd
- 347cm²
- Cms
- 0.14mm/N
- Mms
- 50g
- Qes
- 0.25
- Qms
- 12.4
- Qts
- 0.25
- Rms
- 1.50kg/s
- SPL
- 95.1dB
- Vas
- 23.5L
- Xmax
- 7.5mm
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 97dB
- Low limit
- 60Hz
- Power Program
- 1000
- Calculated sensitivity †
- 95.1dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 97dB
- Weight
- 7.5kg
- Diameter
- 261mm
- Depth
- 130mm
- Cutout
- 230mm
- Bolt circle
- 246mm
02
Compare
Same-size drivers, compared with the 10FH530. Clear differences are green when better and red when worse.
This driver10FH530
Best price
£130.00
Fs
60 Hz
Qts
0.25
Vas
23.5 L
BL
19.5 T·m
Xmax
7.5 mm
Sensitivity
95.1 dB
Power
500 W
B&C10FW64
£123.08 · 5% less, betterFs63 Hz +5%
Qts0.23 −8%
Vas27 L +15%, worse
BL16.4 T·m −16%, worse
Xmax5 mm −33%, worse
Sensitivity96.3 dB +1.2
Beyma10MC500
£143.18 · 10% more, worseFs65 Hz +8%
Qts0.29 +16%, worse
Vas24 L –
BL18.3 T·m −6%
Xmax8 mm +7%
Sensitivity95.4 dB –
B&C10MBX64
£154.07 · 19% more, worseFs65 Hz +8%
Qts0.26 +4%
Vas28 L +19%, worse
BL16.9 T·m −13%, worse
Xmax4 mm −47%, worse
Sensitivity96.6 dB +1.5
Eighteen Sound10NTLS2000
£157.64 · 21% more, worseFs50 Hz −17%, better
Qts0.26 +4%
Vas38 L +62%, worse
BL16.7 T·m −14%, worse
Xmax7.4 mm –
Sensitivity94.5 dB −0.6
FaitalPRO10FH500
£158.25 · 22% more, worseFs60 Hz –
Qts0.26 +4%
Vas25.8 L +10%
BL17.9 T·m −8%
Xmax7.5 mm –
Sensitivity95 dB –
Eighteen Sound10MB600
£159.93 · 23% more, worseFs58 Hz −3%
Qts0.22 −12%, better
Vas33.4 L +42%, worse
BL18.6 T·m −5%
Xmax6.5 mm −13%, worse
Sensitivity96.6 dB +1.5
FaitalPRO10FH520
£165.49 · 27% more, worseFs60 Hz –
Qts0.29 +16%, worse
Vas23.5 L –
BL18 T·m −8%
Xmax7.3 mm −3%
Sensitivity94.3 dB −0.8
RCFL10-750YK
£166.00 · 28% more, worseFs68 Hz +13%, worse
Qts0.24 −4%
Vas26 L +11%, worse
BL17.5 T·m −10%, worse
Xmax3 mm −60%, worse
Sensitivity97.2 dB +2.1, better
Eighteen Sound10M600
£175.83 · 35% more, worseFs70 Hz +17%, worse
Qts0.23 −8%
Vas25.6 L +9%
BL17.6 T·m −10%
Xmax4 mm −47%, worse
Sensitivity97.5 dB +2.4, better
B&C10NW76
£198.52 · 53% more, worseFs67 Hz +12%, worse
Qts0.26 +4%
Vas17.6 L −25%, better
BL20 T·m –
Xmax6.8 mm −9%
Sensitivity95 dB –

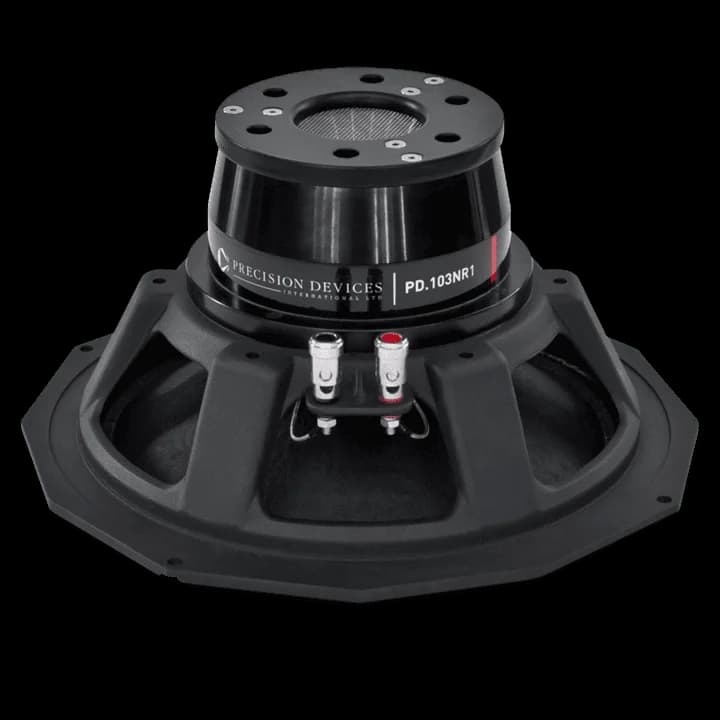

Precision DevicesPD.103NR1
£199.00 · 53% more, worseFs65 Hz +8%
Qts0.21 −15%, better
Vas36 L +53%, worse
BL18 T·m −8%
Xmax7.5 mm –
Sensitivity98.6 dB +3.5, better
B&C10NDL88
£203.38 · 56% more, worseFs61 Hz –
Qts0.25 –
Vas18.4 L −22%, better
BL20 T·m –
Xmax8.1 mm +8%
Sensitivity94.1 dB −1
Beyma10MC500ND
£209.84 · 61% more, worseFs58 Hz −3%
Qts0.24 −4%
Vas29 L +23%, worse
BL18.7 T·m −4%
Xmax8 mm +7%
Sensitivity95.4 dB –
Beyma10MC700ND
£211.22 · 62% more, worseFs63 Hz +5%
Qts0.22 −12%, better
Vas20 L −15%, better
BL21.8 T·m +12%, better
Xmax7 mm −7%
Sensitivity95.2 dB –
Eighteen Sound10NDA610
£278.92 · 115% more, worseFs89 Hz +48%, worse
Qts0.23 −8%
Vas18 L −23%, better
BL20.3 T·m +4%
Xmax2.5 mm −67%, worse
Sensitivity99.3 dB +4.2, better
Eighteen Sound10NCX750
No current priceFs64 Hz +7%
Qts0.25 –
Vas23 L –
BL20 T·m –
Xmax5.5 mm −27%, worse
Sensitivity95.7 dB +0.6
Eighteen Sound10NCX750H
No current priceFs65 Hz +8%
Qts0.25 –
Vas21.7 L −8%
BL19.8 T·m –
Xmax5.5 mm −27%, worse
Sensitivity95.6 dB +0.5
Oberton10MB300
No current priceFs65 Hz +8%
Qts0.24 –
Vas22.8 L −3%
BL18.3 T·m −6%
Xmax5.3 mm −30%, worse
Sensitivity95.9 dB +0.8
No photo
PHL Audio3481-14
No current priceFs55 Hz −8%
Qts0.26 +4%
Vas25.2 L +7%
BL18.1 T·m −7%
Xmax6 mm −20%, worse
Sensitivity93.9 dB −1.2
Oberton10M300
No current priceFs60 Hz –
Qts0.25 –
Vas19.4 L −17%, better
BL18.2 T·m −7%
Xmax5.3 mm −30%, worse
Sensitivity94.1 dB −1
No photo
PHL Audio3411
No current priceFs47 Hz −22%, better
Qts0.23 −8%
Vas35.1 L +49%, worse
BL20.2 T·m +4%
Xmax8 mm +7%
Sensitivity93.8 dB −1.3
Oberton10NHCX
No current priceFs72 Hz +19%, worse
Qts0.24 −5%
Vas24.5 L +4%
BL17.4 T·m −11%, worse
Xmax4.3 mm −43%, worse
Sensitivity97.7 dB +2.6, better
PeerlessNCP-1030R00-08
No current priceFs67 Hz +12%, worse
Qts0.23 −8%
Vas27 L +15%, worse
BL19.1 T·m –
Xmax3.9 mm −48%, worse
Sensitivity96.9 dB +1.8
EminenceCANNABASS CB3010N-8
No current priceFs42 Hz −31%, better
Qts0.25 –
Vas55.2 L +135%, worse
BL17.2 T·m −12%, worse
Xmax6.5 mm −14%, worse
Sensitivity94 dB −1.1
LavoceWAN103.01
No current priceFs70 Hz +17%, worse
Qts0.22 −12%, better
Vas22.3 L −5%
BL20.6 T·m +5%
Xmax5 mm −33%, worse
Sensitivity97.2 dB +2.1, better
Eighteen Sound10MB777
No current priceFs58 Hz −3%
Qts0.22 −12%, better
Vas33.4 L +42%, worse
BL18.6 T·m −5%
Xmax6.5 mm −13%, worse
Sensitivity96.6 dB +1.5
No photo
PHL Audio3400
No current priceFs53 Hz −12%, better
Qts0.28 +12%, worse
Vas30.6 L +30%, worse
BL18.1 T·m −7%
Xmax6.5 mm −13%, worse
Sensitivity94 dB −1.1
PRV Audio10MR1000
No current priceFs73 Hz +22%, worse
Qts0.27 +8%
Vas26.1 L +11%, worse
BL17.9 T·m −8%
Xmax2.6 mm −65%, worse
Sensitivity97.7 dB +2.6, better
No photo
PHL Audio3840NDU
No current priceFs62 Hz +3%
Qts0.22 −12%, better
Vas26.3 L +12%, worse
BL20.8 T·m +7%
Xmax4.5 mm −40%, worse
Sensitivity96.4 dB +1.3
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Blue Aran | £130.00, the lowest price | 6 in stock | Visit shop at Blue Aran | |
Lean Audio | £130.00 | Out of stock | Visit shop at Lean Audio | |
Lean Business | £155.45 | 20% above the lowest price | Out of stock | Visit shop at Lean Business |
Blue Aran 9-11 weeks | £162.79 | 25% above the lowest price | Usually available in 9-11 weeks | Visit shop at Blue Aran |
Audio Video Parts Import VAT and duty may apply | £172.27 | 33% above the lowest price | Special order | Visit shop at Audio Video Parts |
Best price over time
Tracked since 1 Apr
Recent changes
- 25 AprLean Audio£157.28 → £130.00Down 17% from £157.28
