LF DriverPD series
Precision Devices

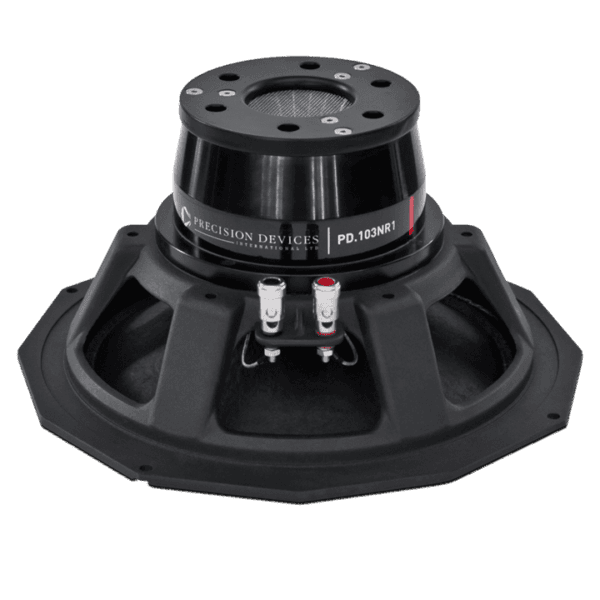

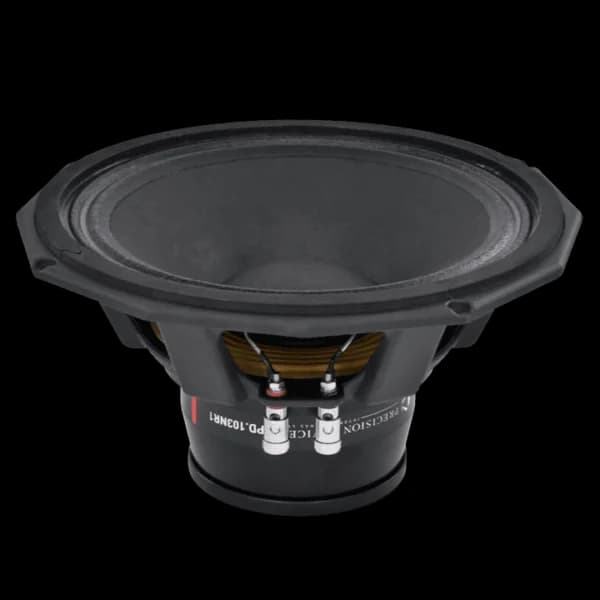

Precision Devices PD.103NR1
Precision Devices PD.103NR1 is a 10" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 65Hz, Qts 0.21, Vas 36L, Xmax 7.5mm, sensitivity 98.6dB, plus 272cm³ Vd and 295 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £204.00.
Size
10"
Impedance
8Ω
RMS Power
700W
Sensitivity
98.6dB
100.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
295
Vented alignment
Vd
272cm³
T/S Parameters
Valid
Fs65Hz
Qts0.21
Qes0.22
Qms6.0
Vas36.0L
Re5.5Ω
Le1.20mH
BL18.0Tm
Sd362cm²
Mms31g
Xmax7.5mm
SPL99dB
Power700W
Impedance8Ω
F Low100Hz
F High5000Hz
Voice Coil76mm
Flux Density1.25T
Pricing & availability
Price definitionsPrice movement
Best current price
£204.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.3kg
Diameter278.0mm
Overall Depth131.7mm
Cutout Diameter228.0mm
Bolt Circle Diameter271.0mm
