Overview
LF DriverKappa Pro series
Eminence

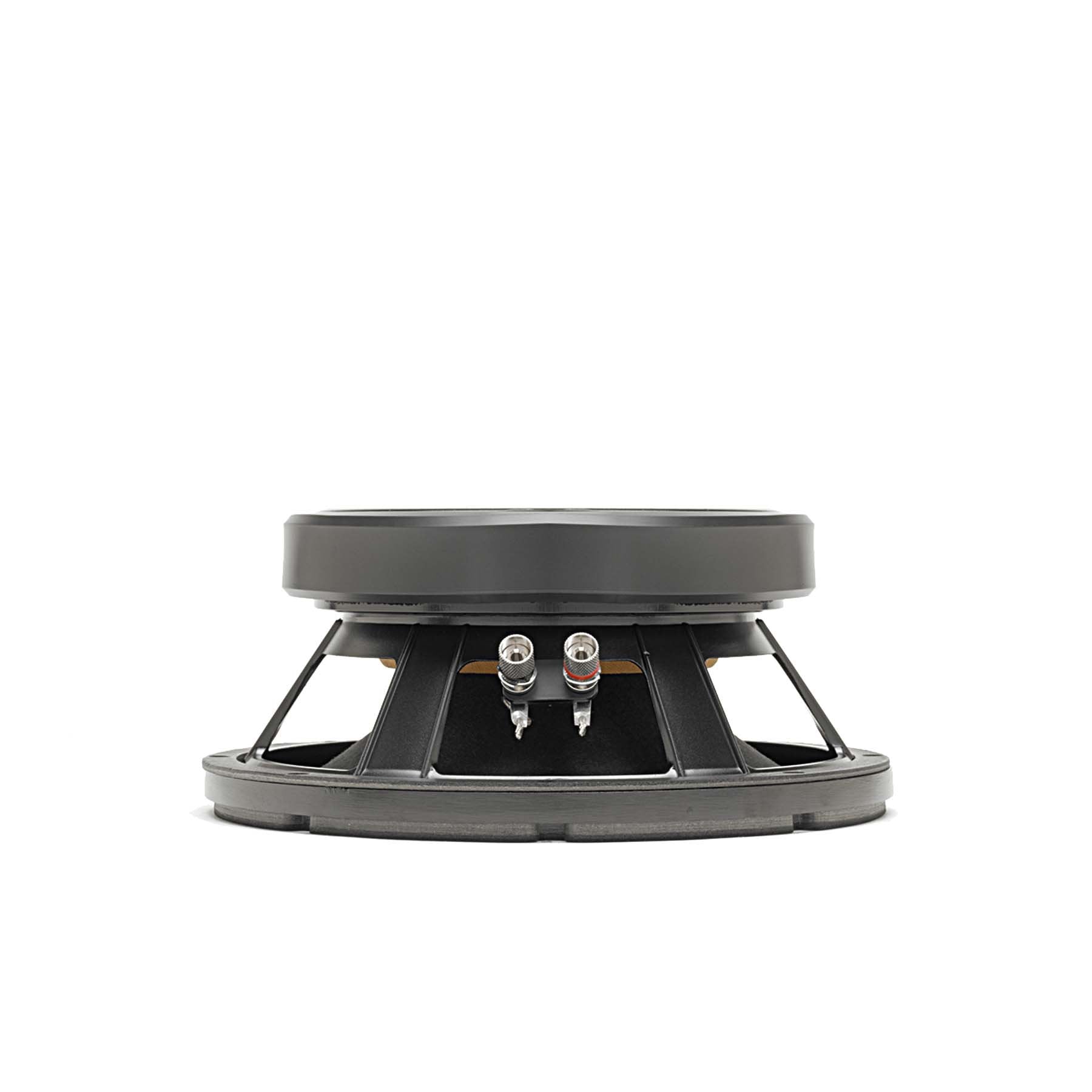

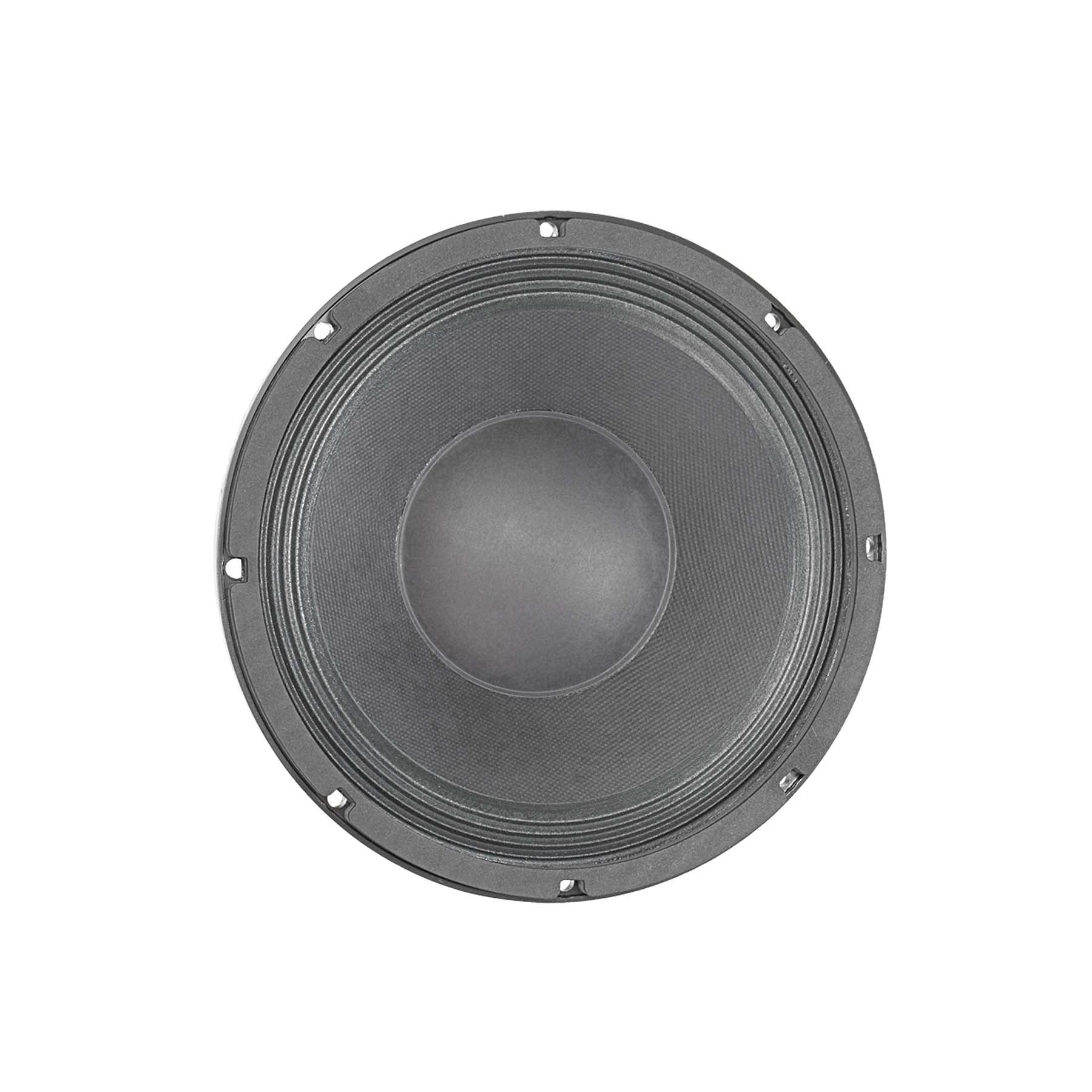

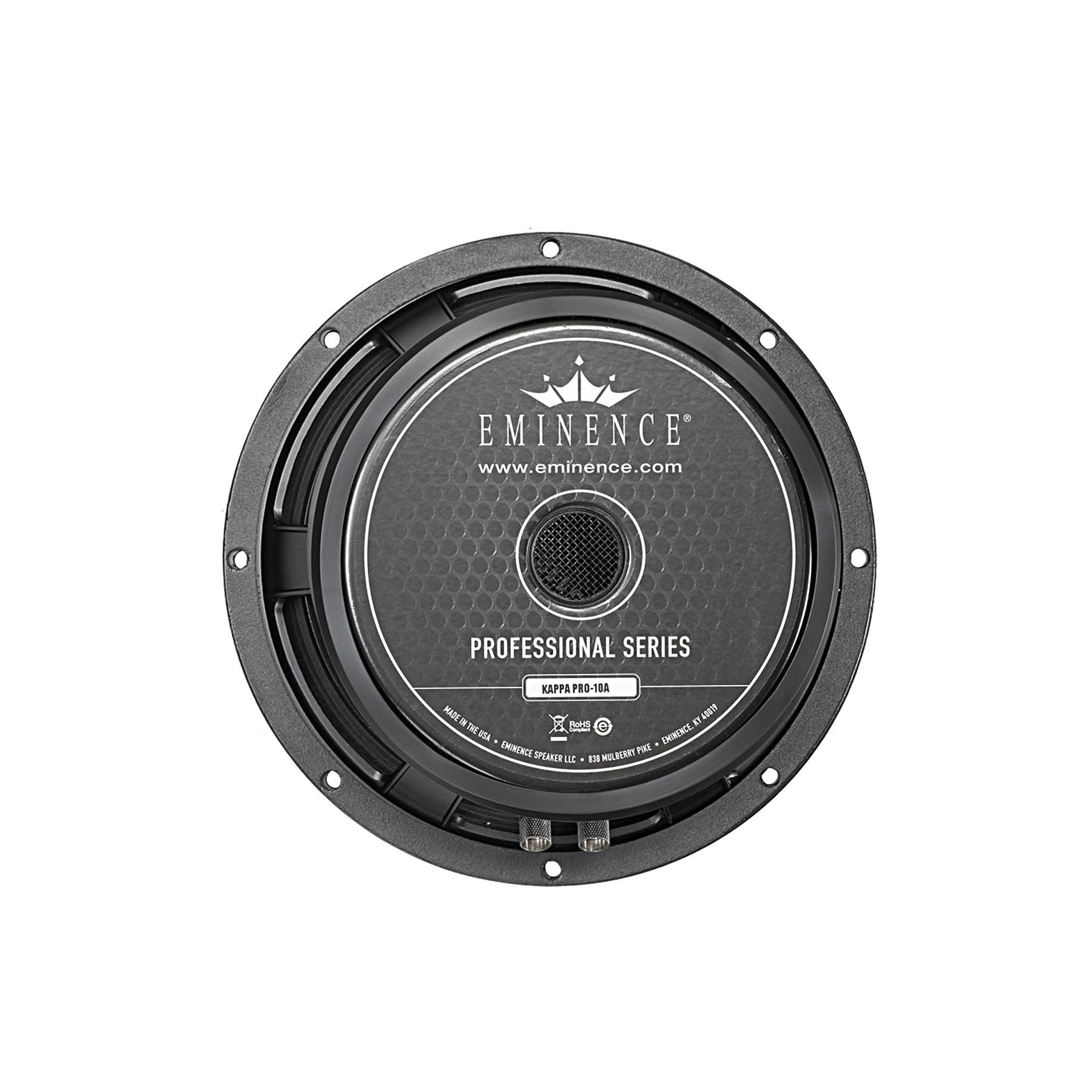

Eminence KAPPA PRO-10A
Eminence KAPPA PRO-10A is a 10" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 46Hz, Qts 0.20, Vas 52.2L, Xmax 3.2mm, sensitivity 96.1dB, plus 110cm³ Vd and 230 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £122.03.
Size
10"
Impedance
8Ω
RMS Power
500W
Sensitivity
96.1dB
EBP
230
Vented alignment
Vd
110cm³
T/S Parameters
Valid
Fs46Hz
Qts0.20
Qes0.20
Qms10.1
Vas52.2L
Re6.5Ω
Le1.15mH
BL18.8Tm
Sd345cm²
Mms38g
Xmax3.2mm
SPL96dB
Power500W
Impedance8Ω
F Low102Hz
F High2000Hz
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorsleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£129.53
inc VAT
Out of stock
thomann
Updated 11 Sept 2026
Source: inc VAT · 20%
£165.00
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
partsexpress
£122.03
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.9kg
Diameter260.4mm
Overall Depth110.0mm
Cutout Diameter231.9mm
Bolt Circle Diameter247.7mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
KAPPA PRO-10A
10"
Best current price
£122.03
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
5 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
56%
Similarity
6% more£129.95
RCF
L10-750YK
10"
Higher price
Xmax3mm-6%
Qts0.24+20%
BL17.5Tm-7%
Vas26L-50%
Qes0.25+25%
49%
Similarity
44% more£175.83
Eighteen Sound
10M600
10"
Higher price
Xmax4mm+25%
Qts0.23+15%
BL17.6Tm-6%
Vas25.6L-51%
Qes0.25+25%
40%
Similarity
54% more£187.96
Eighteen Sound
10NMB420
10"
Higher price
Xmax4mm+25%
Qts0.25+25%
BL14.5Tm-23%
Vas40L-23%
Qes0.26+30%
52%
Similarity
84% more£225.00
Eighteen Sound
10NMBA520
10"
Higher price
Xmax4mm+25%
Qts0.23+15%
BL14.6Tm-22%
Vas42L-20%
Qes0.24+20%
50%
Similarity
Peerless
NCP-1030R00-08
10"
Xmax3.9mm+22%
Qts0.23+15%
BL19.1Tm+2%
Vas27L-48%
Qes0.27+33%
