10-inch LF driver · DELTA series · 350 W
Eminence DELTA 10B 16Ω
16 Ω · 71–3700 Hz
£98.74
SteadyBlue Aran · 1 in stock · All 5 offers
- Fs
- 65Hz
- Xmax
- 3.5mm
- SPL
- 97dB
- Pe
- 350W
- BL
- 19.5T·m
- Vd
- 121cm³
- Qts
- 0.33
- Vas
- 36L

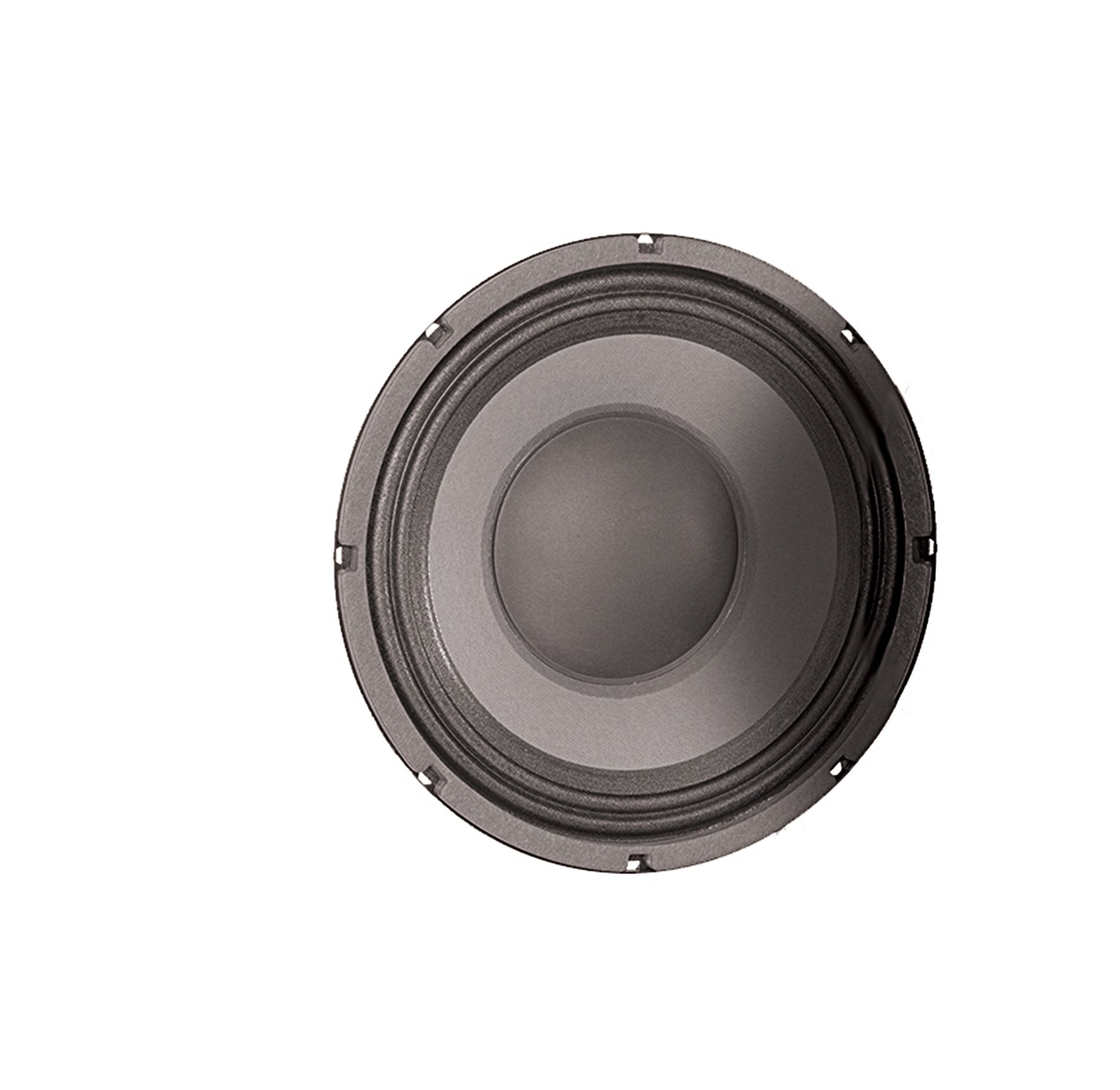

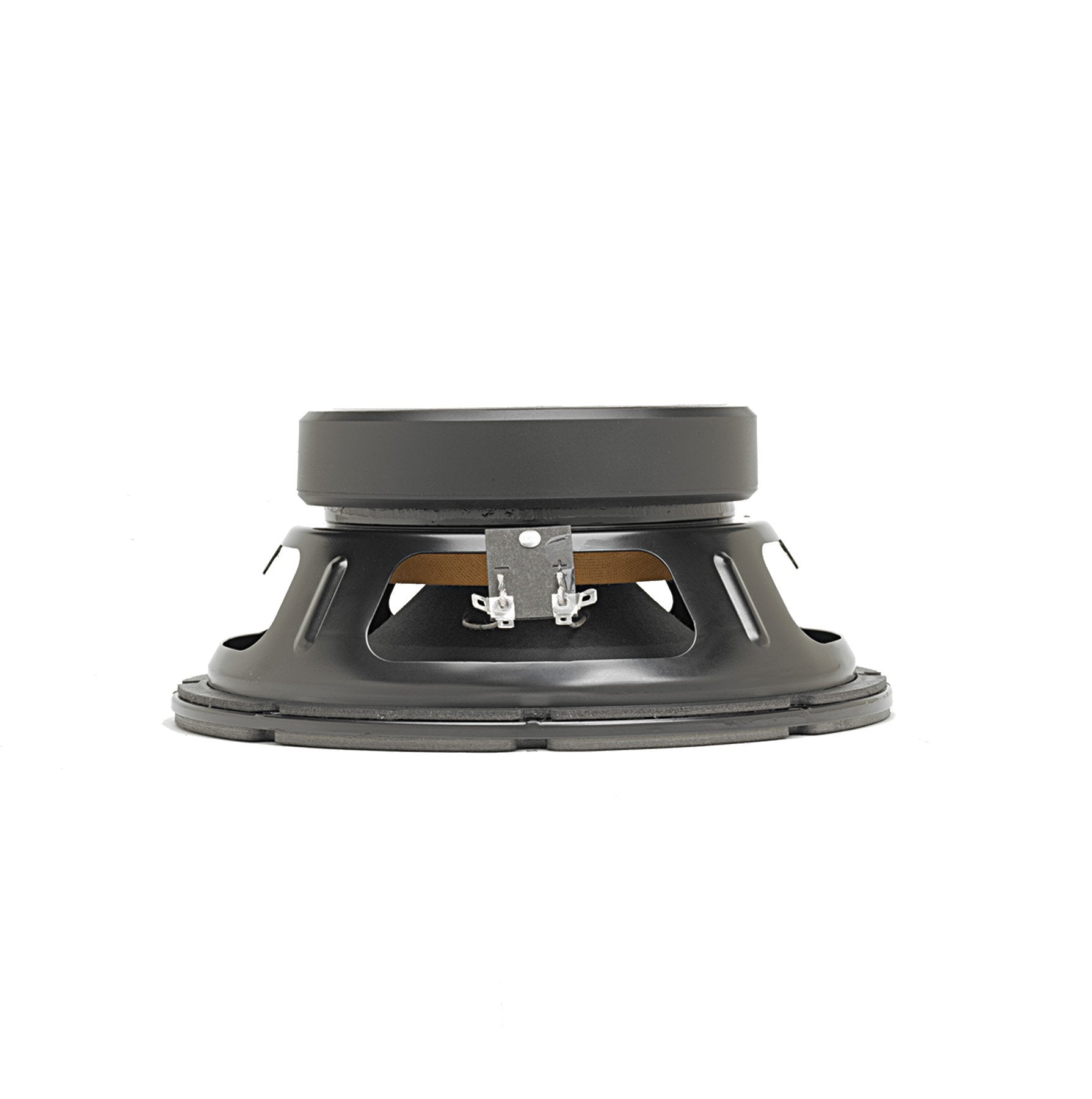

Eminence DELTA 10B is a 10-inch 16 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 65 Hz, Qts 0.33, Vas 36 L, Xmax 3.5 mm, sensitivity 96.5 dB, plus 121 cm³ Vd and 186 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £92.75.
The published T/S values agree with each other
Thiele/Small
- Fs
- 65Hz
- Qts
- 0.33
- Qes
- 0.35
- Qms
- 8.3
- Vas
- 36L
- Re
- 11.6Ω
- Le
- 0.79mH
Motor and cone
- BL
- 19.5T·m
- Sd
- 345cm²
- Mms
- 28g
- Xmax
- 3.5mm
- Vd †
- 121cm³
Power and response
- Sensitivity †
- 96.5dB
- Manufacturer sensitivity
- 98dB
- Power
- 350W
- Impedance
- 16Ω
- Range
- 71–3700Hz
- EBP †
- 186 · Leans vented
Size and mounting
- Diameter
- 256.3mm
- Cutout
- 233.2mm
- Bolt circle
- 245.4mm
- Depth
- 108.0mm
- Weight
- 4.9kg
Other published values
- Cms
- 0.21mm/N
- Xmech
- 9
- Power Program
- 700
Sensitivity shows 96.5 dB, calculated from the T/S values. Eminence publishes 98.0 dB, 1.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eminence lists
LF · Primary · 10″
- BL
- 19.5T·m
- Fs
- 65Hz
- Le
- 0.79mH
- Re
- 11.6Ω
- Sd
- 345cm²
- Cms
- 0.21mm/N
- Mms
- 28g
- Qes
- 0.35
- Qms
- 8.3
- Qts
- 0.33
- SPL
- 96.5dB
- Vas
- 36L
- Xmax
- 3.5mm
- Xmech
- 9
- Power
- 350W
- Impedance
- 16Ω
- Sensitivity
- 98dB
- Low limit
- 71Hz
- Power Program
- 700
- Calculated sensitivity †
- 96.5dB
- High limit
- 3700Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 4.9kg
- Diameter
- 256.3mm
- Depth
- 108.0mm
- Cutout
- 233.2mm
- Bolt circle
- 245.4mm
