- Net volume
- 24L
- Tuning
- 70Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.

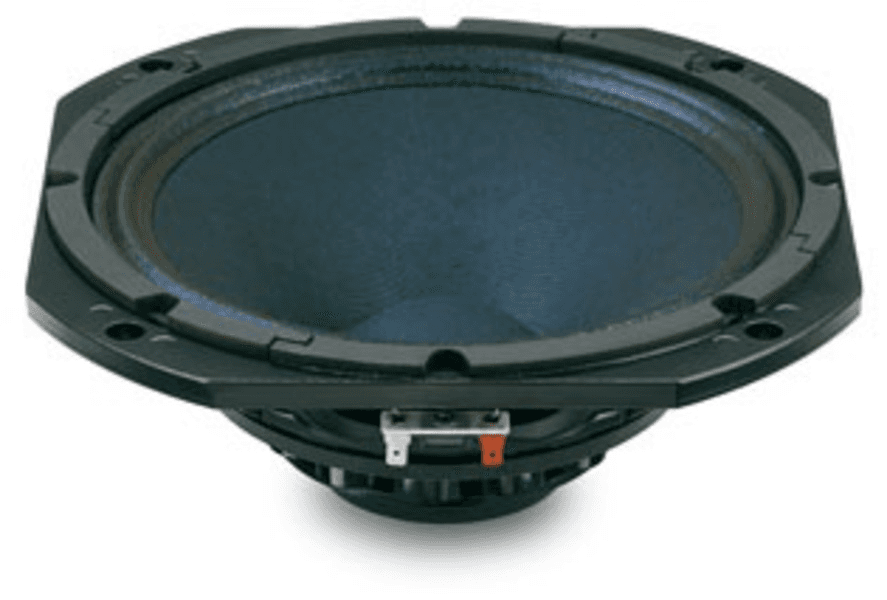

10-inch LF driver · 300 W
Eighteen Sound 10NMB520 16Ω
16 Ω · 60–5000 Hz
No current price
- Fs
- 64Hz
- Xmax
- 4mm
- SPL
- 97dB
- Pe
- 300W
- BL
- 17.5T·m
- Vd
- 136cm³
- Qts
- 0.33
- Vas
- 43L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

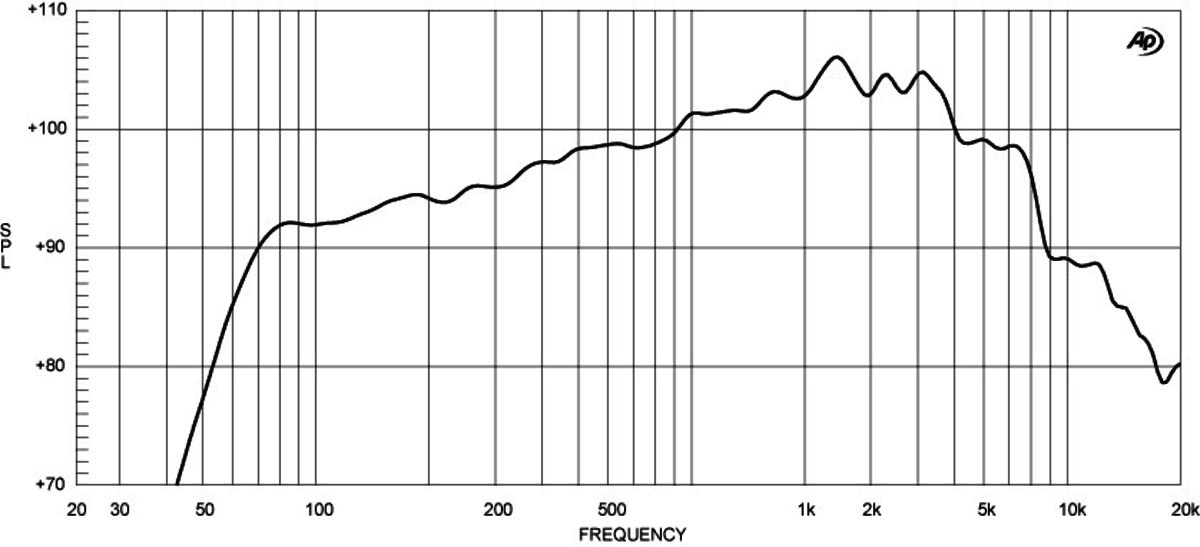

Frequency response
240 plotted pointsMedium confidence774 selected pixels of 774 - Trace datasheet-response-trace-poc/v1
impedance

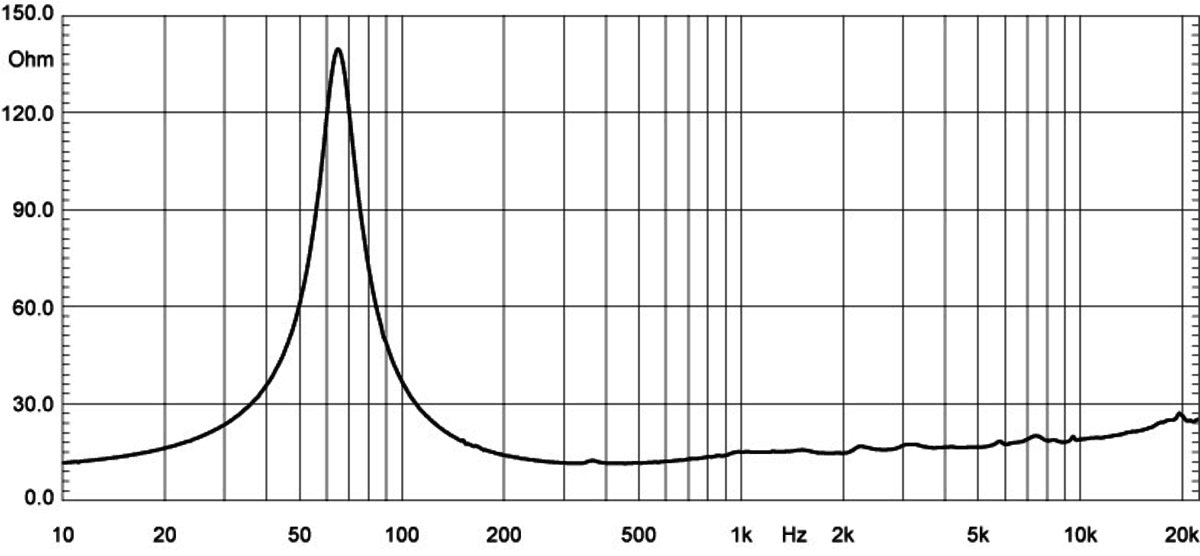

Impedance response
240 plotted pointsMedium confidence908 selected pixels of 908
Published graphs
Eighteen Sound 10NMB520 is a 10-inch 16 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 64 Hz, Qts 0.33, Vas 43 L, Xmax 4 mm, sensitivity 97 dB, plus 136 cm³ Vd and 178 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 64Hz
- Qts
- 0.33
- Qes
- 0.36
- Qms
- 4
- Vas
- 43L
- Re
- 11.7Ω
- Le
- 0.33mH
Motor and cone
- BL
- 17.5T·m
- Sd
- 340cm²
- Mms
- 23g
- Xmax
- 4mm
- Vd †
- 136cm³
Power and response
- Sensitivity †
- 97dB
- Manufacturer sensitivity
- 100dB
- Power
- 300W
- Nominal power
- 300W
- Impedance
- 16Ω
- Range
- 60–5000Hz
- EBP †
- 178 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 232mm
- Bolt circle
- 275mm
- Depth
- 104mm
- Weight
- 3kg
Other published values
- Power Program
- 600
Sensitivity shows 97.0 dB, calculated from the T/S values. Eighteen Sound publishes 100.0 dB, 3.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 10″
- BL
- 17.5T·m
- Fs
- 64Hz
- Le
- 0.33mH
- Re
- 11.7Ω
- Sd
- 340cm²
- Mms
- 23g
- Qes
- 0.36
- Qms
- 4
- Qts
- 0.33
- SPL
- 97dB
- Vas
- 43L
- Xmax
- 4mm
- Power
- 300W
- Impedance
- 16Ω
- Sensitivity
- 100dB
- Low limit
- 60Hz
- Nominal power
- 300W
- Power Program
- 600
- Calculated sensitivity †
- 97dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 100dB
- Weight
- 3kg
- Diameter
- 260mm
- Depth
- 104mm
- Cutout
- 232mm
- Bolt circle
- 275mm
02
Designs
What Eighteen Sound suggests for the 10NMB520. No published designs name it yet.
