Overview
LF Driver
Sica
Sica 10 FE 2.5 CP

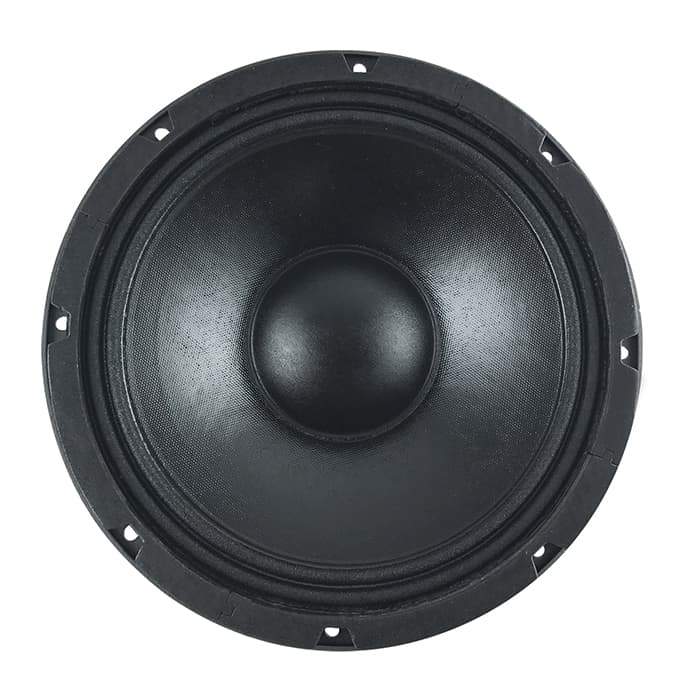

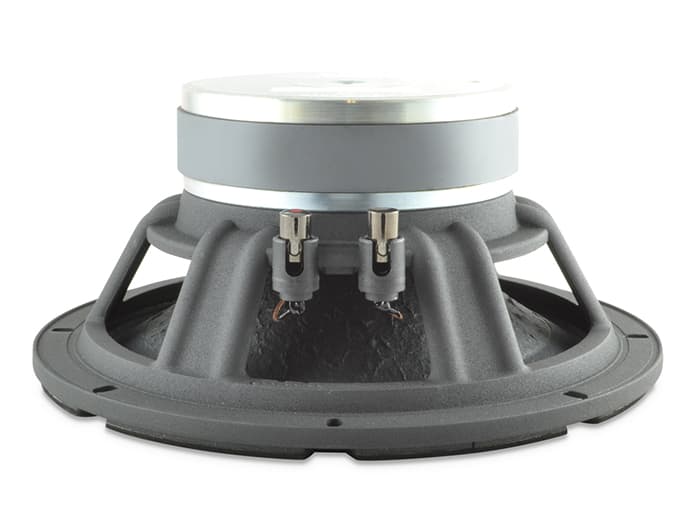

Sica 10 FE 2.5 CP is a 10" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 57Hz, Qts 0.37, Vas 39.7L, Xmax 4mm, sensitivity 94.7dB, plus 139cm³ Vd and 143 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
300W
Sensitivity
94.7dB
96.3dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
143
Vented alignment
Vd
139cm³
T/S Parameters
Valid
Fs57Hz
Qts0.37
Qes0.40
Qms4.2
Vas39.7L
Re5.5Ω
Le0.46mH
BL12.8Tm
Sd346cm²
Mms34g
Xmax4.0mm
SPL95dB
Power300W
Impedance8Ω
Voice Coil65mm
Flux Density1.17T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.9kg
Diameter268.0mm
Overall Depth119.5mm
Cutout Diameter232.0mm
Bolt Circle Diameter247.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
10 FE 2.5 CP
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
90%
Similarity
PRV Audio
10MR650A-NDY
10"
Xmax3.5mm-12%
Qts0.38+3%
BL12.7Tm0%
Vas40.7L+3%
Qes0.40%
89%
Similarity
PRV Audio
10W650A-4
10"
Xmax4mm0%
Qts0.39+5%
BL11.2Tm-12%
Vas41.2L+4%
Qes0.40%
89%
Similarity
Sica
10 N 2.5 PL
10"
Xmax4.5mm+13%
Qts0.36-3%
BL12.8Tm0%
Vas40.9L+3%
Qes0.39-3%
88%
Similarity
Celestion
FTR10-2055D
10"
Xmax4mm0%
Qts0.34-7%
BL13.8Tm+8%
Vas36.9L-7%
Qes0.39-2%
87%
Similarity
£79.75
CIARE
FXI10
10"
Xmax4.5mm+13%
Qts0.38+3%
BL13.3Tm+4%
Vas38.5L-3%
Qes0.41+2%
86%
Similarity
Oberton
10CX
10"
Xmax4.3mm+6%
Qts0.38+3%
BL12.1Tm-6%
Vas32.3L-19%
Qes0.39-3%
79%
Similarity
Peerless
FSL-1020R02-08
10"
Xmax5.1mm+27%
Qts0.36-3%
BL13.6Tm+6%
Vas38.5L-3%
Qes0.39-2%
76%
Similarity
Monacor
TF1020/8
10"
Xmax4mm0%
Qts0.32-13%
BL14.1Tm+10%
Vas28.8L-27%
Qes0.37-7%
76%
Similarity
£63.00
Celestion
TF1020
10"
Xmax4mm0%
Qts0.32-13%
BL14.1Tm+10%
Vas28.8L-28%
Qes0.37-7%
74%
Similarity
CIARE
PWA10.64
10"
Xmax4.5mm+13%
Qts0.38+3%
BL14.4Tm+12%
Vas23L-42%
Qes0.40%
71%
Similarity
Oberton
10NMB200
10"
Xmax4.3mm+6%
Qts0.32-15%
BL14.1Tm+10%
Vas34.9L-12%
Qes0.33-18%
69%
Similarity
£97.30
PRV Audio
10MB800FT
10"
Xmax3.5mm-12%
Qts0.32-14%
BL14.4Tm+12%
Vas36.7L-7%
Qes0.33-17%
