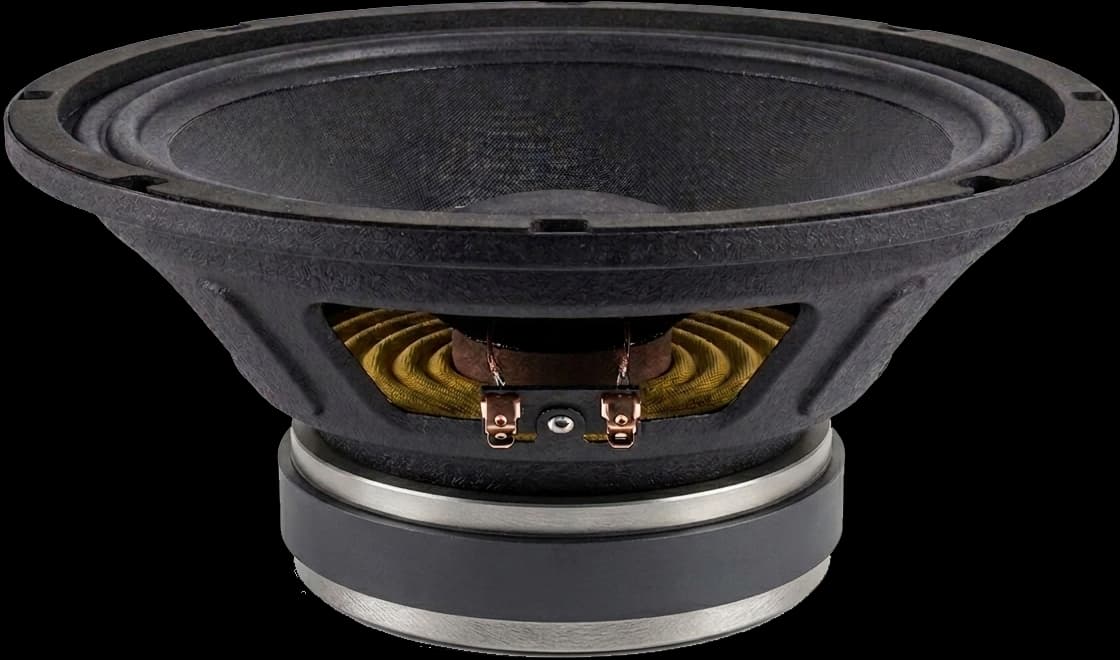

Celestion TF1020RE
Celestion TF1020RE is a 10" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 53Hz, Qts 0.39, Vas 44.5L, Xmax 5.9mm, sensitivity 93.6dB, plus 203cm³ Vd and 117 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
250W
Sensitivity
93.6dB
97.0dBmanufacturer; using T/S-derived value (3.4dB delta).
EBP
117
Vented alignment
Vd
203cm³

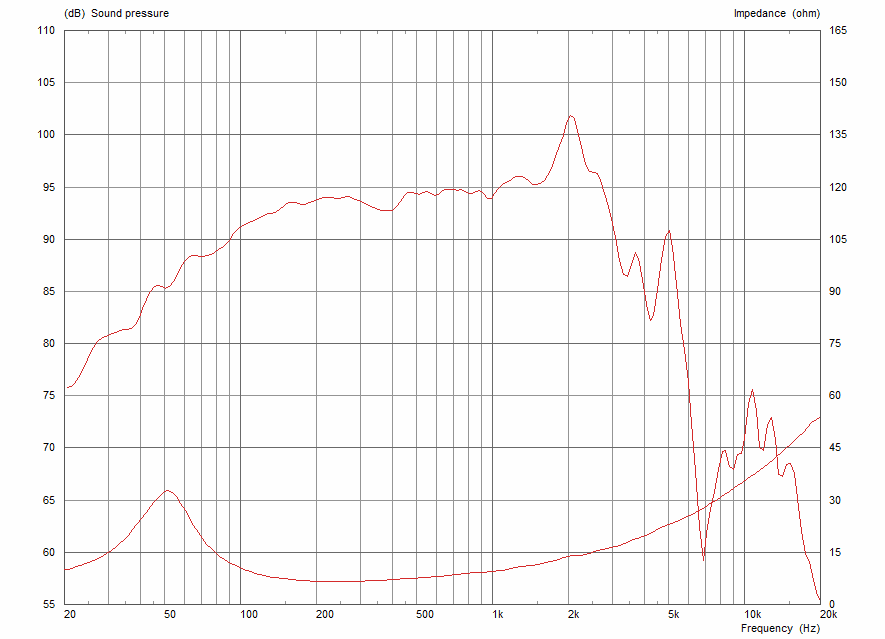

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response130 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
130 plotted pointsMedium confidence133 selected pixels of 277
T/S Parameters
Valid
Fs53Hz
Qts0.39
Qes0.45
Qms2.8
Vas44.5L
Re5.6Ω
Le0.68mH
BL12.0Tm
Sd346cm²
Mms35g
Xmax5.9mm
SPL94dB
Power250W
Impedance8Ω
Voice Coil50mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.7kg
Diameter256.0mm
Overall Depth113.0mm
Cutout Diameter229.0mm
Bolt Circle Diameter245.0mm
