Download for HornrespPRV Audio 10MR650A-NDY 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
PRV Audio
PRV Audio 10MR650A-NDY
PRV Audio 10MR650A-NDY is a 10" 8 ohm LF driver rated at 325W RMS. The validated T/S data includes Fs 62Hz, Qts 0.38, Vas 40.7L, Xmax 3.5mm, sensitivity 96dB, plus 133cm³ Vd and 156 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
325W
Sensitivity
96.0dB
99.0dBmanufacturer; using T/S-derived value (3.0dB delta).
EBP
156
Vented alignment
Vd
133cm³
T/S Parameters
Valid
Fs62Hz
Qts0.38
Qes0.40
Qms10.2
Vas40.7L
Re5.1Ω
Le0.39mH
BL12.7Tm
Sd380cm²
Mms32g
Xmax3.5mm
SPL96dB
Power325W
Impedance8Ω
F Low70Hz
F High6500Hz
Xover110Hz
Voice Coil65mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.6kg
Diameter260.5mm
Overall Depth116.8mm
Cutout Diameter228.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
10MR650A-NDY
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
89%
Similarity
Sica
10 FE 2.5 CP
10"
Xmax4mm+14%
Qts0.37-3%
BL12.8Tm0%
Vas39.7L-2%
Qes0.40%
84%
Similarity
£57.63
PRV Audio
10W650A-4
10"
Xmax4mm+14%
Qts0.39+3%
BL11.2Tm-12%
Vas41.2L+1%
Qes0.40%
79%
Similarity
£79.75
CIARE
FXI10
10"
Xmax4.5mm+29%
Qts0.380%
BL13.3Tm+4%
Vas38.5L-5%
Qes0.41+2%
78%
Similarity
Sica
10 N 2.5 PL
10"
Xmax4.5mm+29%
Qts0.36-5%
BL12.8Tm0%
Vas40.9L0%
Qes0.39-3%
78%
Similarity
Oberton
10CX
10"
Xmax4.3mm+21%
Qts0.380%
BL12.1Tm-5%
Vas32.3L-21%
Qes0.39-3%
77%
Similarity
Celestion
FTR10-2055D
10"
Xmax4mm+14%
Qts0.34-10%
BL13.8Tm+8%
Vas36.9L-9%
Qes0.39-2%
73%
Similarity
£96.09
PRV Audio
10MB800FT
10"
Xmax3.5mm0%
Qts0.32-16%
BL14.4Tm+13%
Vas36.7L-10%
Qes0.33-17%
72%
Similarity
£51.76
Dayton Audio
MB1025-8
10"
Xmax3mm-14%
Qts0.34-11%
BL13.2Tm+3%
Vas50.7L+25%
Qes0.36-10%
69%
Similarity

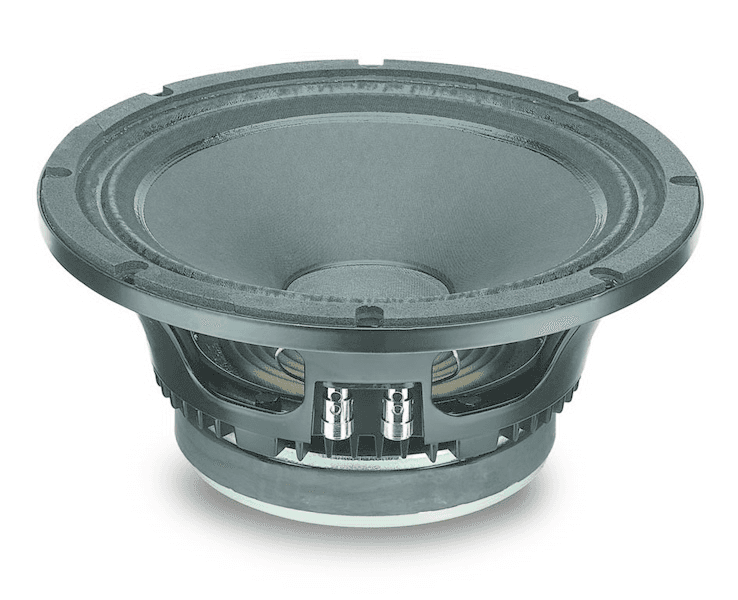

Eighteen Sound
10MB400
10"
Xmax2.5mm-29%
Qts0.33-13%
BL12Tm-6%
Vas41L+1%
Qes0.37-8%
67%
Similarity
Oberton
10M150
10"
Xmax3.3mm-7%
Qts0.43+13%
BL11.6Tm-9%
Vas25.9L-36%
Qes0.45+12%
67%
Similarity
£102.26

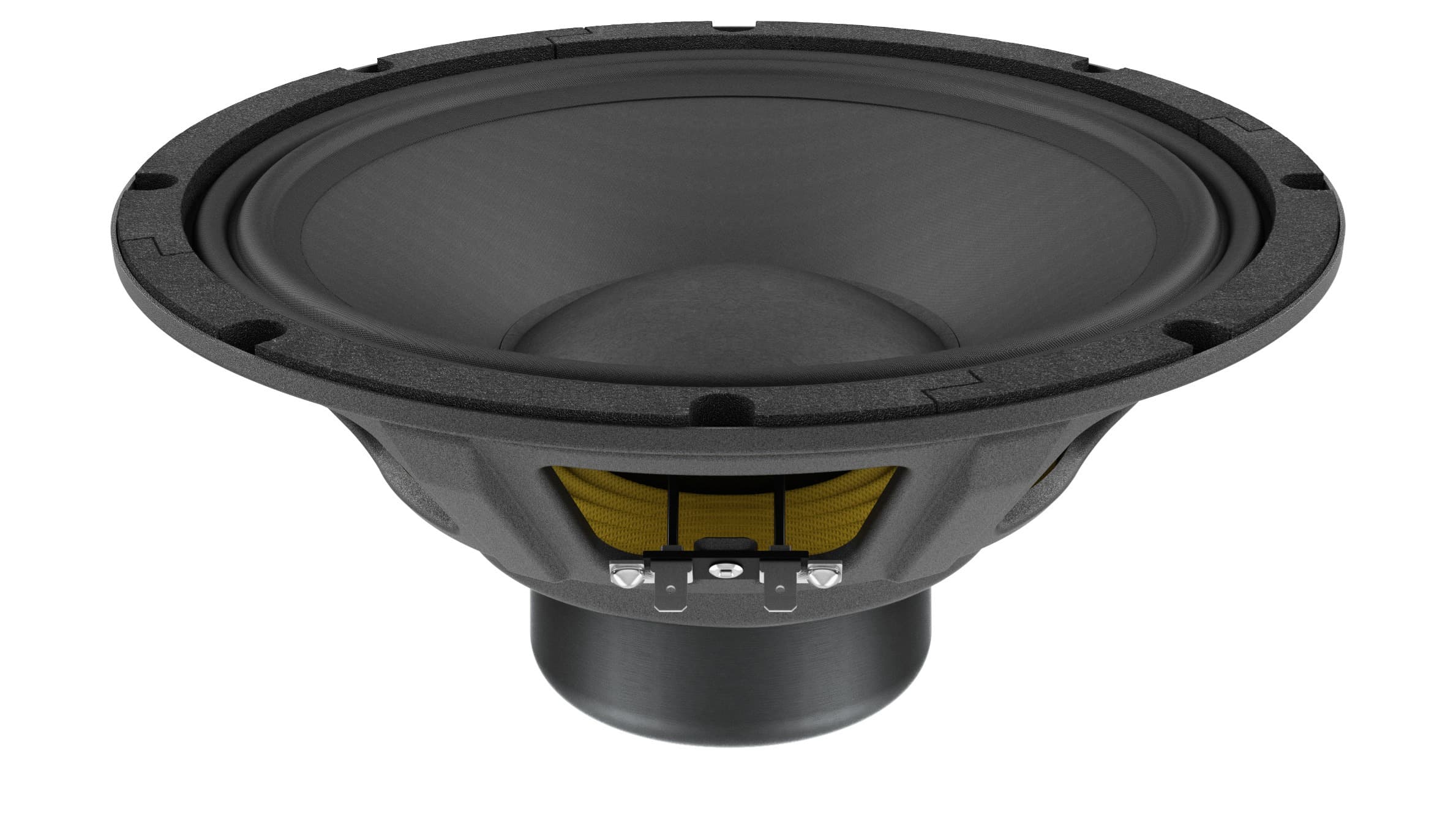

Lavoce
WSN102.50
10"
Xmax2.9mm-17%
Qts0.39+3%
BL14.1Tm+10%
Vas20.7L-49%
Qes0.43+7%
67%
Similarity

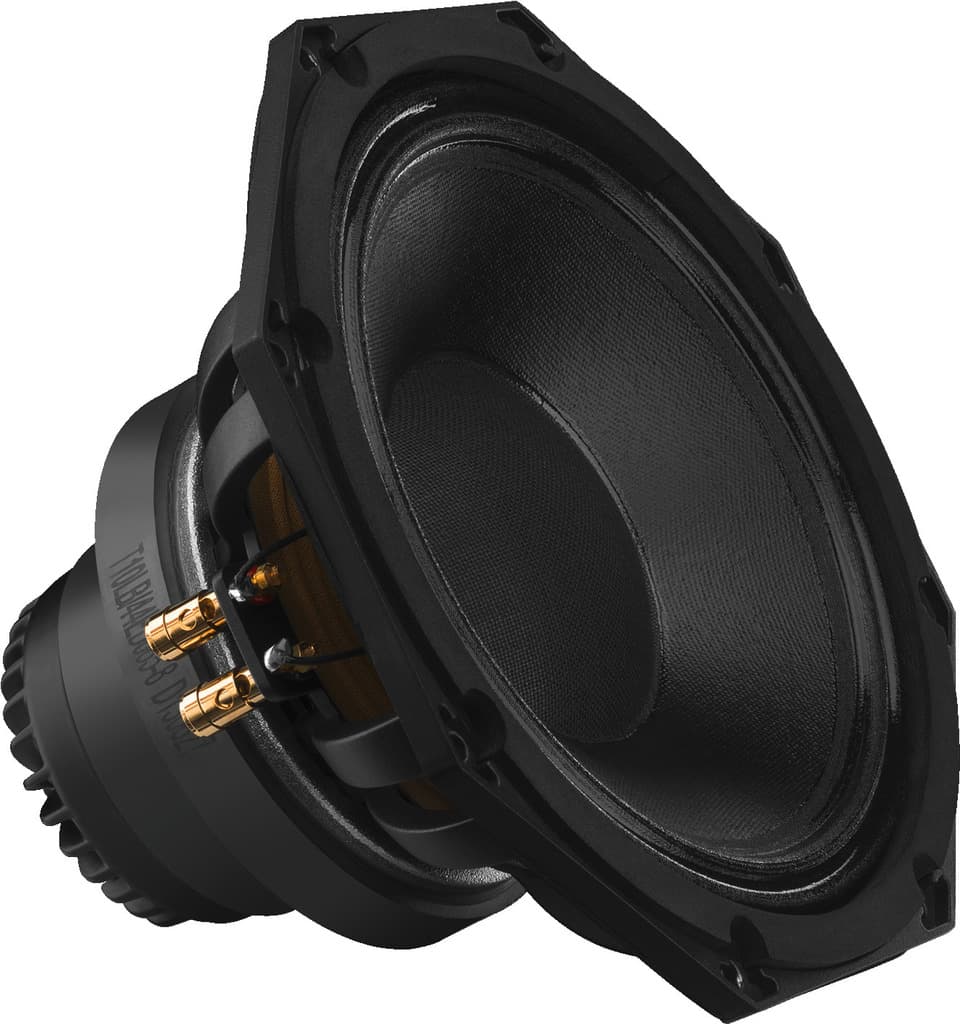

Monacor
SP-310CX
10"
Xmax2.5mm-29%
Qts0.32-16%
BL13.3Tm+4%
Vas41L+1%
Qes0.36-10%
