PeerlessFSL-1020R02-08
£49.92 · 38% less, betterFs65 Hz +128%, worse
Qts0.36 –
Vas38.5 L −52%, better
BL13.6 T·m –
Xmax5.1 mm +45%, better
Sensitivity96.3 dB +7.4, better
10-inch LF driver · SW26 series · 39 mm voice coil · 80 W
SB Acoustics SW26SFC38-8 8Ω
8 Ω
- Fs
- 29Hz
- Xmax
- 3.5mm
- SPL
- 89dB
- Pe
- 80W
- BL
- 13.5T·m
- Vd
- 119cm³
- Qts
- 0.35
- Vas
- 80L

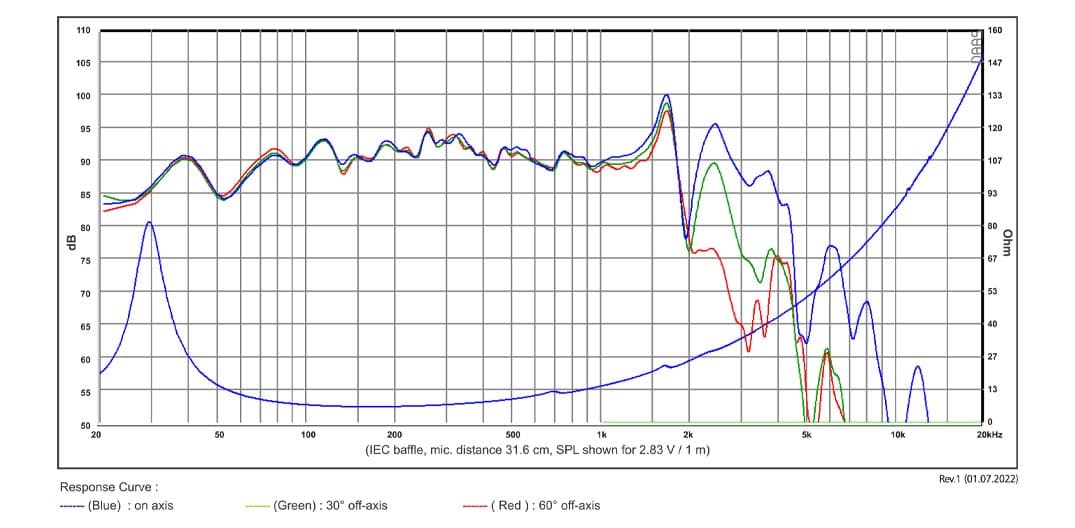

Published graphs
SB Acoustics SW26SFC38-8 is a 10-inch 8 ohm LF driver rated at 80 W RMS. The validated T/S data includes Fs 29 Hz, Qts 0.35, Vas 80 L, Xmax 3.5 mm, sensitivity 88.9 dB, plus 119 cm³ Vd and 75 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £80.81.
The published T/S values agree with each other
Thiele/Small
- Fs
- 29Hz
- Qts
- 0.35
- Qes
- 0.38
- Qms
- 5.2
- Vas
- 80L
- Re
- 6Ω
- Le
- 1.38mH
Motor and cone
- BL
- 13.5T·m
- Sd
- 340cm²
- Mms
- 64g
- Xmax
- 3.5mm
- Vd †
- 119cm³
- Voice coil
- 39mm
- Flux density
- 0.72T
Power and response
- Sensitivity †
- 88.9dB
- Manufacturer sensitivity
- 89dB
- Power
- 80W
- Impedance
- 8Ω
- EBP †
- 75 · Sealed or vented
Size and mounting
- Weight
- 0.9kg
Other published values
- Cms
- 0.49mm/N
† Calculated by bits from the published values
What this validation status means
Everything else SB Acoustics lists
LF · Primary · 10″
- BL
- 13.5T·m
- Fs
- 29Hz
- Le
- 1.38mH
- Re
- 6Ω
- Sd
- 340cm²
- Cms
- 0.49mm/N
- Mms
- 64g
- Qes
- 0.38
- Qms
- 5.2
- Qts
- 0.35
- SPL
- 88.9dB
- Vas
- 80L
- Xmax
- 3.5mm
- Power
- 80W
- Impedance
- 8Ω
- Flux density
- 0.72T
- Sensitivity
- 89dB
- Calculated sensitivity †
- 88.9dB
- Manufacturer sensitivity
- 89dB
- Voice coil
- 39mm
- Weight
- 0.9kg
02
Compare
Same-size drivers, compared with the SW26SFC38-8. Clear differences are green when better and red when worse.
This driverSW26SFC38-8
Best price
£80.81
Fs
29 Hz
Qts
0.35
Vas
80 L
BL
13.5 T·m
Xmax
3.5 mm
Sensitivity
88.9 dB
Power
80 W
Dayton AudioMB1025-8
£52.93 · 34% less, betterFs45 Hz +58%, worse
Qts0.34 –
Vas50.7 L −37%, better
BL13.2 T·m –
Xmax3 mm −14%, worse
Sensitivity93.1 dB +4.2, better
CelestionTF1020
£72.50 · 10% less, betterFs69 Hz +144%, worse
Qts0.32 −8%
Vas28.8 L −64%, better
BL14.1 T·m +4%
Xmax4 mm +14%, better
Sensitivity96.2 dB +7.3, better
SB AcousticsSW26SFC38-4
£80.81 · Same priceFs27 Hz −5%
Qts0.29 −17%, better
Vas88 L +10%, worse
BL11.2 T·m −17%, worse
Xmax3.5 mm –
Sensitivity89.6 dB +0.7
PRV Audio10MB800FT
£98.27 · 22% more, worseFs65 Hz +127%, worse
Qts0.32 −9%
Vas36.7 L −54%, better
BL14.4 T·m +7%
Xmax3.5 mm –
Sensitivity96.8 dB +7.9, better
Beyma10WR300
£103.87 · 29% more, worseFs52 Hz +82%, worse
Qts0.35 –
Vas42 L −48%, better
BL14.2 T·m +5%
Xmax6 mm +71%, better
Sensitivity93.8 dB +4.9, better
CIAREHW251N
£110.19 · 36% more, worseFs30 Hz +5%
Qts0.35 –
Vas88 L +10%, worse
BL13.0 T·m −4%
Xmax5.7 mm +63%, better
Sensitivity90 dB +1.1
EminenceBASSLITE S2010
£115.00 · 42% more, worseFs46 Hz +61%, worse
Qts0.31 −11%, better
Vas63.4 L −21%, better
BL11.9 T·m −12%, worse
Xmax4 mm +14%, better
Sensitivity94.6 dB +5.7, better
SB AcousticsSB29NRX75-6
£134.39 · 66% more, worseFs21 Hz −26%, better
Qts0.35 –
Vas102 L +28%, worse
BL10.7 T·m −21%, worse
Xmax22 mm +529%, better
Sensitivity86 dB −2.9, worse
Sica10 C 2 CP
£139.81 · 73% more, worseFs50 Hz +75%, worse
Qts0.31 −11%, better
Vas63.2 L −21%, better
BL12.7 T·m −6%
Xmax4 mm +14%, better
Sensitivity95.8 dB +6.9, better
SB AcousticsSB29NRX75-8
£142.77 · 77% more, worseFs26 Hz −9%
Qts0.37 +6%
Vas85.6 L +7%
BL12.4 T·m −8%
Xmax22 mm +529%, better
Sensitivity87.9 dB −1
Sica10 SR 2.5 CP
£161.00 · 99% more, worseFs35 Hz +21%, worse
Qts0.32 −9%
Vas66.7 L −17%, better
BL13.7 T·m –
Xmax6 mm +71%, better
Sensitivity91.1 dB +2.2, better
Sica10 FE 2.5 CP
£165.24 · 104% more, worseFs57 Hz +100%, worse
Qts0.37 +6%
Vas39.7 L −50%, better
BL12.8 T·m −5%
Xmax4 mm +14%, better
Sensitivity94.7 dB +5.8, better
VisatonTIW 250 XS
£237.03 · 193% more, worseFs33 Hz +16%, worse
Qts0.33 −6%
Vas66 L −18%, better
BL13 T·m −4%
Xmax14 mm +300%, better
Sensitivity90.3 dB +1.4
Eighteen Sound10CX650
£261.58 · 224% more, worseFs54 Hz +89%, worse
Qts0.35 –
Vas36.4 L −55%, better
BL14 T·m +4%
Xmax6 mm +71%, better
Sensitivity93.7 dB +4.8, better
SB AcousticsWO24TX-8
£296.58 · 267% more, worseFs25 Hz −14%, better
Qts0.34 –
Vas88 L +10%, worse
BL10.4 T·m −23%, worse
Xmax17.1 mm +389%, better
Sensitivity87.6 dB −1.3
SB AcousticsWO24TX-4
£296.58 · 267% more, worseFs26 Hz −8%
Qts0.35 –
Vas79 L –
BL7.9 T·m −41%, worse
Xmax17.5 mm +400%, better
Sensitivity87.9 dB −1
PRV Audio10MR650A-NDY
No current priceFs62 Hz +119%, worse
Qts0.38 +9%
Vas40.7 L −49%, better
BL12.7 T·m −6%
Xmax3.5 mm –
Sensitivity96 dB +7.1, better
VoltRV2550
No current priceFs28 Hz –
Qts0.33 −6%
Vas71.8 L −10%, better
BL13.9 T·m –
Xmax12 mm +243%, better
Sensitivity88.2 dB −0.7
MonacorSP-250P
No current priceFs33 Hz +16%, worse
Qts0.33 −6%
Vas115 L +44%, worse
BL10.8 T·m −20%, worse
Xmax3.5 mm –
Sensitivity92.4 dB +3.5, better
CelestionFTR10-2055D
No current priceFs58 Hz +102%, worse
Qts0.34 –
Vas36.9 L −54%, better
BL13.8 T·m –
Xmax4 mm +14%, better
Sensitivity94.6 dB +5.7, better
PurifiPTT10.0X04-NAB-01
No current priceFs24 Hz −16%, better
Qts0.33 −6%
Vas82 L –
BL12.8 T·m −5%
Xmax14.8 mm +321%, better
Sensitivity87.1 dB −1.8
Sica10 H 2 CS
No current priceFs30 Hz +6%
Qts0.37 +6%
Vas84.3 L +5%
BL12.4 T·m −8%
Xmax6 mm +71%, better
Sensitivity89.6 dB +0.7
VisatonTIW 250 XS - 8 OHM
No current priceFs33 Hz +16%, worse
Qts0.33 −6%
Vas66 L −18%, better
BL13 T·m −4%
Xmax14 mm +300%, better
Sensitivity90.3 dB +1.4
HiViW10
No current priceFs35 Hz +23%, worse
Qts0.37 +6%
Vas81.4 L –
BL12.8 T·m −5%
Xmax7 mm +100%, better
Sensitivity90.9 dB +2, better
EminenceFS10.25A8
No current priceFs70 Hz +146%, worse
Qts0.37 +6%
Vas24 L −70%, better
BL14 T·m +4%
Xmax4 mm +14%, better
Sensitivity95.3 dB +6.4, better
No current price
Fs55 Hz +93%, worse
Qts0.36 –
Vas45.3 L −43%, better
BL14 T·m +4%
Xmax5.5 mm +57%, better
Sensitivity95 dB +6.1, better
MonacorTF1020/8
No current priceFs69 Hz +144%, worse
Qts0.32 −8%
Vas28.8 L −64%, better
BL14.1 T·m +4%
Xmax4 mm +14%, better
Sensitivity96.2 dB +7.3, better
Sica10 N 2.5 PL
No current priceFs57 Hz +100%, worse
Qts0.36 –
Vas40.9 L −49%, better
BL12.8 T·m −5%
Xmax4.5 mm +29%, better
Sensitivity94.9 dB +6, better
KartesianSUB265_VKI-V
No current priceFs24 Hz −16%, better
Qts0.40 +14%, worse
Vas91.1 L +14%, worse
BL13.8 T·m –
Xmax16 mm +357%, better
Sensitivity86.8 dB −2.1, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
- SoundImports5.0 out of 51 rating · Checked 12 Oct 2026Read reviews on SoundImports
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Audio | £80.81, the lowest price | 2 in stock | Visit shop at Lean Audio | |
Lean Business | £80.81 | Stock not listed | Visit shop at Lean Business | |
Willys-Hifi | £95.15 | 18% above the lowest price | Stock not listed | Visit shop at Willys-Hifi |
SoundImports Import VAT and duty may apply | £84.72 | 4.8% above the lowest price | 1 in stock | Visit shop at SoundImports |
Lautsprechershop Import VAT and duty may apply | £89.00 | 10% above the lowest price | Special order | Visit shop at Lautsprechershop |
Best price over time
Tracked since 1 Apr
Recent changes
- 1 OctWillys-Hifi£97.95 → £95.15Down 2.9% from £97.95
- 28 SepWillys-Hifi£96.95 → £97.95Up 1.0% from £96.95
- 23 SepWillys-Hifi£97.95 → £96.95Down 1.0% from £97.95
