Overview
LF DriverSP series
Monacor
Monacor SP-250P
Monacor SP-250P is a 10" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 33Hz, Qts 0.33, Vas 115L, Xmax 3.5mm, sensitivity 92.4dB, plus 121cm³ Vd and 87 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
100W
Sensitivity
92.4dB
94.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
87
Either alignment
Vd
121cm³
T/S Parameters
Valid
Fs33Hz
Qts0.33
Qes0.38
Qms2.3
Vas115.0L
Re6.5Ω
Le1.20mH
BL10.8Tm
Sd346cm²
Mms33g
Xmax3.5mm
SPL92dB
Power100W
Impedance8Ω
F Low3Hz
F High4000Hz
Voice Coil50mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

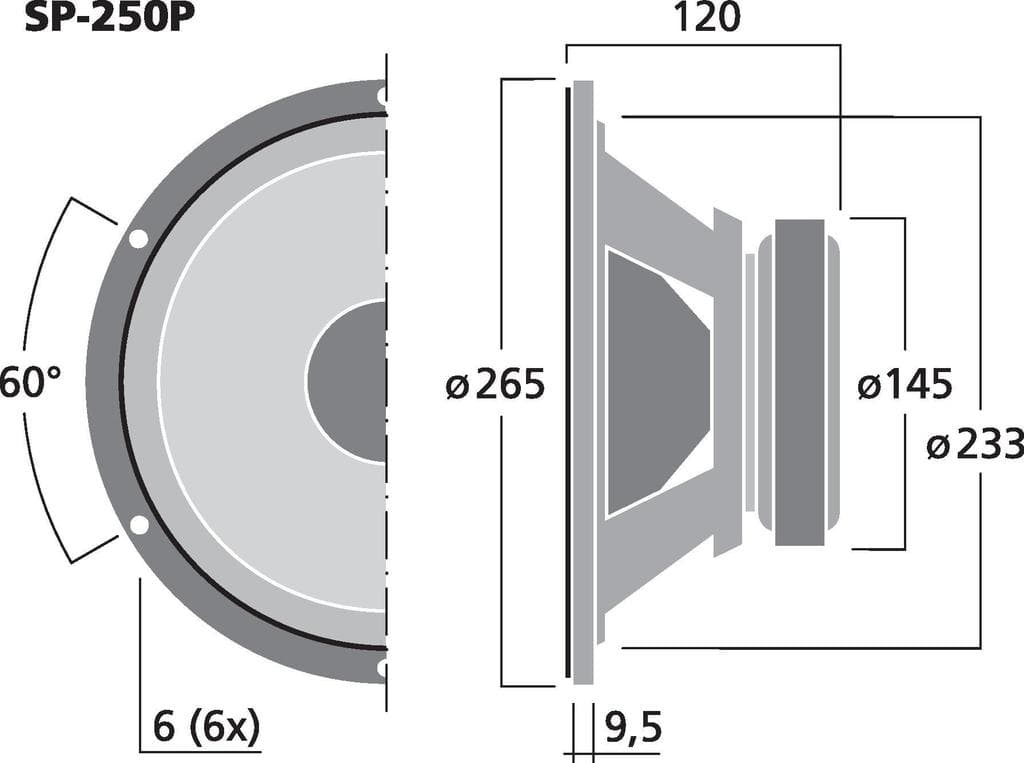

Dimensions & Physical
Weight3.3kg
Diameter265.0mm
Overall Depth120.0mm
Cutout Diameter233.0mm
