Overview
LF Driver
Dayton Audio
Dayton Audio RS270P-8A
Dayton Audio RS270P-8A is a 10" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 23Hz, Qts 0.32, Vas 110.5L, Xmax 6mm, sensitivity 87dB, plus 208cm³ Vd and 55 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
100W
Sensitivity
87.0dB
EBP
55
Either alignment
Vd
208cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,685 selected pixels of 2,961
T/S Parameters
Valid
Fs23Hz
Qts0.32
Qes0.42
Qms1.3
Vas110.5L
Re6.8Ω
Le0.88mH
BL13.0Tm
Sd346cm²
Mms73g
Xmax6.0mm
SPL87dB
Power100W
Impedance8Ω
F Low23Hz
F High6000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter272.0mm
Overall Depth113.0mm
Cutout Diameter236.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
RS270P-8A
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
81%
Similarity

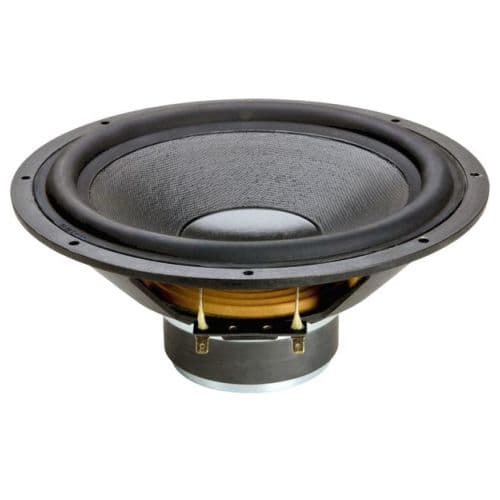

CIARE
