Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespEminence LEGEND BP 102-4 4Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverLEGEND BP series
Eminence

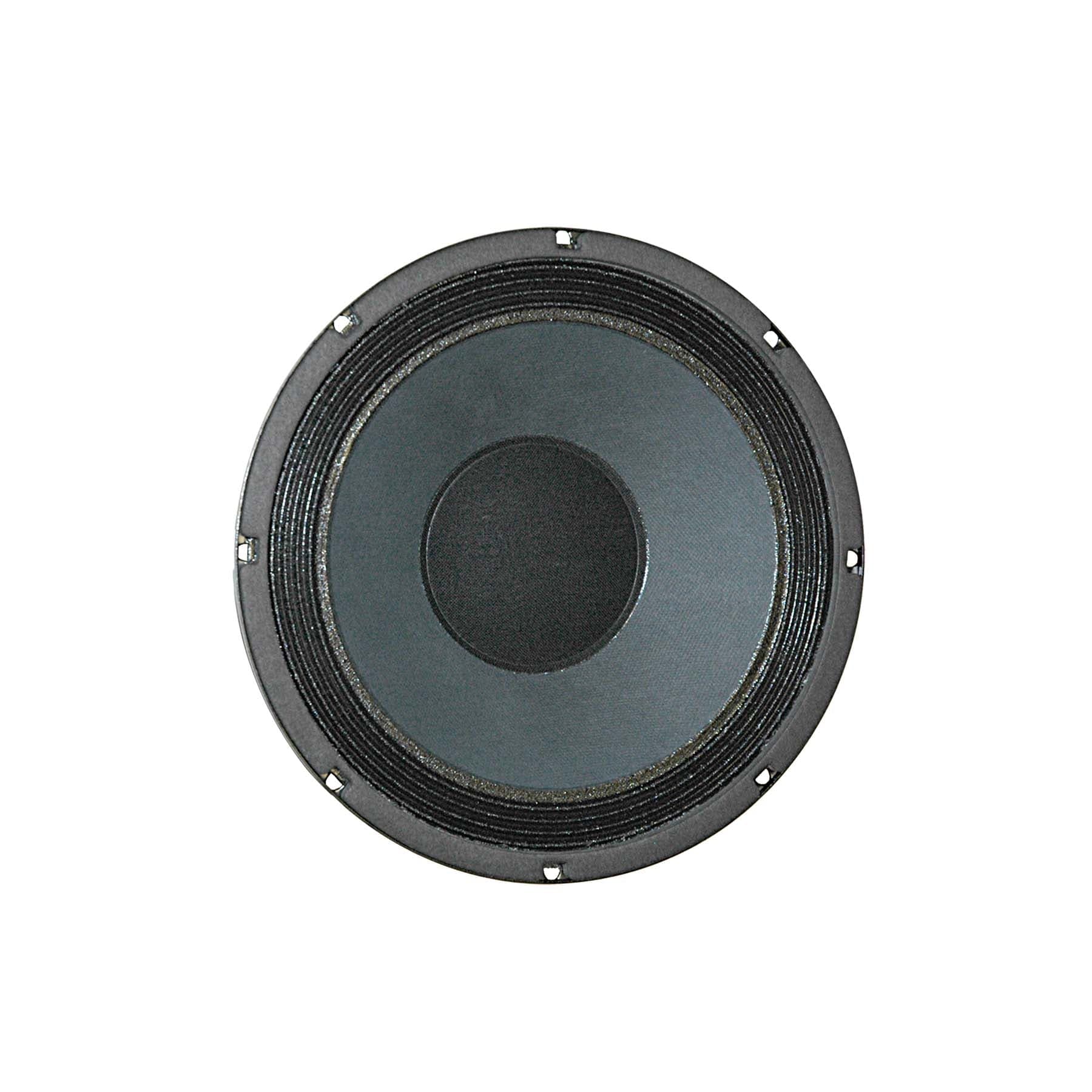

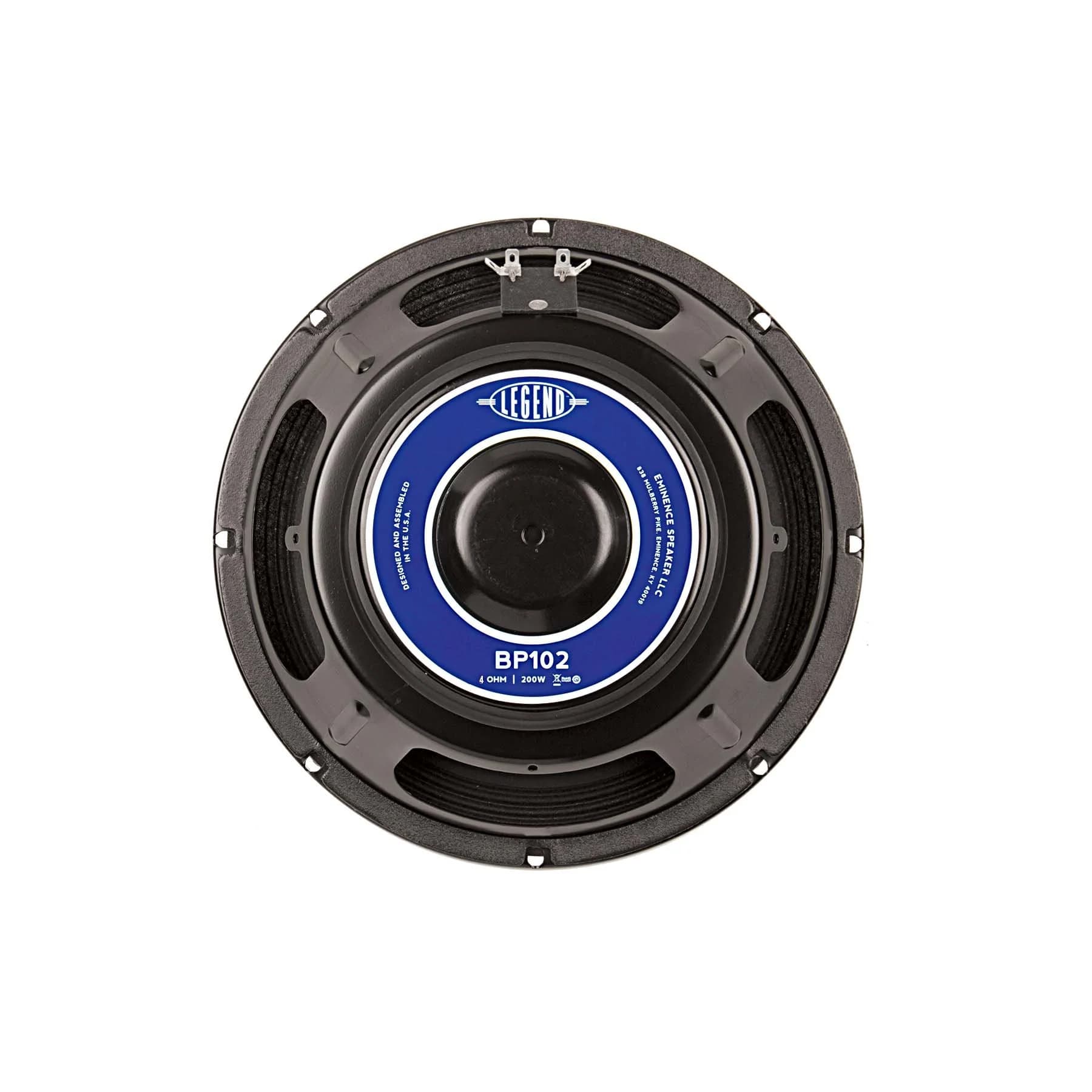

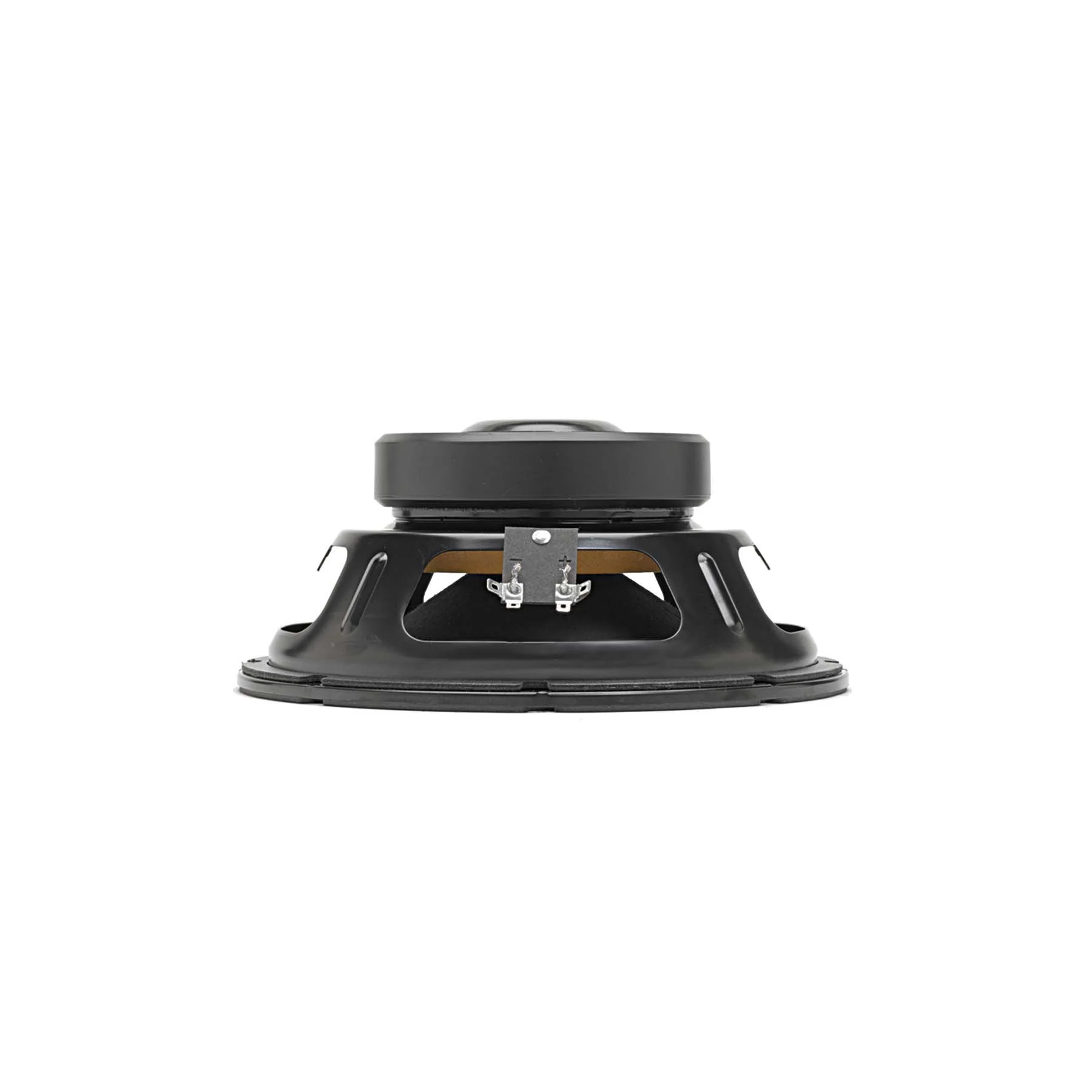

Eminence LEGEND BP 102-4
Eminence LEGEND BP 102-4 is a 10" 4 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 35Hz, Qts 0.38, Vas 103.8L, Xmax 6.2mm, sensitivity 92.5dB, plus 214cm³ Vd and 88 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £95.00.
Size
10"
Impedance
4Ω
RMS Power
200W
Sensitivity
92.5dB
90.5dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
88
Either alignment
Vd
214cm³
T/S Parameters
Valid
Fs35Hz
Qts0.38
Qes0.40
Qms10.6
Vas103.8L
Re2.7Ω
Le0.68mH
BL7.1Tm
Sd345cm²
Mms34g
Xmax6.2mm
SPL93dB
Power200W
Impedance4Ω
F Low40Hz
F High2000Hz
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorthomann
Updated 25 Sept 2026· 4Ω
Source: inc VAT · 20%
£109.00
inc VAT
In stock
Best current price
Updated 23 Sept 2026
leanbusiness
£95.00
Avg £102.00
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.0kg
Diameter256.0mm
Overall Depth108.0mm
Cutout Diameter233.2mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
LEGEND BP 102-4
10"
Best current price
£95.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
6 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
64%
Similarity
20% cheaper£75.63
Visaton
W 250 S - 4 OHM
10"
Lower price
Xmax7mm+13%
Qts0.35-8%
BL8.9Tm+25%
Vas135L+30%
Qes0.43+7%
62%
Similarity
19% cheaper£77.34
Visaton
W 250 S
10"
Lower price
Xmax7mm+13%
Qts0.32-16%
BL9.2Tm+30%
Vas121L+17%
Qes0.39-3%
66%
Similarity
63% more£154.73
Scanspeak
26W/4534G00
10"
Higher price
Xmax6mm-3%
Qts0.36-5%
BL8.8Tm+24%
Vas156L+50%
Qes0.37-8%
73%
Similarity
Dayton Audio
SD270A-88
10"
Xmax6mm-3%
Qts0.43+13%
BL7.8Tm+10%
Vas107.5L+4%
Qes0.5+25%
68%
Similarity
Monacor
SP-252C
10"
Xmax5mm-19%
Qts0.41+8%
BL8.1Tm+14%
Vas96L-8%
Qes0.47+17%
62%
Similarity
Visaton
W 250 S - 8 OHM
10"
Xmax7mm+13%
Qts0.32-16%
BL9.2Tm+30%
Vas121L+17%
Qes0.39-3%
