10-inch LF driver · SP series · 39 mm voice coil · 100 W
Monacor SP-252C 4Ω
4 Ω · 3–3500 Hz
No current price
- Fs
- 35Hz
- Xmax
- 5mm
- SPL
- 92dB
- Pe
- 100W
- BL
- 8.1T·m
- Vd
- 177cm³
- Qts
- 0.41
- Vas
- 96L
Monacor SP-252C is a 10-inch 4 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 35 Hz, Qts 0.41, Vas 96 L, Xmax 5 mm, sensitivity 91.5 dB, plus 177 cm³ Vd and 74 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.41
- Qes
- 0.47
- Qms
- 3.1
- Vas
- 96L
- Re
- 3.7Ω
- Le
- 0.40mH
Motor and cone
- BL
- 8.1T·m
- Sd
- 353cm²
- Mms
- 38g
- Xmax
- 5mm
- Vd †
- 177cm³
- Voice coil
- 39mm
Power and response
- Sensitivity †
- 91.5dB
- Manufacturer sensitivity
- 93dB
- Power
- 100W
- Impedance
- 4Ω
- Range
- 3–3500Hz
- EBP †
- 74 · Sealed or vented

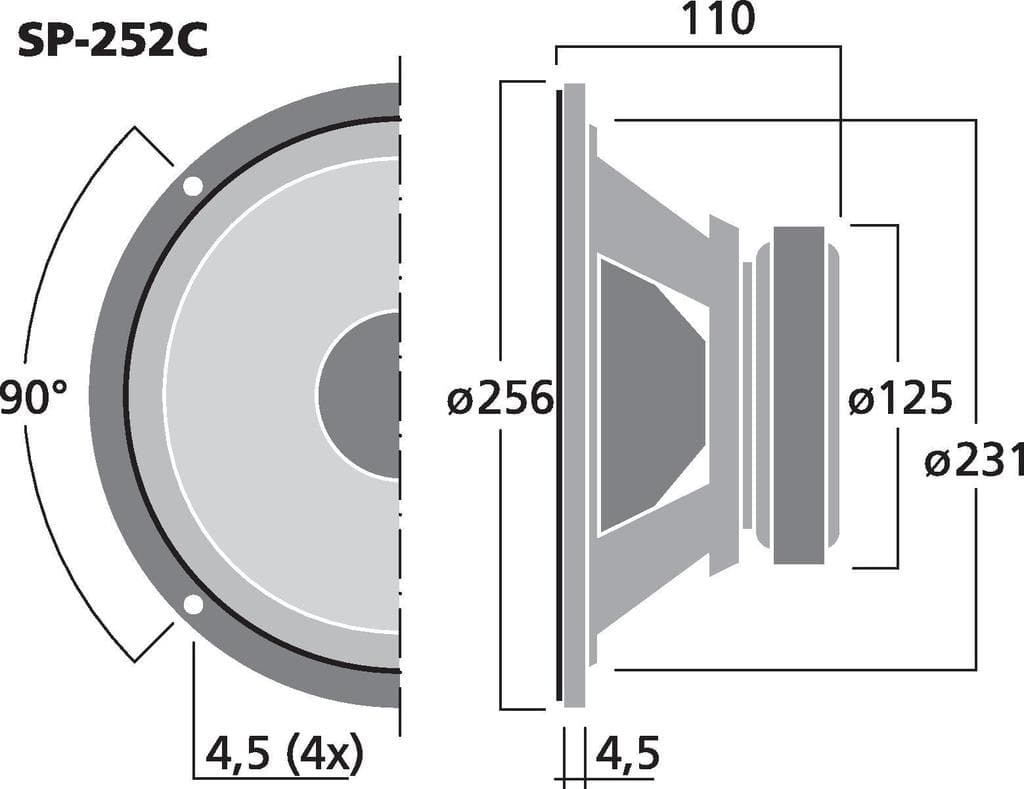

Size and mounting
- Diameter
- 256mm
- Cutout
- 231mm
- Depth
- 110mm
- Weight
- 2.4kg
Other published values
- Cms
- 0.55mm/N
- Power Peak
- 200
Other dimensions
- Mounting Depth
- 110
Sensitivity shows 91.5 dB, calculated from the T/S values. Monacor publishes 93.0 dB, 1.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
MF · Primary · 10″
- BL
- 8.1T·m
- Fs
- 35Hz
- Le
- 0.40mH
- Re
- 3.7Ω
- Sd
- 353cm²
- Cms
- 0.55mm/N
- Mms
- 38g
- Qes
- 0.47
- Qms
- 3.1
- Qts
- 0.41
- SPL
- 91.5dB
- Vas
- 96L
- Xmax
- 5mm
- Power
- 100W
- Impedance
- 4Ω
- Power Peak
- 200
- Sensitivity
- 93dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 91.5dB
- High limit
- 3500Hz
- Manufacturer sensitivity
- 93dB
- Voice coil
- 39mm
- Weight
- 2.4kg
- Diameter
- 256mm
- Depth
- 110mm
- Mounting Depth
- 110
- Cutout
- 231mm
