Overview
LF Driver10NCX series
Oberton
Oberton 10NCX1
Oberton 10NCX1 is a 10" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 68Hz, Qts 0.41, Vas 12.0L, Xmax 4.8mm, sensitivity 91.5dB, plus 151cm³ Vd and 159 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
200W
Sensitivity
91.5dB
EBP
159
Vented alignment
Vd
151cm³
T/S Parameters
Valid
Fs68Hz
Qts0.41
Qes0.43
Qms10.0
Vas12.0L
Re5.3Ω
Le0.84mH
BL12.0Tm
Sd317cm²
Mms27g
Xmax4.8mm
SPL92dB
Power200W
Impedance8Ω
F Low60Hz
F High20000Hz
Voice Coil51mm
Flux Density0.90T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

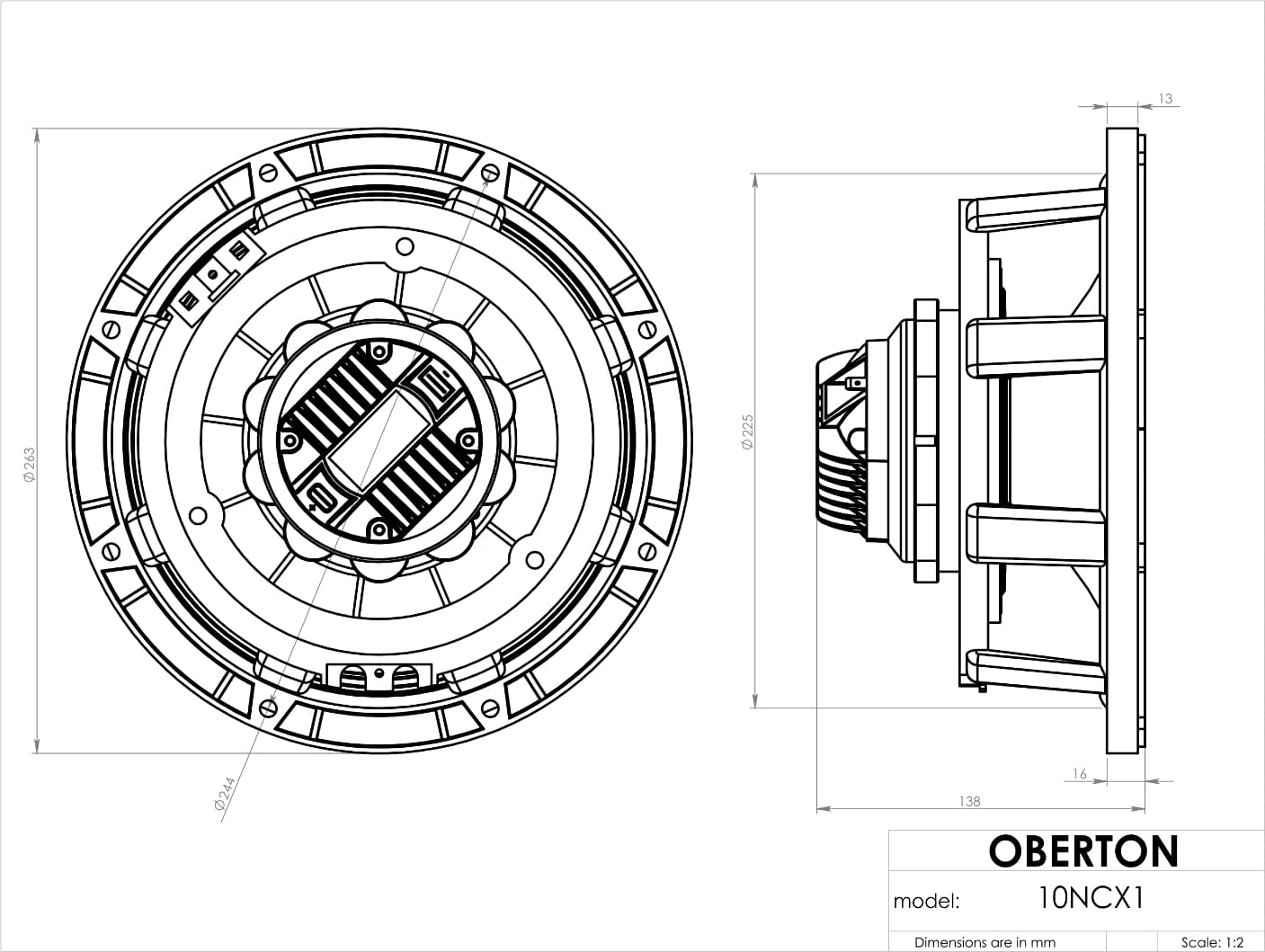

Dimensions & Physical
Weight2.7kg
Diameter263.0mm
Overall Depth138.0mm
Cutout Diameter225.0mm
Bolt Circle Diameter244.0mm
