LF DriverD series
HiVi

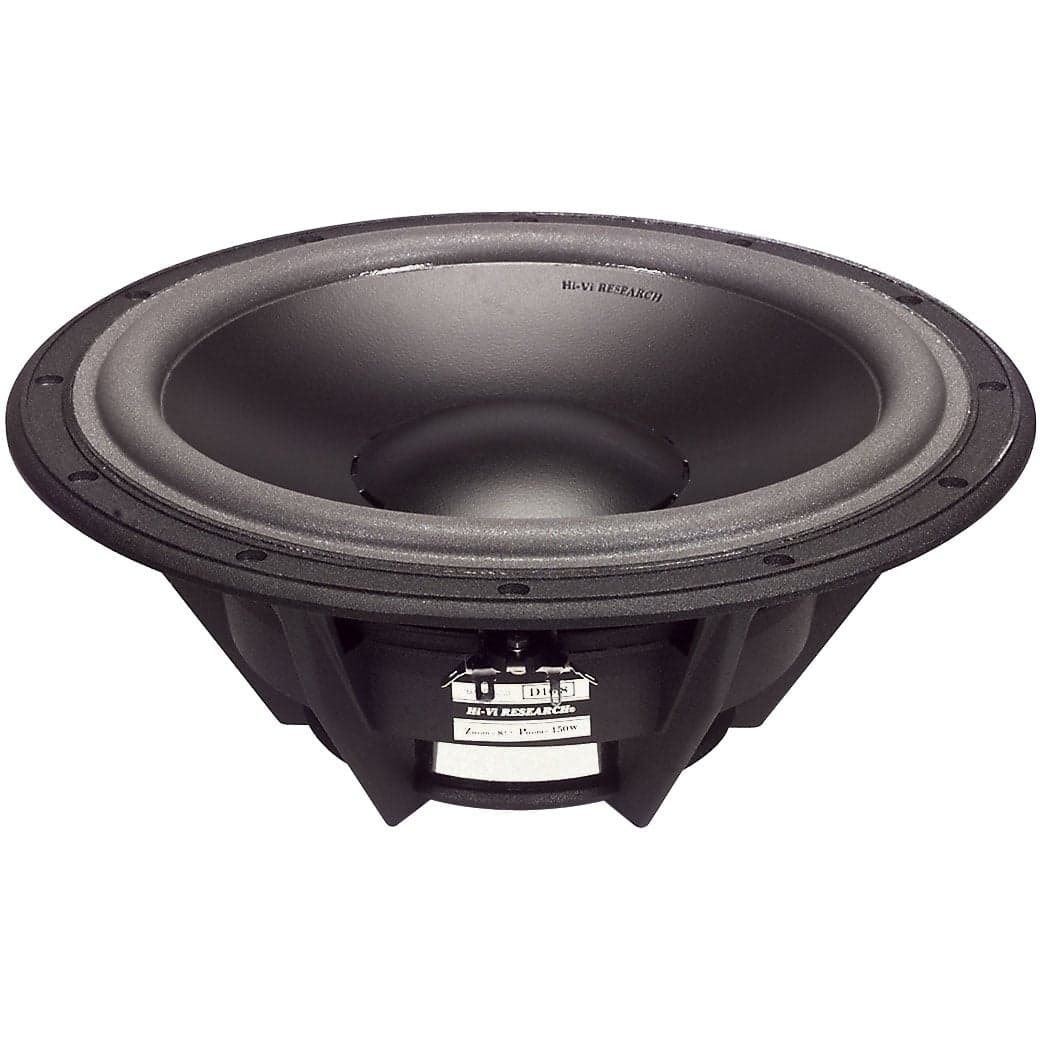

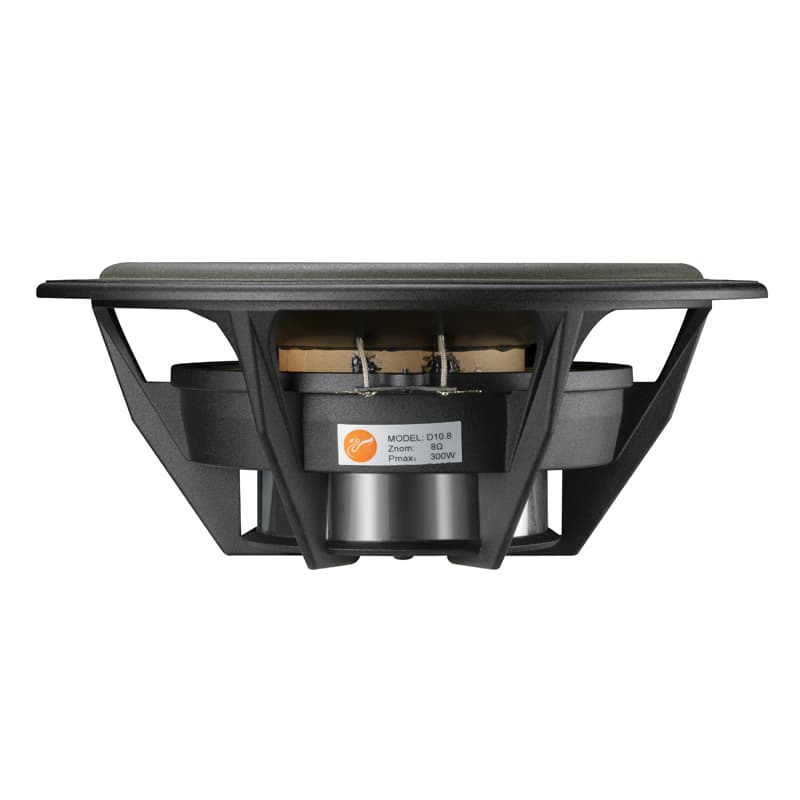

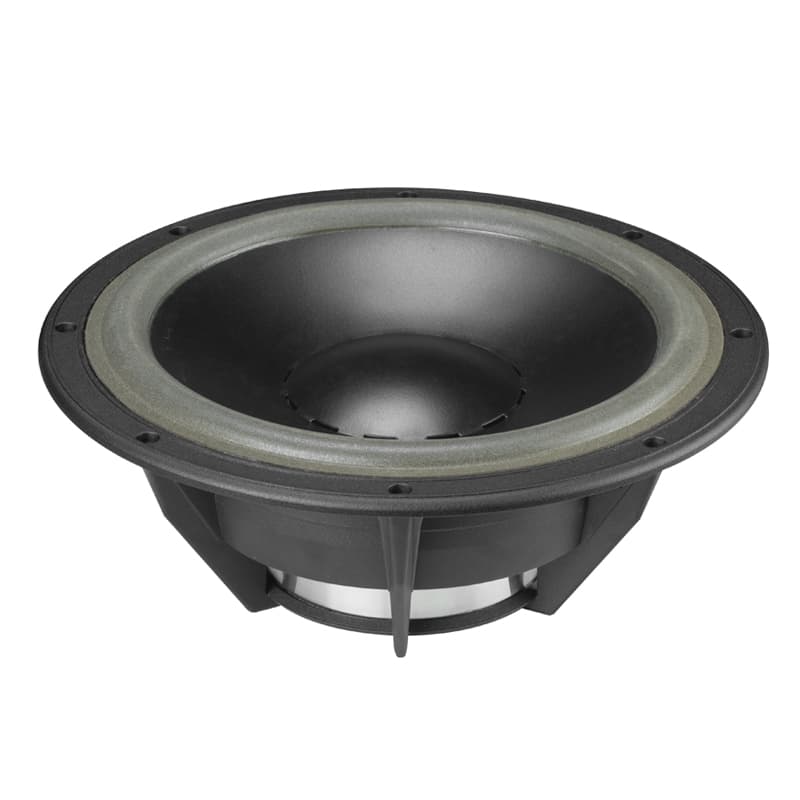

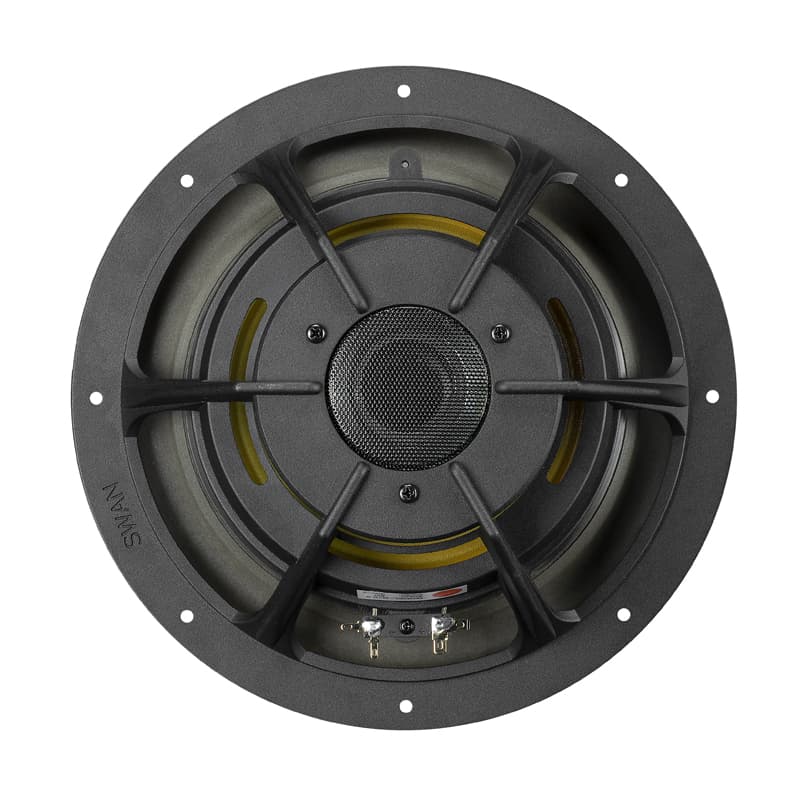

HiVi D10.8
HiVi D10.8 is a 10" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 24Hz, Qts 0.41, Vas 5.2L, Xmax 8mm, sensitivity 74.2dB, plus 347cm³ Vd and 55 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
150W
Sensitivity
74.2dB
90.0dBmanufacturer; using T/S-derived value (15.8dB delta).
EBP
55
Either alignment
Vd
347cm³
T/S Parameters
Valid
Fs24Hz
Qts0.41
Qes0.44
Qms6.8
Vas5.2L
Re6.5Ω
BL13.4Tm
Sd434cm²
Mms76g
Xmax8.0mm
SPL74dB
Power150W
Impedance8Ω
F Low24Hz
F High2300Hz
Voice Coil102mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter254.0mm
