Overview
LF Driver10NMB series
Oberton
Oberton 10NMB500
Oberton 10NMB500 is a 10" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 68Hz, Qts 0.41, Vas 18.6L, Xmax 8.3mm, sensitivity 93.5dB, plus 262cm³ Vd and 161 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
500W
Sensitivity
93.5dB
200.0dBmanufacturer; using T/S-derived value (106.5dB delta).
EBP
161
Vented alignment
Vd
262cm³
T/S Parameters
Valid
Fs68Hz
Qts0.41
Qes0.42
Qms11.8
Vas18.6L
Re5.0Ω
Le0.39mH
BL14.6Tm
Sd317cm²
Mms42g
Xmax8.3mm
SPL94dB
Power500W
Impedance8Ω
Min Impedance5.9Ω
F Low65Hz
F High3000Hz
Voice Coil77mm
Flux Density1.20T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

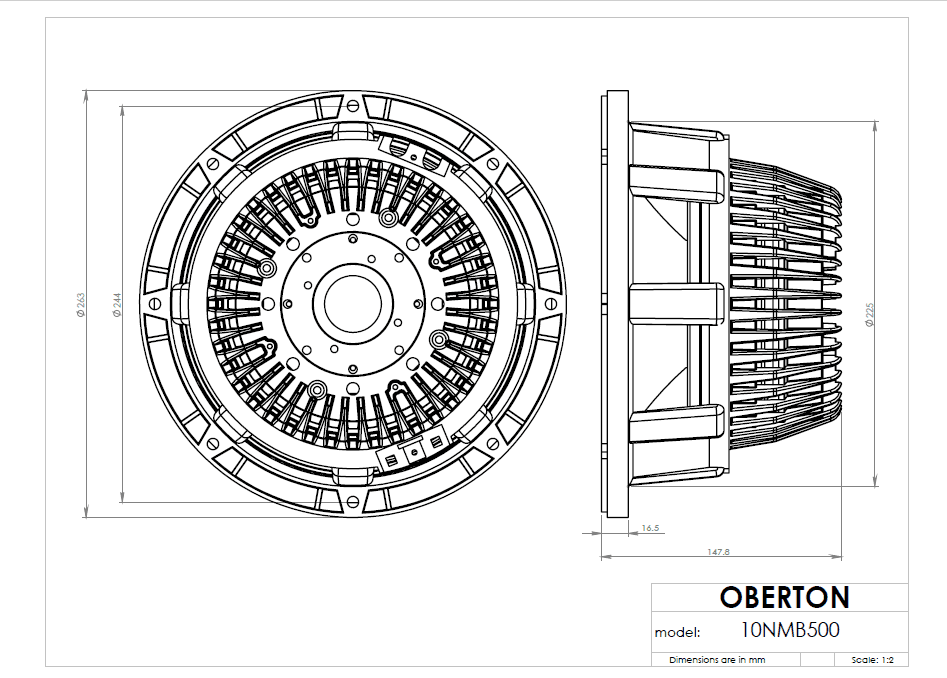

Dimensions & Physical
Weight4.3kg
Diameter263.0mm
Overall Depth147.8mm
Cutout Diameter225.0mm
Bolt Circle Diameter244.0mm
