LF DriverBIANCO series
SB Audience
SB Audience BIANCO-10MW150
SB Audience BIANCO-10MW150 is a 10" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 65Hz, Qts 0.39, Vas 25.8L, Xmax 5.6mm, sensitivity 94.5dB, plus 206cm³ Vd and 163 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £50.73.
Size
10"
Impedance
8Ω
RMS Power
150W
Sensitivity
94.5dB
EBP
163
Vented alignment
Vd
206cm³
T/S Parameters
Valid
Fs65Hz
Qts0.39
Qes0.40
Qms12.1
Vas25.8L
Re5.1Ω
Le0.64mH
BL15.1Tm
Sd366cm²
Mms44g
Xmax5.6mm
SPL95dB
Power150W
Impedance8Ω
Min Impedance5.2Ω
F Low65Hz
F High5000Hz
Voice Coil61mm
Flux Density1.23T
Pricing & availability
Price definitionsPrice movement
Best current price
£50.73
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

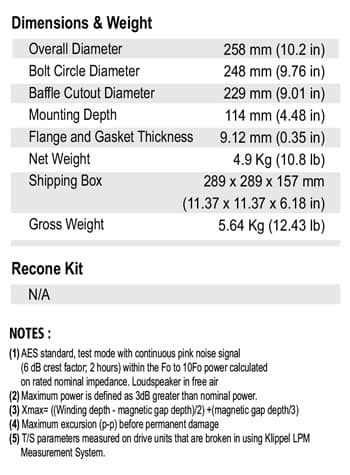

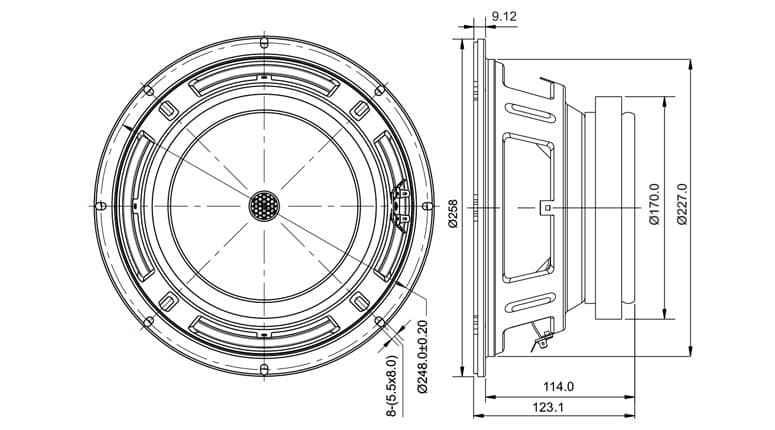

Dimensions & Physical
Weight4.9kg
Diameter258.0mm
Cutout Diameter229.0mm
Bolt Circle Diameter248.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Audience
BIANCO-10MW150
10"
Best current price
£50.73
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
58%
Similarity
£50.47
SB Audience
BIANCO-10MW200
10"
Xmax6.7mm+19%
Qts0.36-8%
BL13Tm-14%
Vas41L+59%
Qes0.43+7%
51%
Similarity
9% more£55.28
FaitalPRO
10FE400
10"
Higher price
Xmax5.4mm-4%
Qts0.47+21%
BL11.5Tm-24%
Vas35.3L+37%
Qes0.52+30%
58%
Similarity
9% more£55.54
Lavoce
WSF102.00
10"
Higher price
Xmax5.2mm-8%
Qts0.45+15%
BL11.6Tm-23%
Vas34L+32%
Qes0.48+20%
58%
Similarity
15% more£58.35
PRV Audio
10W650A
10"
Higher price
Xmax4.5mm-20%
Qts0.46+18%
BL14.1Tm-7%
Vas34L+32%
Qes0.47+17%
64%
Similarity
24% more£63.00
Celestion
TF1020
10"
Higher price
Xmax4mm-29%
Qts0.32-17%
BL14.1Tm-7%
Vas28.8L+11%
Qes0.37-7%
87%
Similarity
28% more£65.00
Lavoce
WAF102.50
10"
Higher price
Xmax5.1mm-9%
Qts0.38-3%
BL14.6Tm-3%
Vas23.7L-8%
Qes0.42+5%
67%
Similarity
57% more£79.75
CIARE
FXI10
10"
Higher price
Xmax4.5mm-20%
Qts0.38-3%
BL13.3Tm-12%
Vas38.5L+49%
Qes0.41+2%
82%
Similarity
63% more£82.61
Lavoce
WAN102.50
10"
Higher price
Xmax5.1mm-9%
Qts0.35-10%
BL15.3Tm+1%
Vas22.4L-13%
Qes0.38-5%
81%
Similarity
65% more£83.47
Lavoce
WAF102.51
10"
Higher price
Xmax6mm+6%
Qts0.42+8%
BL15.6Tm+3%
Vas21.4L-17%
Qes0.44+10%
73%
Similarity
70% more£85.99
B&C
10CL51
10"
Higher price
Xmax5.5mm-2%
Qts0.38-3%
BL11.6Tm-23%
Vas36L+40%
Qes0.42+5%
Image unavailable
62%
Similarity
107% more£104.85
Eminence
DELTA-10A-2
10"
Higher price
Xmax6.4mm+13%
Qts0.44+13%
BL12.2Tm-19%
Vas29.7L+15%
Qes0.48+20%
72%
Similarity
116% more£109.82
FaitalPRO
10PR310
10"
Higher price
Xmax4.9mm-13%
Qts0.34-13%
BL14.4Tm-5%
Vas32.2L+25%
Qes0.36-10%
