LF DriverWSN102 series
Lavoce
Lavoce WSN102.50
Lavoce WSN102.50 is a 10" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 76Hz, Qts 0.39, Vas 20.7L, Xmax 2.9mm, sensitivity 95.3dB, plus 102cm³ Vd and 177 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £102.26.
Size
10"
Impedance
8Ω
RMS Power
300W
Sensitivity
95.3dB
97.5dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
177
Vented alignment
Vd
102cm³

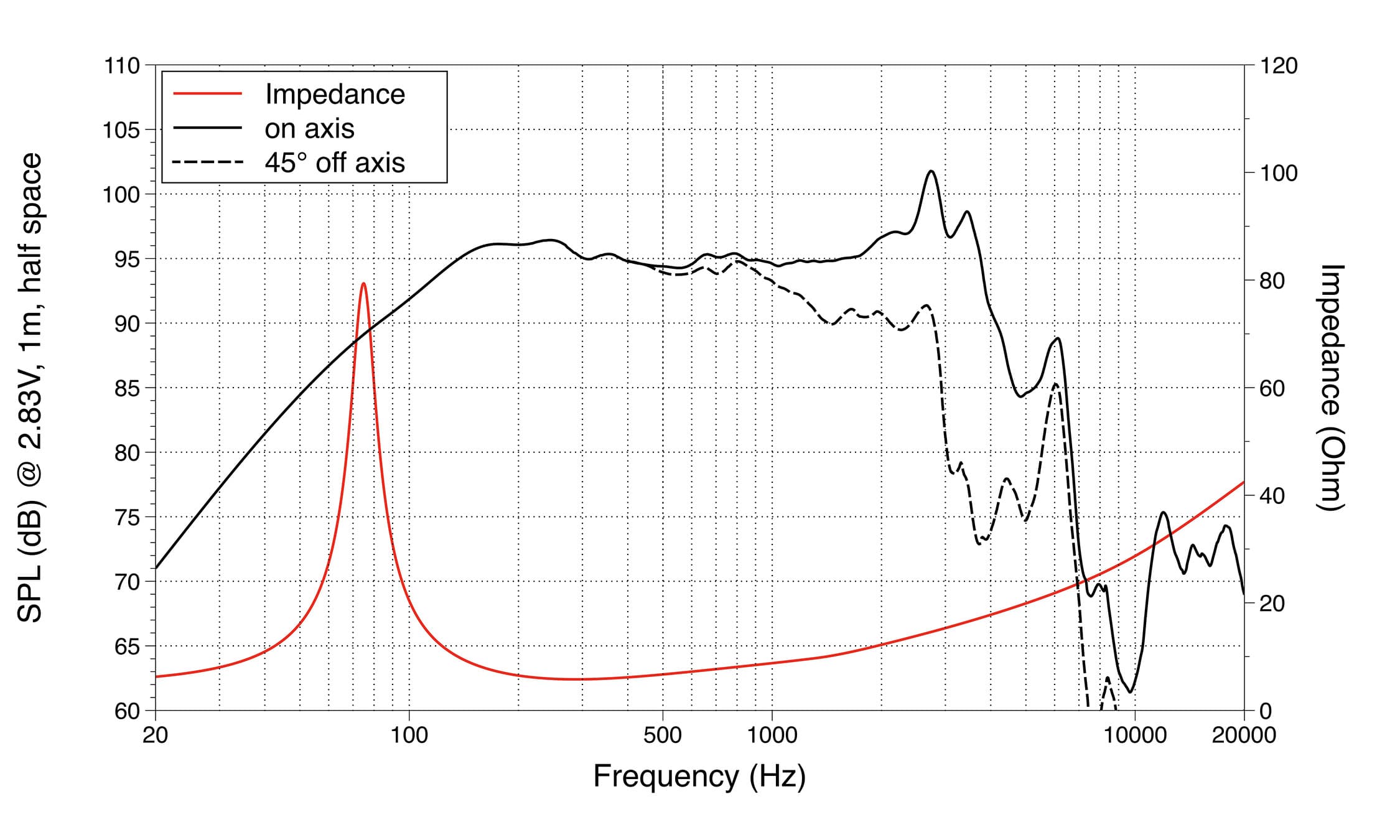

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs76Hz
Qts0.39
Qes0.43
Qms4.8
Vas20.7L
Re4.9Ω
Le0.61mH
BL14.1Tm
Sd350cm²
Mms36g
Xmax2.9mm
SPL95dB
Power300W
Impedance8Ω
Min Impedance5.7Ω
F Low75Hz
F High3000Hz
Voice Coil65mm
Pricing & availability
Price definitionsPrice movement
Best current price
£102.26
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.8kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Lavoce
WSN102.50
10"
Best current price
£102.26
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
70%
Similarity
Oberton
10M150
10"
Xmax3.3mm+12%
Qts0.43+10%
BL11.6Tm-17%
Vas25.9L+25%
Qes0.45+5%
