Overview
LF DriverCN1025 series
Celestion

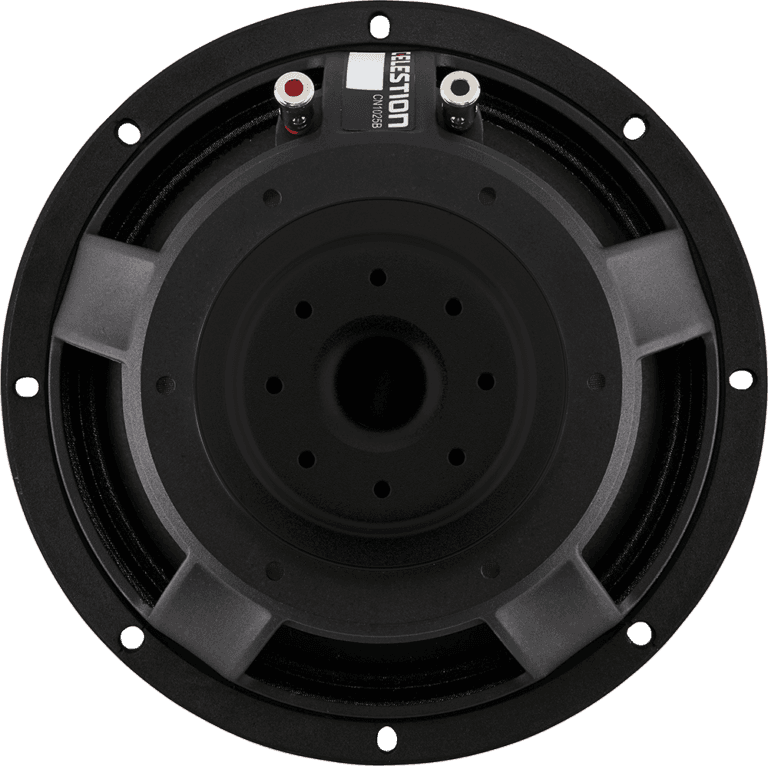

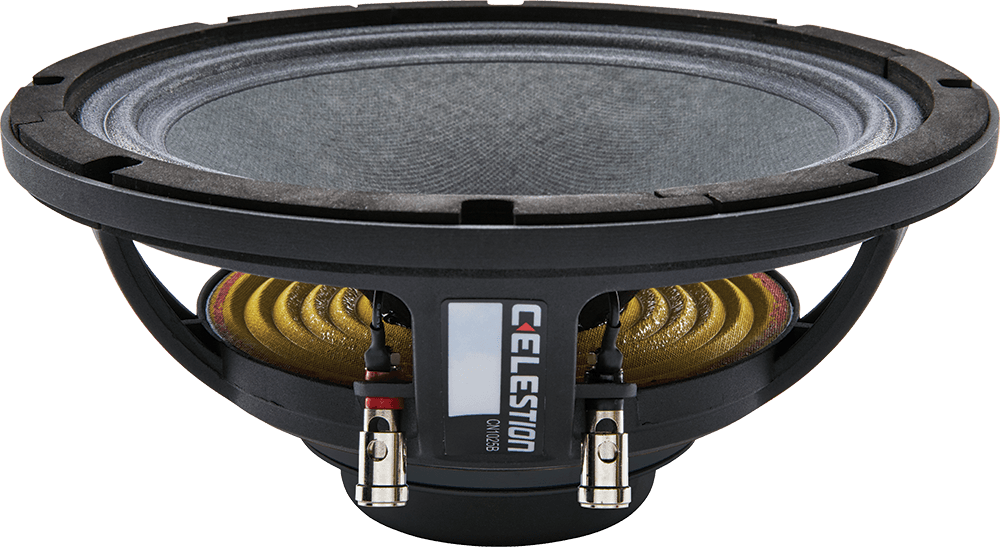

Celestion CN1025B
Celestion CN1025B is a 10" 16 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 80Hz, Qts 0.36, Vas 21.6L, Xmax 2.1mm, sensitivity 96.3dB, plus 73cm³ Vd and 194 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
16Ω
RMS Power
250W
Sensitivity
96.3dB
99.0dBmanufacturer; using T/S-derived value (2.7dB delta).
EBP
194
Vented alignment
Vd
73cm³

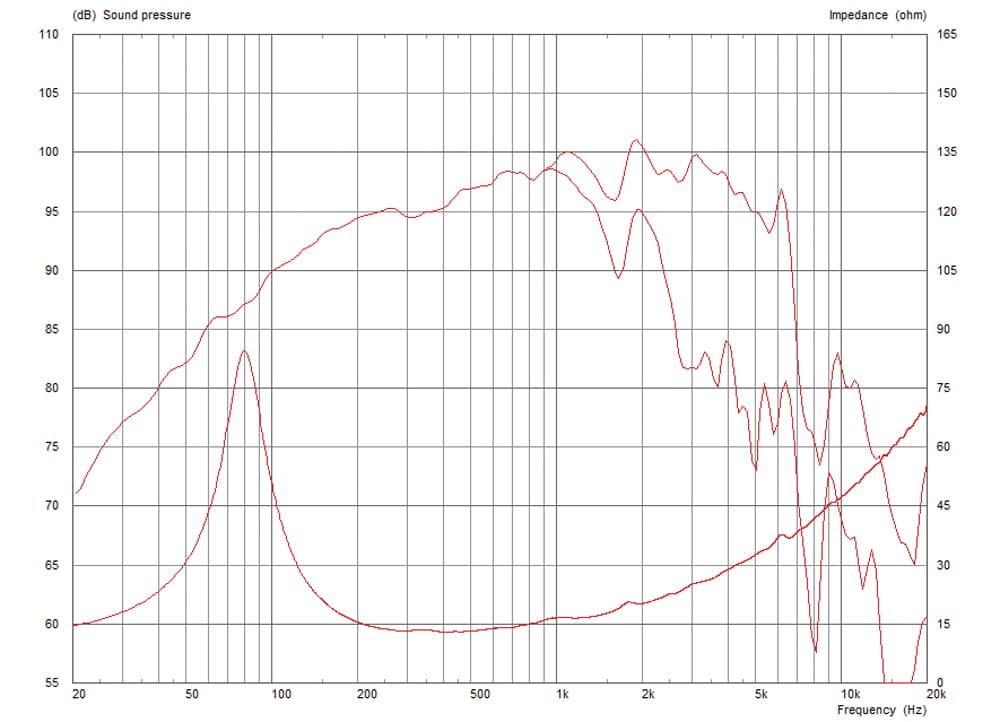

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence168 selected pixels of 438
T/S Parameters
Valid
Fs80Hz
Qts0.36
Qes0.41
Qms3.3
Vas21.6L
Re10.8Ω
Le0.75mH
BL20.3Tm
Sd346cm²
Mms31g
Xmax2.1mm
SPL96dB
Power250W
Impedance16Ω
Voice Coil64mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.0kg
Diameter265.0mm
Overall Depth119.0mm
Cutout Diameter233.0mm
Bolt Circle Diameter247.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
CN1025B
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
67%
Similarity
£80.00

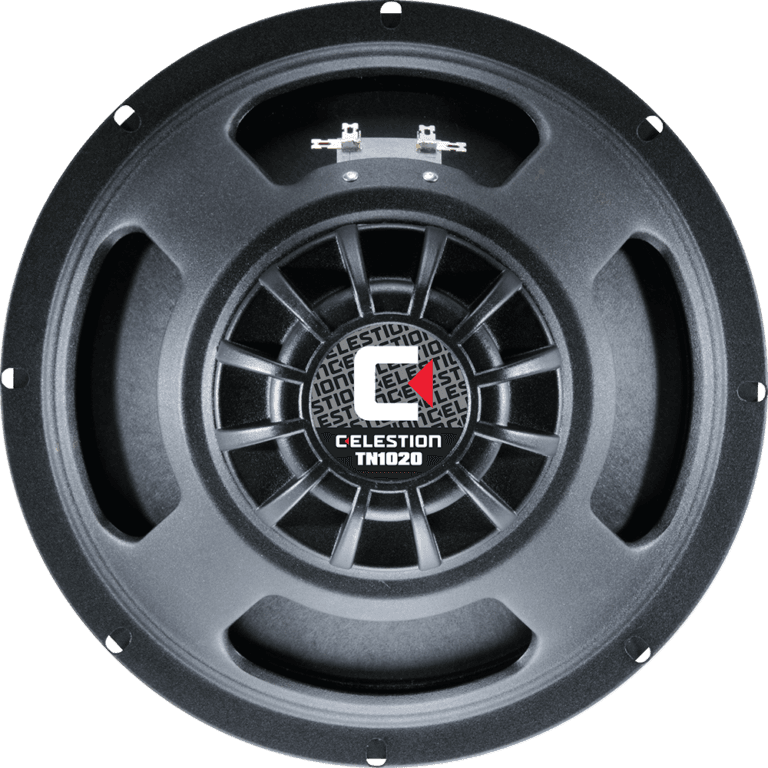

Celestion
TN1020
10"
Xmax2mm-5%
Qts0.4+9%
BL14.9Tm-26%
Vas16L-26%
Qes0.45+10%
58%
Similarity
PRV Audio
10MR1200X
10"
Xmax2.5mm+19%
Qts0.29-20%
BL17.5Tm-14%
Vas21.8L+1%
Qes0.3-27%
