Overview
LF Driver
Eighteen Sound

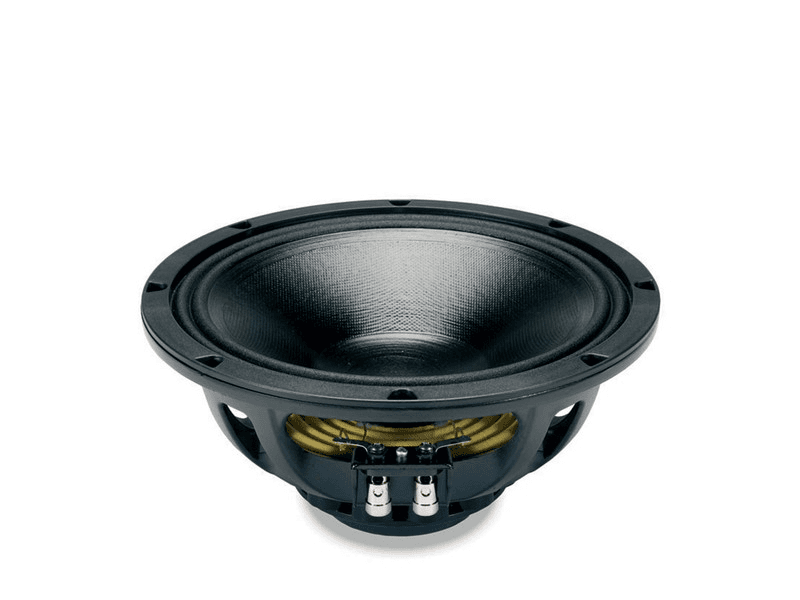

Eighteen Sound 10NMB420
Eighteen Sound 10NMB420 is a 10" 16 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 65Hz, Qts 0.33, Vas 30L, Xmax 4mm, sensitivity 95.6dB, plus 138cm³ Vd and 181 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
16Ω
RMS Power
350W
Sensitivity
95.6dB
99.0dBmanufacturer; using T/S-derived value (3.4dB delta).
EBP
181
Vented alignment
Vd
138cm³
T/S Parameters
Valid
Fs65Hz
Qts0.33
Qes0.36
Qms4.6
Vas30.0L
Re10.5Ω
Le0.40mH
BL19.5Tm
Sd346cm²
Mms32g
Xmax4.0mm
SPL96dB
Power350W
Power Nominal350W
Impedance16Ω
F Low65Hz
F High5000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.0kg
Diameter260.0mm
Overall Depth122.0mm
Cutout Diameter232.0mm
Bolt Circle Diameter244.0mm
