10-inch LF driver · SP series · 75 mm voice coil · 250 W

Monacor SP-10/250PRO 8Ω

Name: Monacor SP-10/250PRO 8 Ohm
Brand: Monacor
SKU: SP-10/250PRO

8 Ω · 3–2000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 47Hz
Xmax: 7mm
SPL: 93dB
Pe: 250W
BL: 18.3T·m
Vd: 266cm³
Qts: 0.33
Vas: 41L

See all 26 specs

Specifications

Published by Monacor

Manufacturer page

Datasheet PDF

Monacor SP-10/250PRO is a 10-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 47 Hz, Qts 0.33, Vas 40.7 L, Xmax 7 mm, sensitivity 92.8 dB, plus 266 cm³ Vd and 134 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 47Hz
Qts: 0.33
Qes: 0.35
Qms: 6.2
Vas: 40.7L
Re: 7.1Ω
Le: 0.83mH

Motor and cone

BL: 18.3T·m
Sd: 380cm²
Mms: 51g
Xmax: 7mm
Vd †: 266cm³
Voice coil: 75mm

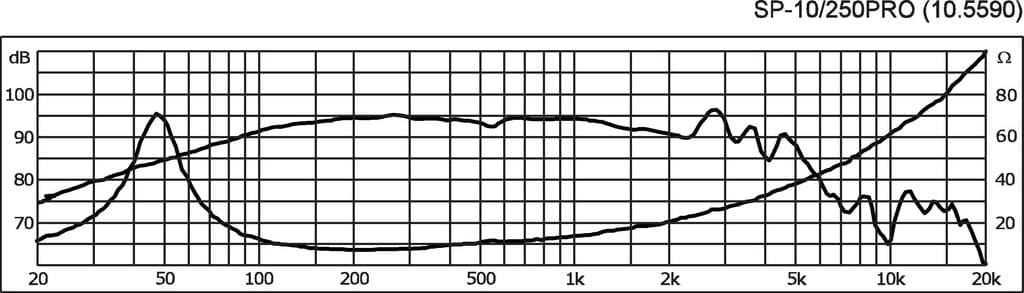

Power and response

Sensitivity †: 92.8dB
Manufacturer sensitivity: 94dB
Power: 250W
Impedance: 8Ω
Range: 3–2000Hz
EBP †: 134 · Leans vented

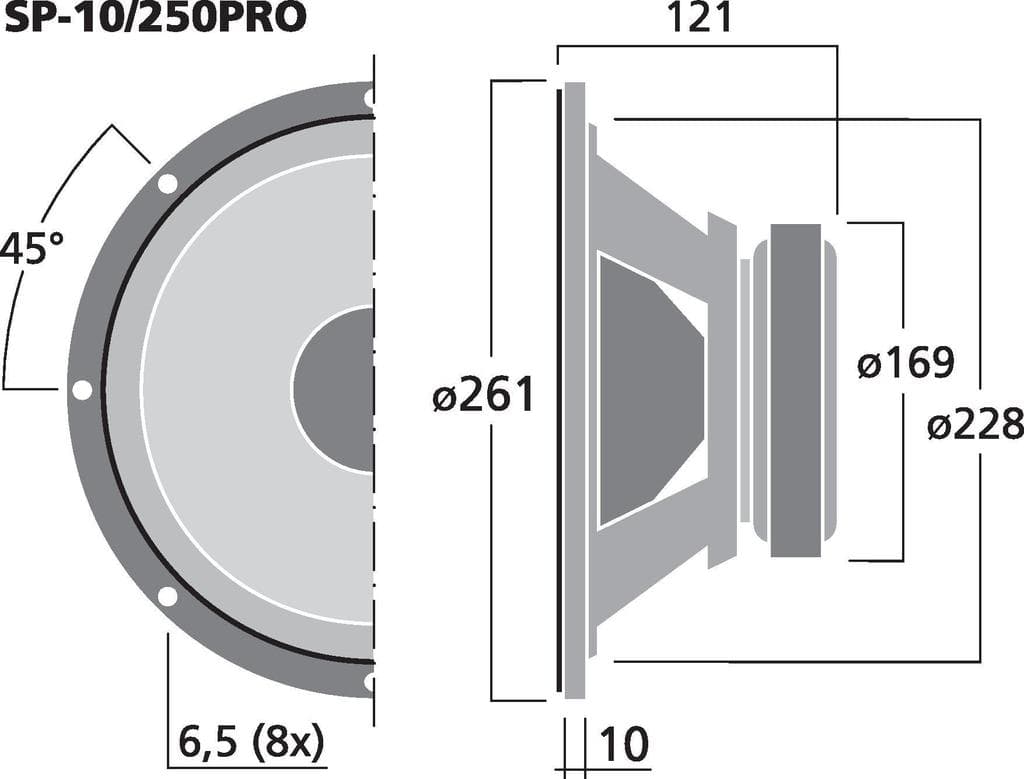

Size and mounting

Diameter: 261mm
Cutout: 228mm
Depth: 121mm
Weight: 5kg

Other published values

Cms: 0.20mm/N
Power Peak: 500

Other dimensions

Mounting Depth: 111

Sensitivity shows 92.8 dB, calculated from the T/S values. Monacor publishes 94.0 dB, 1.2 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Monacor lists

MF · Primary · 10″

BL: 18.3T·m
Fs: 47Hz
Le: 0.83mH
Re: 7.1Ω
Sd: 380cm²
Cms: 0.20mm/N
Mms: 51g
Qes: 0.35
Qms: 6.2
Qts: 0.33
SPL: 92.8dB
Vas: 40.7L
Xmax: 7mm
Power: 250W
Impedance: 8Ω
Power Peak: 500
Sensitivity: 94dB
Low limit: 3Hz
Calculated sensitivity †: 92.8dB
High limit: 2000Hz
Manufacturer sensitivity: 94dB
Voice coil: 75mm
Weight: 5kg
Diameter: 261mm
Depth: 121mm
Mounting Depth: 111
Cutout: 228mm

Compare

Same-size drivers, compared with the SP-10/250PRO. Clear differences are green when better and red when worse.

This driverSP-10/250PRO

Best price

–

47 Hz

Qts

0.33

Vas

40.7 L

18.3 T·m

Xmax

7 mm

Sensitivity

92.8 dB

Power

250 W

VisatonPAW 25

£63.29

Fs52 Hz +11%

Qts0.33 –

Vas44 L +8%

BL15.6 T·m −15%

Xmax3.5 mm −50%

Sensitivity94.6 dB +1.8

EminenceDELTA 10B

£92.89

Fs65 Hz +38%

Qts0.33 –

Vas36 L −12%

BL19.5 T·m +7%

Xmax3.5 mm −50%

Sensitivity96.5 dB +3.7

CIAREPW252

£96.40

Fs55 Hz +17%

Qts0.26 −21%

Vas43.4 L +7%

BL15.2 T·m −17%

Xmax7 mm –

Sensitivity95.8 dB +3

Beyma10WR300

£102.72

Fs52 Hz +11%

Qts0.35 +6%

Vas42 L +3%

BL14.2 T·m −22%

Xmax6 mm −14%

Sensitivity93.8 dB +1

RCFMB10G251

£108.56

Fs76 Hz +62%

Qts0.34 +3%

Vas24 L −41%

BL14.9 T·m −19%

Xmax7 mm –

Sensitivity96.8 dB +4

FaitalPRO10PR330

£112.27

Fs60 Hz +28%

Qts0.33 –

Vas32.5 L −20%

BL14.3 T·m −22%

Xmax7.4 mm +5%

Sensitivity94.9 dB +2.1

FaitalPRO10RS350

£119.58

Fs40 Hz −15%

Qts0.37 +12%

Vas44.3 L +9%

BL14 T·m −23%

Xmax7.4 mm +5%

Sensitivity90.5 dB −2.3

Beyma10MCS500

£128.68

Fs65 Hz +38%

Qts0.31 −6%

Vas24 L −41%

BL17.6 T·m −4%

Xmax8 mm +14%

Sensitivity95 dB +2.2

Beyma10G40

£137.35

Fs45 Hz −4%

Qts0.30 −9%

Vas49 L +20%

BL17 T·m −7%

Xmax7 mm –

Sensitivity93.5 dB +0.7

CelestionCF1025BMB

£141.59

Fs41 Hz −13%

Qts0.35 +8%

Vas46.1 L +13%

BL15.3 T·m −17%

Xmax6.7 mm −5%

Sensitivity91.3 dB −1.5

SB AudienceNERO-10MWN600D

£152.56

Fs68 Hz +45%

Qts0.34 +3%

Vas18.8 L −54%

BL18.2 T·m –

Xmax7.3 mm +4%

Sensitivity94.2 dB +1.4

FaitalPRO10FH520

£165.49

Fs60 Hz +28%

Qts0.29 −12%

Vas23.5 L −42%

BL18 T·m –

Xmax7.3 mm +4%

Sensitivity94.3 dB +1.5

Sica10 S 3 CP

£166.81

Fs42 Hz −11%

Qts0.30 −9%

Vas42.8 L +5%

BL15.6 T·m −15%

Xmax7 mm –

Sensitivity92.1 dB −0.7

Beyma10MCB700

£171.06

Fs75 Hz +60%

Qts0.33 –

Vas13.2 L −68%

BL20.1 T·m +10%

Xmax7 mm –

Sensitivity94 dB +1.2

PRV Audio10MB1000FT

£178.50

Fs75 Hz +60%

Qts0.32 −3%

Vas32.3 L −21%

BL14.5 T·m −21%

Xmax5.9 mm −16%

Sensitivity98.2 dB +5.4

Eighteen Sound10NTLW2500

£186.32

Fs65 Hz +38%

Qts0.33 –

Vas21 L −48%

BL17.4 T·m −5%

Xmax7.6 mm +9%

Sensitivity94.3 dB +1.5

Eighteen Sound10NW750

£211.47

Fs53 Hz +13%

Qts0.31 −6%

Vas34 L −16%

BL16.4 T·m −10%

Xmax7.5 mm +7%

Sensitivity94 dB +1.2

No photo

REDCATT10NPM-2

No current price

Fs58 Hz +23%

Qts0.33 –

Vas29.3 L −28%

BL17.9 T·m –

Xmax6.3 mm −9%

Sensitivity94 dB +1.2

Eighteen Sound10NMB520

No current price

Fs64 Hz +36%

Qts0.33 –

Vas43 L +6%

BL17.5 T·m −4%

Xmax4 mm −43%

Sensitivity97 dB +4.2

RCFMB10G350

No current price

Fs58 Hz +23%

Qts0.31 −6%

Vas34 L −16%

BL14.7 T·m −20%

Xmax7 mm –

Sensitivity95.2 dB +2.4

RCFMB10G253

No current price

Fs76 Hz +62%

Qts0.34 +3%

Vas24 L −41%

BL14.9 T·m −19%

Xmax7 mm –

Sensitivity96.8 dB +4

FaneSOVEREIGN PRO 10-300

No current price

Fs58 Hz +23%

Qts0.32 −3%

Vas41 L –

BL15.3 T·m −16%

Xmax5.5 mm −21%

Sensitivity95.7 dB +2.9

EminenceKAPPALITE KL3010LF-8

No current price

Fs45 Hz −4%

Qts0.31 −6%

Vas47.3 L +16%

BL18.0 T·m –

Xmax8.5 mm +22%

Sensitivity93.2 dB –

BMS10S302

No current price

Fs60 Hz +28%

Qts0.33 –

Vas30 L −26%

BL16.2 T·m −11%

Xmax5.5 mm −21%

Sensitivity94.7 dB +1.9

Sica10 S 3 PL

No current price

Fs43 Hz −9%

Qts0.27 −18%

Vas39.9 L –

BL16.9 T·m −8%

Xmax7 mm –

Sensitivity92.6 dB –

No photo

PHL Audio3411NDU

No current price

Fs47 Hz –

Qts0.29 −12%

Vas33.3 L −18%

BL18.2 T·m –

Xmax8 mm +14%

Sensitivity92.5 dB –

No photo

PHL Audio3400

No current price

Fs53 Hz +13%

Qts0.28 −15%

Vas30.6 L −25%

BL18.1 T·m –

Xmax6.5 mm −7%

Sensitivity94 dB +1.2

Sica10 PN 3

No current price

Fs48 Hz –

Qts0.26 −21%

Vas40.1 L –

BL16.1 T·m −12%

Xmax7 mm –

Sensitivity94.1 dB +1.3

FaneSOVEREIGN PRO 10-300SC

No current price

Fs47 Hz –

Qts0.33 –

Vas45.4 L +12%

BL14.8 T·m −19%

Xmax4.8 mm −32%

Sensitivity93.5 dB +0.7

JensenBP10150-8

No current price

Fs55 Hz +17%

Qts0.33 –

Vas42.6 L +5%

BL13.5 T·m −26%

Xmax2.4 mm −66%

Sensitivity95.1 dB +2.3

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax

Where to buy

Prices for delivery to the UK, including VAT. How prices work

Watch price

No current price found. Pricing may appear after the next vendor refresh.
