LF DriverCF1025 series
Celestion

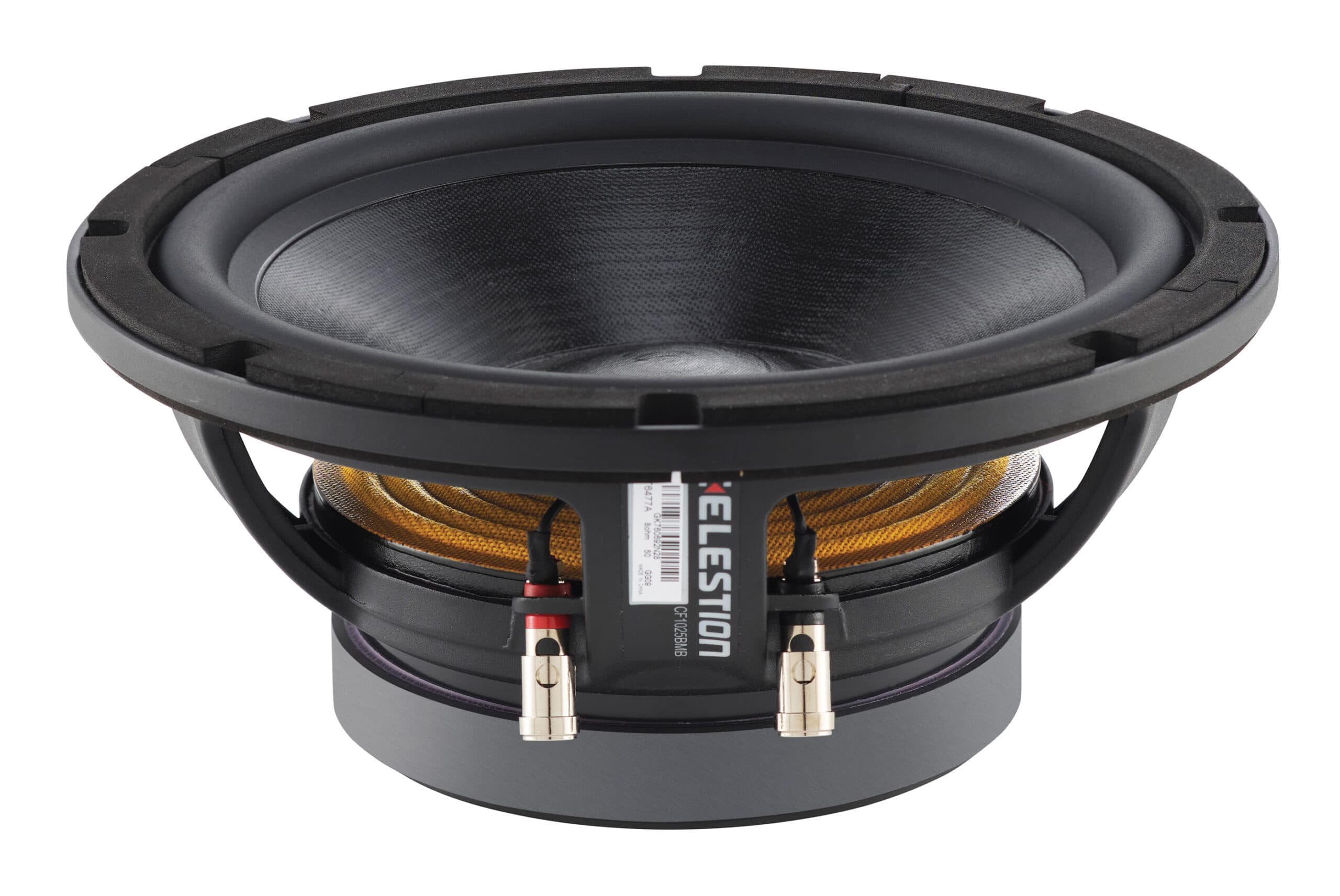

Celestion CF1025BMB
Celestion CF1025BMB is a 10" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 41Hz, Qts 0.35, Vas 46.1L, Xmax 6.7mm, sensitivity 91.3dB, plus 230cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
300W
Sensitivity
91.3dB
92.5dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
110
Vented alignment
Vd
230cm³

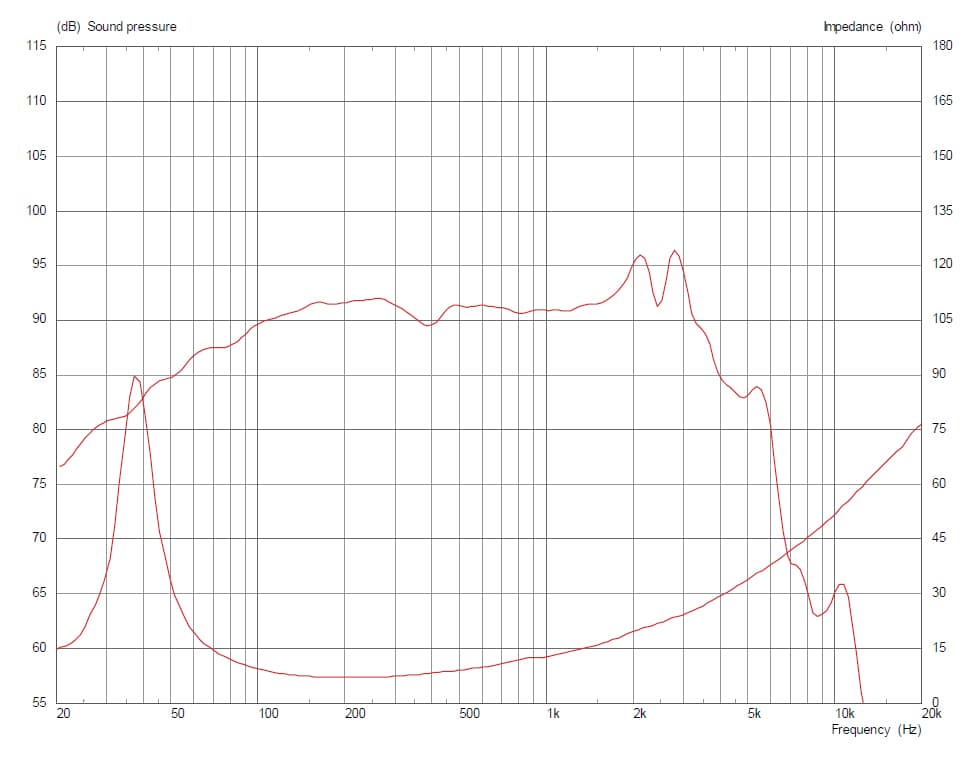

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response135 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
135 plotted pointsMedium confidence152 selected pixels of 152
T/S Parameters
Valid
Fs41Hz
Qts0.35
Qes0.37
Qms8.0
Vas46.1L
Re6.0Ω
Le1.15mH
BL15.3Tm
Sd346cm²
Mms56g
Xmax6.7mm
SPL91dB
Power300W
Impedance8Ω
Voice Coil64mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.3kg
Diameter265.0mm
Overall Depth124.5mm
Cutout Diameter233.8mm
Bolt Circle Diameter247.5mm
