Overview
LF Driver
Sica

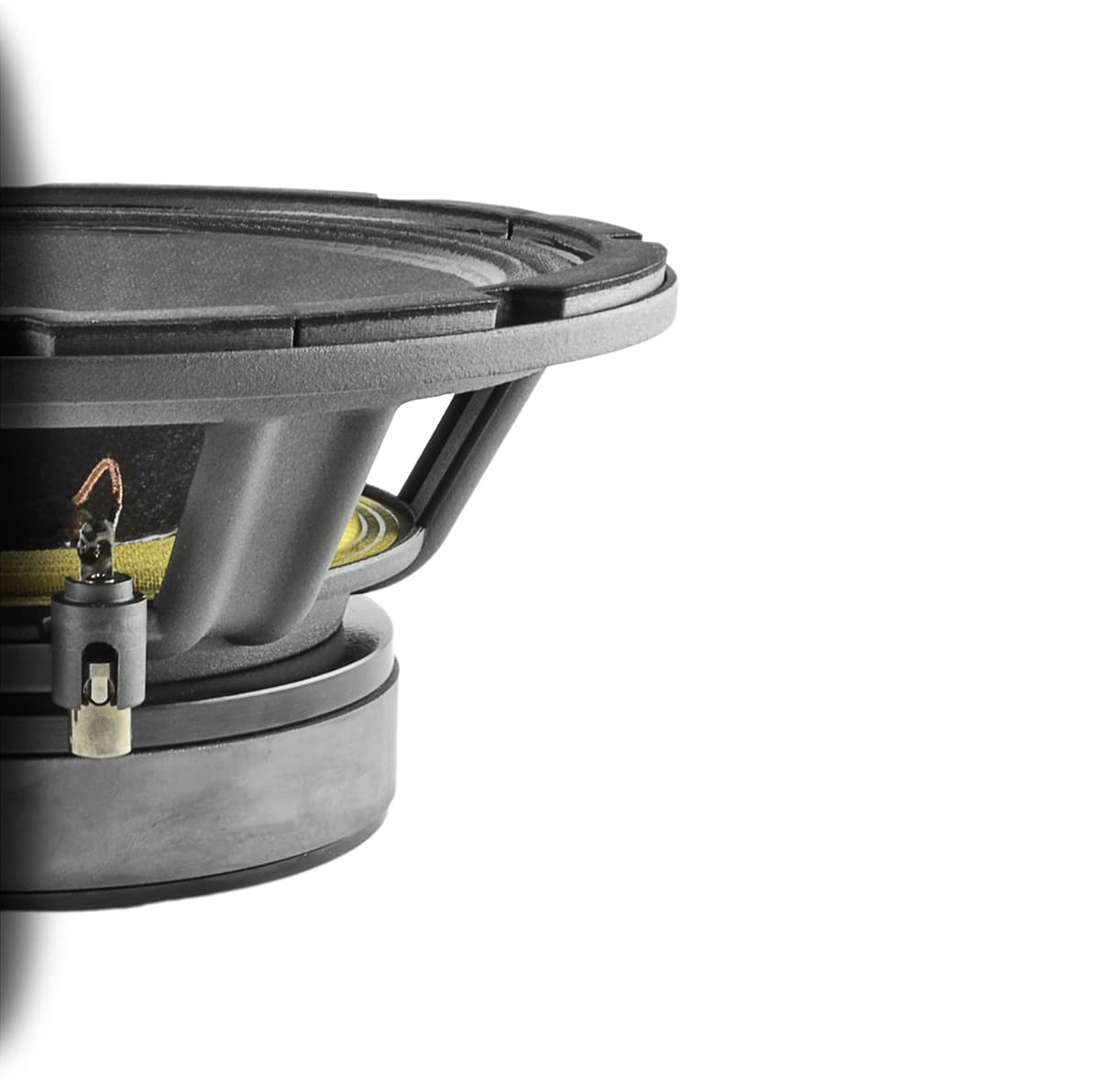

Sica 10 S 3 CP
Sica 10 S 3 CP is a 10" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 42Hz, Qts 0.30, Vas 42.8L, Xmax 7mm, sensitivity 92.1dB, plus 242cm³ Vd and 135 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
450W
Sensitivity
92.1dB
94.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
135
Vented alignment
Vd
242cm³
T/S Parameters
Valid
Fs42Hz
Qts0.30
Qes0.31
Qms4.8
Vas42.8L
Re5.1Ω
Le1.19mH
BL15.6Tm
Sd346cm²
Mms57g
Xmax7.0mm
SPL92dB
Power450W
Impedance8Ω
Voice Coil75mm
Flux Density0.98T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.1kg
Diameter268.0mm
Overall Depth122.5mm
Cutout Diameter232.0mm
Bolt Circle Diameter247.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
10 S 3 CP
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
90%
Similarity
£138.70
Beyma
10G40
10"
Xmax7mm0%
Qts0.30%
BL17Tm+9%
Vas49L+14%
Qes0.32+3%
89%
Similarity
CIARE
PW252
10"
Xmax7mm0%
Qts0.26-13%
BL15.2Tm-2%
Vas43.4L+1%
Qes0.3-3%
88%
Similarity
RCF
MB10G350
10"
Xmax7mm0%
Qts0.31+3%
BL14.7Tm-6%
Vas34L-21%
Qes0.32+3%
85%
Similarity
PRV Audio
MT10W1200-NDY-4
10"
Xmax6.5mm-7%
Qts0.30%
BL12.3Tm-21%
Vas41.2L-4%
Qes0.310%
85%
Similarity
£163.27
Eighteen Sound
10NW650
10"
Xmax7mm0%
Qts0.28-7%
BL14Tm-10%
Vas48L+12%
Qes0.29-6%
85%
Similarity
Sica

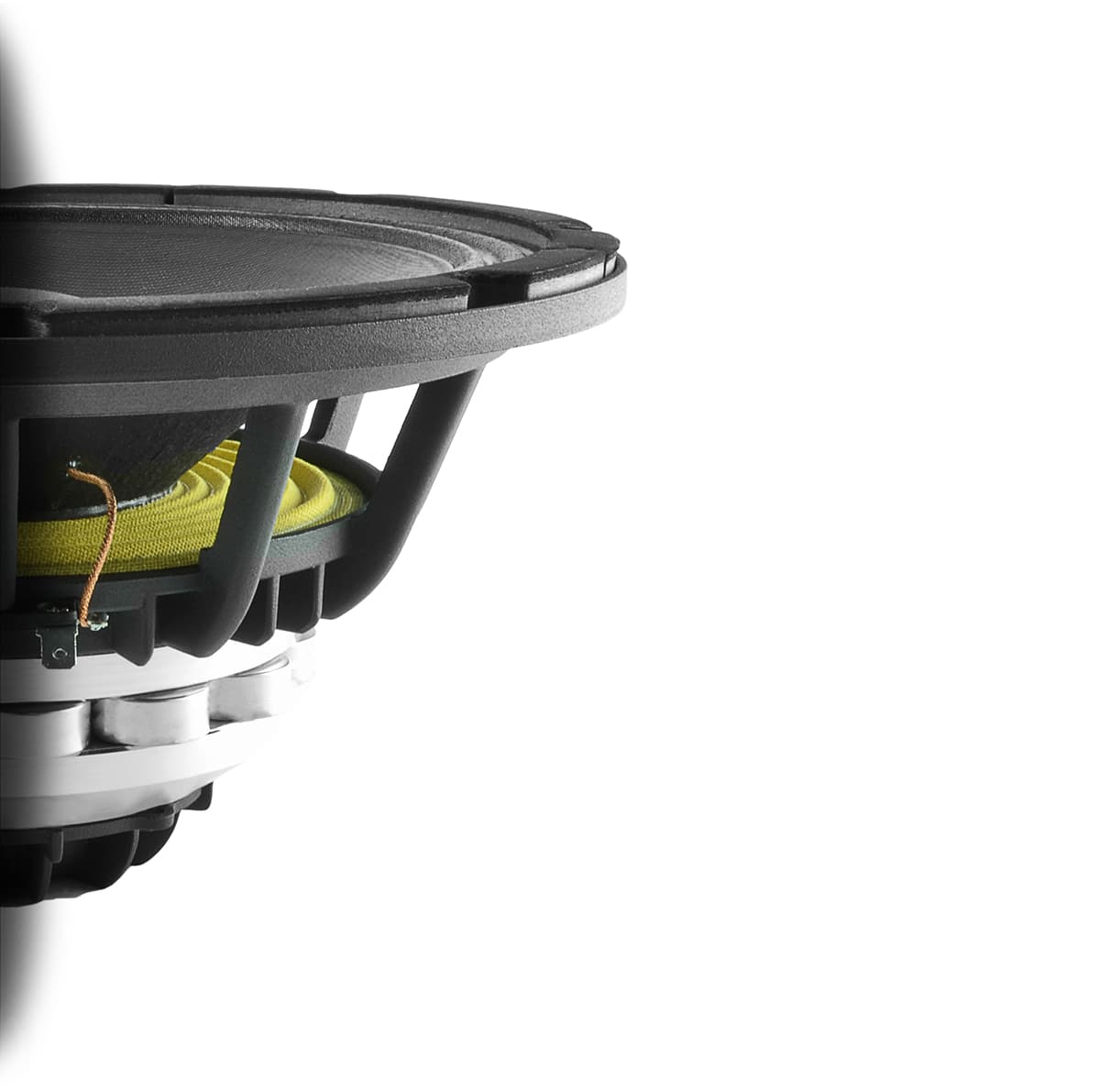

10 CX 3 PL P
10"
Xmax6mm-14%
Qts0.29-3%
BL15.3Tm-2%
Vas36.1L-16%
Qes0.310%
84%
Similarity
£211.47
Eighteen Sound
10NW750
10"
Xmax7.5mm+7%
Qts0.31+3%
BL16.4Tm+5%
Vas34L-21%
Qes0.32+3%
84%
Similarity
Sica
10 PN 3
10"
Xmax7mm0%
Qts0.26-13%
BL16.1Tm+3%
Vas40.1L-6%
Qes0.28-10%
84%
Similarity
£282.35
FaitalPRO
10HX240
10"
Xmax7.4mm+5%
Qts0.28-7%
BL15.5Tm-1%
Vas31.8L-26%
Qes0.3-3%
84%
Similarity
Sica

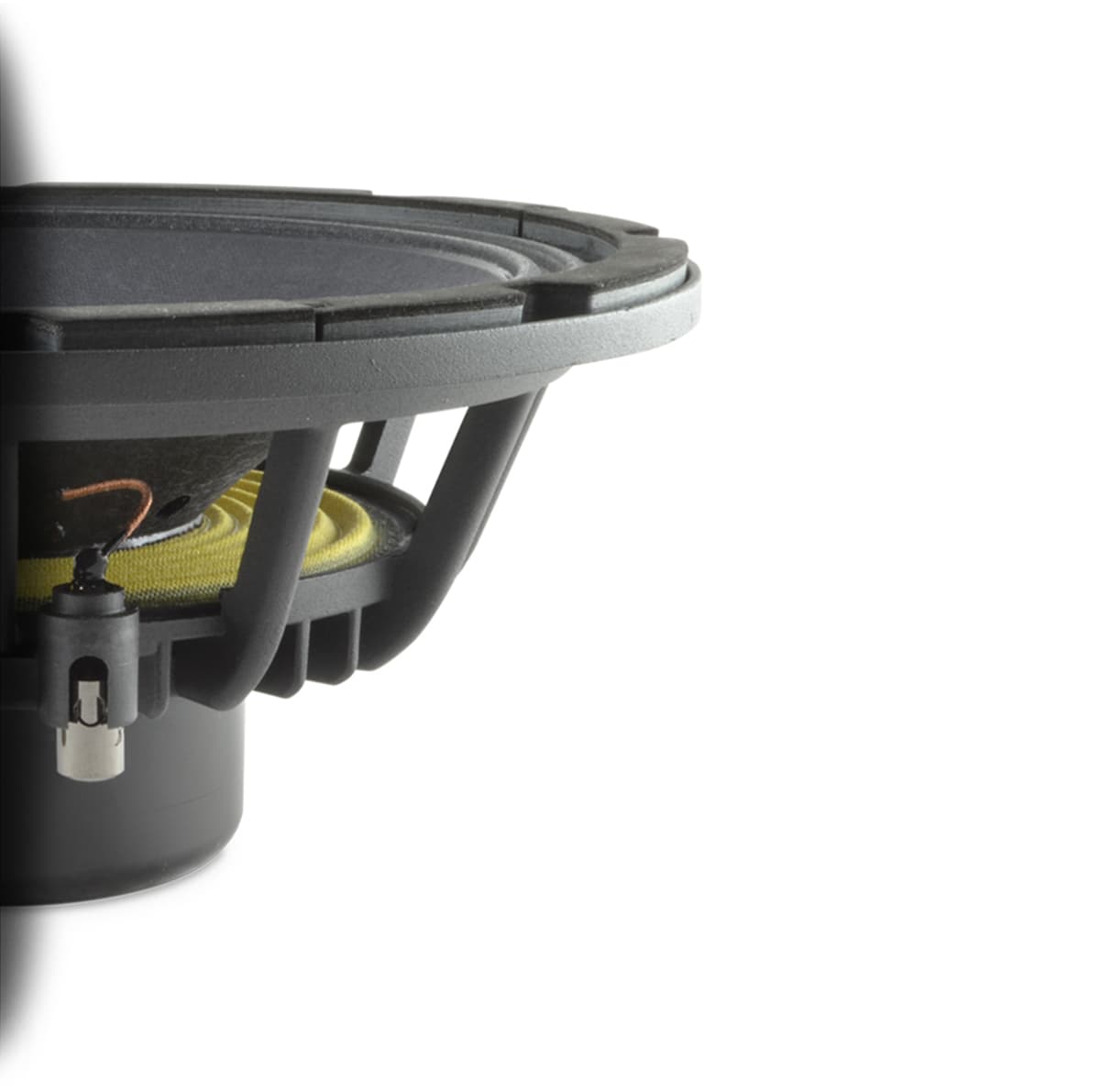

10 S 3 PL
10"
Xmax7mm0%
Qts0.27-10%
BL16.9Tm+8%
Vas39.9L-7%
Qes0.28-10%
83%
Similarity
£119.58
FaitalPRO
10RS350
10"
Xmax7.2mm+2%
Qts0.31+3%
BL12.5Tm-20%
Vas40.6L-5%
Qes0.33+6%
82%
Similarity
Sica
10 N 3 PL
10"
Xmax5.5mm-21%
Qts0.29-3%
BL15.9Tm+2%
Vas40.5L-5%
Qes0.3-3%
