- Net volume
- 25L
- Tuning
- 60Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
10-inch LF driver · 450 W
Eighteen Sound 10NW750 8Ω
50–5000 Hz
£211.47
SteadyLean Business · All 4 offers
- Fs
- 53Hz
- Xmax
- 7.5mm
- SPL
- 94dB
- Pe
- 450W
- BL
- 16.4T·m
- Vd
- 255cm³
- Qts
- 0.31
- Vas
- 34L

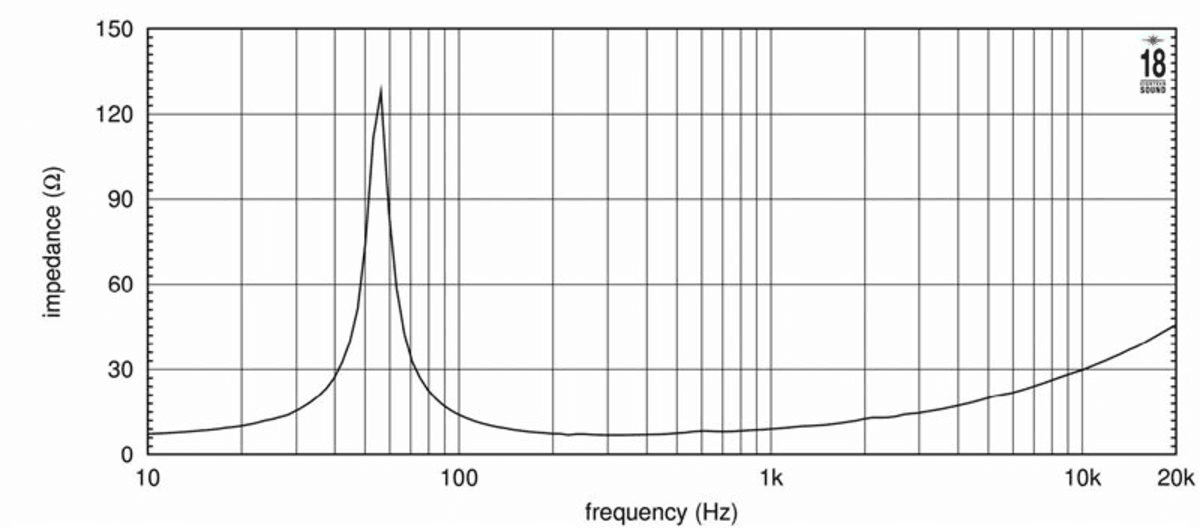

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

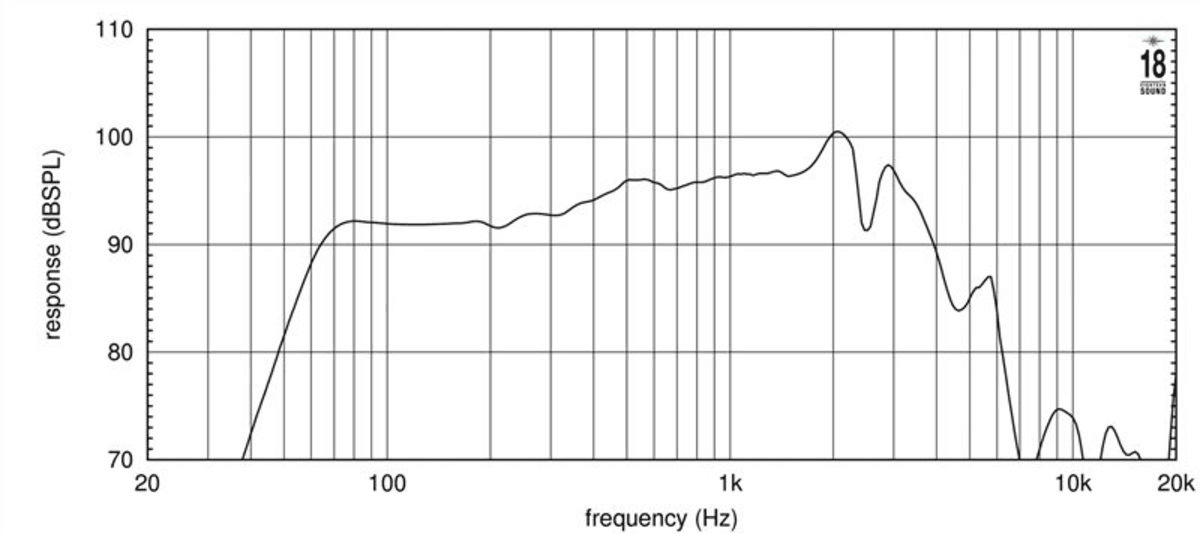

frequency response
Frequency response
240 plotted pointsMedium confidence881 selected pixels of 1,332
Published graphs

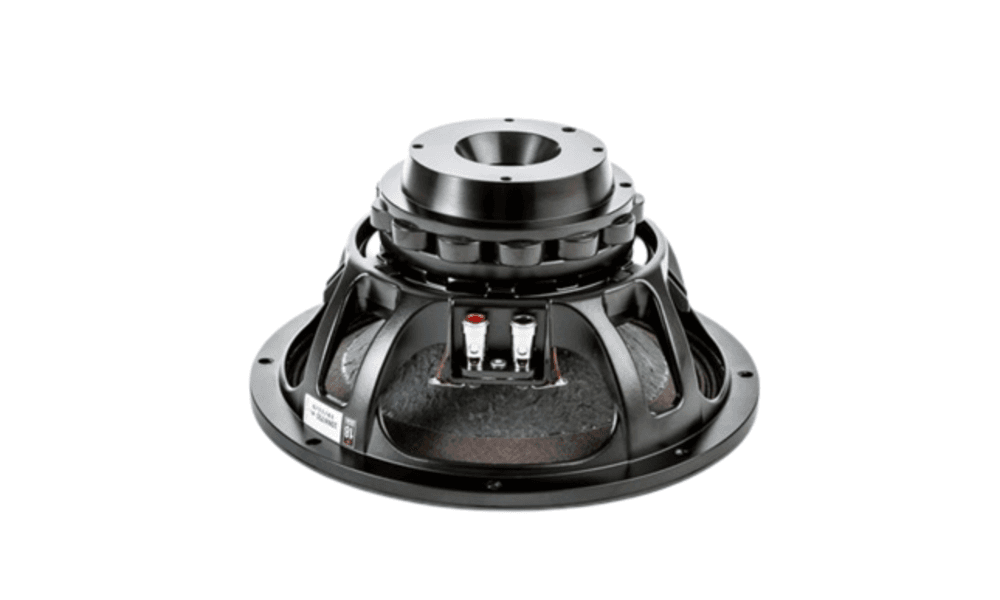

Eighteen Sound 10NW750 is a 10-inch 8 ohm LF driver rated at 450 W RMS. The validated T/S data includes Fs 53 Hz, Qts 0.31, Vas 34 L, Xmax 7.5 mm, sensitivity 94 dB, plus 255 cm³ Vd and 166 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £211.47.
The published T/S values agree with each other
Thiele/Small
- Fs
- 53Hz
- Qts
- 0.31
- Qes
- 0.32
- Qms
- 5.7
- Vas
- 34L
- Re
- 5.8Ω
- Le
- 0.60mH
Motor and cone
- BL
- 16.4T·m
- Sd
- 340cm²
- Mms
- 45g
- Xmax
- 7.5mm
- Vd †
- 255cm³
Power and response
- Sensitivity †
- 94dB
- Manufacturer sensitivity
- 94dB
- Power
- 450W
- Nominal power
- 450W
- Impedance
- 8Ω
- Range
- 50–5000Hz
- EBP †
- 166 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 232mm
- Bolt circle
- 244mm
- Depth
- 130mm
- Weight
- 3.8kg
Other published values
- Power Program
- 900
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 10″
- BL
- 16.4T·m
- Fs
- 53Hz
- Le
- 0.60mH
- Re
- 5.8Ω
- Sd
- 340cm²
- Mms
- 45g
- Qes
- 0.32
- Qms
- 5.7
- Qts
- 0.31
- SPL
- 94dB
- Vas
- 34L
- Xmax
- 7.5mm
- Power
- 450W
- Impedance
- 8Ω
- Sensitivity
- 94dB
- Low limit
- 50Hz
- Nominal power
- 450W
- Power Program
- 900
- Calculated sensitivity †
- 94dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 94dB
- Weight
- 3.8kg
- Diameter
- 260mm
- Depth
- 130mm
- Cutout
- 232mm
- Bolt circle
- 244mm
02
Designs
What Eighteen Sound suggests for the 10NW750. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 10NW750 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 10NW750. Clear differences are green when better and red when worse.
This driver10NW750
Best price
£211.47
Fs
53 Hz
Qts
0.31
Vas
34 L
BL
16.4 T·m
Xmax
7.5 mm
Sensitivity
94 dB
Power
450 W
RCFMB10G251
£108.44 · 49% less, betterFs76 Hz +43%, worse
Qts0.34 +10%
Vas24 L −29%, better
BL14.9 T·m −9%
Xmax7 mm −7%
Sensitivity96.8 dB +2.8, better
FaitalPRO10PR330
£112.27 · 47% less, betterFs60 Hz +13%, worse
Qts0.33 +6%
Vas32.5 L −4%
BL14.3 T·m −13%, worse
Xmax7.4 mm –
Sensitivity94.9 dB +0.9
B&C10HPL64
£115.00 · 46% less, betterFs61 Hz +15%, worse
Qts0.31 –
Vas32 L −6%
BL15 T·m −9%
Xmax4 mm −47%, worse
Sensitivity95.5 dB +1.5
Beyma10MCS500
£128.54 · 39% less, betterFs65 Hz +23%, worse
Qts0.31 –
Vas24 L −29%, better
BL17.6 T·m +7%
Xmax8 mm +7%
Sensitivity95 dB +1
CIAREPW257
£132.30 · 37% less, betterFs57 Hz +8%
Qts0.30 −3%
Vas31 L −9%
BL15.9 T·m −3%
Xmax5.5 mm −27%, worse
Sensitivity94.4 dB –
Beyma10G40
£137.20 · 35% less, betterFs45 Hz −15%, better
Qts0.30 −3%
Vas49 L +44%, worse
BL17 T·m +4%
Xmax7 mm −7%
Sensitivity93.5 dB −0.5
Beyma10MC500
£143.18 · 32% less, betterFs65 Hz +23%, worse
Qts0.29 −6%
Vas24 L −29%, better
BL18.3 T·m +12%, better
Xmax8 mm +7%
Sensitivity95.4 dB +1.4
Eighteen Sound10NTLS2000
£157.64 · 25% less, betterFs50 Hz −6%
Qts0.26 −16%, better
Vas38 L +12%, worse
BL16.7 T·m –
Xmax7.4 mm –
Sensitivity94.5 dB +0.5
FaitalPRO10FH520
£165.49 · 22% less, betterFs60 Hz +13%, worse
Qts0.29 −6%
Vas23.5 L −31%, better
BL18 T·m +10%
Xmax7.3 mm −3%
Sensitivity94.3 dB –
Sica10 S 3 CP
£166.62 · 21% less, betterFs42 Hz −21%, better
Qts0.30 −3%
Vas42.8 L +26%, worse
BL15.6 T·m −5%
Xmax7 mm −7%
Sensitivity92.1 dB −1.9
PRV Audio10MB1000FT
£178.31 · 16% less, betterFs75 Hz +42%, worse
Qts0.32 +3%
Vas32.3 L −5%
BL14.5 T·m −12%, worse
Xmax5.9 mm −22%, worse
Sensitivity98.2 dB +4.2, better
Eighteen Sound10NTLW2500
£186.32 · 12% less, betterFs65 Hz +23%, worse
Qts0.33 +6%
Vas21 L −38%, better
BL17.4 T·m +6%
Xmax7.6 mm –
Sensitivity94.3 dB –
FaitalPRO10HX240
£308.97 · 46% more, worseFs65 Hz +23%, worse
Qts0.28 −10%
Vas31.8 L −6%
BL15.5 T·m −5%
Xmax7.4 mm –
Sensitivity96.7 dB +2.7, better
RCFMB10G350
No current priceFs58 Hz +9%
Qts0.31 –
Vas34 L –
BL14.7 T·m −10%, worse
Xmax7 mm −7%
Sensitivity95.2 dB +1.2
No photo
PHL Audio3411NDU
No current priceFs47 Hz −11%, better
Qts0.29 −6%
Vas33.3 L –
BL18.2 T·m +11%, better
Xmax8 mm +7%
Sensitivity92.5 dB −1.5
Oberton10MB500
No current priceFs66 Hz +24%, worse
Qts0.31 –
Vas22.1 L −35%, better
BL15.4 T·m −6%
Xmax8.3 mm +10%, better
Sensitivity95 dB +1
No photo
PHL Audio3001NDU
No current priceFs57 Hz +8%
Qts0.31 –
Vas31.5 L −7%
BL16.1 T·m –
Xmax4.5 mm −40%, worse
Sensitivity94.5 dB +0.5
Sica10 CX 3 PL P
No current priceFs59 Hz +11%, worse
Qts0.29 −6%
Vas36.1 L +6%
BL15.3 T·m −7%
Xmax6 mm −20%, worse
Sensitivity95.8 dB +1.8
MonacorSP-10/250PRO
No current priceFs47 Hz −11%, better
Qts0.33 +6%
Vas40.7 L +20%, worse
BL18.3 T·m +12%, better
Xmax7 mm −7%
Sensitivity92.8 dB −1.2
No photo
PHL Audio3430
No current priceFs56 Hz +6%
Qts0.30 −3%
Vas36 L +6%
BL16 T·m –
Xmax4.5 mm −40%, worse
Sensitivity94.9 dB +0.9
Sica10 FE 3 CP
No current priceFs52 Hz –
Qts0.31 –
Vas38.6 L +14%, worse
BL15.3 T·m −6%
Xmax5 mm −33%, worse
Sensitivity94.3 dB –
CelestionNTR10-2520D
No current priceFs57 Hz +8%
Qts0.29 −7%
Vas34.7 L –
BL15.8 T·m −3%
Xmax4 mm −47%, worse
Sensitivity95.1 dB +1.1
Sica10 S 3 PL
No current priceFs43 Hz −19%, better
Qts0.27 −13%, better
Vas39.9 L +17%, worse
BL16.9 T·m –
Xmax7 mm −7%
Sensitivity92.6 dB −1.4
EminenceKAPPALITE KL3010LF-8
No current priceFs45 Hz −15%, better
Qts0.31 –
Vas47.3 L +39%, worse
BL18.0 T·m +10%
Xmax8.5 mm +14%, better
Sensitivity93.2 dB −0.8
No photo
PHL Audio3001
No current priceFs57 Hz +8%
Qts0.32 +3%
Vas31.5 L −7%
BL15.9 T·m −3%
Xmax4.5 mm −40%, worse
Sensitivity94.4 dB –
CelestionNTR10-2520E
No current priceFs56 Hz +5%
Qts0.31 –
Vas30.1 L −12%, better
BL15.9 T·m –
Xmax5 mm −33%, worse
Sensitivity93.8 dB –
No photo
PHL Audio3400
No current priceFs53 Hz –
Qts0.28 −10%
Vas30.6 L −10%
BL18.1 T·m +10%, better
Xmax6.5 mm −13%, worse
Sensitivity94 dB –
Sica10 PN 3
No current priceFs48 Hz −9%
Qts0.26 −16%, better
Vas40.1 L +18%, worse
BL16.1 T·m –
Xmax7 mm −7%
Sensitivity94.1 dB –
No photo
REDCATT10NPM-2
No current priceFs58 Hz +9%
Qts0.33 +6%
Vas29.3 L −14%, better
BL17.9 T·m +9%
Xmax6.3 mm −15%, worse
Sensitivity94 dB –
Oberton10NMB200
No current priceFs59 Hz +11%, worse
Qts0.32 –
Vas34.9 L –
BL14.1 T·m −14%, worse
Xmax4.3 mm −43%, worse
Sensitivity95.4 dB +1.4
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £211.47, the lowest price | Stock not listed | Visit shop at Lean Business | |
Lean Audio | £218.27 | 3.2% above the lowest price | 1 in stock | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
