10-inch LF driver · 75 mm voice coil · 400 W
Sica 10 S 3 PL 8Ω
8 Ω
No current price
- Fs
- 43Hz
- Xmax
- 7mm
- SPL
- 93dB
- Pe
- 400W
- BL
- 16.9T·m
- Vd
- 242cm³
- Qts
- 0.27
- Vas
- 40L
Sica 10 S 3 PL is a 10-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 43 Hz, Qts 0.27, Vas 39.9 L, Xmax 7 mm, sensitivity 92.6 dB, plus 242 cm³ Vd and 154 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 43Hz
- Qts
- 0.27
- Qes
- 0.28
- Qms
- 4.8
- Vas
- 39.9L
- Re
- 5.1Ω
- Le
- 1.18mH
Motor and cone
- BL
- 16.9T·m
- Sd
- 346cm²
- Mms
- 59g
- Xmax
- 7mm
- Vd †
- 242cm³
- Voice coil
- 75mm
- Flux density
- 1.19T
Power and response
- Sensitivity †
- 92.6dB
- Manufacturer sensitivity
- 94.5dB
- Power
- 400W
- Impedance
- 8Ω
- EBP †
- 154 · Leans vented
Size and mounting
- Diameter
- 268mm
- Cutout
- 232mm
- Bolt circle
- 247mm
- Depth
- 120.5mm
- Weight
- 3.1kg
Other published values
- Cms
- 0.23mm/N
- Power Program
- 800
Sensitivity shows 92.6 dB, calculated from the T/S values. Sica publishes 94.5 dB, 1.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Sica lists
LF · Primary · 10″
- BL
- 16.9T·m
- Fs
- 43Hz
- Le
- 1.18mH
- Re
- 5.1Ω
- Sd
- 346cm²
- Cms
- 0.23mm/N
- Mms
- 59g
- Qes
- 0.28
- Qms
- 4.8
- Qts
- 0.27
- SPL
- 92.6dB
- Vas
- 39.9L
- Xmax
- 7mm
- Power
- 400W
- Impedance
- 8Ω
- Flux density
- 1.19T
- Sensitivity
- 94.5dB
- Power Program
- 800
- Calculated sensitivity †
- 92.6dB
- Manufacturer sensitivity
- 94.5dB
- Voice coil
- 75mm
- Weight
- 3.1kg
- Diameter
- 268mm
- Depth
- 120.5mm
- Cutout
- 232mm
- Bolt circle
- 247mm
02
Compare
Same-size drivers, compared with the 10 S 3 PL. Clear differences are green when better and red when worse.
This driver10 S 3 PL
Best price
–
Fs
43 Hz
Qts
0.27
Vas
39.9 L
BL
16.9 T·m
Xmax
7 mm
Sensitivity
92.6 dB
Power
400 W
B&C10NW64
£112.81Fs59 Hz +37%, worse
Qts0.26 −4%
Vas22 L −45%, better
BL18.3 T·m +9%
Xmax6 mm −14%, worse
Sensitivity94.3 dB +1.7
FaitalPRO10PR300
£129.54Fs60 Hz +40%, worse
Qts0.28 +4%
Vas42.2 L +6%
BL14.1 T·m −16%, worse
Xmax4.9 mm −30%, worse
Sensitivity97 dB +4.4, better
CelestionCF1025C
£135.00Fs55 Hz +27%, worse
Qts0.27 –
Vas38.6 L −3%
BL14.8 T·m −12%, worse
Xmax4.3 mm −39%, worse
Sensitivity95.3 dB +2.7, better
Beyma10G40
£136.95Fs45 Hz +5%
Qts0.30 +11%, worse
Vas49 L +23%, worse
BL17 T·m –
Xmax7 mm –
Sensitivity93.5 dB +0.9
B&C10NDL64
£144.00Fs56 Hz +30%, worse
Qts0.26 −4%
Vas31 L −22%, better
BL16.2 T·m −4%
Xmax6 mm −14%, worse
Sensitivity94.8 dB +2.2, better
EminenceKAPPA PRO-10LF
£148.52Fs39 Hz −9%
Qts0.28 +4%
Vas73.0 L +83%, worse
BL14.5 T·m −14%, worse
Xmax7.2 mm –
Sensitivity93.8 dB +1.2
B&C10MBX64
£157.00Fs65 Hz +51%, worse
Qts0.26 −4%
Vas28 L −30%, better
BL16.9 T·m –
Xmax4 mm −43%, worse
Sensitivity96.6 dB +4, better
Eighteen Sound10NTLS2000
£157.64Fs50 Hz +16%, worse
Qts0.26 −4%
Vas38 L −5%
BL16.7 T·m –
Xmax7.4 mm +6%
Sensitivity94.5 dB +1.9
FaitalPRO10FH500
£157.96Fs60 Hz +40%, worse
Qts0.26 −4%
Vas25.8 L −35%, better
BL17.9 T·m +6%
Xmax7.5 mm +7%
Sensitivity95 dB +2.4, better

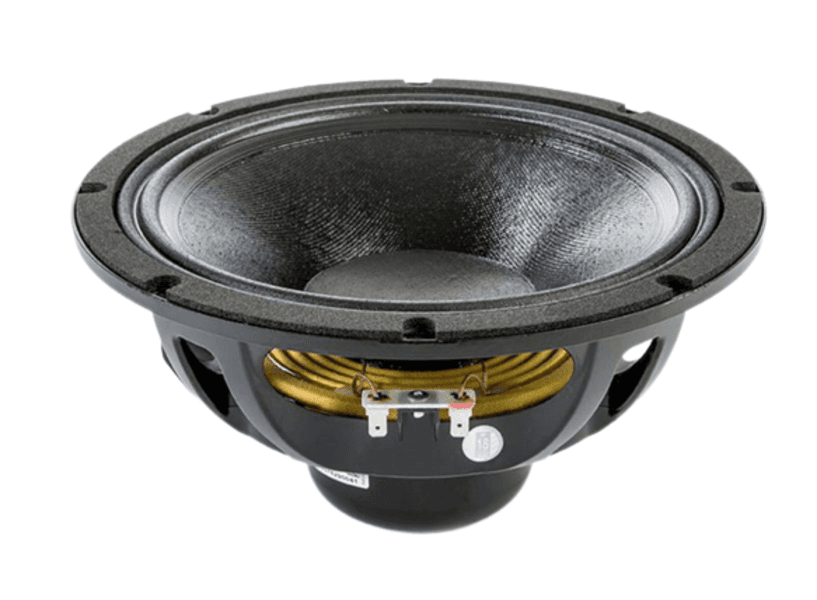

Eighteen Sound10NW650
£159.63Fs51 Hz +19%, worse
Qts0.28 +4%
Vas48 L +20%, worse
BL14 T·m −17%, worse
Xmax7 mm –
Sensitivity95.4 dB +2.8, better
FaitalPRO10FH520
£165.49Fs60 Hz +40%, worse
Qts0.29 +7%
Vas23.5 L −41%, better
BL18 T·m +7%
Xmax7.3 mm +4%
Sensitivity94.3 dB +1.7
Sica10 S 3 CP
£166.32Fs42 Hz –
Qts0.30 +11%, worse
Vas42.8 L +7%
BL15.6 T·m −8%
Xmax7 mm –
Sensitivity92.1 dB −0.5
PRV Audio10W1000-NDY-4
£186.24Fs50 Hz +17%, worse
Qts0.27 –
Vas46.4 L +16%, worse
BL12.0 T·m −29%, worse
Xmax6.5 mm −7%
Sensitivity95.2 dB +2.6, better
Sica10 N 3 PL
£199.75Fs51 Hz +19%, worse
Qts0.29 +7%
Vas40.5 L –
BL15.9 T·m −6%
Xmax5.5 mm −21%, worse
Sensitivity94.6 dB +2, better
Eighteen Sound10NW750
£211.47Fs53 Hz +23%, worse
Qts0.31 +15%, worse
Vas34 L −15%, better
BL16.4 T·m –
Xmax7.5 mm +7%
Sensitivity94 dB +1.4
FaitalPRO10HX240
£308.40Fs65 Hz +51%, worse
Qts0.28 +4%
Vas31.8 L −20%, better
BL15.5 T·m −8%
Xmax7.4 mm +5%
Sensitivity96.7 dB +4.1, better
Sica10 PN 3
No current priceFs48 Hz +12%, worse
Qts0.26 −4%
Vas40.1 L –
BL16.1 T·m −5%
Xmax7 mm –
Sensitivity94.1 dB +1.5
Sica10 K 3 PL
No current priceFs51 Hz +18%, worse
Qts0.26 −4%
Vas40 L –
BL16.1 T·m −5%
Xmax6.5 mm −7%
Sensitivity94.9 dB +2.3, better
No photo
PHL Audio3400
No current priceFs53 Hz +23%, worse
Qts0.28 +4%
Vas30.6 L −23%, better
BL18.1 T·m +7%
Xmax6.5 mm −7%
Sensitivity94 dB +1.4
RCFMB10N251
No current priceFs55 Hz +28%, worse
Qts0.27 –
Vas39 L –
BL15.2 T·m −10%
Xmax5 mm −29%, worse
Sensitivity95.5 dB +2.9, better
WavecorWF259PA02
No current priceFs52 Hz +21%, worse
Qts0.28 +4%
Vas33 L −17%, better
BL16.8 T·m –
Xmax4.5 mm −36%, worse
Sensitivity94.2 dB +1.6
Sica10 CX 3 PL P
No current priceFs59 Hz +37%, worse
Qts0.29 +7%
Vas36.1 L −10%
BL15.3 T·m −9%
Xmax6 mm −14%, worse
Sensitivity95.8 dB +3.2, better
EminenceCANNABASS CB3010N-8
No current priceFs42 Hz −3%
Qts0.25 −7%
Vas55.2 L +38%, worse
BL17.2 T·m –
Xmax6.5 mm −7%
Sensitivity94 dB +1.4
No photo
PHL Audio3481-14
No current priceFs55 Hz +28%, worse
Qts0.26 −4%
Vas25.2 L −37%, better
BL18.1 T·m +7%
Xmax6 mm −14%, worse
Sensitivity93.9 dB +1.3
No photo
PHL Audio3411NDU
No current priceFs47 Hz +9%
Qts0.29 +7%
Vas33.3 L −17%, better
BL18.2 T·m +8%
Xmax8 mm +14%, better
Sensitivity92.5 dB –
RCFMB10G350
No current priceFs58 Hz +35%, worse
Qts0.31 +15%, worse
Vas34 L −15%, better
BL14.7 T·m −13%, worse
Xmax7 mm –
Sensitivity95.2 dB +2.6, better
PRV Audio10MR1000
No current priceFs73 Hz +70%, worse
Qts0.27 –
Vas26.1 L −35%, better
BL17.9 T·m +6%
Xmax2.6 mm −63%, worse
Sensitivity97.7 dB +5.1, better
PRV AudioMT10W1200-NDY-4
No current priceFs47 Hz +9%
Qts0.30 +11%, worse
Vas41.2 L +3%
BL12.3 T·m −27%, worse
Xmax6.5 mm −7%
Sensitivity93.4 dB +0.8
MonacorSP-10/250PRO
No current priceFs47 Hz +9%
Qts0.33 +22%, worse
Vas40.7 L –
BL18.3 T·m +9%
Xmax7 mm –
Sensitivity92.8 dB –
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
No current price found. Pricing may appear after the next vendor refresh.
