- Net volume
- 26L
- Tuning
- 59Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.

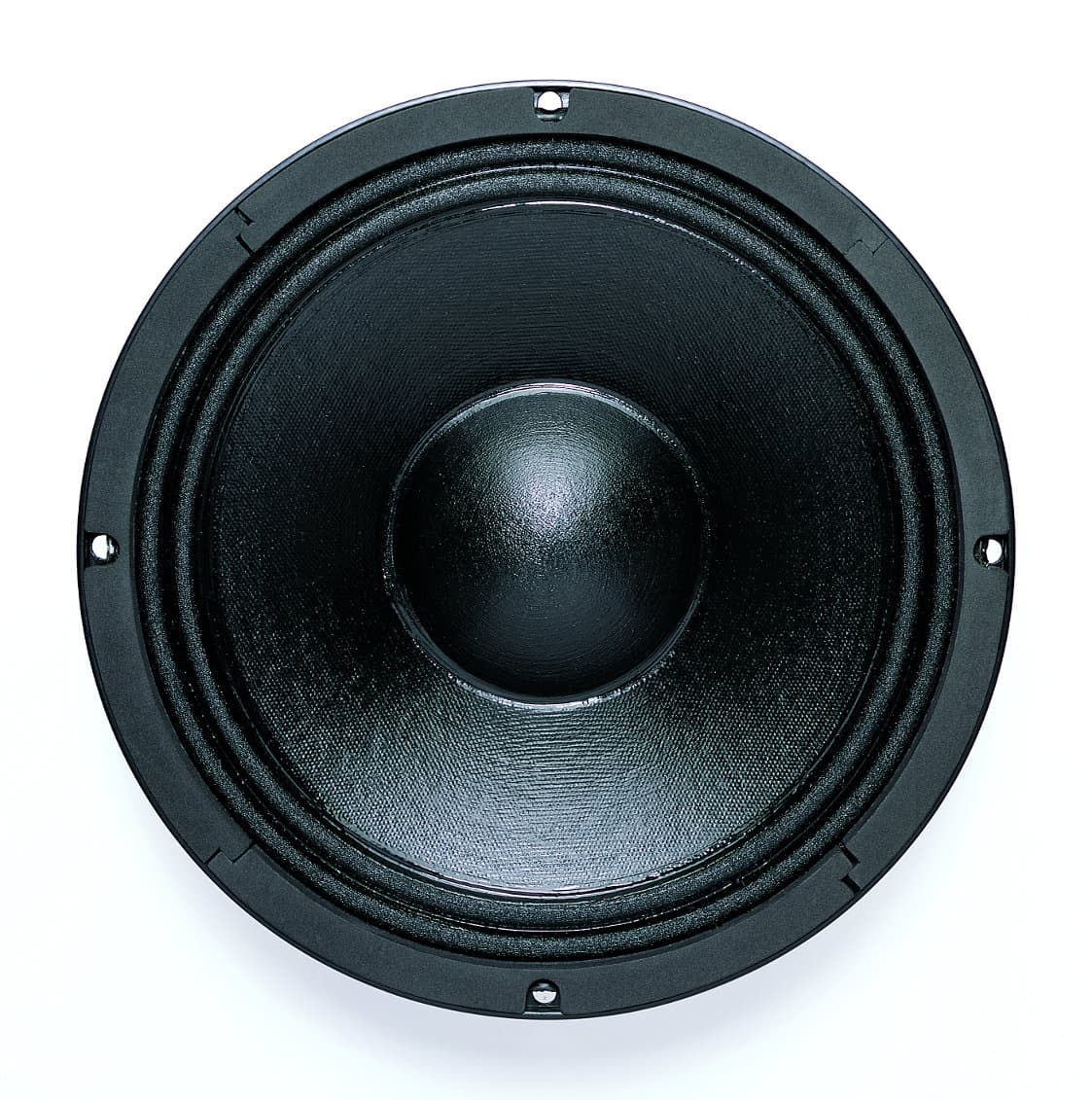

10-inch LF driver · 10NW series · 64 mm voice coil · 300 W
B&C 10NW64 8Ω
8 Ω · 60–2500 Hz
£138.00
SteadyBlue Aran · 4 in stock · All 7 offers
- Fs
- 59Hz
- Xmax
- 6mm
- SPL
- 94dB
- Pe
- 300W
- BL
- 18.3T·m
- Vd
- 192cm³
- Qts
- 0.26
- Vas
- 22L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2

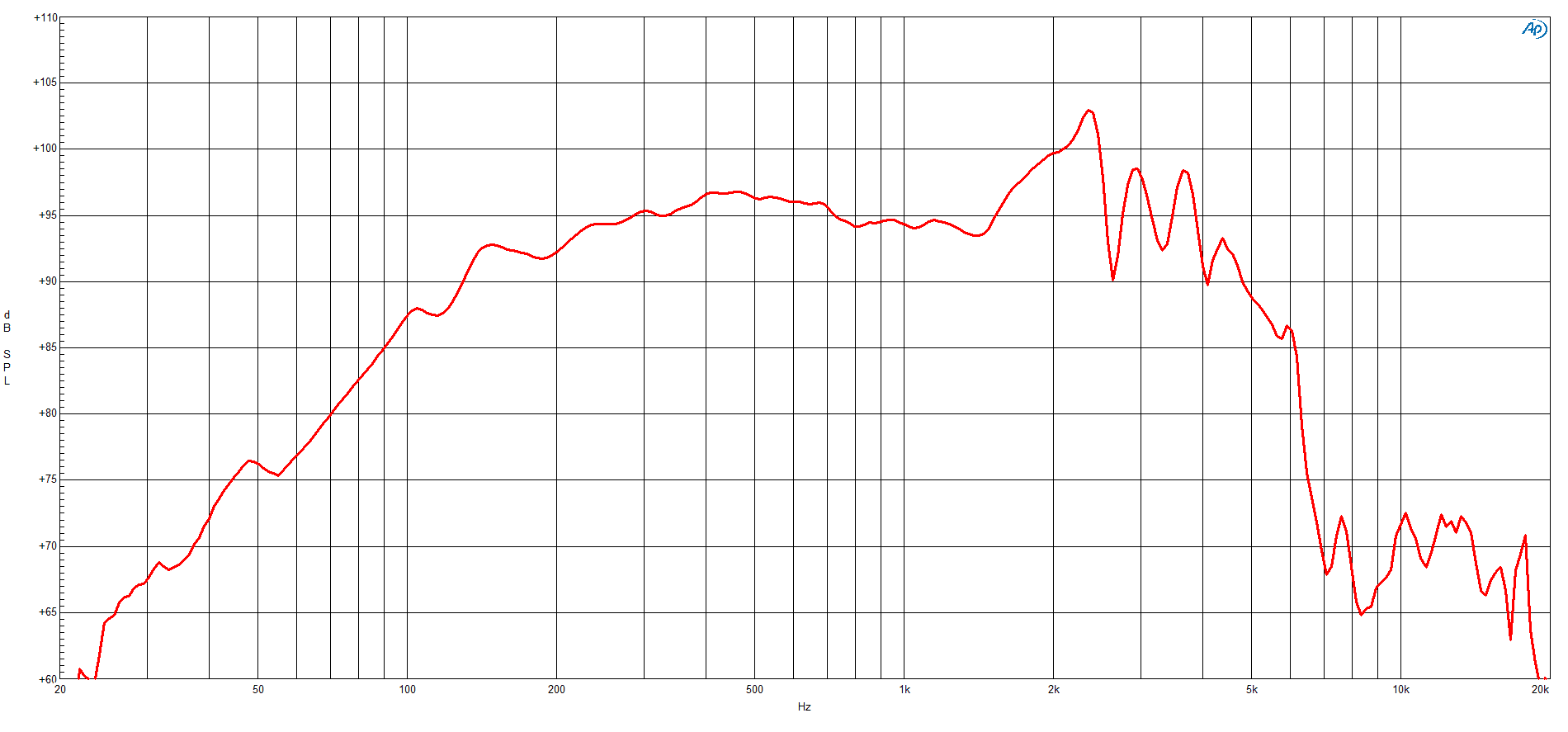

free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 1c9fed22a74c…Medium confidence4,771 selected pixels of 4,771 - Trace datasheet-response-trace-poc/v2

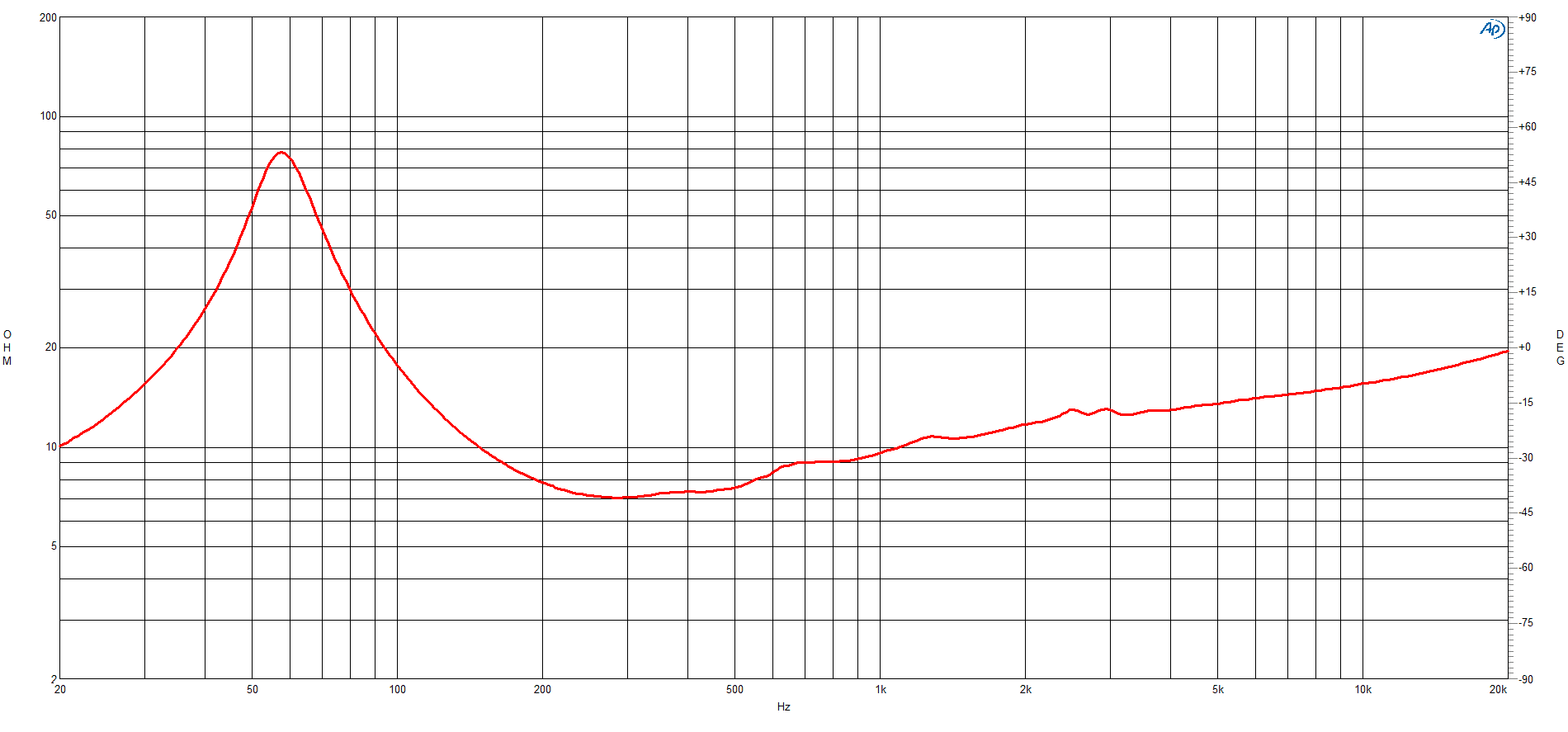

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 1c9fed22a74c…Medium confidence2,607 selected pixels of 2,607
Published graphs
B&C 10NW64 is a 10-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 59 Hz, Qts 0.26, Vas 22 L, Xmax 6 mm, sensitivity 94.3 dB, plus 192 cm³ Vd and 219 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £114.57.
The published T/S values agree with each other
Thiele/Small
- Fs
- 59Hz
- Qts
- 0.26
- Qes
- 0.27
- Qms
- 4.3
- Vas
- 22L
- Re
- 5.2Ω
- Le
- 0.65mH
Motor and cone
- BL
- 18.3T·m
- Sd
- 320cm²
- Mms
- 47g
- Xmax
- 6mm
- Vd †
- 192cm³
- Voice coil
- 64mm
- Flux density
- 1.25T
Power and response
- Sensitivity †
- 94.3dB
- Manufacturer sensitivity
- 96dB
- Power
- 300W
- Nominal power
- 300W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- Range
- 60–2500Hz
- EBP †
- 219 · Leans vented
Size and mounting
- Diameter
- 261mm
- Cutout
- 230mm
- Bolt circle
- 245mm
- Depth
- 113mm
- Weight
- 3.0kg
Sensitivity shows 94.3 dB, calculated from the T/S values. B&C publishes 96.0 dB, 1.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 18.3T·m
- Fs
- 59Hz
- Le
- 0.65mH
- Re
- 5.2Ω
- Sd
- 320cm²
- Mms
- 47g
- Qes
- 0.27
- Qms
- 4.3
- Qts
- 0.26
- SPL
- 94.3dB
- Vas
- 22L
- Xmax
- 6mm
- Power
- 300W
- Impedance
- 8Ω
- Flux density
- 1.25T
- Sensitivity
- 96dB
- Low limit
- 60Hz
- Nominal power
- 300W
- Calculated sensitivity †
- 94.3dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 96dB
- Min. impedance
- 6.5Ω
- Voice coil
- 64mm
- Weight
- 3.0kg
- Diameter
- 261mm
- Depth
- 113mm
- Cutout
- 230mm
- Bolt circle
- 245mm
- Bl
- 18.3 Tm
- Fs
- 59 Hz
- Le
- 0.65 mH
- Re
- 5.2 Ω
- Sd
- 320 cm² (49.6 in²)
- Ebp
- 219 Hz
- Mms
- 47 g
- Qes
- 0.27
- Qms
- 4.3
- Qts
- 0.26
- Vas
- 22 dm³ (0.78 ft³)
- Η0
- 1.6 %
- Cone
- RCK10NW648
- Xmax
- 6 mm
- Xvar
- 5.5 mm
- Depth
- 113 mm (4.4 in)
- Spider
- Single
- Cone shape
- Exponential
- Net weight
- 2.95 kg (6.5 lb)
- Pole design
- Straight Pole
- Sensitivity
- 96 dB
- Flux density
- 1.25 T
- Shipping box
- 295x314x175 mm (11.61x12.36x6.89 in)
- Winding depth
- 16 mm (0.62 in)
- Shipping units
- 1 pcs
- Surround shape
- Double Roll
- Former material
- Glass Fibre
- Frequency range
- 60 Hz - 2500 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 3.55 kg (7.83 lb)
- Nominal diameter
- 250 mm (10 in)
- Overall diameter
- 261 mm (10.28 in)
- Winding material
- Copper
- Minimum impedance
- 6.5 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 8 mm (0.31 in)
- Recommended tuning
- 59 Hz
- Voice coil diameter
- 64 mm (2.5 in)
- Bolt circle diameter
- 245 mm (9.6 in)
- Recommended enclosure
- 26 dm³ (0.92 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 230 mm (9.1 in)
- Nominal power handling
- 300 W
- Continuous power handling
- 600 W
- Flange and gasket thickness
- 13 mm (0.5 in)
- Air volume occupied by driver
- 1.5 dm³ (0.05 ft³)

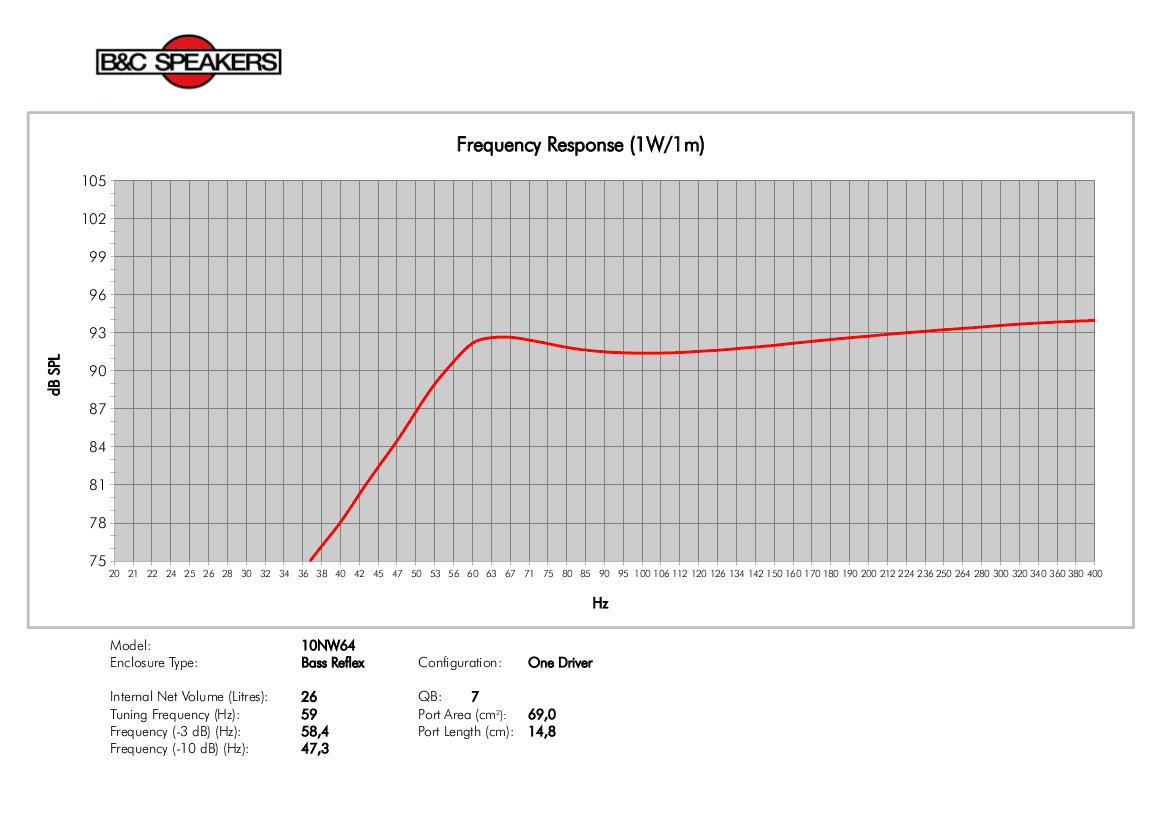

B&C’s suggested box
From B&C’s 10NW64 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 10NW64. Clear differences are green when better and red when worse.
This driver10NW64
Best price
£114.57
Fs
59 Hz
Qts
0.26
Vas
22 L
BL
18.3 T·m
Xmax
6 mm
Sensitivity
94.3 dB
Power
300 W
B&C10FW64
£124.78 · 9% more, worseFs63 Hz +7%
Qts0.23 −12%, better
Vas27 L +23%, worse
BL16.4 T·m −10%, worse
Xmax5 mm −17%, worse
Sensitivity96.3 dB +2, better
FaitalPRO10FH530
£130.00 · 13% more, worseFs60 Hz –
Qts0.25 −4%
Vas23.5 L +7%
BL19.5 T·m +7%
Xmax7.5 mm +25%, better
Sensitivity95.1 dB +0.8
B&C10NDL64
£142.60 · 24% more, worseFs56 Hz −5%
Qts0.26 –
Vas31 L +41%, worse
BL16.2 T·m −11%, worse
Xmax6 mm –
Sensitivity94.8 dB +0.5
B&C10CLA76
£142.60 · 24% more, worseFs71 Hz +20%, worse
Qts0.29 +12%, worse
Vas16.4 L −25%, better
BL18.6 T·m –
Xmax6.5 mm +8%
Sensitivity94.9 dB +0.6
Beyma10MC500
£143.96 · 26% more, worseFs65 Hz +10%, worse
Qts0.29 +12%, worse
Vas24 L +9%
BL18.3 T·m –
Xmax8 mm +33%, better
Sensitivity95.4 dB +1.1
PRV Audio10MR1200X
£150.58 · 31% more, worseFs87 Hz +47%, worse
Qts0.29 +12%, worse
Vas21.8 L –
BL17.5 T·m −4%
Xmax2.5 mm −58%, worse
Sensitivity98.8 dB +4.5, better
B&C10MBX64
£156.18 · 36% more, worseFs65 Hz +10%, worse
Qts0.26 –
Vas28 L +27%, worse
BL16.9 T·m −8%
Xmax4 mm −33%, worse
Sensitivity96.6 dB +2.3, better
FaitalPRO10FH500
£164.62 · 44% more, worseFs60 Hz –
Qts0.26 –
Vas25.8 L +17%, worse
BL17.9 T·m –
Xmax7.5 mm +25%, better
Sensitivity95 dB +0.7
FaitalPRO10FH520
£165.49 · 44% more, worseFs60 Hz –
Qts0.29 +12%, worse
Vas23.5 L +7%
BL18 T·m –
Xmax7.3 mm +21%, better
Sensitivity94.3 dB –
RCFL10-750YK
£170.00 · 48% more, worseFs68 Hz +15%, worse
Qts0.24 −8%
Vas26 L +18%, worse
BL17.5 T·m −4%
Xmax3 mm −50%, worse
Sensitivity97.2 dB +2.9, better
B&C10NDL88
£182.43 · 59% more, worseFs61 Hz +3%
Qts0.25 −4%
Vas18.4 L −16%, better
BL20 T·m +9%
Xmax8.1 mm +35%, better
Sensitivity94.1 dB –
B&C10NW76
£198.52 · 73% more, worseFs67 Hz +14%, worse
Qts0.26 –
Vas17.6 L −20%, better
BL20 T·m +9%
Xmax6.8 mm +13%, better
Sensitivity95 dB +0.7
Beyma10MC500ND
£212.72 · 86% more, worseFs58 Hz –
Qts0.24 −8%
Vas29 L +32%, worse
BL18.7 T·m –
Xmax8 mm +33%, better
Sensitivity95.4 dB +1.1
No photo
PHL Audio3481-14
No current priceFs55 Hz −7%
Qts0.26 –
Vas25.2 L +15%, worse
BL18.1 T·m –
Xmax6 mm –
Sensitivity93.9 dB –
Eighteen Sound10NCX750H
No current priceFs65 Hz +10%, worse
Qts0.25 −4%
Vas21.7 L –
BL19.8 T·m +8%
Xmax5.5 mm −8%
Sensitivity95.6 dB +1.3
Eighteen Sound10NCX750
No current priceFs64 Hz +8%
Qts0.25 −4%
Vas23 L +5%
BL20 T·m +9%
Xmax5.5 mm −8%
Sensitivity95.7 dB +1.4
Oberton10MB300
No current priceFs65 Hz +10%
Qts0.24 −6%
Vas22.8 L +3%
BL18.3 T·m –
Xmax5.3 mm −13%, worse
Sensitivity95.9 dB +1.6
Oberton10M300
No current priceFs60 Hz –
Qts0.25 −5%
Vas19.4 L −12%, better
BL18.2 T·m –
Xmax5.3 mm −13%, worse
Sensitivity94.1 dB –
B&C10CXN76
No current priceFs58 Hz –
Qts0.30 +15%, worse
Vas19 L −14%, better
BL18.9 T·m +3%
Xmax6 mm –
Sensitivity92.8 dB −1.5
No photo
PHL Audio3400
No current priceFs53 Hz −10%, better
Qts0.28 +8%
Vas30.6 L +39%, worse
BL18.1 T·m –
Xmax6.5 mm +8%
Sensitivity94 dB –
Oberton10NCX
No current priceFs79 Hz +34%, worse
Qts0.29 +11%, worse
Vas20.6 L −6%
BL16.2 T·m −11%, worse
Xmax5.3 mm −13%, worse
Sensitivity97.4 dB +3.1, better
No photo
REDCATT10NPM-1
No current priceFs64 Hz +8%
Qts0.28 +8%
Vas23 L +5%
BL18.3 T·m –
Xmax4.0 mm −33%, worse
Sensitivity95.2 dB +0.9
Acoustic EleganceTD10M-8
No current priceFs40 Hz −32%, better
Qts0.24 −8%
Vas59.2 L +169%, worse
BL17 T·m −7%
Xmax6 mm –
Sensitivity93.7 dB −0.6
PRV Audio10MR1000
No current priceFs73 Hz +24%, worse
Qts0.27 +4%
Vas26.1 L +19%, worse
BL17.9 T·m –
Xmax2.6 mm −57%, worse
Sensitivity97.7 dB +3.4, better
Sica10 K 3 PL
No current priceFs51 Hz −14%, better
Qts0.26 –
Vas40 L +82%, worse
BL16.1 T·m −12%, worse
Xmax6.5 mm +8%
Sensitivity94.9 dB +0.6
EminenceCANNABASS CB3010N-8
No current priceFs42 Hz −29%, better
Qts0.25 −4%
Vas55.2 L +151%, worse
BL17.2 T·m −6%
Xmax6.5 mm +8%
Sensitivity94 dB –
Oberton10M250
No current priceFs77 Hz +30%, worse
Qts0.28 +8%
Vas23.1 L +5%
BL16.6 T·m −9%
Xmax2.8 mm −54%, worse
Sensitivity97.6 dB +3.3, better
Oberton10NHCX
No current priceFs72 Hz +21%, worse
Qts0.24 −8%
Vas24.5 L +12%, worse
BL17.4 T·m −5%
Xmax4.3 mm −29%, worse
Sensitivity97.7 dB +3.4, better
LavoceWAN103.01
No current priceFs70 Hz +19%, worse
Qts0.22 −15%, better
Vas22.3 L –
BL20.6 T·m +12%, better
Xmax5 mm −17%, worse
Sensitivity97.2 dB +2.9, better
Sica10 PN 3
No current priceFs48 Hz −18%, better
Qts0.26 –
Vas40.1 L +82%, worse
BL16.1 T·m −12%, worse
Xmax7 mm +17%, better
Sensitivity94.1 dB –
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
- Parts Express4.9 out of 511 ratings · Checked 7 Oct 2026Read reviews on Parts Express
- Thomann5.0 out of 52 ratings · Checked 7 Oct 2026Read reviews on Thomann
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Blue Aran | £138.00, the lowest price | 4 in stock | Visit shop at Blue Aran | |
Thomann | £138.00 | In stock | Visit shop at Thomann | |
JP Leisure Not currently listed · Last seen 7 Aug 2026 | £138.18 | 0.1% above the lowest price | In stock | Visit shop at JP Leisure |
JP Leisure | £138.18 | 0.1% above the lowest price | In stock | Visit shop at JP Leisure |
Audio Video Parts Import VAT and duty may apply | £114.57 | In stock | Visit shop at Audio Video Parts | |
Parts Express Import VAT and duty may apply | £168.89 | 22% above the lowest price | 2 in stock | Visit shop at Parts Express |
