Oberton 10NHCX 8Ω
8 Ω · 70–20000 Hz
No current price
- Fs
- 72Hz
- Xmax
- 4.3mm
- SPL
- 98dB
- Pe
- 250W
- BL
- 17.4T·m
- Vd
- 135cm³
- Qts
- 0.24
- Vas
- 25L

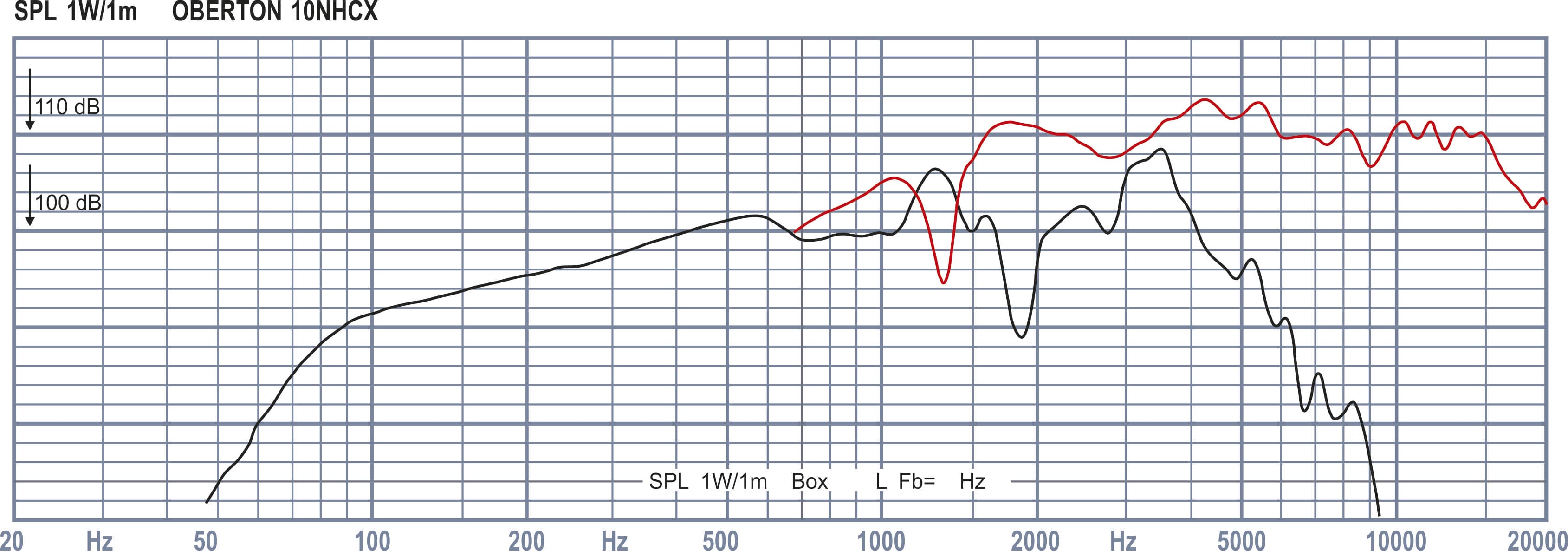

Published graphs
Oberton 10NHCX is a 10-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 72 Hz, Qts 0.24, Vas 24.5 L, Xmax 4.3 mm, sensitivity 97.7 dB, plus 135 cm³ Vd and 295 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 72Hz
- Qts
- 0.24
- Qes
- 0.24
- Qms
- 11.2
- Vas
- 24.5L
- Re
- 5.7Ω
- Le
- 0.32mH
Motor and cone
- BL
- 17.4T·m
- Sd
- 317cm²
- Mms
- 29g
- Xmax
- 4.3mm
- Vd †
- 135cm³
- Voice coil
- 62mm
- Flux density
- 1.55T
Power and response
- Sensitivity †
- 97.7dB
- Power
- 250W
- Impedance
- 8Ω
- Range
- 70–20000Hz
- EBP †
- 295 · Leans vented

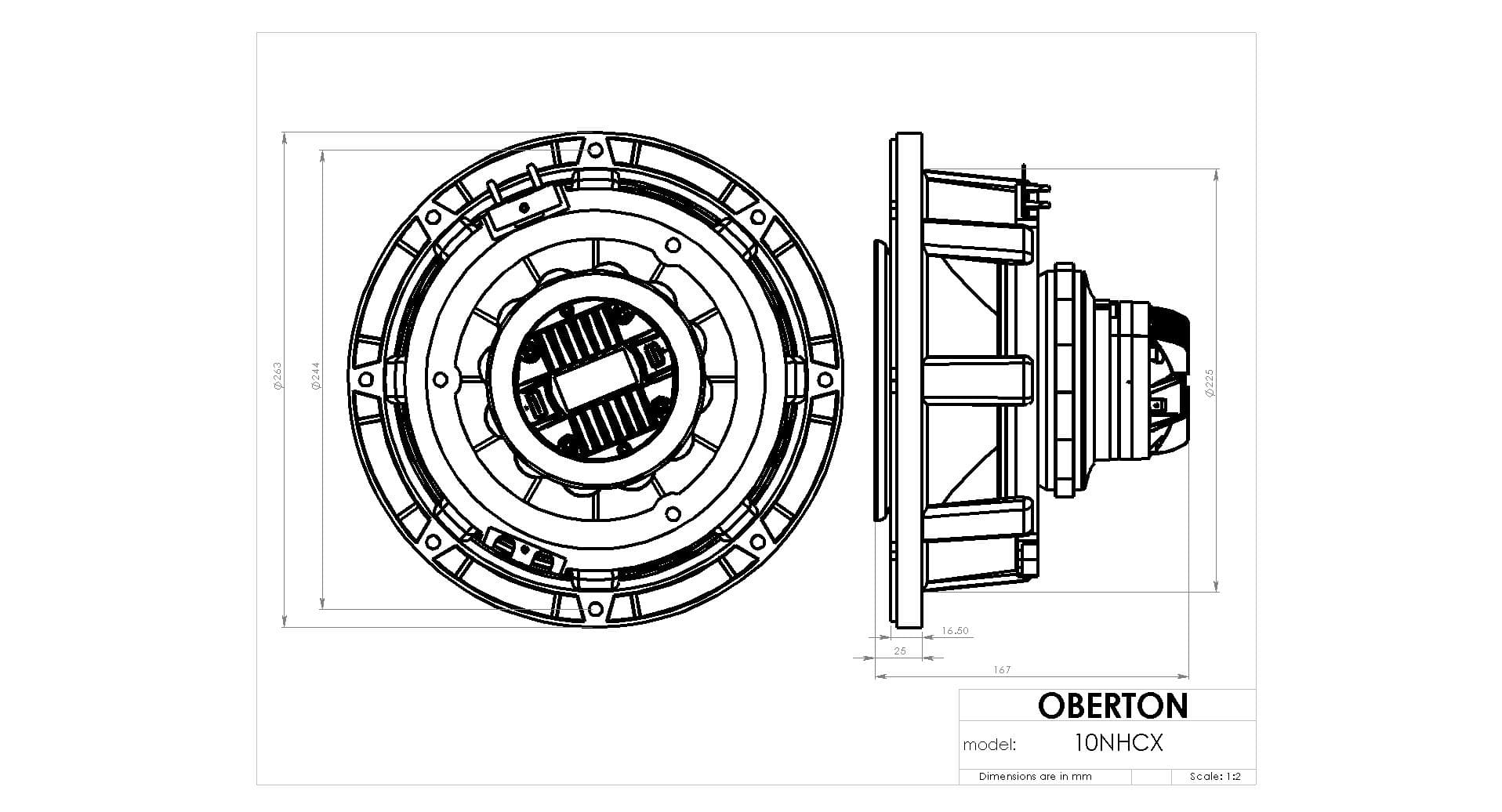

Size and mounting
- Diameter
- 263mm
- Cutout
- 225mm
- Bolt circle
- 244mm
- Depth
- 167mm
- Weight
- 4.1kg
Other published values
- Cms
- 0.17mm/N
- Power Program
- 500
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 10″
- BL
- 17.4T·m
- Fs
- 72Hz
- Le
- 0.32mH
- Re
- 5.7Ω
- Sd
- 317cm²
- Cms
- 0.17mm/N
- Mms
- 29g
- Qes
- 0.24
- Qms
- 11.2
- Qts
- 0.24
- SPL
- 97.7dB
- Vas
- 24.5L
- Xmax
- 4.3mm
- Power
- 250W
- Impedance
- 8Ω
- Flux density
- 1.55T
- Low limit
- 70Hz
- Power Program
- 500
- Calculated sensitivity †
- 97.7dB
- High limit
- 20000Hz
- Voice coil
- 62mm
- Weight
- 4.1kg
- Diameter
- 263mm
- Depth
- 167mm
- Cutout
- 225mm
- Bolt circle
- 244mm
