- Net volume
- 20L
Eighteen Sound gives the volume only, not whether the box is sealed or vented.
10-inch LF driver · 400 W
Eighteen Sound 10M600 8Ω
8 Ω · 80–5200 Hz
£175.83
SteadyLean Business · All 3 offers
- Fs
- 70Hz
- Xmax
- 4mm
- SPL
- 98dB
- Pe
- 400W
- BL
- 17.6T·m
- Vd
- 140cm³
- Qts
- 0.23
- Vas
- 26L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

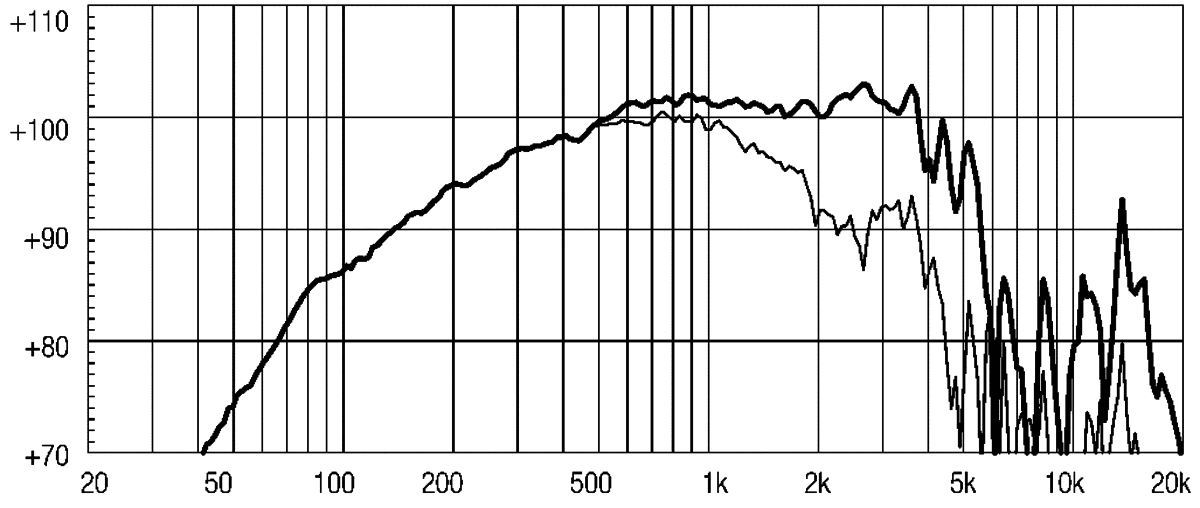

frequency response
Frequency response
240 plotted pointsMedium confidence3,158 selected pixels of 3,203
Published graphs
Eighteen Sound 10M600 is a 10-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 70 Hz, Qts 0.23, Vas 25.6 L, Xmax 4 mm, sensitivity 97.5 dB, plus 140 cm³ Vd and 280 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £175.83.
The published T/S values agree with each other
Thiele/Small
- Fs
- 70Hz
- Qts
- 0.23
- Qes
- 0.25
- Qms
- 4.5
- Vas
- 25.6L
- Re
- 5.2Ω
- Le
- 1.28mH
Motor and cone
- BL
- 17.6T·m
- Sd
- 350cm²
- Mms
- 32g
- Xmax
- 4mm
- Vd †
- 140cm³
Power and response
- Sensitivity †
- 97.5dB
- Manufacturer sensitivity
- 102dB
- Power
- 400W
- Nominal power
- 400W
- Impedance
- 8Ω
- Range
- 80–5200Hz
- EBP †
- 280 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 232mm
- Bolt circle
- 244mm
- Depth
- 126mm
- Weight
- 7.3kg
Other published values
- Power Program
- 500
Sensitivity shows 97.5 dB, calculated from the T/S values. Eighteen Sound publishes 102.0 dB, 4.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 10″
- BL
- 17.6T·m
- Fs
- 70Hz
- Le
- 1.28mH
- Re
- 5.2Ω
- Sd
- 350cm²
- Mms
- 32g
- Qes
- 0.25
- Qms
- 4.5
- Qts
- 0.23
- SPL
- 97.5dB
- Vas
- 25.6L
- Xmax
- 4mm
- Power
- 400W
- Impedance
- 8Ω
- Sensitivity
- 102dB
- Low limit
- 80Hz
- Nominal power
- 400W
- Power Program
- 500
- Calculated sensitivity †
- 97.5dB
- High limit
- 5200Hz
- Manufacturer sensitivity
- 102dB
- Weight
- 7.3kg
- Diameter
- 260mm
- Depth
- 126mm
- Cutout
- 232mm
- Bolt circle
- 244mm
02
Designs
What Eighteen Sound suggests for the 10M600. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 10M600 page
Open the 10M600 in 00 Simulator
03
Compare
Same-size drivers, compared with the 10M600. Clear differences are green when better and red when worse.
This driver10M600
Best price
£175.83
Fs
70 Hz
Qts
0.23
Vas
25.6 L
BL
17.6 T·m
Xmax
4 mm
Sensitivity
97.5 dB
Power
400 W
B&C10NW64
£113.02 · 36% less, betterFs59 Hz −16%, better
Qts0.26 +13%, worse
Vas22 L −14%, better
BL18.3 T·m +4%
Xmax6 mm +50%, better
Sensitivity94.3 dB −3.2, worse
B&C10FW64
£123.92 · 30% less, betterFs63 Hz −10%, better
Qts0.23 –
Vas27 L +5%
BL16.4 T·m −7%
Xmax5 mm +25%, better
Sensitivity96.3 dB −1.2
FaitalPRO10FH530
£130.00 · 26% less, betterFs60 Hz −14%, better
Qts0.25 +9%
Vas23.5 L −8%
BL19.5 T·m +11%, better
Xmax7.5 mm +88%, better
Sensitivity95.1 dB −2.4, worse
Beyma10MI100
£134.51 · 23% less, betterFs50 Hz −29%, better
Qts0.21 −9%
Vas54 L +111%, worse
BL18.7 T·m +6%
Xmax4.5 mm +13%, better
Sensitivity96.9 dB −0.6
B&C10MBX64
£157.30 · 11% less, betterFs65 Hz −7%
Qts0.26 +13%, worse
Vas28 L +9%
BL16.9 T·m −4%
Xmax4 mm –
Sensitivity96.6 dB −0.9
Eighteen Sound10NTLW2000
£157.68 · 10% less, betterFs57 Hz −19%, better
Qts0.22 −4%
Vas31 L +21%, worse
BL17.9 T·m –
Xmax4.4 mm +10%, better
Sensitivity96.2 dB −1.3
FaitalPRO10FH500
£158.25 · 10% less, betterFs60 Hz −14%, better
Qts0.26 +13%, worse
Vas25.8 L –
BL17.9 T·m –
Xmax7.5 mm +88%, better
Sensitivity95 dB −2.5, worse
Eighteen Sound10MB600
£159.93 · 9% less, betterFs58 Hz −17%, better
Qts0.22 −4%
Vas33.4 L +30%, worse
BL18.6 T·m +6%
Xmax6.5 mm +63%, better
Sensitivity96.6 dB −0.9
RCFL10-750YK
£166.00 · 6% less, betterFs68 Hz –
Qts0.24 +4%
Vas26 L –
BL17.5 T·m –
Xmax3 mm −25%, worse
Sensitivity97.2 dB –

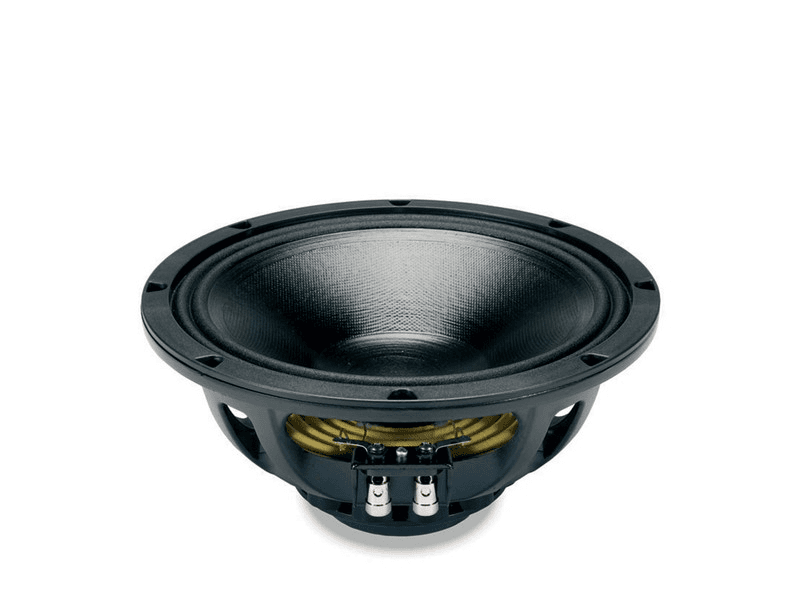

Eighteen Sound10NMB420
£182.53 · 4% moreFs56 Hz −20%, better
Qts0.25 +9%
Vas40 L +56%, worse
BL14.5 T·m −18%, worse
Xmax4 mm –
Sensitivity96.3 dB −1.2
RCFMB10N305
£186.20 · 6% more, worseFs60 Hz −14%, better
Qts0.23 –
Vas31 L +21%, worse
BL18.5 T·m +5%
Xmax5 mm +25%, better
Sensitivity96.5 dB −1
Beyma10MC500ND
£209.84 · 19% more, worseFs58 Hz −17%, better
Qts0.24 +4%
Vas29 L +13%, worse
BL18.7 T·m +6%
Xmax8 mm +100%, better
Sensitivity95.4 dB −2.1, worse
Eighteen Sound10NMBA520
£225.00 · 28% more, worseFs60 Hz −14%, better
Qts0.23 –
Vas42 L +64%, worse
BL14.6 T·m −17%, worse
Xmax4 mm –
Sensitivity97.8 dB –
Eighteen Sound10NDA610
£278.92 · 59% more, worseFs89 Hz +27%, worse
Qts0.23 –
Vas18 L −30%, better
BL20.3 T·m +15%, better
Xmax2.5 mm −38%, worse
Sensitivity99.3 dB +1.8

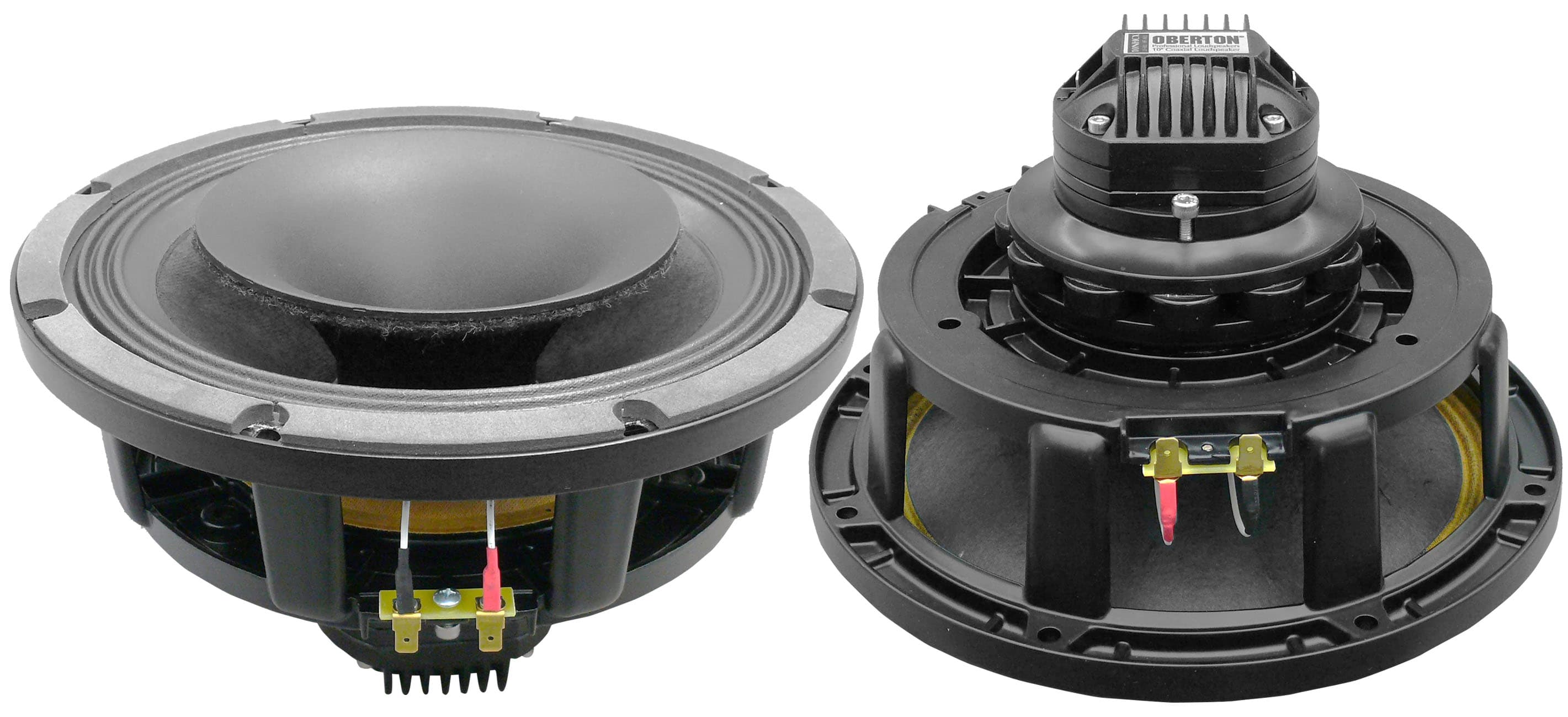

Oberton10NHCX
No current priceFs72 Hz –
Qts0.24 +3%
Vas24.5 L −4%
BL17.4 T·m –
Xmax4.3 mm +6%
Sensitivity97.7 dB –

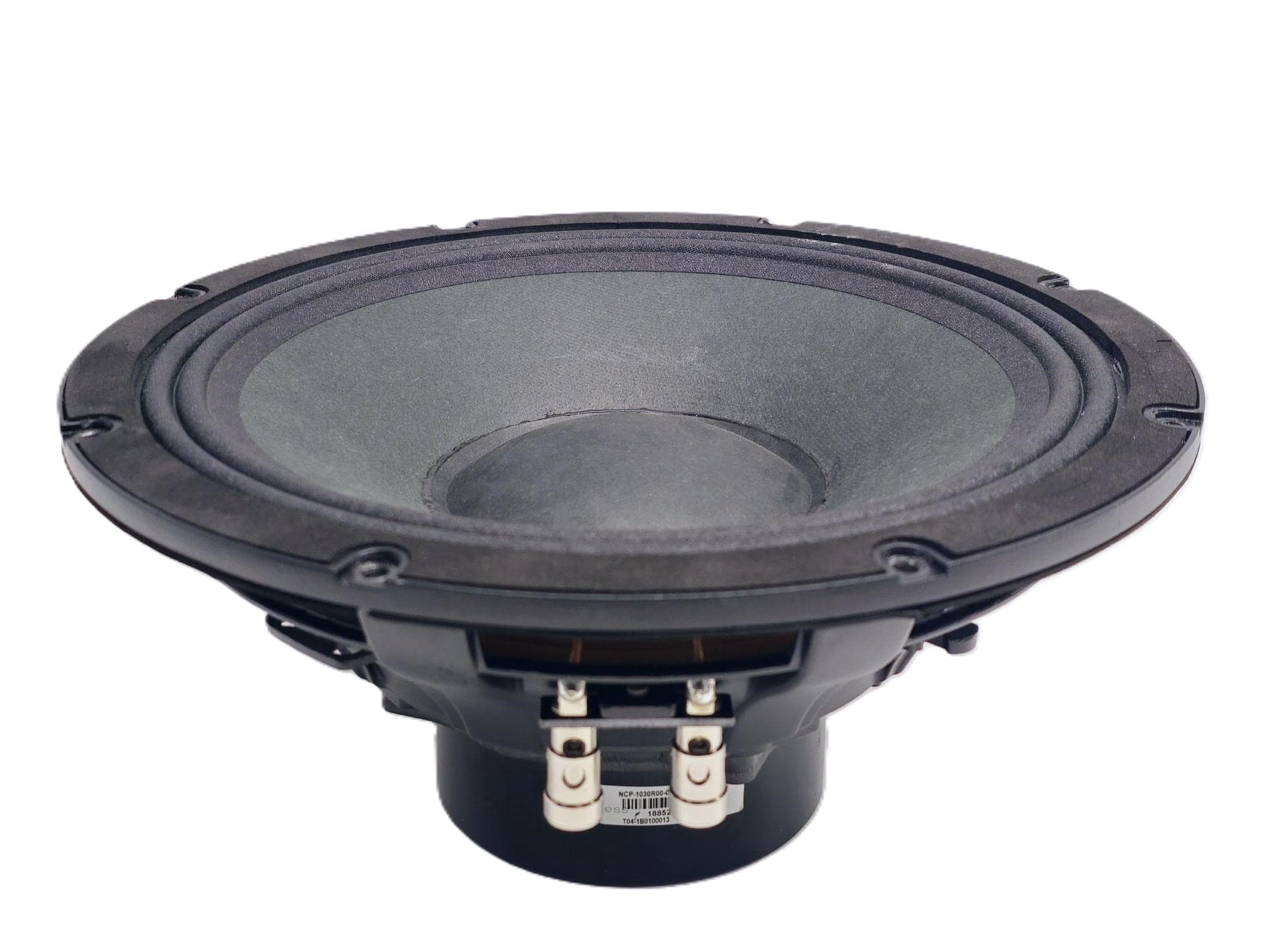

PeerlessNCP-1030R00-08
No current priceFs67 Hz −4%
Qts0.23 –
Vas27 L +5%
BL19.1 T·m +9%
Xmax3.9 mm –
Sensitivity96.9 dB −0.6
No photo
PHL Audio3840NDU
No current priceFs62 Hz −11%, better
Qts0.22 −4%
Vas26.3 L –
BL20.8 T·m +18%, better
Xmax4.5 mm +13%, better
Sensitivity96.4 dB −1.1
No photo
PHL Audio3840
No current priceFs62 Hz −11%, better
Qts0.22 −4%
Vas26.3 L –
BL20.9 T·m +19%, better
Xmax4.5 mm +13%, better
Sensitivity96.6 dB −0.9
Oberton10MB300
No current priceFs65 Hz −8%
Qts0.24 +6%
Vas22.8 L −11%, better
BL18.3 T·m +4%
Xmax5.3 mm +31%, better
Sensitivity95.9 dB −1.6
No photo
REDCATT10NPM-1
No current priceFs64 Hz −9%
Qts0.28 +22%, worse
Vas23 L −10%, better
BL18.3 T·m +4%
Xmax4.0 mm –
Sensitivity95.2 dB −2.3, worse
No photo
PHL Audio3481-14
No current priceFs55 Hz −21%, better
Qts0.26 +13%, worse
Vas25.2 L –
BL18.1 T·m –
Xmax6 mm +50%, better
Sensitivity93.9 dB −3.6, worse
Oberton10M300
No current priceFs60 Hz −15%, better
Qts0.25 +8%
Vas19.4 L −24%, better
BL18.2 T·m +4%
Xmax5.3 mm +31%, better
Sensitivity94.1 dB −3.4, worse
LavoceWAN103.01
No current priceFs70 Hz –
Qts0.22 −4%
Vas22.3 L −13%, better
BL20.6 T·m +17%, better
Xmax5 mm +25%, better
Sensitivity97.2 dB –
Eighteen Sound10NCX750
No current priceFs64 Hz −9%
Qts0.25 +9%
Vas23 L −10%, better
BL20 T·m +14%, better
Xmax5.5 mm +38%, better
Sensitivity95.7 dB −1.8
Eighteen Sound10MB777
No current priceFs58 Hz −17%, better
Qts0.22 −4%
Vas33.4 L +30%, worse
BL18.6 T·m +6%
Xmax6.5 mm +63%, better
Sensitivity96.6 dB −0.9
Eighteen Sound10NCX750H
No current priceFs65 Hz −7%
Qts0.25 +9%
Vas21.7 L −15%, better
BL19.8 T·m +12%, better
Xmax5.5 mm +38%, better
Sensitivity95.6 dB −1.9
PRV Audio10MR1000
No current priceFs73 Hz +5%
Qts0.27 +17%, worse
Vas26.1 L –
BL17.9 T·m –
Xmax2.6 mm −35%, worse
Sensitivity97.7 dB –
No photo
PHL Audio3411
No current priceFs47 Hz −33%, better
Qts0.23 –
Vas35.1 L +37%, worse
BL20.2 T·m +15%, better
Xmax8 mm +100%, better
Sensitivity93.8 dB −3.7, worse
WavecorWF259PA02
No current priceFs52 Hz −26%, better
Qts0.28 +22%, worse
Vas33 L +29%, worse
BL16.8 T·m −5%
Xmax4.5 mm +13%, better
Sensitivity94.2 dB −3.3, worse
REDCATT103FIND
No current priceFs56 Hz −20%, better
Qts0.29 +26%, worse
Vas32.8 L +28%, worse
BL18.2 T·m +3%
Xmax4.0 mm –
Sensitivity94.6 dB −2.9, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £175.83, the lowest price | Stock not listed | Visit shop at Lean Business | |
Lean Audio | £175.84 | 2 in stock | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
