Overview
LF Driver
Eighteen Sound

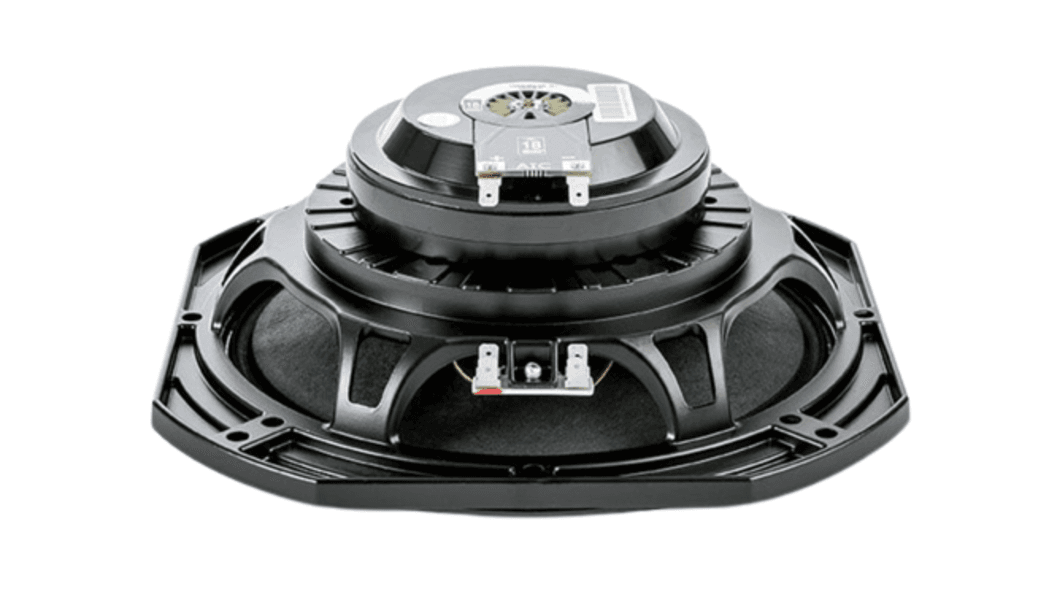

Eighteen Sound 10NDA610
Eighteen Sound 10NDA610 is a 10" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 89Hz, Qts 0.23, Vas 18L, Xmax 2.5mm, sensitivity 99.3dB, plus 88cm³ Vd and 371 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £278.92.
Size
10"
Impedance
8Ω
RMS Power
400W
Sensitivity
99.3dB
103.0dBmanufacturer; using T/S-derived value (3.7dB delta).
EBP
371
Vented alignment
Vd
88cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

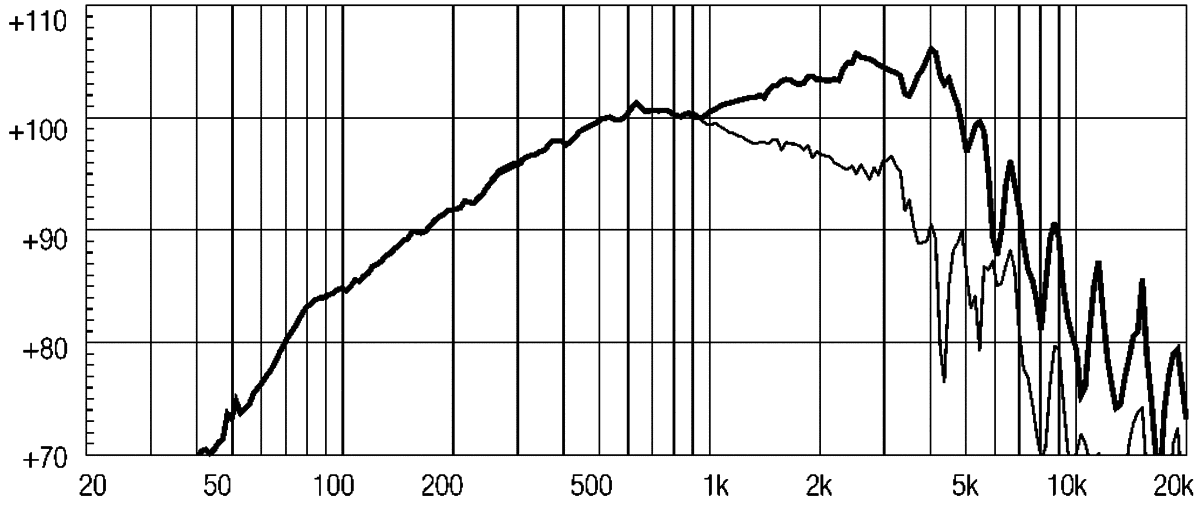

frequency response
Frequency response
240 plotted pointsMedium confidence2,846 selected pixels of 2,846
T/S Parameters
Valid
Fs89Hz
Qts0.23
Qes0.24
Qms7.1
Vas18.0L
Re5.5Ω
Le0.06mH
BL20.3Tm
Sd350cm²
Mms30g
Xmax2.5mm
SPL99dB
Power400W
Power Nominal400W
Impedance8Ω
F Low100Hz
F High6100Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£278.92
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.5kg
Diameter260.0mm
Overall Depth96.0mm
Cutout Diameter232.0mm
Bolt Circle Diameter275.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
10NDA610
10"
Best current price
£278.92
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
66%
Similarity
53% cheaper£129.95
RCF
L10-750YK
10"
Lower price
Xmax3mm+20%
Qts0.24+4%
BL17.5Tm-14%
Vas26L+44%
Qes0.25+4%
62%
Similarity
PRV Audio
10MR1000
10"
Xmax2.6mm+4%
Qts0.27+17%
BL17.9Tm-12%
Vas26.1L+45%
Qes0.28+17%
57%
Similarity
Oberton
10M250
10"
Xmax2.8mm+10%
Qts0.28+22%
BL16.6Tm-18%
Vas23.1L+28%
Qes0.28+19%
