10-inch LF driver · NCP series · 400 W

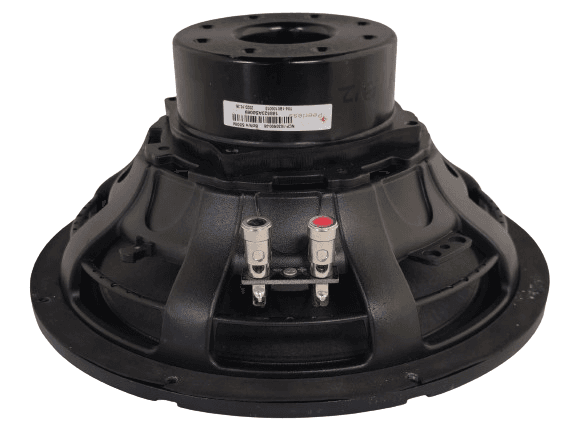

Peerless NCP-1030R00-08 8Ω
8 Ω
No current price
- Fs
- 67Hz
- Xmax
- 3.9mm
- SPL
- 97dB
- Pe
- 400W
- BL
- 19.1T·m
- Vd
- 143cm³
- Qts
- 0.23
- Vas
- 27L
Peerless NCP-1030R00-08 is a 10-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 67 Hz, Qts 0.23, Vas 27 L, Xmax 3.9 mm, sensitivity 96.9 dB, plus 143 cm³ Vd and 253 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 67Hz
- Qts
- 0.23
- Qes
- 0.27
- Qms
- 1.9
- Vas
- 27L
- Re
- 5.8Ω
- Le
- 0.014mH
Motor and cone
- BL
- 19.1T·m
- Sd
- 366cm²
- Mms
- 40g
- Xmax
- 3.9mm
- Vd †
- 143cm³
Power and response
- Sensitivity †
- 96.9dB
- Manufacturer sensitivity
- 96.3dB
- Power
- 400W
- Impedance
- 8Ω
- EBP †
- 253 · Leans vented
Size and mounting
- Weight
- 3.8kg
Other published values
- Cms
- 0.14mm/N
† Calculated by bits from the published values
What this validation status means
Everything else Peerless lists
LF · Primary · 10″
- BL
- 19.1T·m
- Fs
- 67Hz
- Le
- 0.014mH
- Re
- 5.8Ω
- Sd
- 366cm²
- Cms
- 0.14mm/N
- Mms
- 40g
- Qes
- 0.27
- Qms
- 1.9
- Qts
- 0.23
- SPL
- 96.9dB
- Vas
- 27L
- Xmax
- 3.9mm
- Power
- 400W
- Impedance
- 8Ω
- Sensitivity
- 96.3dB
- Calculated sensitivity †
- 96.9dB
- Manufacturer sensitivity
- 96.3dB
- Weight
- 3.8kg
