Overview
LF Driver
Eighteen Sound
Eighteen Sound 10MB777
Eighteen Sound 10MB777 is a 10" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 58Hz, Qts 0.22, Vas 33.4L, Xmax 6.5mm, sensitivity 96.6dB, plus 228cm³ Vd and 252 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
450W
Sensitivity
96.6dB
98.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
252
Vented alignment
Vd
228cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response174 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

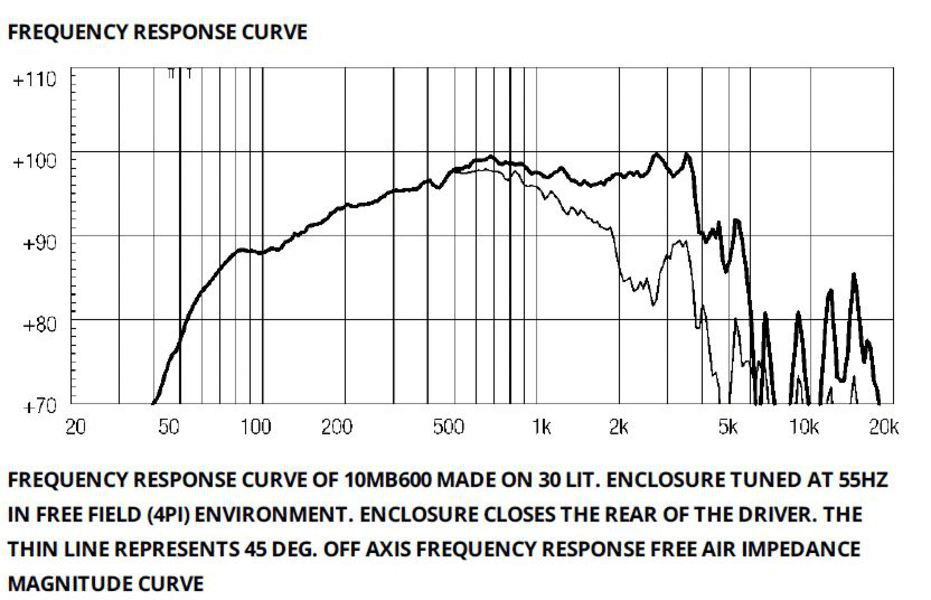

Frequency response
174 plotted pointsMedium confidence2,322 selected pixels of 2,786 - Trace datasheet-response-trace-poc/v1
impedance

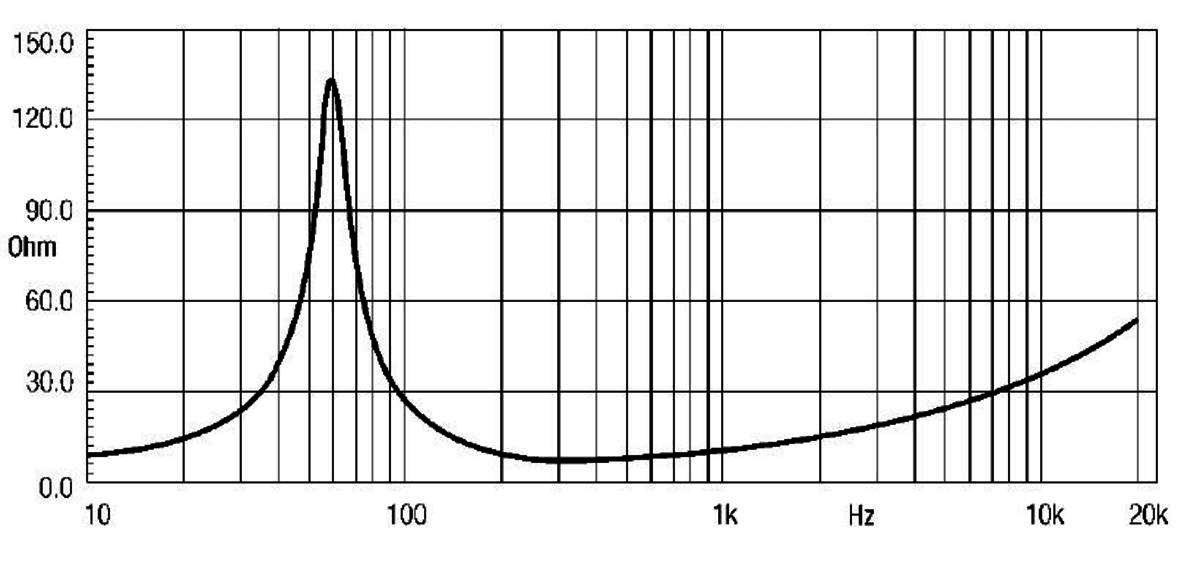

Impedance response
240 plotted pointsMedium confidence2,848 selected pixels of 3,534
T/S Parameters
Valid
Fs58Hz
Qts0.22
Qes0.23
Qms5.5
Vas33.4L
Re5.7Ω
Le1.60mH
BL18.6Tm
Sd350cm²
Mms38g
Xmax6.5mm
SPL97dB
Power450W
Power Nominal450W
Impedance8Ω
F Low55Hz
F High4500Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.2kg
Diameter260.0mm
Overall Depth127.0mm
Cutout Diameter232.0mm
Bolt Circle Diameter244.0mm
