Overview
LF Driver
Beyma
Beyma 10MC700ND
Beyma 10MC700ND is a 10" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 63Hz, Qts 0.22, Vas 20L, Xmax 7mm, sensitivity 95.2dB, plus 245cm³ Vd and 263 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £212.39.
Size
10"
Impedance
8Ω
RMS Power
700W
Sensitivity
95.2dB
97.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
263
Vented alignment
Vd
245cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,852 selected pixels of 6,424 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,218 selected pixels of 3,218
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs63Hz
Qts0.22
Qes0.24
Qms3.8
Vas20.0L
Re5.2Ω
Le1.00mH
BL21.8Tm
Sd350cm²
Mms54g
Xmax7.0mm
SPL95dB
Power700W
Impedance8Ω
F Low65Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£212.39
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.6kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
10MC700ND
10"
Best current price
£212.39
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
85%
Similarity
61% cheaper£82.74
BishopSound
BDP10
10"
Lower price
Xmax7mm0%
Qts0.21-5%
BL19.3Tm-11%
Vas22.4L+12%
Qes0.22-8%
76%
Similarity
39% cheaper£130.00
FaitalPRO
10FH530
10"
Lower price
Xmax7.5mm+7%
Qts0.25+14%
BL19.5Tm-11%
Vas23.5L+18%
Qes0.25+4%
58%
Similarity
38% cheaper£130.64
B&C
10FW64
10"
Lower price
Xmax5mm-29%
Qts0.23+5%
BL16.4Tm-25%
Vas27L+35%
Qes0.25+4%
65%
Similarity
35% cheaper£138.00
B&C
10NW64
10"
Lower price
Xmax6mm-14%
Qts0.26+18%
BL18.3Tm-16%
Vas22L+10%
Qes0.27+13%
45%
Similarity
32% cheaper£144.97
B&C
10NDL64
10"
Lower price
Xmax6mm-14%
Qts0.26+18%
BL16.2Tm-26%
Vas31L+55%
Qes0.29+21%
62%
Similarity
25% cheaper£159.53
FaitalPRO
10FH500
10"
Lower price
Xmax7.5mm+7%
Qts0.26+18%
BL17.9Tm-18%
Vas25.8L+29%
Qes0.28+17%
59%
Similarity
12% cheaper£186.20
RCF
MB10N305
10"
Lower price
Xmax5mm-29%
Qts0.23+5%
BL18.5Tm-15%
Vas31L+55%
Qes0.240%
77%
Similarity
12% cheaper£186.65
Lavoce
WAN103.01
10"
Lower price
Xmax5mm-29%
Qts0.220%
BL20.6Tm-6%
Vas22.3L+11%
Qes0.23-4%
75%
Similarity
7% cheaper£198.52
B&C
10NW76
10"
Lower price
Xmax6.8mm-3%
Qts0.26+18%
BL20Tm-8%
Vas17.6L-12%
Qes0.27+13%
73%
Similarity
4% cheaper£203.38
B&C
10NDL88
10"
Lower price
Xmax8.1mm+16%
Qts0.25+14%
BL20Tm-8%
Vas18.4L-8%
Qes0.26+8%
66%
Similarity
£210.36
FaitalPRO
10HP1020
10"
Xmax9mm+29%
Qts0.24+9%
BL24.5Tm+12%
Vas16.1L-19%
Qes0.25+4%
74%
Similarity

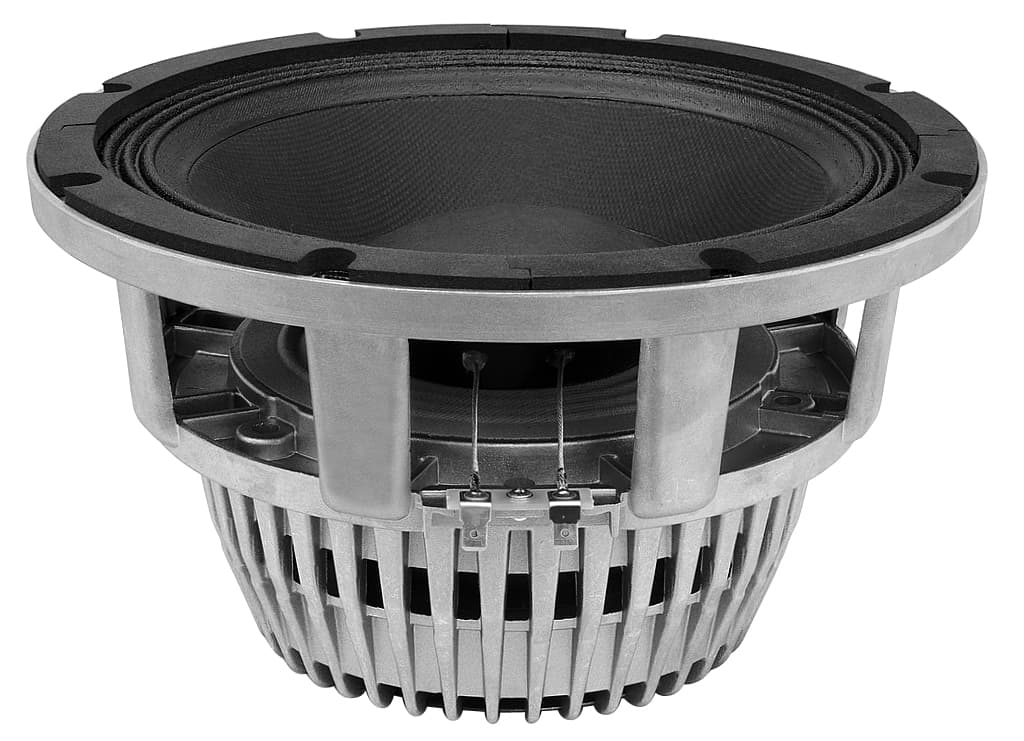

Oberton
10NM300
10"
Xmax5.3mm-25%
Qts0.21-5%
BL20.1Tm-8%
Vas20.6L+3%
Qes0.21-11%
