LF DriverHP series
FaitalPRO

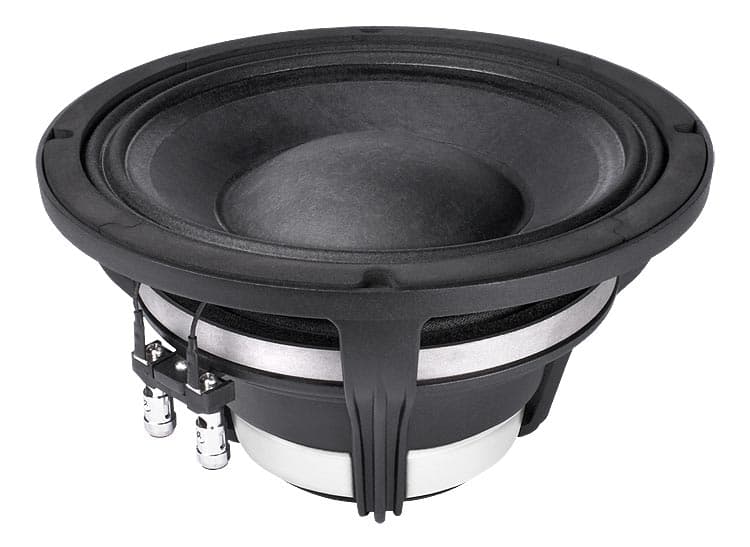

FaitalPRO 10HP1020
FaitalPRO 10HP1020 is a 10" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 60Hz, Qts 0.24, Vas 16.1L, Xmax 9mm, sensitivity 93.5dB, plus 311cm³ Vd and 240 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £210.36.
Size
10"
Impedance
8Ω
RMS Power
700W
Sensitivity
93.5dB
96.0dBmanufacturer; using T/S-derived value (2.5dB delta).
EBP
240
Vented alignment
Vd
311cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees230 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
230 plotted pointsMedium confidence965 selected pixels of 1,166 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,376 selected pixels of 2,165 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,539 selected pixels of 1,905
T/S Parameters
Valid
Fs60Hz
Qts0.24
Qes0.25
Qms6.5
Vas16.1L
Re5.5Ω
Le0.85mH
BL24.5Tm
Sd345cm²
Mms73g
Xmax9.0mm
SPL94dB
Power700W
Impedance8Ω
F Low60Hz
F High2500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£210.36
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.2kg
Diameter261.0mm
Overall Depth141.3mm
Cutout Diameter232.0mm
Bolt Circle Diameter246.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
10HP1020
10"
Best current price
£210.36
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
53%
Similarity
61% cheaper£82.74
BishopSound
BDP10
10"
Lower price
Xmax7mm-22%
Qts0.21-12%
BL19.3Tm-21%
Vas22.4L+39%
Qes0.22-12%
66%
Similarity
38% cheaper£130.00
FaitalPRO
10FH530
10"
Lower price
Xmax7.5mm-17%
Qts0.25+4%
BL19.5Tm-20%
Vas23.5L+46%
Qes0.250%
46%
Similarity
32% cheaper£143.66
Beyma
10MC500
10"
Lower price
Xmax8mm-11%
Qts0.29+21%
BL18.3Tm-25%
Vas24L+49%
Qes0.3+20%
50%
Similarity
28% cheaper£151.02
B&C
10CLA76
10"
Lower price
Xmax6.5mm-28%
Qts0.29+21%
BL18.6Tm-24%
Vas16.4L+2%
Qes0.3+20%
42%
Similarity
21% cheaper£165.49
FaitalPRO
10FH520
10"
Lower price
Xmax7.3mm-19%
Qts0.29+21%
BL18Tm-27%
Vas23.5L+46%
Qes0.3+20%
66%
Similarity
6% cheaper£198.52

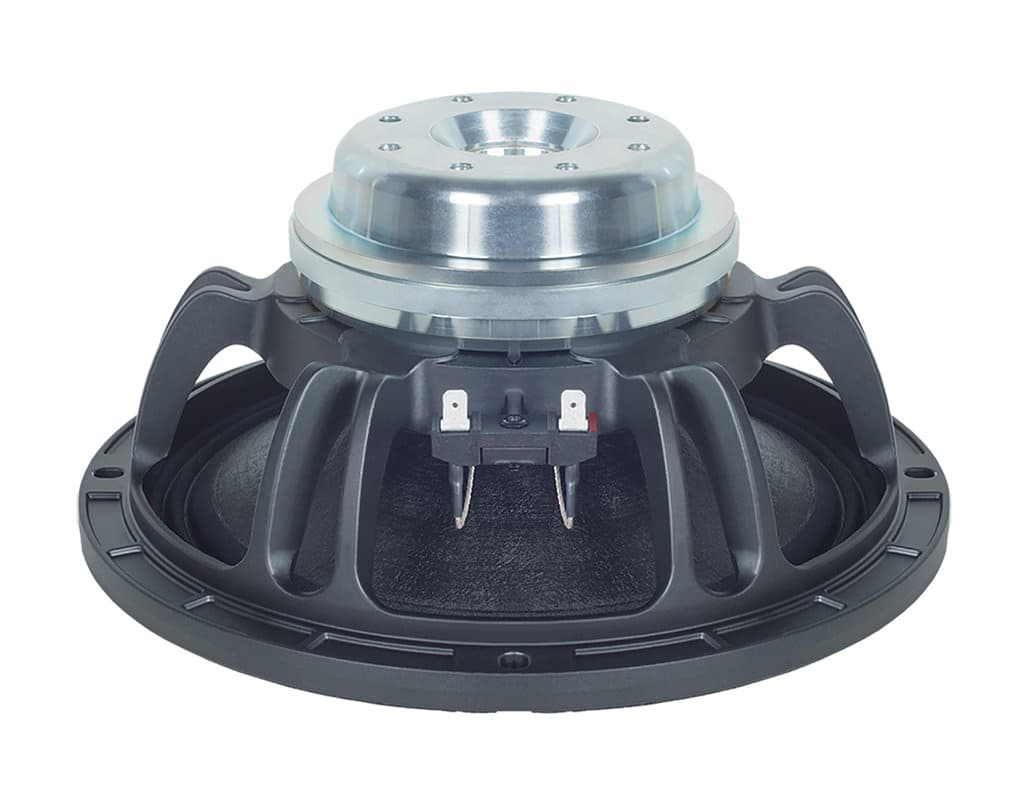

B&C
10NW76
10"
Lower price
Xmax6.8mm-24%
Qts0.26+8%
BL20Tm-18%
Vas17.6L+9%
Qes0.27+8%
61%
Similarity
6% cheaper£198.52
B&C
10NW76
10"
Lower price
Xmax7mm-22%
Qts0.29+21%
BL24.7Tm+1%
Vas18.5L+15%
Qes0.3+20%
77%
Similarity
3% cheaper£203.38
B&C
10NDL88
10"
Lower price
Xmax8.1mm-10%
Qts0.25+4%
BL20Tm-18%
Vas18.4L+14%
Qes0.26+4%
68%
Similarity
£212.39
Beyma
10MC700ND
10"
Xmax7mm-22%
Qts0.22-8%
BL21.8Tm-11%
Vas20L+24%
Qes0.24-4%
82%
Similarity
4% more£218.90
B&C
10BG76
10"
Higher price
Xmax9.6mm+7%
Qts0.22-8%
BL22.4Tm-9%
Vas16.7L+4%
Qes0.23-8%
73%
Similarity

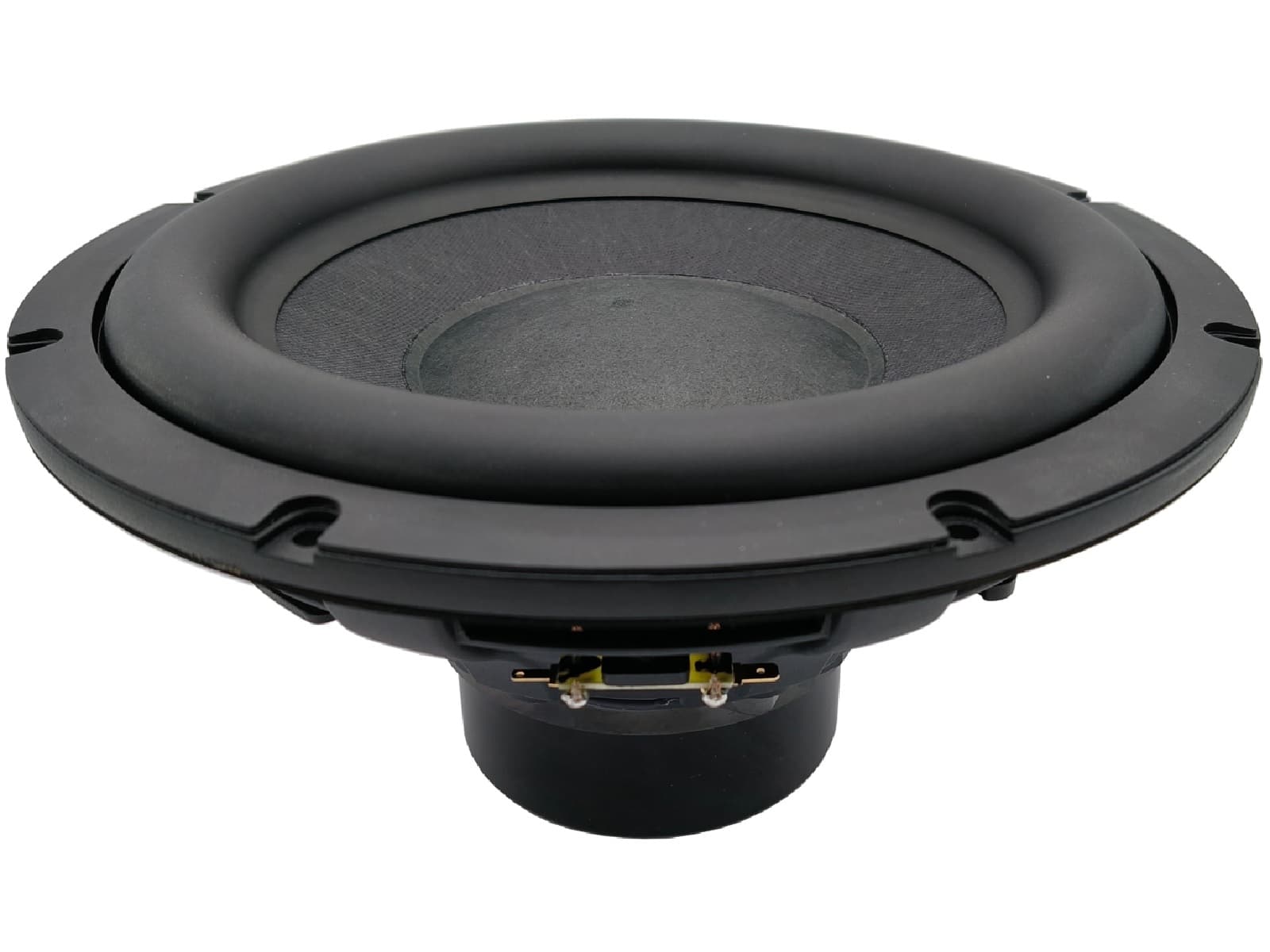

Peerless
