Audio Technology 10 A 77 25 10 8Ω
8 Ω
No current price
- Fs
- 25Hz
- Xmax
- 8.6mm
- SPL
- 91dB
- Pe
- 200W
- BL
- 11.3T·m
- Vd
- 280cm³
- Qts
- 0.26
- Vas
- 140L
Audio Technology 10 A 77 25 10 is a 10-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 25 Hz, Qts 0.26, Vas 140 L, Xmax 8.6 mm, sensitivity 90.8 dB, plus 280 cm³ Vd and 86 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 25Hz
- Qts
- 0.26
- Qes
- 0.29
- Qms
- 2.3
- Vas
- 140L
- Re
- 5.5Ω
- Le
- 0.89mH
Motor and cone
- BL
- 11.3T·m
- Sd
- 326cm²
- Mms
- 43g
- Xmax
- 8.6mm
- Vd †
- 280cm³
Power and response
- Sensitivity †
- 90.8dB
- Manufacturer sensitivity
- 91dB
- Power
- 200W
- Impedance
- 8Ω
- EBP †
- 86 · Sealed or vented
Other published values
- Cms
- 0.94mm/N
- Rms
- 2.90kg/s
- Xmech
- 42
† Calculated by bits from the published values
What this validation status means
Everything else Audio Technology lists
LF · Primary · 10″
- BL
- 11.3T·m
- Fs
- 25Hz
- Le
- 0.89mH
- Re
- 5.5Ω
- Sd
- 326cm²
- Cms
- 0.94mm/N
- Mms
- 43g
- Qes
- 0.29
- Qms
- 2.3
- Qts
- 0.26
- Rms
- 2.90kg/s
- SPL
- 90.8dB
- Vas
- 140L
- Xmax
- 8.6mm
- Xmech
- 42
- Power
- 200W
- Impedance
- 8Ω
- Sensitivity
- 91dB
- Calculated sensitivity †
- 90.8dB
- Manufacturer sensitivity
- 91dB
02
Compare
Same-size drivers, compared with the 10 A 77 25 10. Clear differences are green when better and red when worse.
This driver10 A 77 25 10
Best price
–
Fs
25 Hz
Qts
0.26
Vas
140 L
BL
11.3 T·m
Xmax
8.6 mm
Sensitivity
90.8 dB
Power
200 W
CIAREPW252
£97.47Fs55 Hz +120%, worse
Qts0.26 –
Vas43.4 L −69%, better
BL15.2 T·m +35%, better
Xmax7 mm −19%, worse
Sensitivity95.8 dB +5, better
FaitalPRO10PR320
£135.67Fs48 Hz +92%, worse
Qts0.29 +12%, worse
Vas52.7 L −62%, better
BL13.5 T·m +19%, better
Xmax7.4 mm −14%, worse
Sensitivity94.8 dB +4, better
Beyma10MC500
£143.96Fs65 Hz +160%, worse
Qts0.29 +12%, worse
Vas24 L −83%, better
BL18.3 T·m +62%, better
Xmax8 mm −7%
Sensitivity95.4 dB +4.6, better

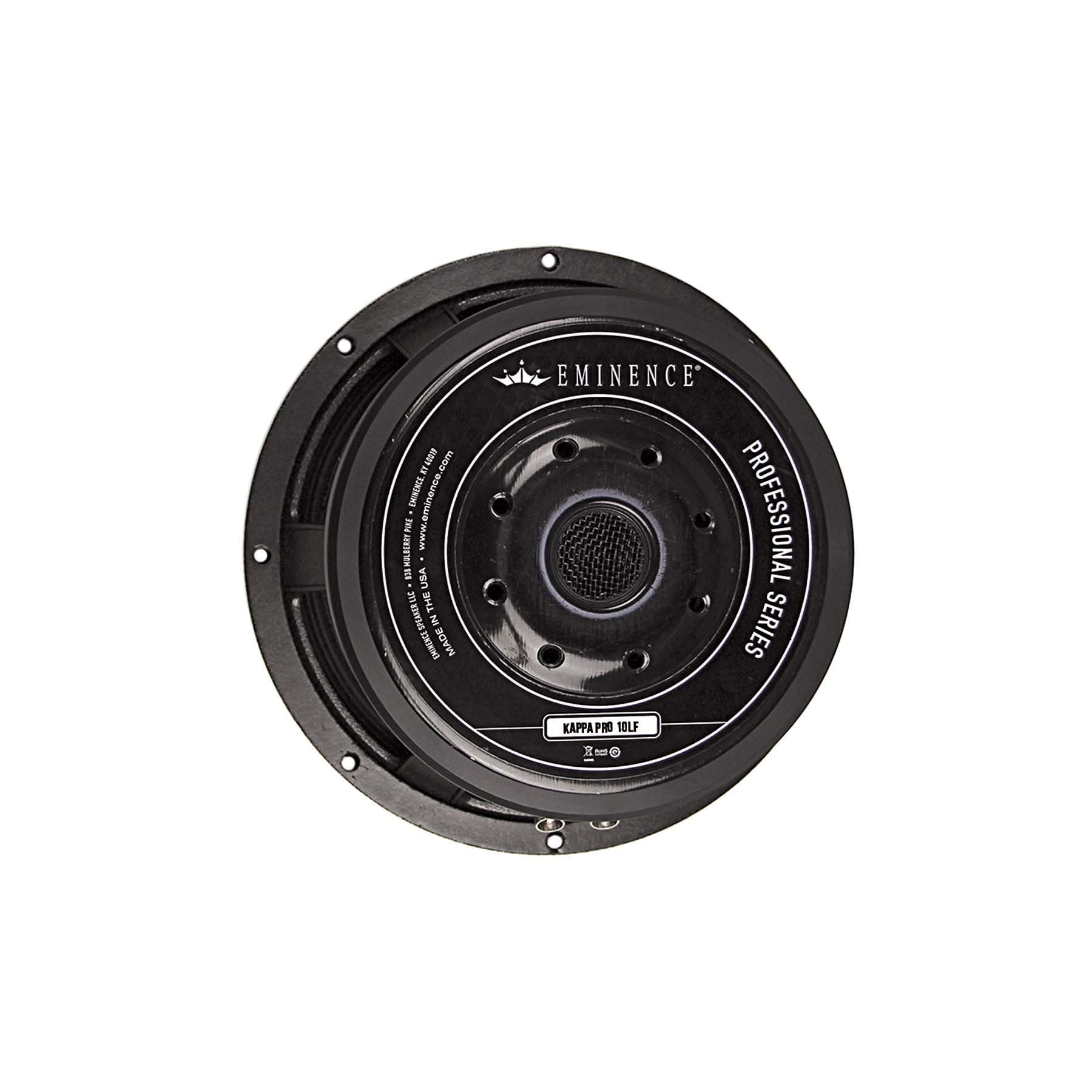

EminenceKAPPA PRO-10LF
£148.52Fs39 Hz +56%, worse
Qts0.28 +8%
Vas73.0 L −48%, better
BL14.5 T·m +28%, better
Xmax7.2 mm −16%, worse
Sensitivity93.8 dB +3, better
Eighteen Sound10NTLS2000
£157.64Fs50 Hz +100%, worse
Qts0.26 –
Vas38 L −73%, better
BL16.7 T·m +48%, better
Xmax7.4 mm −14%, worse
Sensitivity94.5 dB +3.7, better
FaitalPRO10FH500
£160.20Fs60 Hz +140%, worse
Qts0.26 –
Vas25.8 L −82%, better
BL17.9 T·m +58%, better
Xmax7.5 mm −13%, worse
Sensitivity95 dB +4.2, better
Eighteen Sound10NW650
£161.89Fs51 Hz +104%, worse
Qts0.28 +8%
Vas48 L −66%, better
BL14 T·m +24%, better
Xmax7 mm −19%, worse
Sensitivity95.4 dB +4.6, better
PRV Audio10W1000-NDY-4
£189.04Fs50 Hz +101%, worse
Qts0.27 +4%
Vas46.4 L −67%, better
BL12.0 T·m +6%
Xmax6.5 mm −24%, worse
Sensitivity95.2 dB +4.4, better
B&C10NDL88
£203.38Fs61 Hz +144%, worse
Qts0.25 −4%
Vas18.4 L −87%, better
BL20 T·m +77%, better
Xmax8.1 mm −6%
Sensitivity94.1 dB +3.3, better
FaitalPRO10HP1020
£210.36Fs60 Hz +140%, worse
Qts0.24 −8%
Vas16.1 L −89%, better
BL24.5 T·m +117%, better
Xmax9 mm +5%
Sensitivity93.5 dB +2.7, better
Beyma10MC500ND
£212.42Fs58 Hz +132%, worse
Qts0.24 −8%
Vas29 L −79%, better
BL18.7 T·m +65%, better
Xmax8 mm −7%
Sensitivity95.4 dB +4.6, better
B&C10BG76
£218.90Fs48 Hz +92%, worse
Qts0.28 +8%
Vas17.8 L −87%, better
BL22 T·m +95%, better
Xmax9.6 mm +12%, better
Sensitivity90.3 dB −0.5

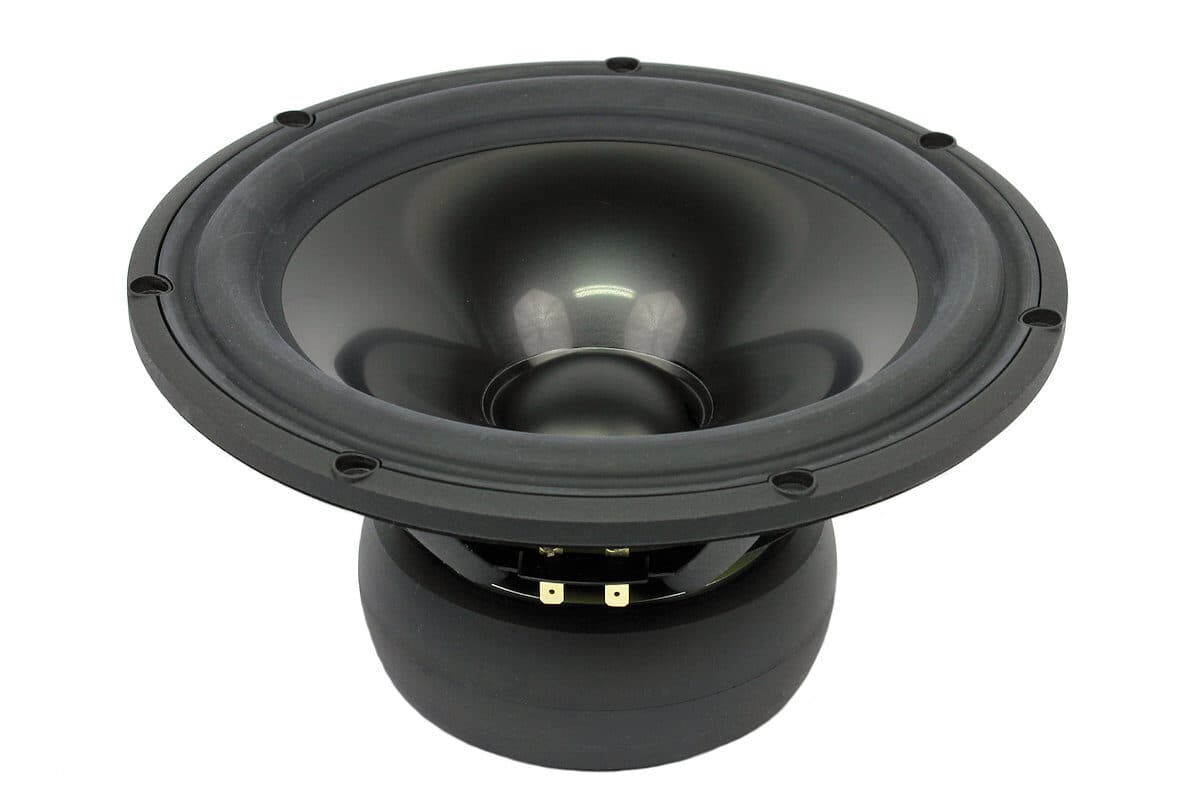

Scanspeak26W/4867T00
£243.83Fs18 Hz −28%, better
Qts0.29 +12%, worse
Vas220 L +57%, worse
BL8.3 T·m −27%, worse
Xmax9 mm +5%
Sensitivity88.2 dB −2.6, worse
Scanspeak26W/4558T00
£253.43Fs21 Hz −16%, better
Qts0.31 +19%, worse
Vas94.9 L −32%, better
BL10.5 T·m −7%
Xmax12.5 mm +45%, better
Sensitivity86.3 dB −4.5, worse

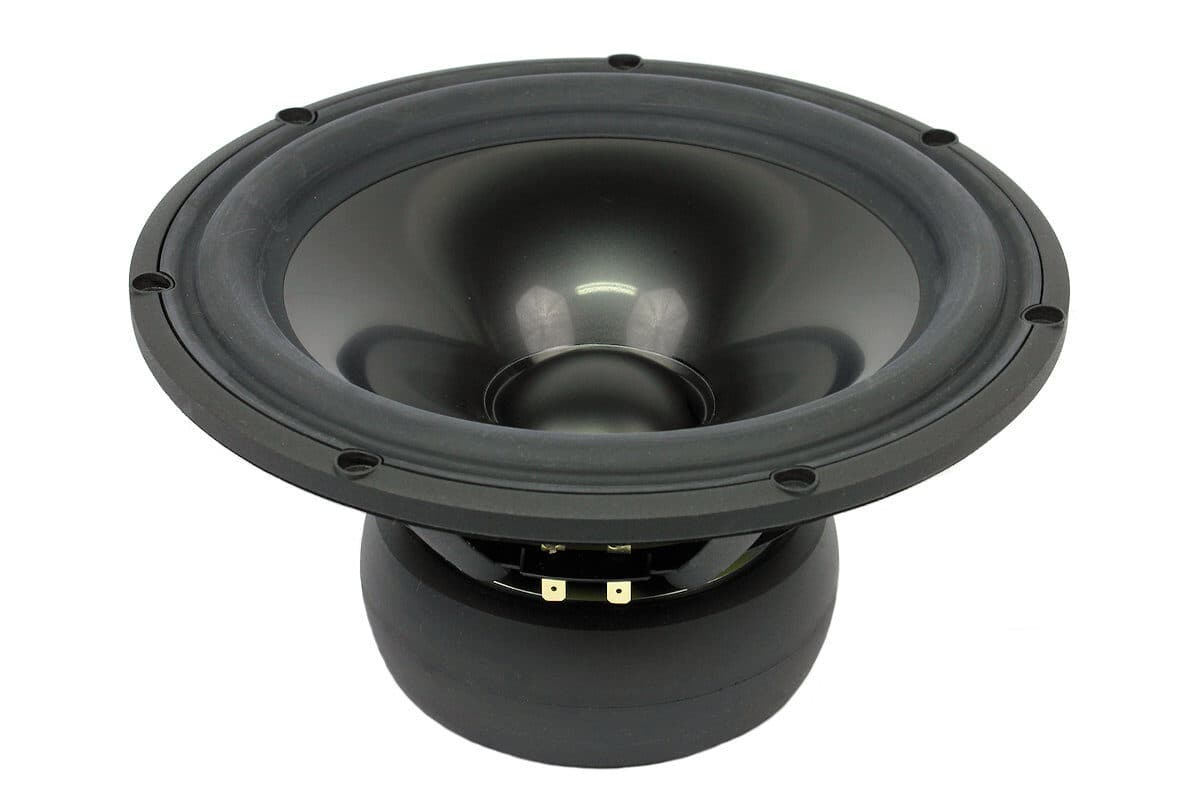

Scanspeak26W/8867T00
£330.52Fs19 Hz −24%, better
Qts0.29 +12%, worse
Vas176 L +26%, worse
BL11.2 T·m –
Xmax9 mm +5%
Sensitivity87.9 dB −2.9, worse
Scanspeak26W/8861T00
£339.00Fs19 Hz −24%, better
Qts0.31 +19%, worse
Vas231 L +65%, worse
BL9.9 T·m −12%, worse
Xmax9 mm +5%
Sensitivity88.8 dB −2, worse
Audio Technology23 I 52 20 06 SD
No current priceFs33 Hz +32%, worse
Qts0.26 –
Vas70 L −50%, better
BL10.0 T·m −12%, worse
Xmax8 mm −7%
Sensitivity91.3 dB +0.5
Audio Technology10 C 77 25 10 KAP
No current priceFs25 Hz –
Qts0.24 −8%
Vas118 L −16%, better
BL13.7 T·m +21%, better
Xmax8.6 mm –
Sensitivity90.7 dB –
ETON11-612/C8/50 RP
No current priceFs24 Hz −4%
Qts0.29 +12%, worse
Vas152 L +9%
BL11.4 T·m –
Xmax5 mm −42%, worse
Sensitivity90.5 dB –
Dayton AudioRS270P-4A
No current priceFs23 Hz −8%
Qts0.27 +4%
Vas110.5 L −21%, better
BL10.9 T·m −4%
Xmax6 mm −30%, worse
Sensitivity87.9 dB −2.9, worse
Audio Technology23 I 52 17 06 SDKA 03
No current priceFs38 Hz +52%, worse
Qts0.25 −4%
Vas70 L −50%, better
BL9.7 T·m −14%, worse
Xmax6.3 mm −27%, worse
Sensitivity93.7 dB +2.9, better
Acoustic EleganceTD10M-4
No current priceFs40 Hz +60%, worse
Qts0.24 −8%
Vas59.2 L −58%, better
BL11.8 T·m +5%
Xmax6 mm −30%, worse
Sensitivity93.7 dB +2.9, better
Sica10 PN 3
No current priceFs48 Hz +92%, worse
Qts0.26 –
Vas40.1 L −71%, better
BL16.1 T·m +42%, better
Xmax7 mm −19%, worse
Sensitivity94.1 dB +3.3, better
PeerlessNCP-1030R02-08
No current priceFs45 Hz +80%, worse
Qts0.25 −4%
Vas20.9 L −85%, better
BL31.7 T·m +181%, better
Xmax9.3 mm +8%
Sensitivity90.8 dB –
KartesianWOM265_VKI-6
No current priceFs30 Hz +20%, worse
Qts0.34 +31%, worse
Vas114.6 L −18%, better
BL10.4 T·m −8%
Xmax10 mm +16%, better
Sensitivity91.3 dB +0.5
PRV Audio10MB500-4
No current priceFs56 Hz +122%, worse
Qts0.29 +12%, worse
Vas47.6 L −66%, better
BL12.3 T·m +8%
Xmax4.5 mm −48%, worse
Sensitivity96.4 dB +5.6, better
HiViD10.8
No current priceFs24 Hz −4%
Qts0.41 +58%, worse
Vas147.3 L +5%
BL13.4 T·m +19%, better
Xmax8 mm −7%
Sensitivity88.7 dB −2.1, worse
PRV AudioMT10W1200-NDY-4
No current priceFs47 Hz +88%, worse
Qts0.30 +15%, worse
Vas41.2 L −71%, better
BL12.3 T·m +9%
Xmax6.5 mm −24%, worse
Sensitivity93.4 dB +2.6, better
Sica10 S 3 PL
No current priceFs43 Hz +72%, worse
Qts0.27 +4%
Vas39.9 L −72%, better
BL16.9 T·m +49%, better
Xmax7 mm −19%, worse
Sensitivity92.6 dB +1.8
