10.5-inch LF driver · vKi series · 350 W
Kartesian WOM265_VKI-6 6Ω
6 Ω · 35–1500 Hz
No current price
- Fs
- 30Hz
- Xmax
- 10mm
- SPL
- 91dB
- Pe
- 350W
- BL
- 10.4T·m
- Vd
- 390cm³
- Qts
- 0.34
- Vas
- 115L

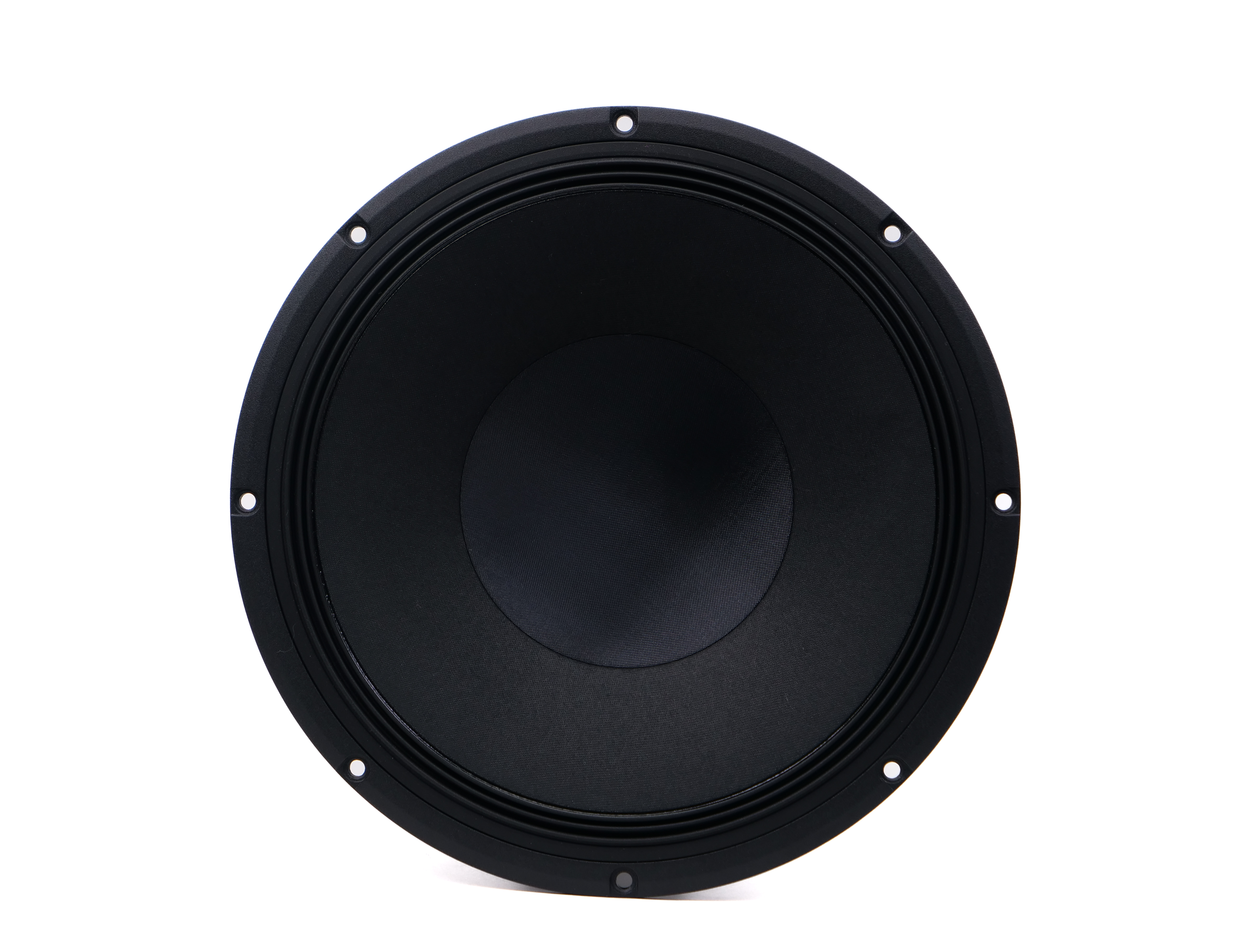

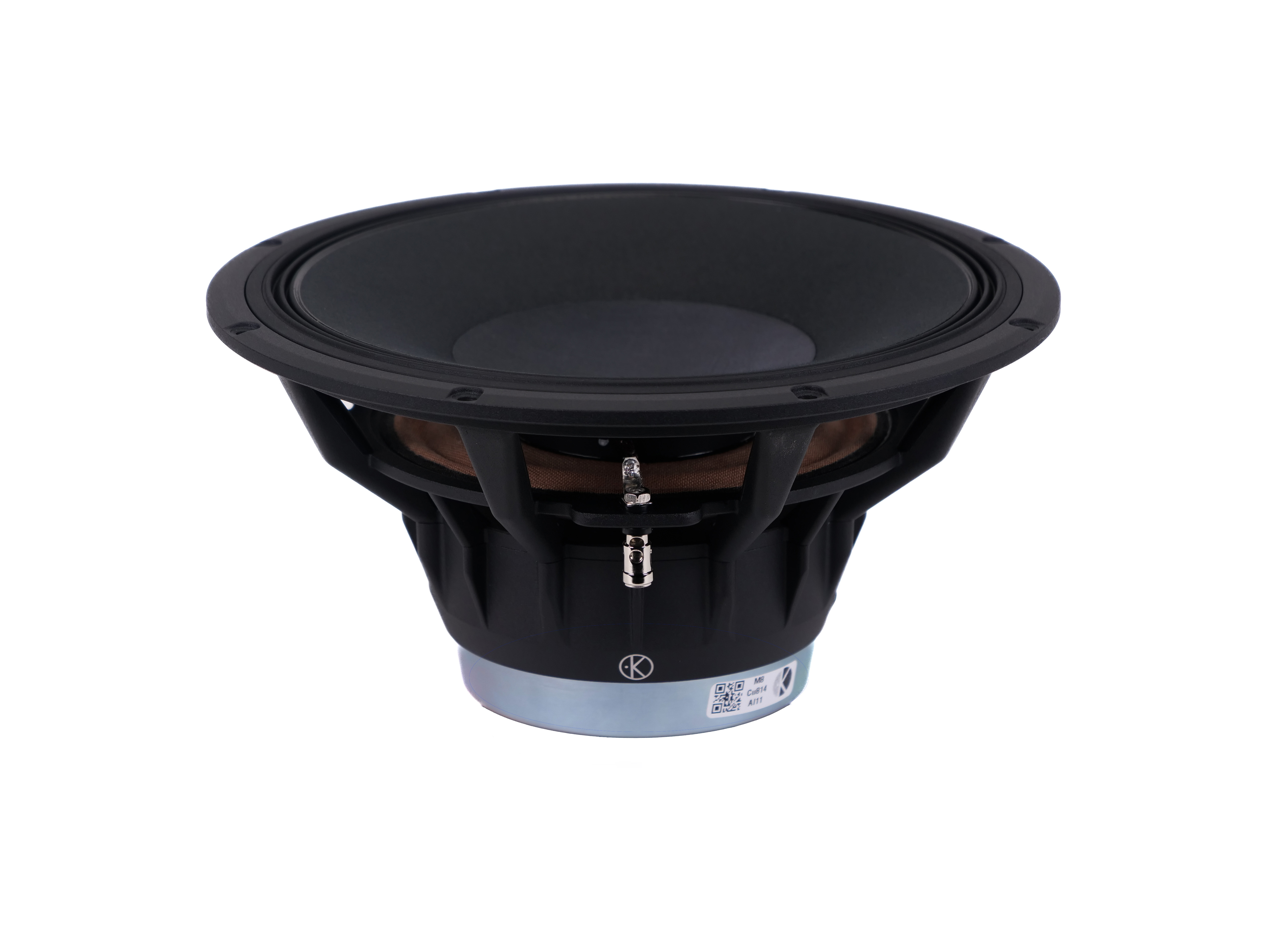

Kartesian WOM265_VKI-6 is a 10.5-inch 6 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 30 Hz, Qts 0.34, Vas 114.6 L, Xmax 10 mm, sensitivity 91.3 dB, plus 390 cm³ Vd and 81 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 30Hz
- Qts
- 0.34
- Qes
- 0.37
- Qms
- 4.8
- Vas
- 114.6L
- Re
- 4Ω
- Le
- 0.11mH
Motor and cone
- BL
- 10.4T·m
- Sd
- 390cm²
- Mms
- 53g
- Xmax
- 10mm
- Vd †
- 390cm³
Power and response
- Sensitivity †
- 91.3dB
- Manufacturer sensitivity
- 94dB
- Power
- 350W
- Impedance
- 6Ω
- Range
- 35–1500Hz
- EBP †
- 81 · Sealed or vented
Size and mounting
- Diameter
- 265mm
Other published values
- Rms
- 2.08kg/s
Sensitivity shows 91.3 dB, calculated from the T/S values. Kartesian publishes 94.0 dB, 2.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Kartesian lists
LF · Primary · 10.43307086614173″
- BL
- 10.4T·m
- Fs
- 30Hz
- Le
- 0.11mH
- Re
- 4Ω
- Sd
- 390cm²
- Mms
- 53g
- Qes
- 0.37
- Qms
- 4.8
- Qts
- 0.34
- Rms
- 2.08kg/s
- SPL
- 91.3dB
- Vas
- 114.6L
- Xmax
- 10mm
- Power
- 350W
- Impedance
- 6Ω
- Sensitivity
- 94dB
- Low limit
- 35Hz
- Calculated sensitivity †
- 91.3dB
- High limit
- 1500Hz
- Manufacturer sensitivity
- 94dB
- Diameter
- 265mm
